Exam

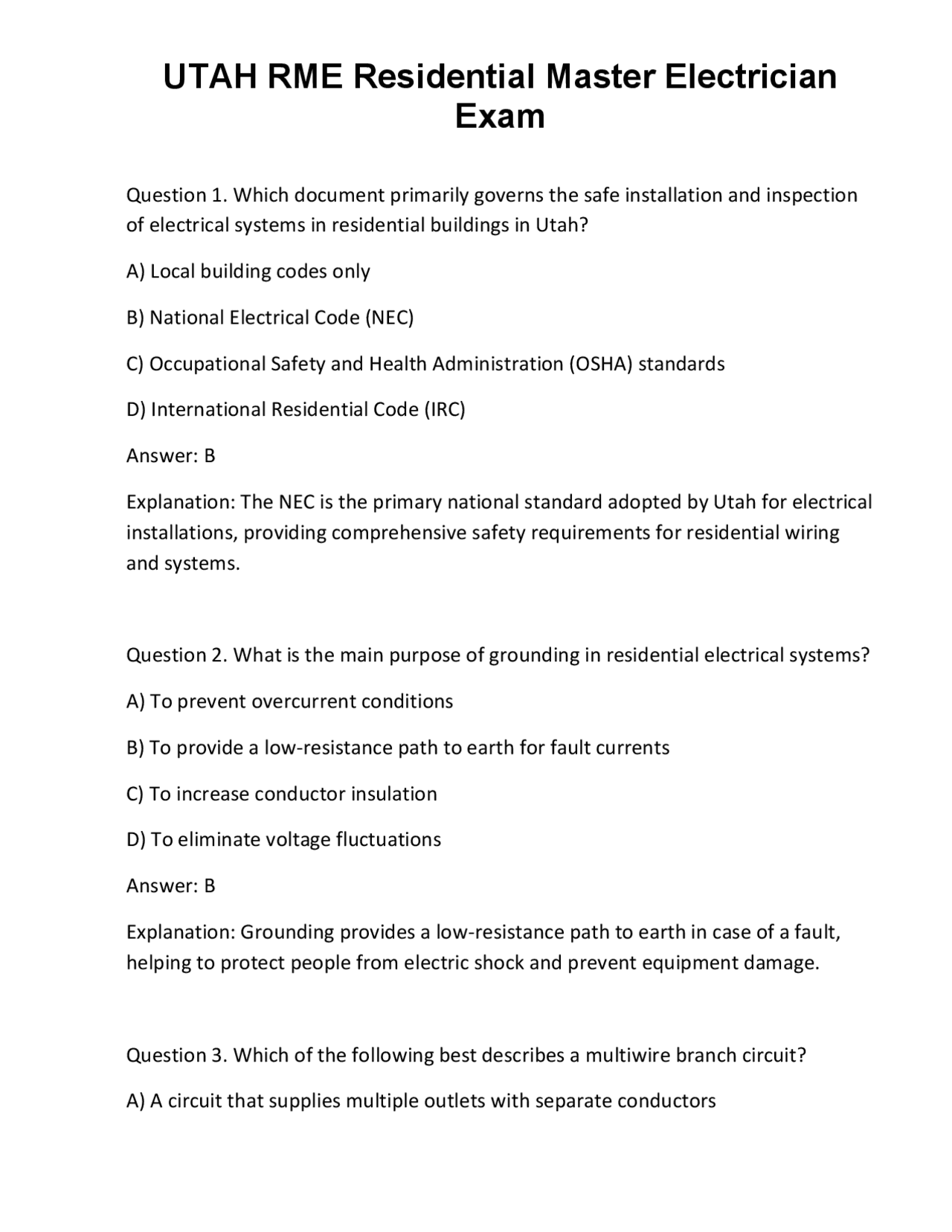

Question 1. Which document primarily governs the safe installation and inspection of electrical systems in residential buildings in Utah? A) Local building codes only B) National Electrical Code (NEC) C) Occupational Safety and Health Administration (OSHA) standards D) International Residential Code (IRC) Answer: B Explanation: The NEC is the primary national standard adopted by Utah for electrical installations, providing comprehensive safety requirements for residential wiring and systems. Question 2. What is the main purpose of grounding in residential electrical systems? A) To prevent overcurrent conditions B) To provide a low-resistance path to earth for fault currents C) To increase conductor insulation D) To eliminate voltage fluctuations Answer: B Explanation: Grounding provides a low-resistance path to earth in case of a fault, helping to protect people from electric shock and prevent equipment damage. Question 3. Which of the following best describes a multiwire branch circuit? A) A circuit that supplies multiple outlets with separate conductors
Exam
B) A circuit that uses a single conductor for multiple outlets C) A branch circuit serving multiple 120V loads with a common neutral D) A circuit dedicated solely to a single appliance Answer: C Explanation: A multiwire branch circuit involves two or more ungrounded conductors sharing a common neutral, typically for balanced loads, complying with NEC requirements. Question 4. When sizing service conductors for a dwelling, which factor is most critical? A) Number of outlets B) Total calculated load including general lighting and appliances C) Length of the conductors D) Number of branch circuits Answer: B Explanation: The service conductors must be sized based on the total calculated load of the dwelling, including lighting, receptacles, and fixed appliances, to ensure safety and compliance. Question 5. Which type of conduit is suitable for wet, underground residential wiring? A) EMT
Exam
D) Limits current to a safe level Answer: B Explanation: GFCIs detect ground faults by monitoring current flow and trip instantly if imbalance occurs, preventing electric shocks. Question 8. When installing a receptacle in a damp location, which wiring method is most appropriate? A) NM cable B) Rigid metal conduit with proper fittings C) Open wiring D) Exposed wiring Answer: B Explanation: Rigid metal conduit provides a durable, water-resistant conduit suitable for damp locations, ensuring safety and code compliance. Question 9. Which of the following is a correct practice when installing conductors in a residential wiring system? A) Support conductors only at the ends B) Use the largest possible conductor regardless of load C) Secure conductors at intervals specified by the NEC D) Avoid using connectors or fittings Answer: C
Exam
Explanation: Conductors must be supported and secured at intervals specified in NEC (typically every 4.5 feet for NM cable) to prevent mechanical damage. Question 10. Which device is used to protect a branch circuit from overcurrent? A) Grounding rod B) Circuit breaker C) Insulation resistance tester D) Voltage regulator Answer: B Explanation: Circuit breakers automatically trip when current exceeds their rated capacity, protecting conductors and devices from damage. Question 11. What is the proper identification color for a grounded (neutral) conductor in residential wiring? A) Black B) Red C) White or Gray D) Green Answer: C Explanation: Neutral conductors are identified by white or gray insulation, distinguishing them from ungrounded (hot) conductors.
Exam
Question 14. Which is an acceptable method for securing NM cable in residential wiring? A) Taping it to walls without supports B) Using cable staples at intervals not exceeding 4.5 feet C) Bending it around sharp corners without fittings D) Running it freely across ceilings without support Answer: B Explanation: NM cable must be secured with staples or straps at intervals not exceeding 4.5 feet, per NEC requirements. Question 15. Which of the following is a typical application for flexible cords in residential settings? A) Permanent wiring inside walls B) Temporary extension from fixed outlets to appliances C) Branch circuit wiring in conduit D) Underground service conductors Answer: B Explanation: Flexible cords are generally used for temporary power connections or appliances, not as permanent wiring inside walls. Question 16. When installing a 120V receptacle in a kitchen countertop, what type of outlet is recommended?
Exam
A) Standard receptacle B) GFCI receptacle C) AFCI receptacle D) Twist-lock receptacle Answer: B Explanation: GFCI protection is required in kitchen countertops to prevent electrical shock hazards in wet areas. Question 17. Which of the following best describes the role of a bonding jumper in a residential electrical system? A) To connect grounded metal parts to the grounding system B) To isolate circuits for safety C) To increase conductor capacity D) To prevent overcurrent Answer: A Explanation: Bonding jumpers connect metal parts like water piping to the grounding system, ensuring proper grounding and fault path continuity. Question 18. What is the typical voltage rating for residential branch circuits in Utah? A) 120V only B) 120V or 240V
Exam
Answer: B Explanation: The load calculation depends on the rated wattage or current of the water heater to size conductors and overcurrent protection properly. Question 21. In a residential electrical system, what is the purpose of a main bonding jumper? A) To connect the grounding system to the neutral bus B) To connect the grounding system to the metal water piping C) To connect all ungrounded conductors D) To provide a path for surplus current Answer: A Explanation: The main bonding jumper connects the grounded (neutral) conductor to the grounding system at the main service, ensuring proper grounding and fault clearing. Question 22. Which of the following is a common method for calculating conduit fill in residential wiring? A) Using NEC tables based on conductor sizes and conduit type B) Estimating based on experience C) Using the smallest conductor size available D) Counting the number of wires visually Answer: A
Exam
Explanation: NEC tables provide standardized methods for conduit fill calculations based on conductor sizes and conduit types to ensure proper capacity. Question 23. Which type of motor is most common in residential HVAC systems? A) Induction motor B) Synchronous motor C) Universal motor D) Universal motor with brushes Answer: A Explanation: Induction motors are commonly used in residential HVAC systems because of their durability, efficiency, and simplicity. Question 24. How should a master electrician interpret a residential electrical plan that uses symbols for a three-way switch? A) As a single-pole switch B) As a switch that controls a light from two locations C) As a dimmer switch only D) As a circuit breaker Answer: B Explanation: A three-way switch symbol indicates a switch that controls a load from two different locations, common in stairways and large rooms.
Exam
B) Listed in the manufacturer's catalog C) Used in previous installations D) Approved by the owner Answer: A Explanation: "Approved" means the method, material, or equipment is accepted by the Authority Having Jurisdiction (AHJ) as suitable for use in a specific application. Question 28. Which of the following is a primary function of a GFCI in a residential circuit? A) To prevent overloads B) To trip on detecting imbalance in current flow C) To provide surge protection D) To regulate voltage Answer: B Explanation: GFCIs trip when they detect imbalance between hot and neutral currents, preventing electric shock hazards. Question 29. How does the NEC define a dwelling unit? A) A single-family residence only B) A building or portion thereof used as a home, including single-family and multi- family residences C) Any building with electrical wiring
Exam
D) A commercial unit with residential features Answer: B Explanation: The NEC defines a dwelling unit as a building or part of a building used as a home, including single-family, multi-family, and manufactured homes. Question 30. When installing conductors in a residential service panel, what is the proper method for identifying ungrounded and grounded conductors? A) Both are black B) Ungrounded conductors are black or red; grounded (neutral) conductors are white or gray C) Both are white D) Grounded conductors are green or bare copper; ungrounded are red Answer: B Explanation: Ungrounded conductors are typically black or red, while grounded (neutral) conductors are white or gray, per NEC color coding. Question 31. What is the typical purpose of a fuse in residential wiring? A) To provide a permanent connection B) To protect against overcurrent by melting and opening the circuit C) To regulate voltage D) To switch circuits on and off Answer: B
Exam
Question 34. What is the main purpose of a disconnect switch in a residential HVAC motor circuit? A) To control the motor speed B) To disconnect power for maintenance or emergency C) To regulate temperature D) To provide overcurrent protection Answer: B Explanation: Disconnect switches allow safe disconnection of power for maintenance or emergency shutdown. Question 35. Which type of wiring method is generally preferred for interior residential lighting circuits? A) Open wiring on surface B) NM cable (non-metallic sheathed cable) C) Exposed conduit D) Open wiring in outlet boxes Answer: B Explanation: NM cable is commonly used inside residences for lighting circuits due to its ease of installation and code compliance.
Exam
Question 36. When installing a GFCI receptacle in a bathroom, what is required for proper wiring? A) It must be wired to a dedicated circuit B) It must be wired on a circuit with AFCI protection C) It must be supplied from a branch circuit with GFCI protection or be a GFCI receptacle itself D) It can be wired in any circuit without restrictions Answer: C Explanation: GFCIs in bathrooms must be supplied from a circuit with GFCI protection, or be a GFCI receptacle itself, to meet NEC safety requirements. Question 37. Which type of conduit is most flexible for residential applications requiring tight bends? A) EMT B) Flexible metallic conduit (FM) C) PVC conduit D) Rigid non-metallic conduit Answer: B Explanation: Flexible metallic conduit (FM) is designed for ease of bending and installation around obstacles in residential settings. Question 38. What is the purpose of a service entrance disconnecting means?
Exam
C) To protect against overcurrent D) To serve as a conduit bend Answer: A Explanation: Junction boxes provide a safe enclosure for splicing conductors and facilitate future wiring modifications. Question 41. Which NEC article covers the requirements for branch circuits in dwelling units? A) Article 210 B) Article 240 C) Article 300 D) Article 430 Answer: A Explanation: Article 210 addresses branch circuit requirements, including those specific to dwelling units. Question 42. When installing a new circuit, what is the minimum depth of a residential electrical box according to NEC? A) 1/2 inch B) 1 1/4 inches C) 2 inches D) 3 inches
Exam
Answer: B Explanation: NEC specifies a minimum depth of 1 1/4 inches for box volume to accommodate conductors and devices safely. Question 43. Which material is most commonly used for residential grounding electrodes? A) Copper wire B) Steel rebar C) Copper or steel grounding rods D) Aluminum conductors Answer: C Explanation: Copper or steel grounding rods are commonly used as grounding electrodes in residential systems. Question 44. For a 15-ampere circuit in residential wiring, what is the maximum size conductor permitted without correction factors? A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: A
