Utah (UT) JE Journeyman Electrician Practice Exam

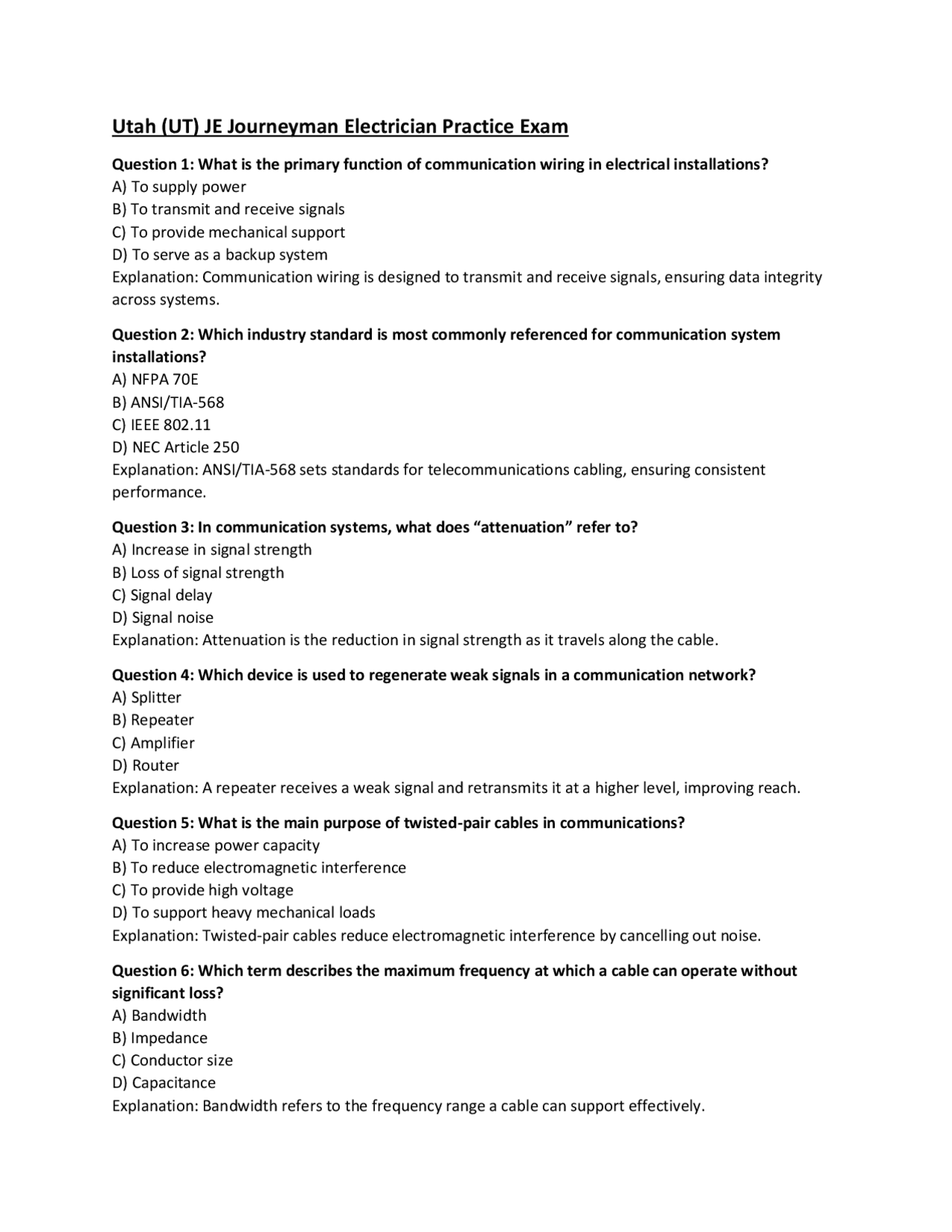

Question 1: What is the primary function of communication wiring in electrical installations? A) To supply power B) To transmit and receive signals C) To provide mechanical support D) To serve as a backup system Explanation: Communication wiring is designed to transmit and receive signals, ensuring data integrity across systems. Question 2: Which industry standard is most commonly referenced for communication system installations? A) NFPA 70E B) ANSI/TIA- 568 C) IEEE 802. D) NEC Article 250 Explanation: ANSI/TIA-568 sets standards for telecommunications cabling, ensuring consistent performance. Question 3: In communication systems, what does “attenuation” refer to? A) Increase in signal strength B) Loss of signal strength C) Signal delay D) Signal noise Explanation: Attenuation is the reduction in signal strength as it travels along the cable. Question 4: Which device is used to regenerate weak signals in a communication network? A) Splitter B) Repeater C) Amplifier D) Router Explanation: A repeater receives a weak signal and retransmits it at a higher level, improving reach. Question 5: What is the main purpose of twisted-pair cables in communications? A) To increase power capacity B) To reduce electromagnetic interference C) To provide high voltage D) To support heavy mechanical loads Explanation: Twisted-pair cables reduce electromagnetic interference by cancelling out noise. Question 6: Which term describes the maximum frequency at which a cable can operate without significant loss? A) Bandwidth B) Impedance C) Conductor size D) Capacitance Explanation: Bandwidth refers to the frequency range a cable can support effectively.
Question 7: When installing communication equipment, why is proper cable routing essential? A) To increase physical strength B) To prevent signal interference C) To allow extra current D) To avoid overcurrent protection Explanation: Correct cable routing minimizes interference and maintains signal integrity. Question 8: What is a primary consideration when selecting cables for outdoor communications systems? A) Color coding B) UV resistance and weatherproofing C) Length only D) Conductor twisting method Explanation: Outdoor cables must resist UV exposure and weather conditions to maintain performance. Question 9: In signal transmission, what does the term “bandwidth” refer to? A) The physical thickness of the cable B) The data carrying capacity of the channel C) The voltage rating D) The conductor material quality Explanation: Bandwidth is the measure of data capacity that a communication channel can support. Question 10: How does proper termination of communication cables affect performance? A) It reduces the cable’s life span B) It prevents signal reflections C) It increases power consumption D) It decreases cable flexibility Explanation: Proper termination minimizes signal reflections that can distort the transmitted data. Question 11: Which factor is critical for ensuring signal integrity in high-frequency applications? A) Conductor color B) Impedance matching C) Cable length D) Ambient temperature Explanation: Impedance matching is crucial to avoid signal reflections and losses in high-frequency circuits. Question 12: What safety standard applies specifically to communication system installations? A) OSHA 1910 B) NEC Article 800 C) NFPA 1 D) IEEE 1584 Explanation: NEC Article 800 covers communications circuits and is vital for safety in these installations. Question 13: What does “cross-talk” in communication wiring describe? A) The desired transmission of signals B) Unwanted transfer of signals between circuits
Question 20: Which tool is essential for testing the integrity of communication cabling? A) Multimeter B) Cable tester C) Oscilloscope D) Voltage detector Explanation: A cable tester is specifically designed to verify continuity and proper wiring in communication cables. Question 21: What is the primary difference between UTP and STP cables? A) Color of the jacket B) Presence of shielding C) Number of conductors D) Conductor material Explanation: STP (Shielded Twisted Pair) cables include shielding to reduce interference, unlike UTP cables. Question 22: How does cable impedance affect communication system performance? A) It determines cable flexibility B) It affects signal matching and minimizes reflections C) It only affects physical installation D) It sets the cable’s color code Explanation: Matching cable impedance ensures that signals are transmitted without significant reflections, preserving data integrity. Question 23: What role does a balun play in communication systems? A) It increases power load B) It converts between balanced and unbalanced signals C) It filters noise D) It acts as a surge protector Explanation: A balun converts balanced signals to unbalanced ones (and vice versa), which is essential in some communications setups. Question 24: Which factor is least important when designing a communications wiring system? A) Signal frequency B) Physical cable routing C) Conductor weight D) Interference sources Explanation: Conductor weight is not a design parameter for signal performance, whereas frequency, routing, and interference are critical. Question 25: For outdoor communication systems, which certification is most critical? A) UL listing for flammability B) Weatherproof and UV-resistant ratings C) Energy efficiency rating D) Electrical continuity rating Explanation: Outdoor systems must be weatherproof and UV-resistant to ensure longevity and performance in harsh conditions.
–––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Question 26: Which factor is essential when selecting conductors for electrical loads? A) Cable color B) Ampacity ratings C) Connector style D) Installation location only Explanation: Ampacity ratings ensure that conductors safely handle the expected load current. Question 27: What does the term “conductor” refer to in electrical systems? A) An insulating material B) A material that allows the flow of electrical current C) A grounding device D) A type of conduit Explanation: Conductors are materials that permit the flow of electrical current, such as copper or aluminum. Question 28: How is the appropriate conductor size determined? A) By its length only B) Based on current load and installation conditions C) By the installation tool used D) Through color-coding Explanation: The conductor size is selected according to the current load and environmental factors to prevent overheating. Question 29: Which property of a conductor directly impacts its resistance? A) Its insulation color B) Its cross-sectional area and material C) Its installation method D) Its ambient temperature Explanation: A conductor’s resistance is determined by its material type and cross-sectional area, with larger areas reducing resistance. Question 30: What is the most common material used for electrical conductors in building wiring? A) Aluminum only B) Copper C) Silver D) Steel Explanation: Copper is widely used due to its excellent conductivity and durability. Question 31: Which type of cable is typically used for branch circuit wiring? A) Coaxial cable B) NM (nonmetallic-sheathed) cable C) Fiber optic cable D) Communication cable Explanation: NM cable is common in residential branch circuit wiring due to its ease of installation and cost-effectiveness.
Question 38: Which characteristic of a cable is most critical for its longevity in an industrial setting? A) Its brand B) Its insulation and jacket quality C) Its color D) Its packaging Explanation: High-quality insulation and jacket materials ensure durability in harsh industrial environments. Question 39: In conductor selection, what does “ampacity” mean? A) The maximum current a conductor can carry safely B) The physical diameter of the conductor C) The voltage drop across the conductor D) The insulation thickness Explanation: Ampacity is the maximum amount of current a conductor can carry without overheating. Question 40: Which testing method is used to ensure proper conductor insulation integrity? A) Visual inspection only B) Dielectric testing C) Physical bending tests D) Weight measurement Explanation: Dielectric testing verifies the insulation’s ability to resist electrical breakdown under operating conditions. Question 41: What factor is least likely to influence the selection of conductors? A) The expected load B) Ambient temperature C) Cable market price D) Installation environment Explanation: While cost is a consideration, the electrical and environmental factors are more critical for safe conductor selection. Question 42: Which installation method reduces the risk of conductor damage? A) Running wires exposed on ceilings B) Using conduits or cable trays C) Bundling all wires without protection D) Leaving wires in open air Explanation: Conduits and cable trays protect conductors from mechanical damage and environmental hazards. Question 43: What does “cable sizing” primarily depend on? A) The length of the cable run B) The current-carrying capacity required C) The installer’s preference D) The type of connectors used Explanation: Cable sizing is dictated by the current load it must carry, ensuring safe operation without overheating.
Question 44: Which property of insulation is most important for low-voltage circuits? A) Flame resistance B) Dielectric strength C) Color variety D) Weight Explanation: Dielectric strength ensures that the insulation can withstand the voltage without breaking down. Question 45: How does cable bundling affect conductor performance? A) It increases conductivity B) It can cause heat buildup and require derating C) It enhances mechanical strength D) It eliminates the need for conduits Explanation: Bundling cables together can lead to heat buildup, necessitating derating of the conductors’ ampacity. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Question 46: Which term defines an electrical installation’s basic language? A) Schematic B) Definitions and general requirements C) Wiring diagram D) Installation manual Explanation: Understanding definitions and general requirements is crucial for establishing a common language in electrical installations. Question 47: What does the term “ampacity” mean in electrical terminology? A) The voltage level B) The maximum current a conductor can safely carry C) The insulation type D) The wiring layout Explanation: Ampacity is the rating that defines the safe current-carrying capability of a conductor. Question 48: Which document typically outlines the general requirements for electrical installations? A) Product brochure B) National Electrical Code (NEC) C) Marketing flyer D) Consumer manual Explanation: The NEC provides comprehensive requirements for safe electrical installations. Question 49: In electrical work, what is the purpose of safety protocols? A) To increase productivity only B) To protect workers and equipment from hazards C) To extend working hours D) To simplify the installation process Explanation: Safety protocols are established to minimize hazards and protect both workers and equipment.
Question 56: What does the term “NEC” stand for? A) National Electrical Code B) National Energy Commission C) New Equipment Circuitry D) Non-Essential Conductors Explanation: NEC stands for National Electrical Code, which is the benchmark for safe electrical design and installation. Question 57: What is one of the general requirements for all electrical installations? A) Use of proprietary connectors only B) Compliance with safety protocols C) Installation during daytime only D) Use of unapproved materials Explanation: Safety protocols are universally required to protect both installers and users. Question 58: How does clear documentation benefit electrical installations? A) It increases complexity B) It facilitates maintenance and troubleshooting C) It restricts future modifications D) It is only for inspection purposes Explanation: Detailed documentation helps future maintenance work and ensures compliance during inspections. Question 59: What is the primary goal of electrical code definitions? A) To limit contractor options B) To provide a common framework for understanding and application C) To reduce installation times D) To increase regulatory fees Explanation: A common framework ensures that everyone involved in electrical work has a shared understanding of key terms. Question 60: Which of the following is most important when reviewing general electrical requirements? A) The installation schedule B) The applicable electrical code and standards C) The building’s architectural style D) The installer’s personal preferences Explanation: Adherence to the applicable electrical code is paramount to ensure safety and legal compliance. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Question 61: What is the main purpose of grounding in electrical systems? A) To improve signal quality B) To provide a safe path for fault currents C) To increase voltage levels D) To support cable bundles
Explanation: Grounding ensures that fault currents have a safe path to earth, protecting both people and equipment. Question 62: Which method is most commonly used to ground electrical equipment? A) Using plastic conduits B) Installing a grounding electrode system C) Doubling conductor size D) Adding extra insulation Explanation: A grounding electrode system is a standard method to safely dissipate fault currents to earth. Question 63: In electrical systems, what is bonding? A) The process of insulating wires B) The connection of conductive parts to maintain the same electrical potential C) A type of overcurrent protection D) A method for cable bundling Explanation: Bonding connects various conductive parts so that they maintain the same potential, reducing shock hazards. Question 64: Which material is most effective for grounding conductors? A) Aluminum B) Copper C) Plastic D) Rubber Explanation: Copper is widely used for grounding due to its high conductivity and resistance to corrosion. Question 65: Why is proper grounding important for surge protection? A) It eliminates the need for circuit breakers B) It provides a direct path for lightning and surges to dissipate safely C) It increases system voltage D) It limits conductor length Explanation: Grounding channels surges safely to earth, protecting sensitive electronic components from damage. Question 66: What is a common sign of improper grounding in an electrical installation? A) Dim lighting B) Voltage fluctuations and stray currents C) Excessive cable insulation D) Increased cable color variations Explanation: Voltage fluctuations and stray currents are indicative of poor or missing grounding connections. Question 67: How does bonding improve safety in electrical systems? A) By isolating conductive parts B) By equalizing electrical potential between metallic components C) By increasing voltage ratings
D) Using a hammer test Explanation: Electrical testing (such as continuity and resistance measurements) confirms proper grounding and bonding. Question 74: What role does the earth play in an electrical grounding system? A) It amplifies electrical signals B) It serves as a reference point for voltage C) It limits cable length D) It increases current flow Explanation: The earth acts as a reference point and safe discharge area for fault currents. Question 75: Which of the following is a critical component in a grounding system? A) Overcurrent device B) Grounding electrode C) Signal amplifier D) Conduit clamp Explanation: A grounding electrode is essential for connecting the electrical system to the earth and safely dissipating fault currents. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Question 76: What is the primary consideration when selecting lighting fixtures for an installation? A) Their brand name B) Compatibility with the circuit’s voltage and load C) The installer’s personal taste D) The size of the room only Explanation: Fixtures must match the circuit’s electrical specifications to ensure safe and effective operation. Question 77: Which lighting control device is used to adjust light intensity? A) Circuit breaker B) Dimmer switch C) Ground fault interrupter D) Surge protector Explanation: Dimmer switches control light intensity by varying the voltage supplied to the fixture. Question 78: What does “general use equipment” refer to in electrical installations? A) Equipment used exclusively in industrial settings B) Equipment commonly found in various installations for everyday functions C) Equipment reserved for emergencies only D) Only lighting devices Explanation: General use equipment includes a wide range of devices found in most installations, from lighting to outlets. Question 79: How can one ensure proper maintenance of lighting systems? A) By using disposable fixtures B) Through regular inspections and cleaning C) By reducing the number of bulbs
D) By eliminating dimmer switches Explanation: Regular maintenance, including inspections and cleaning, helps extend the life and reliability of lighting systems. Question 80: Which factor most affects the energy efficiency of lighting installations? A) Fixture color B) The type of light source (e.g., LED vs. incandescent) C) The mounting height D) The wiring method Explanation: LED and other energy-efficient light sources significantly reduce energy consumption compared to older technologies. Question 81: What is the advantage of using integrated lighting controls? A) Increased installation complexity B) Enhanced energy management and convenience C) Higher maintenance costs D) Reduced fixture lifespan Explanation: Integrated controls allow for better energy management and operational convenience by automating lighting functions. Question 82: Which type of lighting fixture is typically used in damp or wet locations? A) Open-faced fixtures B) Wet-location rated fixtures C) Standard incandescent lamps D) Fluorescent tubes without protection Explanation: Wet-location rated fixtures are designed to operate safely in environments where moisture is present. Question 83: What is the role of a ballast in fluorescent lighting systems? A) To provide physical support B) To regulate the current to the lamp C) To cool the lamp D) To insulate the wiring Explanation: A ballast limits and regulates the current supplied to a fluorescent lamp, ensuring proper operation. Question 84: Why is fixture placement critical in lighting design? A) It only affects the aesthetics B) It ensures even illumination and reduces glare C) It increases the need for extra wiring D) It is solely for compliance documentation Explanation: Correct fixture placement ensures that spaces are evenly lit and minimizes issues like glare or shadowing. Question 85: What safety feature is often integrated into modern lighting fixtures? A) Extra heavy metal housing B) Thermal protection circuitry
D) Environmental factors Explanation: Over-insulation is not typically a cause of lighting failure; issues like faulty ballasts or poor connections are more common. –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––– Question 92: What is the primary role of a motor controller in an electrical system? A) To physically support the motor B) To regulate motor speed and provide protection C) To serve as a power source D) To convert AC to DC exclusively Explanation: Motor controllers regulate speed, start/stop functions, and protect motors from overloads. Question 93: Which component is essential for starting an electric motor? A) A dimmer switch B) A contactor or starter C) A cable tray D) A lighting ballast Explanation: Contactors or starters are used to safely initiate the operation of electric motors. Question 94: In motor installations, why is proper wiring critical? A) It only affects aesthetics B) It ensures efficient operation and prevents faults C) It increases the motor’s physical weight D) It reduces the need for maintenance Explanation: Correct wiring ensures that motors run efficiently and safely while minimizing the risk of electrical faults. Question 95: Which type of motor is most commonly used in industrial applications? A) Universal motor B) Three-phase induction motor C) Stepper motor D) Synchronous motor Explanation: Three-phase induction motors are widely used in industry due to their robustness and efficiency. Question 96: What is the function of overload protection in a motor control circuit? A) To increase motor speed B) To shut down the motor in the event of excessive current C) To provide additional power D) To alter wiring configurations Explanation: Overload protection devices disconnect the motor if current exceeds safe levels, preventing damage. Question 97: How does a variable frequency drive (VFD) benefit motor operation? A) It fixes the motor’s speed permanently B) It allows adjustable speed control and energy savings C) It increases motor noise
D) It eliminates the need for wiring Explanation: A VFD provides precise speed control and can significantly improve energy efficiency. Question 98: Which safety feature is typically integrated into motor controllers? A) Auto-dimming functionality B) Thermal overload protection C) Increased ambient temperature D) Lower conductor ratings Explanation: Thermal overload protection in motor controllers prevents damage by shutting down the motor when overheating occurs. Question 99: What is the significance of motor duty cycle ratings? A) They determine the color of the motor housing B) They indicate the motor’s operational duration and rest periods C) They set the price of the motor D) They influence the cable type used Explanation: Duty cycle ratings define how long a motor can run continuously and the required rest intervals to avoid overheating. Question 100: What does “locked rotor current” refer to in motor operation? A) The current when the motor is operating normally B) The high current drawn when the motor is starting or stalled C) The current after the motor stops D) A measurement of insulation resistance Explanation: Locked rotor current is the high initial current drawn during start-up or when a motor is stalled. Question 101: Which of the following best describes a soft starter? A) A device that increases the starting torque B) A device that gradually ramps up voltage to reduce mechanical stress C) A device that permanently lowers motor speed D) A device used solely for overcurrent protection Explanation: Soft starters help reduce mechanical and electrical stress by gradually increasing the voltage to the motor during start-up. Question 102: How do motor controllers contribute to energy savings? A) By keeping motors running at full speed continuously B) By adjusting speed and load based on demand C) By eliminating the need for maintenance D) By reducing cable insulation Explanation: By matching motor speed and load to the actual demand, controllers help reduce energy consumption. Question 103: What is one reason why improper motor wiring can lead to motor failure? A) It increases the motor’s lifespan B) It may cause imbalanced currents and overheating C) It makes the motor run cooler
C) The wiring method used D) The installation height Explanation: The trip curve shows how quickly a breaker will respond to various levels of overcurrent. Question 110: Why is coordination between overcurrent devices important? A) It is only for aesthetic purposes B) To ensure that the correct device interrupts a fault without unnecessary power loss C) It reduces the number of devices required D) It increases the installation cost Explanation: Proper coordination ensures that only the device closest to a fault interrupts the circuit, preserving system operation elsewhere. Question 111: What is the function of a fuse in an electrical circuit? A) To permanently connect circuits B) To melt and break the circuit when excessive current flows C) To improve the circuit’s energy efficiency D) To regulate voltage only Explanation: A fuse is designed to melt when current exceeds safe levels, thereby breaking the circuit and preventing damage. Question 112: Which factor is not directly considered when selecting an overcurrent protection device? A) Load current B) Ambient temperature C) Conductor material color D) Short-circuit current rating Explanation: The color of the conductor material is irrelevant to overcurrent device selection. Question 113: How does ambient temperature affect overcurrent protection? A) It has no effect B) It may require adjustments in the device’s rating C) It changes the device’s physical size D) It increases the number of poles required Explanation: High ambient temperatures can affect the performance of overcurrent devices, often necessitating derating. Question 114: What is a “ground fault circuit interrupter” (GFCI) designed to do? A) Increase voltage supply B) Detect and interrupt ground faults quickly C) Provide surge protection D) Regulate current flow under normal conditions Explanation: A GFCI monitors the current balance and trips when it detects a ground fault, preventing shock hazards. Question 115: Which of the following best describes an adjustable thermal breaker? A) A device that adjusts light intensity B) A breaker that can be set to trip at specific temperatures
C) A component used only in low-voltage circuits D) A non-resettable protective device Explanation: Adjustable thermal breakers allow settings to be tailored for the specific thermal conditions of the circuit. Question 116: What role do circuit breakers play in residential electrical safety? A) They primarily serve as decorative items B) They protect wiring and appliances by disconnecting power during faults C) They amplify the current D) They serve as grounding devices Explanation: Circuit breakers protect circuits by interrupting the flow of electricity when excessive current is detected. Question 117: Which device is most appropriate for protecting branch circuits from overcurrent? A) A soft starter B) A miniature circuit breaker (MCB) C) A contactor D) A voltage regulator Explanation: MCBs are commonly used for branch circuit protection due to their sensitivity and rapid response to overcurrent conditions. Question 118: How is a “short-circuit” condition best described? A) Normal operation of a circuit B) An unintended low-resistance connection causing excessive current flow C) A gradual voltage drop D) A controlled energy release Explanation: A short-circuit occurs when there is an unintended, low-resistance connection that allows a large current to flow, potentially causing damage. Question 119: What is one key characteristic of an effective overcurrent protection device? A) High resistance B) Fast-acting interruption of excess current C) Low cost only D) Minimal physical size Explanation: Fast-acting devices quickly disconnect the circuit when overcurrent is detected, thereby protecting the system. Question 120: Why is regular testing of overcurrent protection devices important? A) To update the device’s color B) To ensure they operate correctly in case of a fault C) To improve aesthetic appeal D) To reduce the need for grounding Explanation: Regular testing verifies that overcurrent devices function properly and can protect the circuit when needed. Question 121: Which parameter is not typically adjusted in an overcurrent protection device? A) Current rating
