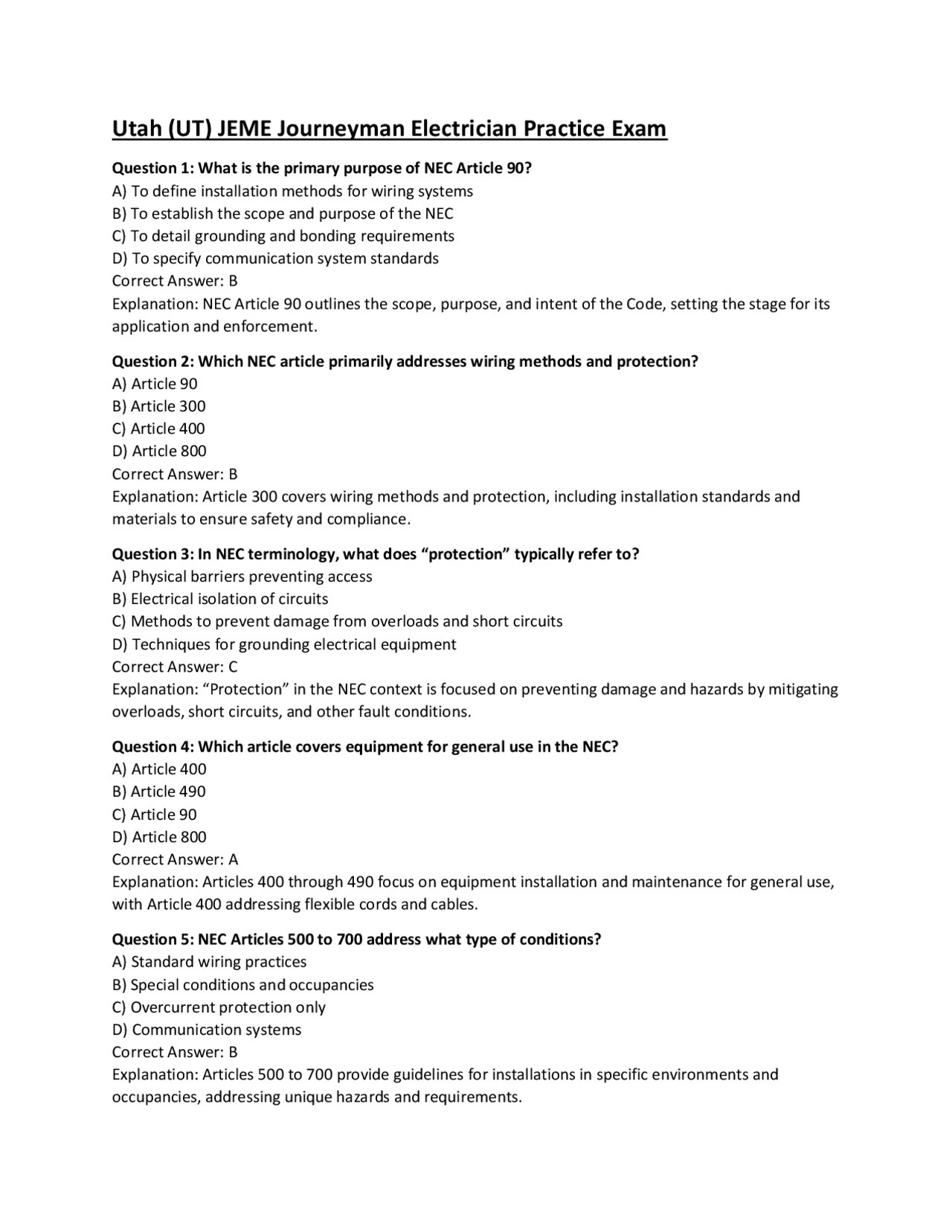

Utah (UT) JEME Journeyman Electrician Practice Exam
Question 1: What is the primary purpose of NEC Article 90? A) To define installation methods for wiring systems B) To establish the scope and purpose of the NEC C) To detail grounding and bonding requirements D) To specify communication system standards Correct Answer: B Explanation: NEC Article 90 outlines the scope, purpose, and intent of the Code, setting the stage for its application and enforcement. Question 2: Which NEC article primarily addresses wiring methods and protection? A) Article 90 B) Article 300 C) Article 400 D) Article 800 Correct Answer: B Explanation: Article 300 covers wiring methods and protection, including installation standards and materials to ensure safety and compliance. Question 3: In NEC terminology, what does “protection” typically refer to? A) Physical barriers preventing access B) Electrical isolation of circuits C) Methods to prevent damage from overloads and short circuits D) Techniques for grounding electrical equipment Correct Answer: C Explanation: “Protection” in the NEC context is focused on preventing damage and hazards by mitigating overloads, short circuits, and other fault conditions. Question 4: Which article covers equipment for general use in the NEC? A) Article 400 B) Article 490 C) Article 90 D) Article 800 Correct Answer: A Explanation: Articles 400 through 490 focus on equipment installation and maintenance for general use, with Article 400 addressing flexible cords and cables. Question 5: NEC Articles 500 to 700 address what type of conditions? A) Standard wiring practices B) Special conditions and occupancies C) Overcurrent protection only D) Communication systems Correct Answer: B Explanation: Articles 500 to 700 provide guidelines for installations in specific environments and occupancies, addressing unique hazards and requirements.
Question 6: Which article grouping covers communication systems in the NEC? A) Articles 800 to 830 B) Articles 300 to 399 C) Articles 400 to 490 D) Articles 90 to 99 Correct Answer: A Explanation: Articles 800 to 830 are dedicated to communication systems, including their installation and maintenance. Question 7: What is the fundamental unit of electrical current? A) Volt B) Watt C) Ampere D) Ohm Correct Answer: C Explanation: The ampere is the SI unit of electrical current, measuring the flow of electric charge. Question 8: Which law relates voltage, current, and resistance in an electrical circuit? A) Kirchhoff’s Voltage Law B) Ohm’s Law C) Faraday’s Law D) Ampere’s Law Correct Answer: B Explanation: Ohm’s Law (V = IR) directly relates voltage, current, and resistance in a circuit. Question 9: In a series circuit, how does the current behave? A) It divides equally among all branches B) It remains the same through all components C) It increases with each additional component D) It alternates between high and low values Correct Answer: B Explanation: In a series circuit, the same current flows through all components because there is only one path for the current to follow. Question 10: In a parallel circuit, how does the voltage behave across each branch? A) It is divided among the branches B) It remains constant across each branch C) It increases in the branch with the highest resistance D) It is zero if one branch is open Correct Answer: B Explanation: In a parallel circuit, each branch experiences the same voltage as the source, regardless of the branch resistance. Question 11: What is the purpose of voltage drop calculations in electrical installations? A) To determine the correct size of conductors B) To calculate the energy efficiency of a device C) To ensure proper grounding
Correct Answer: B Explanation: Ground rods are widely used as grounding electrodes in residential installations to establish a connection with the earth. Question 17: Which component is typically used to connect a metal water pipe to the grounding system? A) Bonding jumper B) Insulated cable C) Circuit breaker D) Flexible conduit Correct Answer: A Explanation: A bonding jumper is used to connect metal water pipes to the grounding system, ensuring they are at the same electrical potential. Question 18: What is the primary purpose of raceways in electrical installations? A) To enhance circuit impedance B) To provide a protective pathway for conductors C) To increase conductor ampacity D) To serve as the main grounding electrode Correct Answer: B Explanation: Raceways protect and route electrical conductors while also helping to contain and organize wiring in a safe manner. Question 19: When installing boxes for electrical devices, which factor is most important? A) The color of the box B) The size and volume to accommodate wiring C) The material’s resistance to corrosion D) The brand of the box Correct Answer: B Explanation: The box must have adequate size and volume to safely accommodate the number of conductors and devices, as required by the NEC. Question 20: What is the primary concern when splicing conductors? A) Aesthetics of the splice B) Maintaining the conductor’s ampacity and integrity C) Reducing conductor resistance to zero D) Matching conductor colors exactly Correct Answer: B Explanation: Proper splicing ensures that the conductor’s ampacity is maintained and that the electrical connection is safe and durable. Question 21: Which installation practice is critical when mounting lighting systems? A) Using only LED fixtures B) Ensuring proper support and secure mounting C) Installing fixtures only on the ceiling D) Avoiding the use of any metal wiring Correct Answer: B
Explanation: Lighting systems must be securely mounted and properly supported to prevent hazards and ensure long-term functionality. Question 22: Branch circuits are typically protected by which device? A) Transformer B) Circuit breaker or fuse C) Ground rod D) Bonding jumper Correct Answer: B Explanation: Branch circuits are protected from overcurrent by circuit breakers or fuses, which interrupt excessive current flow. Question 23: What does the term “service entrance conductors” refer to? A) Conductors that provide power from the utility to the building B) Wires used exclusively for lighting circuits C) Cables used in communication systems D) Grounding wires in a sub-panel Correct Answer: A Explanation: Service entrance conductors carry electrical power from the utility’s service point to the building’s main distribution equipment. Question 24: Panelboards are primarily used for which function in electrical systems? A) Converting AC to DC power B) Distributing electrical power to individual circuits C) Isolating communication systems D) Providing extra grounding capacity Correct Answer: B Explanation: Panelboards distribute power to various branch circuits and typically house overcurrent protection devices. Question 25: Which device is used to safely switch power between a generator and the utility supply? A) Circuit breaker B) Transfer switch C) Fuse D) Dimmer switch Correct Answer: B Explanation: A transfer switch safely transitions the power source from the utility to a generator during outages, preventing backfeeding. Question 26: What is the primary safety purpose of personal protective equipment (PPE) in electrical work? A) To improve manual dexterity B) To provide thermal insulation C) To protect workers from electrical hazards D) To enhance communication on site Correct Answer: C
Explanation: Blueprints provide detailed diagrams of electrical systems, allowing electricians to accurately plan installations and troubleshoot issues. Question 32: Troubleshooting in electrical systems primarily involves: A) Replacing all components regardless of fault B) Identifying and resolving specific faults in the circuit C) Upgrading the system to the latest technology D) Conducting routine cleaning of panels Correct Answer: B Explanation: Troubleshooting is the systematic process of diagnosing faults and determining corrective actions to restore proper function. Question 33: In project management for electrical installations, which aspect is most critical? A) Selection of brand names only B) Effective planning and resource allocation C) Ignoring local codes if they delay progress D) Maximizing aesthetic design over functionality Correct Answer: B Explanation: Successful project management requires thorough planning, resource management, and adherence to schedules while ensuring code compliance. Question 34: What is the role of overcurrent protection devices in an electrical panel? A) To regulate voltage fluctuations B) To interrupt the circuit in case of excessive current C) To provide backup power during outages D) To balance the phase loads Correct Answer: B Explanation: Overcurrent protection devices, such as circuit breakers, are designed to interrupt power flow when current exceeds safe limits, preventing damage and hazards. Question 35: When selecting conductors for a circuit, what calculation is essential? A) Frequency response B) Voltage drop calculation C) Color matching D) Insulation thickness only Correct Answer: B Explanation: Voltage drop calculations are essential to ensure that the conductor size maintains acceptable voltage levels at the load, especially over long distances. Question 36: Which property of a conductor determines its resistance? A) Its color B) Its material composition and cross-sectional area C) The installation method D) The ambient temperature only Correct Answer: B Explanation: The resistance of a conductor depends on its material, length, and cross-sectional area, as described by the resistivity formula.
Question 37: What is the effect of increasing conductor length on voltage drop? A) Voltage drop decreases B) Voltage drop remains unchanged C) Voltage drop increases D) Voltage drop becomes negligible Correct Answer: C Explanation: A longer conductor increases resistance, which in turn results in a higher voltage drop across the length of the circuit. Question 38: Which of the following best describes a series-parallel circuit? A) All components are in a single series line B) Components are arranged solely in parallel C) A combination of series and parallel connections D) No current flows through any branch Correct Answer: C Explanation: A series-parallel circuit consists of groups of components connected in series, with those groups connected in parallel, affecting both current and voltage distribution. Question 39: Which electrical parameter is measured in ohms? A) Voltage B) Current C) Resistance D) Power Correct Answer: C Explanation: Resistance, which opposes the flow of current, is measured in ohms (Ω). Question 40: What is the formula for calculating electrical power? A) P = V + I B) P = I²R C) P = V/I D) P = V × I Correct Answer: D Explanation: Electrical power is calculated using the formula P = V × I, where P is power, V is voltage, and I is current. Question 41: In grounding systems, what is the purpose of a grounding electrode conductor? A) To carry current during normal operation B) To connect the grounding electrode to the system grounding C) To serve as the main conductor for branch circuits D) To isolate the circuit from the earth Correct Answer: B Explanation: The grounding electrode conductor connects the grounding electrode to the system’s grounding, ensuring fault currents have a low impedance path to earth. Question 42: Which material is commonly used for bonding conductors? A) Aluminum B) Copper
Correct Answer: B Explanation: Proper box sizing based on conductor count and device volume is crucial for safety and compliance with the NEC. Question 48: What is a key consideration when splicing cables in an outdoor environment? A) Ensuring the splice is painted B) Using weatherproof splicing methods and materials C) Matching the cable color exactly D) Minimizing the length of the splice Correct Answer: B Explanation: Outdoor splices must be sealed and weatherproofed to prevent moisture ingress and corrosion, ensuring long-term reliability. Question 49: In lighting system design, which factor is essential for energy efficiency? A) The wattage of the bulbs relative to the lighting needs B) The use of incandescent bulbs exclusively C) The aesthetic design of the fixtures D) The color of the light emitted Correct Answer: A Explanation: Selecting bulbs with appropriate wattage and energy efficiency ratings is key to minimizing energy consumption while meeting lighting requirements. Question 50: What is the main difference between branch circuits and feeders? A) Branch circuits carry power from the utility to the building, feeders distribute it within the building B) Feeders are used exclusively for lighting circuits C) Branch circuits are always three-phase D) Feeders require no overcurrent protection Correct Answer: A Explanation: Feeders carry power from the service equipment to distribution panels, while branch circuits extend from these panels to individual loads. Question 51: In service entrance installations, which component protects the building’s wiring from utility surges? A) Transfer switch B) Surge arrestor C) Bonding jumper D) Conduit Correct Answer: B Explanation: Surge arrestors protect electrical systems from high voltage surges typically originating from utility power fluctuations or lightning strikes. Question 52: What is a panelboard’s primary function? A) To step down voltage levels B) To distribute power to branch circuits C) To act as the main grounding electrode D) To serve as a backup power source Correct Answer: B
Explanation: Panelboards distribute electrical power to branch circuits and house the corresponding overcurrent protection devices. Question 53: What distinguishes a switchboard from a panelboard? A) Switchboards are used only in residential settings B) Switchboards handle higher voltage and current ratings C) Panelboards are larger than switchboards D) There is no functional difference Correct Answer: B Explanation: Switchboards are typically used for higher voltage and current applications, often in commercial or industrial installations, compared to panelboards. Question 54: Which component in an electrical system is designed to convert electrical energy for later use? A) Transformer B) Circuit breaker C) Grounding electrode D) Conduit Correct Answer: A Explanation: Transformers are used to change voltage levels, adapting electrical energy for safe and efficient distribution or utilization. Question 55: What is a key consideration when installing transformers in a building? A) The transformer’s color B) Proper grounding and overcurrent protection C) The proximity to communication systems D) Minimizing the physical size of the transformer Correct Answer: B Explanation: Transformers must be properly grounded and protected with appropriate overcurrent devices to ensure safe operation and compliance with code. Question 56: In motor installations, what does the term “controller” refer to? A) The device that limits motor current B) The component that starts, stops, and regulates the motor C) The grounding mechanism of the motor D) The physical enclosure of the motor Correct Answer: B Explanation: A motor controller is responsible for starting, stopping, and controlling the motor’s speed and direction, ensuring efficient operation. Question 57: What is the primary function of a generator transfer switch? A) To convert DC power to AC B) To seamlessly switch the load between utility and generator sources C) To boost generator voltage D) To isolate the generator permanently from the system Correct Answer: B
Explanation: NM cable stands for non-metallic cable, which is commonly used in residential wiring for its ease of installation and insulation properties. Question 63: What is the primary function of cable insulation? A) To conduct electricity B) To prevent accidental contact with live conductors C) To increase the conductor’s resistance D) To serve as the main grounding path Correct Answer: B Explanation: Cable insulation prevents unintended contact with the conductor, reducing the risk of electrical shock and short circuits. Question 64: Which of the following is a key factor when selecting a cable for a specific installation? A) The cable’s length only B) The cable’s voltage rating and conductor material C) The cable’s brand exclusively D) The cable’s color scheme Correct Answer: B Explanation: Cable selection is based on voltage rating, conductor material, insulation type, and environmental conditions to ensure safe and reliable performance. Question 65: What is the significance of conductor ampacity in an electrical installation? A) It determines the maximum current a conductor can safely carry B) It indicates the conductor’s color C) It specifies the physical size of the conductor D) It determines the voltage drop exclusively Correct Answer: A Explanation: Ampacity is the maximum current a conductor can carry without exceeding temperature limits, ensuring safe operation and preventing insulation degradation. Question 66: What does the term “NEC compliance” imply for an electrical installation? A) The installation uses the latest technology B) The installation adheres to all applicable NEC requirements and safety standards C) The installation is the most cost-effective D) The installation uses only renewable energy sources Correct Answer: B Explanation: NEC compliance means that the installation meets the safety and design standards outlined in the National Electrical Code, minimizing hazards. Question 67: When calculating voltage drop, which of the following is most important? A) The conductor’s color B) The conductor’s material and cross-sectional area C) The ambient lighting conditions D) The number of switches in the circuit Correct Answer: B Explanation: The conductor’s material and cross-sectional area directly influence its resistance, which in turn affects voltage drop over the conductor’s length.
Question 68: What is the purpose of using a multimeter during troubleshooting? A) To mechanically secure wiring B) To measure electrical parameters such as voltage, current, and resistance C) To physically splice wires D) To calibrate circuit breakers Correct Answer: B Explanation: A multimeter is an essential tool for troubleshooting electrical circuits by measuring key parameters, helping to pinpoint issues. Question 69: In a properly grounded electrical system, what potential should metal enclosures have? A) High potential relative to ground B) Same potential as the earth C) Varying potential depending on the load D) A potential that is double the line voltage Correct Answer: B Explanation: Metal enclosures must be bonded to the grounding system so that they are at the same electrical potential as the earth, reducing shock hazards. Question 70: What is a key consideration for maintaining electrical equipment? A) Ignoring manufacturer guidelines B) Regular inspections and preventative maintenance C) Only replacing equipment when it fails completely D) Relying solely on visual checks Correct Answer: B Explanation: Regular inspections and preventative maintenance ensure that electrical equipment remains safe, reliable, and compliant with standards. Question 71: What type of circuit typically requires dedicated overcurrent protection for motors? A) Lighting circuits B) Motor branch circuits C) General-purpose outlets D) Communication circuits Correct Answer: B Explanation: Motor branch circuits often require specialized overcurrent protection that accounts for the high starting currents and operating conditions of motors. Question 72: In NEC installations, what is the typical requirement for conductor insulation in damp environments? A) No insulation is required B) Insulation must be moisture-resistant C) Only colored insulation is acceptable D) Insulation is optional if the wiring is in conduit Correct Answer: B Explanation: In damp environments, conductors must have moisture-resistant insulation to prevent degradation and potential hazards.
Question 78: What is the primary purpose of an electrical transfer switch? A) To boost the incoming utility voltage B) To safely transition between power sources C) To monitor energy consumption D) To serve as an emergency disconnect only Correct Answer: B Explanation: An electrical transfer switch allows for the safe and efficient switching between utility power and an alternate power source such as a generator. Question 79: What is the common method used to protect wiring in industrial settings? A) Open-air installations B) Use of conduits or cable trays C) Relying solely on insulation D) Burying wires underground without protection Correct Answer: B Explanation: Conduits and cable trays protect wiring from physical damage, chemical exposure, and environmental hazards in industrial environments. Question 80: In the context of NEC compliance, what does the term “enforcement” refer to? A) The voluntary guidelines for installation B) The legal authority to ensure installations meet the code C) The aesthetic standards for electrical panels D) The warranty period of electrical equipment Correct Answer: B Explanation: Enforcement means that local authorities have the legal power to inspect, approve, and require corrections to ensure installations meet NEC standards. Question 81: Which of the following is a common cause for a circuit breaker to trip? A) Under-voltage B) Overcurrent due to overload or short circuit C) Proper conductor sizing D) A well-maintained electrical system Correct Answer: B Explanation: Circuit breakers trip when they detect overcurrent conditions, such as overloads or short circuits, to protect the circuit from damage. Question 82: What is the purpose of a conductor’s insulation rating? A) To indicate the conductor’s tensile strength B) To specify the maximum temperature it can safely operate C) To determine its color D) To list the conductor’s chemical composition Correct Answer: B Explanation: The insulation rating indicates the maximum temperature at which a conductor can safely operate without degrading, ensuring safe performance. Question 83: Which method is commonly used for splicing non-metallic sheathed cable? A) Welding the conductors
B) Using approved wire connectors or splicing kits C) Taping the conductors without connectors D) Using a soldering iron exclusively Correct Answer: B Explanation: Approved wire connectors or splicing kits are used to ensure a secure and code-compliant splice for non-metallic sheathed cable. Question 84: What type of wiring method is often used in concealed spaces within walls? A) Exposed conduit wiring B) Non-metallic sheathed cable (NM cable) C) Direct burial cable D) Open wiring on a cable tray Correct Answer: B Explanation: NM cable is commonly used for residential wiring in concealed spaces such as walls due to its ease of installation and compliance with code requirements. Question 85: What is the primary safety concern when installing electrical wiring outdoors? A) Achieving the correct color scheme B) Protecting the wiring from weather-related damage and moisture C) Ensuring the wiring is visible D) Using the thinnest conductors available Correct Answer: B Explanation: Outdoor wiring must be protected from moisture, UV exposure, and physical damage to maintain safety and performance. Question 86: In practical applications, why is blueprint reading an essential skill for electricians? A) It determines the electrical panel’s manufacturer B) It provides detailed instructions for circuit layout and installation C) It replaces the need for on-site measurements D) It specifies the color of wiring insulation Correct Answer: B Explanation: Blueprint reading enables electricians to interpret the design and layout of electrical systems, ensuring accurate installations and effective troubleshooting. Question 87: What is the function of a junction box in electrical installations? A) To generate electrical power B) To provide a safe enclosure for conductor splices and connections C) To increase the voltage output D) To act as a transformer Correct Answer: B Explanation: Junction boxes house splices and connections, protecting them from environmental damage and ensuring safety by preventing accidental contact. Question 88: When planning an electrical project, what is one of the first steps in project management? A) Immediately starting installation B) Developing a detailed plan and schedule
D) Hydraulic circuit breaker Correct Answer: B Explanation: Miniature circuit breakers are commonly used in residential applications due to their compact design and effective overcurrent protection. Question 94: In a troubleshooting scenario, what does a “no voltage” reading typically indicate? A) A high-resistance connection B) An open circuit or lost connection C) An overload condition D) Excessive conductor temperature Correct Answer: B Explanation: A “no voltage” reading often indicates an open circuit or a lost connection in the wiring, necessitating further investigation to locate the break. Question 95: What is a primary consideration when installing electrical equipment in corrosive environments? A) The equipment’s aesthetic design B) Using corrosion-resistant materials and coatings C) Only using equipment rated for indoor use D) Ignoring manufacturer recommendations Correct Answer: B Explanation: In corrosive environments, selecting equipment with corrosion-resistant materials and protective coatings is essential to ensure longevity and safety. Question 96: How is conductor temperature typically controlled in an electrical installation? A) By increasing the conductor’s voltage B) Through proper conductor sizing and ventilation C) By reducing the conductor’s cross-sectional area D) Through the use of colored insulation only Correct Answer: B Explanation: Proper conductor sizing and adequate ventilation help manage the heat generated by current flow, preventing excessive temperature rise and maintaining safety. Question 97: Which test instrument is most appropriate for verifying proper grounding in a system? A) Infrared thermometer B) Earth ground resistance tester C) Oscilloscope D) Phase rotation meter Correct Answer: B Explanation: An earth ground resistance tester measures the resistance of the grounding system, ensuring it meets safety requirements. Question 98: What is the effect of over-sizing conductors in an installation? A) It always leads to code violations B) It can reduce voltage drop but may be cost-inefficient C) It increases the risk of overheating D) It reduces the need for overcurrent protection
Correct Answer: B Explanation: Oversizing conductors reduces voltage drop and can improve performance, but it may not be cost-effective if the additional capacity is unnecessary. Question 99: What safety practice is critical when working on live electrical circuits? A) Relying solely on insulated tools without PPE B) Lockout/tagout procedures and proper PPE C) Quickly completing the task without verification D) Using bare hands to feel for voltage Correct Answer: B Explanation: Lockout/tagout procedures combined with appropriate PPE are essential to protect workers from the hazards associated with live circuits. Question 100: When installing a generator system, which code requirement is particularly important? A) The generator must be painted a specific color B) A proper transfer switch must be installed to prevent backfeeding C) The generator should be connected directly to branch circuits D) Overcurrent protection is not required Correct Answer: B Explanation: To ensure safety and compliance, a generator must be connected through a transfer switch that isolates it from the utility supply, preventing dangerous backfeeding. Question 101: What is the main advantage of using LED lighting systems in installations? A) They require high wattage B) They offer increased energy efficiency and longer lifespan C) They are more expensive to operate D) They generate more heat Correct Answer: B Explanation: LED lighting systems consume less energy, generate less heat, and have a longer operational life compared to traditional lighting options. Question 102: Which component is used to regulate the speed of an AC motor? A) A transformer B) A variable frequency drive (VFD) C) A GFCI outlet D) A standard fuse Correct Answer: B Explanation: A variable frequency drive (VFD) adjusts the frequency of the power supplied to an AC motor, thereby controlling its speed and improving efficiency. Question 103: What is a common method for protecting electrical wiring in exposed locations? A) Direct burial without any protection B) Use of conduits or protective covers C) Relying solely on insulation D) Installing wiring in open air without restraints Correct Answer: B
