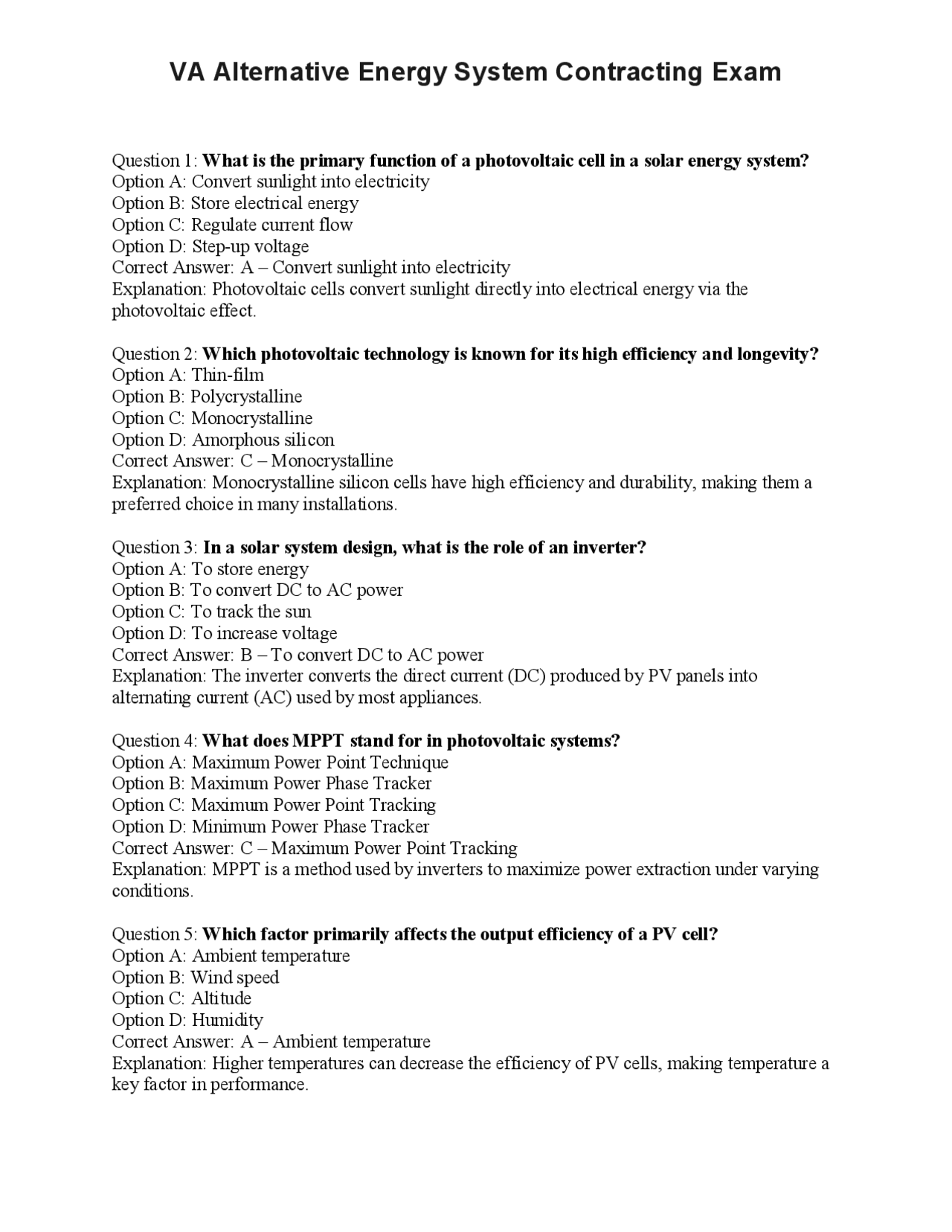

Question 1: What is the primary function of a photovoltaic cell in a solar energy system? Option A: Convert sunlight into electricity Option B: Store electrical energy Option C: Regulate current flow Option D: Step-up voltage Correct Answer: A – Convert sunlight into electricity Explanation: Photovoltaic cells convert sunlight directly into electrical energy via the photovoltaic effect. Question 2: Which photovoltaic technology is known for its high efficiency and longevity? Option A: Thin-film Option B: Polycrystalline Option C: Monocrystalline Option D: Amorphous silicon Correct Answer: C – Monocrystalline Explanation: Monocrystalline silicon cells have high efficiency and durability, making them a preferred choice in many installations. Question 3: In a solar system design, what is the role of an inverter? Option A: To store energy Option B: To convert DC to AC power Option C: To track the sun Option D: To increase voltage Correct Answer: B – To convert DC to AC power Explanation: The inverter converts the direct current (DC) produced by PV panels into alternating current (AC) used by most appliances. Question 4: What does MPPT stand for in photovoltaic systems? Option A: Maximum Power Point Technique Option B: Maximum Power Phase Tracker Option C: Maximum Power Point Tracking Option D: Minimum Power Phase Tracker Correct Answer: C – Maximum Power Point Tracking Explanation: MPPT is a method used by inverters to maximize power extraction under varying conditions. Question 5: Which factor primarily affects the output efficiency of a PV cell? Option A: Ambient temperature Option B: Wind speed Option C: Altitude Option D: Humidity Correct Answer: A – Ambient temperature Explanation: Higher temperatures can decrease the efficiency of PV cells, making temperature a key factor in performance.
Question 6: What is the typical voltage range of a standard PV module under load? Option A: 12-24 V Option B: 24-48 V Option C: 30-40 V Option D: 15-20 V Correct Answer: B – 24-48 V Explanation: Most standard PV modules are designed to operate in the 24-48 V range for optimal performance in residential systems. Question 7: Which installation aspect ensures that a solar array is safely connected to the building’s grounding system? Option A: DC disconnect Option B: Overcurrent protection Option C: Grounding and bonding Option D: Charge controller Correct Answer: C – Grounding and bonding Explanation: Proper grounding and bonding protect the system and personnel from electrical faults and lightning strikes. Question 8: In system design, what does the term “string sizing” refer to? Option A: Connecting multiple PV modules in series Option B: Wiring panels in parallel Option C: Choosing the correct inverter Option D: Matching battery capacity Correct Answer: A – Connecting multiple PV modules in series Explanation: String sizing involves determining the number of modules to connect in series to achieve a desired voltage. Question 9: When calculating the energy production of a PV system, which unit is most commonly used? Option A: Watts (W) Option B: Kilowatt-hours (kWh) Option C: Amperes (A) Option D: Volts (V) Correct Answer: B – Kilowatt-hours (kWh) Explanation: Kilowatt-hours (kWh) measure energy production over time, which is essential for system yield estimates. Question 10: What is one of the key advantages of using thin-film PV technology? Option A: Highest efficiency Option B: Flexibility and light weight Option C: Long operational life Option D: High temperature tolerance Correct Answer: B – Flexibility and light weight
Option C: Excessive battery storage Option D: Too much wind Correct Answer: B – Shading and roof orientation Explanation: Shading and roof orientation critically affect the performance and design of rooftop solar systems. Question 16: How is the overall efficiency of a photovoltaic module determined? Option A: Ratio of AC output to battery capacity Option B: Ratio of DC power output to solar irradiance input Option C: Ratio of series resistance to shunt resistance Option D: Ratio of inverter efficiency to module size Correct Answer: B – Ratio of DC power output to solar irradiance input Explanation: Efficiency is measured by comparing the electrical power output to the solar power incident on the panel’s surface. Question 17: What is the purpose of bypass diodes in a PV module? Option A: To increase voltage output Option B: To protect against reverse bias in shaded cells Option C: To store excess energy Option D: To convert DC to AC Correct Answer: B – To protect against reverse bias in shaded cells Explanation: Bypass diodes prevent the entire string from losing output if a single cell becomes shaded. Question 18: Which electrical parameter is crucial when designing series connections of PV modules? Option A: Frequency Option B: Voltage Option C: Capacitance Option D: Inductance Correct Answer: B – Voltage Explanation: In series connections, the voltages of individual modules add up; proper voltage matching is essential for system performance. Question 19: What is the typical lifetime performance degradation rate of a quality PV module per year? Option A: 0.1–0.2% Option B: 0.5–1% Option C: 2–3% Option D: 5–6% Correct Answer: B – 0.5–1% Explanation: High-quality PV modules generally degrade at a rate of about 0.5–1% per year, ensuring long-term energy production.
Question 20: Which code or standard is most often referenced for electrical safety in solar installations? Option A: NFPA 70 (NEC) Option B: IEEE 1547 Option C: UL 1703 Option D: IEC 61215 Correct Answer: A – NFPA 70 (NEC) Explanation: The National Electrical Code (NEC) provides essential guidelines for safe electrical installations, including solar systems. Question 21: Which solar component directly converts sunlight into DC electricity? Option A: Inverter Option B: PV module Option C: Charge controller Option D: Transformer Correct Answer: B – PV module Explanation: The PV module, made up of individual cells, is responsible for converting sunlight into direct current electricity. Question 22: What is the effect of high temperatures on PV module performance? Option A: Increased output efficiency Option B: Reduced output efficiency Option C: No effect Option D: Increased voltage Correct Answer: B – Reduced output efficiency Explanation: High temperatures generally reduce the efficiency of photovoltaic modules, decreasing their power output. Question 23: Which installation method is best for uneven or sloped roofs? Option A: Ground mounting Option B: Ballasted mounting Option C: Flush mounting Option D: Tilt mounting Correct Answer: D – Tilt mounting Explanation: Tilt mounting systems can be adjusted to compensate for roof irregularities and optimize sun exposure. Question 24: When performing an electrical calculation for a PV system, which law is primarily used? Option A: Newton’s Law Option B: Ohm’s Law Option C: Boyle’s Law Option D: Hooke’s Law Correct Answer: B – Ohm’s Law
Option A: Voltage drop Option B: Solar irradiance Option C: Ambient temperature Option D: Module efficiency Correct Answer: A – Voltage drop Explanation: Accurate voltage drop calculations ensure conductors are sized to minimize energy loss and maintain system performance. Question 30: What is the main purpose of a combiner box in a solar array? Option A: Convert DC to AC Option B: Merge outputs from multiple strings Option C: Monitor panel performance Option D: Regulate voltage Correct Answer: B – Merge outputs from multiple strings Explanation: A combiner box gathers and consolidates the output from several strings of PV panels before sending the power to the inverter. Question 31: Which factor is most critical when estimating a PV system’s energy yield? Option A: Module color Option B: Local weather conditions Option C: Roof material Option D: Wiring length Correct Answer: B – Local weather conditions Explanation: Weather conditions, including cloud cover and temperature, greatly influence the energy yield of a solar system. Question 32: What does the term “array” refer to in a photovoltaic system? Option A: The support structure for panels Option B: The grouping of solar panels Option C: The wiring configuration Option D: The inverter type Correct Answer: B – The grouping of solar panels Explanation: An array is a collection of PV panels connected together to form a single system that increases the overall power output. Question 33: Which design calculation is essential for ensuring a solar system meets the energy needs of a building? Option A: Solar panel aesthetics Option B: Energy consumption analysis Option C: Module weight calculation Option D: Battery casing size Correct Answer: B – Energy consumption analysis Explanation: Determining a building’s energy consumption is vital to designing a system that meets its power requirements.
Question 34: What is the role of a charge controller in off-grid PV systems? Option A: Inverting DC to AC Option B: Regulating battery charging Option C: Monitoring AC usage Option D: Reducing wiring losses Correct Answer: B – Regulating battery charging Explanation: The charge controller manages the energy flow into the battery bank, protecting it from overcharge and excessive discharge. Question 35: How is “peak sun hours” defined in solar system design? Option A: The hours when the sun is at its highest point Option B: The equivalent hours of full solar irradiance received per day Option C: The total daylight hours per day Option D: The time period when the inverter operates Correct Answer: B – The equivalent hours of full solar irradiance received per day Explanation: Peak sun hours quantify the total solar energy available by converting varying irradiance into equivalent full-sun hours. Question 36: Which aspect of a PV module primarily determines its power output rating? Option A: The type of mounting system Option B: The efficiency of the cells Option C: The color of the panel Option D: The age of the module Correct Answer: B – The efficiency of the cells Explanation: A module’s power output is largely dependent on the efficiency with which its cells convert sunlight into electricity. Question 37: What is the importance of performing a shading analysis during system design? Option A: To enhance aesthetic design Option B: To ensure panels are not obstructed by shadows Option C: To determine the roof’s structural strength Option D: To calculate wiring lengths Correct Answer: B – To ensure panels are not obstructed by shadows Explanation: Shading analysis identifies potential obstacles that could reduce panel performance and helps in planning optimal array placement. Question 38: Which electrical component is used to protect PV wiring from overloads? Option A: Circuit breaker Option B: Transformer Option C: Resistor Option D: Inductor Correct Answer: A – Circuit breaker Explanation: Circuit breakers safeguard the system by interrupting the current flow in case of overload or short-circuit conditions.
Question 44: Which design aspect is crucial for ensuring proper airflow behind PV panels? Option A: Module color Option B: Mounting system spacing Option C: Wiring configuration Option D: Inverter placement Correct Answer: B – Mounting system spacing Explanation: Adequate spacing allows air to circulate and cool the panels, which can improve performance and longevity. Question 45: What is the function of the junction box on a solar panel? Option A: To convert DC to AC Option B: To provide connection points for module wiring Option C: To mount the panel Option D: To track the sun Correct Answer: B – To provide connection points for module wiring Explanation: The junction box houses the connections for the panel’s electrical output and is critical for safe wiring. Question 46: What does “energy payback time” refer to in the context of solar energy? Option A: The time taken to recover the installation cost Option B: The time needed for a PV system to generate energy equal to its production energy Option C: The warranty period of the system Option D: The lifespan of the PV modules Correct Answer: B – The time needed for a PV system to generate energy equal to the energy used in its production Explanation: Energy payback time measures how long it takes for a PV system to generate the amount of energy that was consumed during its manufacturing and installation. Question 47: When designing a solar system, why is it important to consider the module’s orientation? Option A: To improve aesthetic appeal Option B: To maximize sun exposure Option C: To reduce system weight Option D: To simplify wiring Correct Answer: B – To maximize sun exposure Explanation: Proper orientation ensures that the panels receive the maximum possible sunlight throughout the day, increasing energy yield. Question 48: Which of the following is a common method to mitigate the effects of shading on a solar array? Option A: Installing a larger inverter Option B: Using bypass diodes Option C: Increasing cable length Option D: Decreasing tilt angle Correct Answer: B – Using bypass diodes
Explanation: Bypass diodes help maintain current flow in a shaded array by allowing electricity to bypass affected cells. Question 49: What does “DC system voltage” mean in a PV installation? Option A: The alternating current voltage Option B: The sum of the module voltages in series Option C: The voltage after inversion Option D: The voltage measured at the load Correct Answer: B – The sum of the module voltages in series Explanation: In a DC system, modules connected in series add their voltages, which is an important factor in system design. Question 50: What is one advantage of using a ground-mounted solar array over a rooftop installation? Option A: Reduced installation cost Option B: Easier maintenance access Option C: Better aesthetic integration Option D: Lower wiring complexity Correct Answer: B – Easier maintenance access Explanation: Ground-mounted arrays typically offer easier access for cleaning and maintenance compared to rooftop installations. Question 51: Which calculation is necessary to size an inverter correctly? Option A: Total DC voltage of the array Option B: Total AC energy demand Option C: Module physical dimensions Option D: Ambient temperature Correct Answer: B – Total AC energy demand Explanation: Inverter sizing requires an estimate of the AC energy that the system will need to supply, ensuring proper capacity. Question 52: What does the “fill factor” in a PV module indicate? Option A: The percentage of module area that is active Option B: The ratio of maximum power output to the theoretical product of Voc and Isc Option C: The module’s weight to power ratio Option D: The level of shading on the module Correct Answer: B – The ratio of maximum power output to the theoretical product of Voc and Isc Explanation: The fill factor is a measure of a PV cell’s quality and performance, reflecting how close the cell comes to its ideal maximum output. Question 53: Why is it important to consider local weather patterns in PV system design? Option A: To determine the best inverter color Option B: To estimate energy production accurately Option C: To choose the mounting system style
Option B: Pyranometer Option C: Anemometer Option D: Lux meter Correct Answer: B – Pyranometer Explanation: A pyranometer measures the solar irradiance, providing critical data for energy yield estimations. Question 59: What is one of the key differences between polycrystalline and monocrystalline PV cells? Option A: Polycrystalline cells have a single crystal structure Option B: Monocrystalline cells are generally less efficient Option C: Polycrystalline cells have a multi-crystalline structure Option D: Monocrystalline cells are typically flexible Correct Answer: C – Polycrystalline cells have a multi-crystalline structure Explanation: Polycrystalline cells consist of multiple silicon crystals, while monocrystalline cells are made from a single crystal, affecting efficiency and cost. Question 60: In the context of PV systems, what does “Isc” represent? Option A: Inverter supply current Option B: Short circuit current Option C: Insulation safety coefficient Option D: Initial system current Correct Answer: B – Short circuit current Explanation: Isc is the current produced when the PV cell’s output terminals are shorted, a key parameter in module specifications. Question 61: Which design consideration helps to minimize the risk of arc faults in a solar array? Option A: Using thicker wiring Option B: Proper grounding and bonding Option C: Increasing panel tilt Option D: Installing larger inverters Correct Answer: B – Proper grounding and bonding Explanation: Effective grounding and bonding reduce the risk of electrical arcing by safely dissipating fault currents. Question 62: Which factor directly affects the performance ratio (PR) of a solar PV system? Option A: Cable length Option B: Module orientation and shading Option C: Inverter brand Option D: Color of the roof Correct Answer: B – Module orientation and shading Explanation: The performance ratio is influenced by installation factors such as orientation, tilt, and shading, which determine how efficiently the system converts sunlight to electricity.
Question 63: Which of the following is most important when calculating the array’s total DC power? Option A: The number of modules and their individual wattage ratings Option B: The inverter’s capacity Option C: The wiring configuration Option D: The temperature coefficient Correct Answer: A – The number of modules and their individual wattage ratings Explanation: Total DC power is the sum of the wattage ratings of all modules in the array, which is essential for system design. Question 64: What is one of the main purposes of performing a system performance analysis after installation? Option A: To select the module color Option B: To verify that energy production meets design estimates Option C: To calculate the weight of the system Option D: To adjust the inverter’s settings Correct Answer: B – To verify that energy production meets design estimates Explanation: Performance analysis confirms that the system operates as designed and helps identify any issues affecting energy production. Question 65: Which type of wiring configuration is typically used to combine the outputs of multiple strings of panels? Option A: Series wiring Option B: Parallel wiring Option C: Hybrid wiring Option D: Mesh wiring Correct Answer: B – Parallel wiring Explanation: Parallel wiring combines the outputs of several strings to maintain a consistent voltage while increasing the overall current. Question 66: In photovoltaic systems, what does “Voc” stand for? Option A: Voltage on circuit Option B: Open circuit voltage Option C: Operating current voltage Option D: Variable output current Correct Answer: B – Open circuit voltage Explanation: Voc is the maximum voltage a PV module can produce when not connected to a load, a key specification for system design. Question 67: Which calculation is necessary for ensuring that the inverter’s DC input does not exceed its maximum rating? Option A: AC output calculation Option B: Maximum system voltage calculation Option C: Battery capacity calculation Option D: Load factor analysis
Option C: Increasing the inverter capacity Option D: Changing the panel orientation Correct Answer: B – Accounting for performance losses due to environmental and component factors Explanation: Derating factors are applied to account for real-world losses such as temperature effects, wiring losses, and shading. Question 73: Which component in a PV system helps to prevent reverse current flow at night? Option A: Blocking diode Option B: Bypass diode Option C: Charge controller Option D: AC disconnect Correct Answer: A – Blocking diode Explanation: Blocking diodes prevent the batteries or panels from discharging back into the system when there is no sunlight. Question 74: Which of the following is a key consideration in the structural design of a ground-mounted solar array? Option A: The array’s electrical output Option B: Soil conditions and foundation design Option C: The inverter’s cooling requirements Option D: The type of PV module Correct Answer: B – Soil conditions and foundation design Explanation: For ground-mounted arrays, the stability of the mounting structure depends on appropriate foundation design based on local soil conditions. Question 75: What is the typical effect of module soiling on PV system performance? Option A: Increased voltage output Option B: Reduced energy production Option C: Improved efficiency Option D: Decreased inverter lifespan Correct Answer: B – Reduced energy production Explanation: Dirt and debris on PV modules reduce the amount of sunlight reaching the cells, lowering overall system performance. Question 76: Which parameter is essential when determining the number of modules required for a given system capacity? Option A: Module weight Option B: Module wattage rating Option C: Module color Option D: Module thickness Correct Answer: B – Module wattage rating Explanation: Knowing the wattage rating of each module allows designers to calculate how many are needed to reach the desired system capacity.
Question 77: What is the purpose of a system monitoring platform in a PV installation? Option A: To automate cleaning Option B: To track performance and identify issues Option C: To physically support the panels Option D: To convert DC to AC Correct Answer: B – To track performance and identify issues Explanation: Monitoring platforms provide real-time data on energy production and system health, aiding in maintenance and troubleshooting. Question 78: Which of the following is an example of an environmental factor that can affect solar energy production? Option A: The inverter’s serial number Option B: Ambient temperature Option C: Module brand Option D: Wiring gauge Correct Answer: B – Ambient temperature Explanation: Ambient temperature influences the efficiency of PV modules, making it an important environmental consideration in system design. Question 79: What is the primary role of a disconnect switch in a PV system? Option A: To control the power output Option B: To safely isolate components for maintenance Option C: To convert AC to DC Option D: To boost voltage Correct Answer: B – To safely isolate components for maintenance Explanation: Disconnect switches allow technicians to safely isolate parts of the system during repairs or maintenance. Question 80: Which of the following is a key benefit of using a monitoring system that provides remote access? Option A: Reduced physical footprint of the system Option B: Immediate detection of performance issues Option C: Increased inverter power Option D: Lower system weight Correct Answer: B – Immediate detection of performance issues Explanation: Remote monitoring systems enable real-time alerts and troubleshooting, improving system reliability and uptime. Question 81: What does “system integration” involve in the context of PV system design? Option A: Combining different energy sources into one system Option B: Ensuring all components work together safely and efficiently Option C: Merging aesthetic designs with electrical components Option D: Increasing the size of the inverter Correct Answer: B – Ensuring all components work together safely and efficiently
Option C: Capacitance theory Option D: Quantum mechanics Correct Answer: B – Ohm’s Law Explanation: Ohm’s Law (V = IR) is essential for determining proper conductor sizes and ensuring efficient energy transmission. Question 87: What is the benefit of using an energy storage system in a solar installation? Option A: To increase the DC voltage Option B: To store excess energy for use when sunlight is low Option C: To decrease wiring requirements Option D: To convert AC to DC Correct Answer: B – To store excess energy for use when sunlight is low Explanation: Energy storage systems allow the capture of surplus energy during peak sunlight for use during cloudy periods or at night. Question 88: Which factor does NOT typically affect the performance of a PV system? Option A: Shading Option B: Ambient temperature Option C: Module orientation Option D: The phase of the moon Correct Answer: D – The phase of the moon Explanation: While shading, temperature, and orientation significantly affect performance, the moon’s phase does not have a measurable impact on solar energy production. Question 89: Which maintenance practice is recommended for ensuring optimal performance of PV panels? Option A: Regular cleaning of the panel surface Option B: Frequent replacement of modules Option C: Repainting the panels annually Option D: Increasing the tilt angle periodically Correct Answer: A – Regular cleaning of the panel surface Explanation: Cleaning the panels removes dust and debris that can reduce sunlight absorption, maintaining efficiency. Question 90: Which calculation is important for ensuring that the wiring insulation is adequate? Option A: Temperature coefficient analysis Option B: Voltage drop calculation Option C: Current-carrying capacity analysis Option D: Module efficiency calculation Correct Answer: C – Current-carrying capacity analysis Explanation: Determining the current-carrying capacity of the wiring ensures that insulation can handle the expected electrical load safely.
Question 91: What is the function of a combiner box in a large PV array? Option A: To store generated energy Option B: To merge multiple strings of panels into one output circuit Option C: To convert DC to AC power Option D: To track the maximum power point Correct Answer: B – To merge multiple strings of panels into one output circuit Explanation: The combiner box consolidates the outputs from several panel strings, simplifying wiring and protection before connecting to the inverter. Question 92: Which component is essential for converting DC output from panels to AC for household use? Option A: Charge controller Option B: Inverter Option C: Transformer Option D: Bypass diode Correct Answer: B – Inverter Explanation: The inverter is responsible for converting the DC generated by the panels into AC, which is used by standard electrical devices. Question 93: What does the term “balance-of-system” (BOS) refer to in solar installations? Option A: The total number of panels Option B: All components other than the PV modules Option C: The inverter only Option D: The warranty information Correct Answer: B – All components other than the PV modules Explanation: BOS includes inverters, wiring, mounting structures, and other components that support the PV modules in a complete system. Question 94: Which factor is most important when selecting a site for a PV installation? Option A: Local wildlife Option B: Solar resource availability Option C: Nearby restaurants Option D: Local zoning colors Correct Answer: B – Solar resource availability Explanation: The amount of available sunlight is critical for determining the viability and energy yield of a solar installation. Question 95: Which standard is commonly used to certify the quality and safety of PV modules? Option A: UL 1703 Option B: IEEE 802. Option C: ASTM D Option D: ISO 9001 Correct Answer: A – UL 1703
