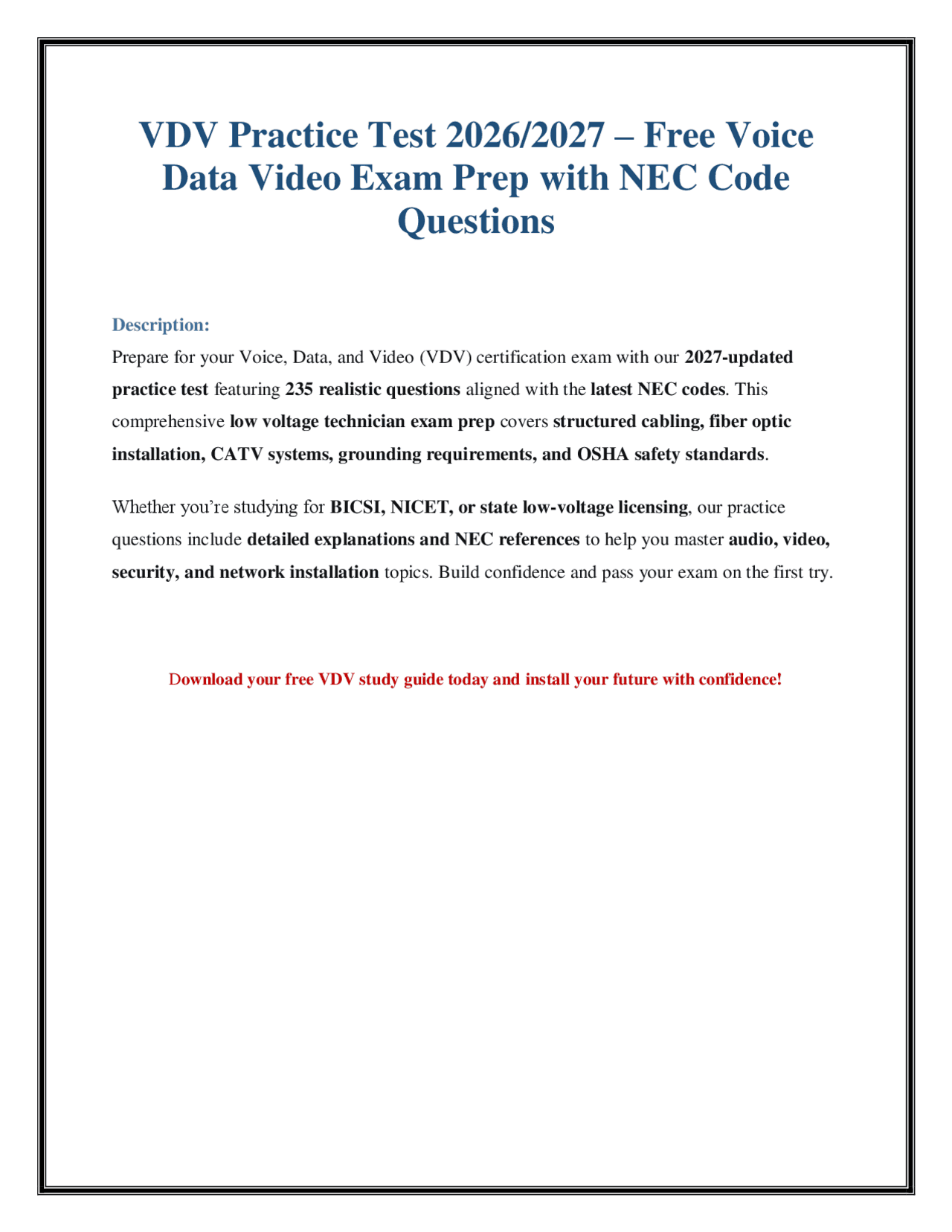

VDV Practice Test 2026/2027 – Free Voice
Data Video Exam Prep with NEC Code
Questions
Description: Prepare for your Voice, Data, and Video (VDV) certification exam with our 2027 - updated practice test featuring 235 realistic questions aligned with the latest NEC codes. This comprehensive low voltage technician exam prep covers structured cabling, fiber optic installation, CATV systems, grounding requirements, and OSHA safety standards. Whether you’re studying for BICSI, NICET, or state low-voltage licensing , our practice questions include detailed explanations and NEC references to help you master audio, video, security, and network installation topics. Build confidence and pass your exam on the first try. D ownload your free VDV study guide today and install your future with confidence!
VDV Certification Practice Test 2027: NEC Code Questions &
Answers
Section 1: Cable Types, Ratings, and Applications
- Question: For a new residential voice cabling installation, what is the minimum recognized cable category according to current standards? a. Category 2, 4-pair b. Category 3, 4-pair c. Category 5e, 4-pair d. 4-wire station cable Answer: c. Category 5e, 4-pair Explanation: Modern standards require a minimum of Category 5e cable for new residential installations to support integrated voice and data services, providing the necessary bandwidth and performance for current telecommunications systems.
- Question: According to the NEC, how should cable voltage ratings be indicated on communications wires and under-carpet cabling? a. Must be clearly marked b. Must not be marked c. Shall be indicated on a separate tag d. Shall be embossed only on the jacket Answer: b. Must not be marked Explanation: NEC 800.179 prohibits marking voltage ratings on communications cables to prevent misapplication and ensure installers rely on proper installation codes rather than cable markings for safety compliance.
- Question: Which communication cable type is approved for installation between different building floors in a riser application? a. CM b. CMP
- Question: Which grouping of optical fiber cable markings contains an incorrect or nonstandard type? a. OFNP, OFCP, OFNR b. OFNP, OFNX c. OFCG, OFC d. OFNP, OFNR Answer: b. OFNP, OFNX Explanation: "OFNX" is not a recognized NEC cable marking. Standard optical fiber cable types include OFNP, OFCP, OFNR, OFCR, OFNG, and OFCG, each with specific fire rating and construction requirements.
- Question: The designation OFNP stands for: a. Nonconductive optical fiber general purpose cable b. Optical fiber non-plenum cable c. Optical fiber conductive plenum cable d. Nonconductive optical fiber plenum cable Answer: d. Nonconductive optical fiber plenum cable Explanation: As defined in NEC 770.179, OFNP designates a nonconductive optical fiber cable rated for use in plenum spaces, containing no metallic elements and meeting strict fire safety standards.
- Question: Which cable types are permitted substitutions for CL3R? a. CMP, CL3P, CMR b. CMP, CL3P, CL2P c. CMP, CL3P, CL2P, CMR, CL3R d. CL3R, CMG, CM, PLTC Answer: a. CMP, CL3P, CMR Explanation: NEC 725.154(A) allows cables with higher fire ratings to substitute for those with lower ratings. Plenum-rated (CMP, CL3P) and riser-rated (CMR) cables may therefore replace CL3R riser cable.
- Question: What does the "CL2" designation signify? a. Communication Level 2 b. Class 2 c. Conductive Load × d. None of the above Answer: b. Class 2 Explanation: Per NEC 725.179, "CL2" identifies cable suitable for Class 2 power-limited circuits, where the power source is inherently limited to reduce shock and fire hazards.
- Question: Which optical fiber cable type is a permitted substitute for OFNR? a. OFN, OFNG b. OFNP c. OFNG d. OFCP Answer: b. OFNP Explanation: According to NEC 770.154, cables with higher fire ratings may substitute for lower-rated types. OFNP (plenum) can replace OFNR (riser) in appropriate installations.
- Question: CM (Communications) cable must be listed as: a. Having fire-resistant characteristics to prevent fire spread floor-to-floor b. Being resistant to the spread of fire c. Having adequate fire-resistant and low-smoke characteristics d. Being resistant to flame spread Answer: b. Being resistant to the spread of fire Explanation: NEC 800.179(D) requires CM cable to be listed with basic fire-resistance properties suitable for general-purpose communications installations in non-riser, non-plenum locations.
- Question: Which fiber optic cable types are rated for installation in ducts, plenums, and other environmental air spaces? a. OFCG and OFC b. OFNG and OFN c. OFNP and OFCP d. OFNR and OFCR Answer: c. OFNP and OFCP Explanation: Only plenum-rated optical fiber cables (OFNP and OFCP) are permitted in air- handling spaces per NEC 770.179, due to their low flame-spread and smoke-producing characteristics.
- Question: Which optical fiber cable type is required for installation in hazardous (classified) locations? a. OCAP b. OFCP c. OFPP d. OFCC Answer: b. OFCP Explanation: NEC 770.154(b) and 770.3(A) mandate OFCP (optical fiber conductive plenum) cable in hazardous locations for its construction and fire-resistance properties suitable for such environments.
- Question: Unlisted outside-plant coaxial cable for CATV may enter a building and be installed in cable trays for a distance not exceeding: a. 20 feet b. 30 feet c. 40 feet d. 50 feet Answer: d. 50 feet
Explanation: NEC 820.48 allows unlisted outside-plant coaxial cable to extend up to 50 feet inside a building from the point of entrance when installed in cable trays, facilitating transition to listed cable.
- Question: Unlisted CATV coaxial cable entering a building from outside must: a. Not exceed 50 ft. and be terminated at a grounding block b. Not exceed 25 ft. and be terminated at a grounding block c. Not exceed 50 ft. and be terminated at a junction box d. Not exceed 100 ft. and be terminated at a junction box Answer: a. Not exceed 50 ft. and be terminated at a grounding block Explanation: NEC 820.48 restricts unlisted outside-plant cable to 50 feet inside buildings and requires termination at a grounding block for proper bonding and transition to listed cable.
- Question: Which coaxial cable type is an acceptable substitute for CATV cable in premises installations? a. CMX b. CATVP c. FPLP d. All of the above Answer: b. CATVP Explanation: NEC 820.154(b) recognizes CATVP (plenum-rated community antenna television cable) as a permitted substitute for other CATV cables in applicable installations.
- Question: Which CATV cable types are permitted in listed riser raceways in vertical runs? a. CATVR, CATVP b. CATVR, CATVX c. CATVR, CATV d. CATVR, CMG, CM, CATVP Answer: a. CATVR, CATVP
Explanation: NEC 820.100(A)(3) establishes 14 AWG as the smallest permissible grounding conductor for CATV systems to ensure adequate fault current carrying capacity.
- Question: When grounding non-current-carrying metallic members of optical fiber cables, the grounding conductor shall be not smaller than _____ AWG and need not exceed _____ AWG. a. 12, 6 b. 12, 14 c. 14, 6 d. 6, 1/ Answer: c. 14, 6 Explanation: NEC 770.100(A)(3) specifies a minimum 14 AWG and maximum 6 AWG for optical fiber cable grounding conductors, balancing effectiveness with practicality.
- Question: A bonding jumper between separate grounding electrodes for a CATV system must be not smaller than: a. 12 AWG b. 10 AWG c. 8 AWG d. 6 AWG Answer: d. 6 AWG Explanation: NEC 820.100(D) requires a minimum 6 AWG copper bonding jumper to ensure low-impedance connection between separate grounding electrode systems.
- Question: The bonding jumper between radio/TV receiving equipment and the power grounding electrode must not be smaller than: a. 18 AWG b. 12 AWG c. 10 AWG d. 6 AWG Answer: d. 6 AWG
Explanation: NEC 810.21(J) specifies a minimum 6 AWG bonding jumper to provide adequate equipotential bonding between antenna systems and power grounds.
- Question: A driven ground rod for a communications primary protector, without an intersystem bond, must be spaced at least how far from electrodes of other systems? a. 1.5 m (5 feet) b. 1.8 m (6 feet) c. 2.4 m (8 feet) d. 3 m (10 feet) Answer: b. 1.8 m (6 feet) Explanation: NEC 800.100(B)(3)(2) mandates 1.8 m separation between independent grounding electrodes to prevent potential differences and ensure effective grounding.
- Question: In one- and two-family dwellings, the communications primary protector grounding conductor should be as short as practicable and not exceed: a. 1.2 m (4 feet) b. 2.3 m (8 feet) c. 6.0 m (20 feet) d. 15 m (50 feet) Answer: c. 6.0 m (20 feet) Explanation: NEC 800.100(A)(4) limits the grounding conductor to 20 feet maximum to minimize impedance and ensure effective surge protection operation.
- Question: Where no mobile home service equipment is within 30 feet of the exterior wall, the communications primary protector ground must be connected to a grounding conductor not smaller than: a. 6 AWG b. 12 AWG c. 18 AWG d. 20 AWG Answer: b. 12 AWG
Explanation: NEC 250.52 prohibits steam or hot water pipes as grounding electrodes due to potential deterioration and unreliable continuity.
- Question: Where an optical fiber cable is exposed to contact with electric light or power conductors and is terminated outside a building, the non-current-carrying metallic members: a. Shall not be grounded b. Shall be grounded or interrupted by an insulating joint c. Should be insulated d. Should not be bonded Answer: b. Shall be grounded or interrupted by an insulating joint Explanation: NEC 770.93(B) requires exposed metallic components to be either grounded per 770.100 or isolated to prevent energization from contact with power conductors.
- Question: When serving a mobile home, the CATV coaxial cable shield ground must be connected to the mobile home frame or grounding terminal if the service disconnecting means is located within what distance of the exterior wall? a. 10 feet b. 20 feet c. 30 feet d. 40 feet Answer: c. 30 feet Explanation: NEC 820.106(A)(1) and 820.93 require this bonding connection when service equipment is within 30 feet to ensure proper grounding continuity.
- Question: For a receiving station outdoor antenna with a 150-foot maximum open span using hard-drawn copper, what is the minimum conductor size? a. 20 AWG b. 19 AWG c. 14 AWG d. 12 AWG Answer: c. 14 AWG
Explanation: NEC 810.16(A) specifies 14 AWG minimum for hard-drawn copper antenna conductors with spans up to 150 feet for mechanical strength and current capacity.
- Question: When possible, the bonding conductor for an antenna mast or antenna discharge unit shall be: a. Swooped between buildings b. Run diagonally c. Run vertically along structural members d. Run in a straight line Answer: d. Run in a straight line Explanation: NEC 810.21(E) recommends straight-line installation of bonding conductors to minimize inductance and provide the most effective grounding path. Section 3: Circuit Classifications and Power Limitations
- Question: How is the power output limited for a Class 1 Remote Control and Signaling Circuit? a. No limitation is required b. Must be limited to 1000 VA c. Shall not exceed 30 volts d. Must be current-limited Answer: a. No limitation is required Explanation: NEC 725.41(B) states Class 1 remote control and signaling circuits are not required to have power-limited sources, though they must comply with overcurrent protection requirements.
- Question: What is the maximum voltage permitted for Class 1 remote control and signaling circuits? a. 24 volts b. 48 volts c. 120 volts d. 600 volts
Explanation: NEC 820.15 defines a CATV system as having power limited to 60 volts, distinguishing it from higher-voltage systems and specifying appropriate safety requirements.
- Question: When using 24-volts AC to power CCTV equipment, you would use a _____ transformer. a. class 1 b. class 2 c. rectifying d. step-up Answer: b. class 2 Explanation: Class 2 transformers provide inherent power limitation suitable for low-voltage equipment like CCTV cameras, reducing shock and fire risks per NEC Article 725.
- Question: Secondary protectors are required with primary protectors for communication circuits when exposed to accidental contact with electric light and power conductors operating over what voltage to ground? a. 90 volts b. 120 volts c. 300 volts d. 600 volts Answer: c. 300 volts Explanation: NEC 800.90(D) recommends secondary protection when exposure to power circuits over 300 volts to ground is possible, providing additional equipment protection. Section 4: Installation Clearances and Separations
- Question: When direct-buried, CATV coaxial cables must maintain a minimum separation from any light, power, or Class 1 circuit conductors of: a. 6 inches b. 12 inches
c. 24 inches d. 36 inches Answer: b. 12 inches Explanation: NEC 820.47(B) requires a 12-inch separation between direct-buried CATV cables and power conductors to prevent interference and damage during excavation.
- Question: Where practical, what minimum separation should be maintained on buildings between communications cables and lightning protection conductors? a. 2.5 m (8 feet) b. 1.8 m (6 feet) c. 300 mm (12 inches) d. 1.0 m (40 inches) Answer: b. 1.8 m (6 feet) Explanation: NEC 800.53 recommends 1.8 m separation to reduce the risk of lightning-induced surges entering communications systems through inductive coupling.
- Question: What is the minimum separation between outdoor lead-in conductors for radio/TV equipment and conductors of circuits not exceeding 150 volts, where permanent separation is ensured? a. 3 inches b. 4 inches c. 6 inches d. 8 inches Answer: b. 4 inches Explanation: NEC 810.18(A) mandates a 4-inch minimum separation under these conditions to prevent contact and reduce electrical interference risks.
Explanation: NEC 800.133(A)(1)(d) Exception No. 2 waives separation requirements when a permanent, fixed nonconductive barrier provides equivalent protection.
- Question: Communications cables must be separated by at least 2 inches from power conductors unless permanently separated by a continuous and firmly fixed nonconductor such as: a. Porcelain tubes regardless of cable insulation b. Flexible tubing or porcelain tubes, in addition to wire insulation c. Porcelain tubes or aluminum flexible raceway d. None of the above Answer: b. Flexible tubing or porcelain tubes, in addition to wire insulation Explanation: NEC 800.133(A)(2) Exception No. 2 allows the 2-inch separation to be waived when approved nonconductive sleeves or tubing provide equivalent physical separation.
- Question: A minimum separation of _____ inches must be maintained between communication service and supply service of 0-750 volts running above and parallel at any point in the span. a. 6 b. 12 c. 24 d. 36 Answer: b. 12 Explanation: NEC 800.44(A)(4) requires 12 inches of separation between communications and power conductors (0-750V) when run in parallel to prevent interference and contact.
- Question: Direct-buried underground CATV conductors must be separated from light or power circuit conductors by a minimum of: a. 12 inches b. 18 inches c. 24 inches d. 36 inches Answer: a. 12 inches
Explanation: NEC 820.47(B) establishes a 12-inch separation requirement for direct-buried CATV cables from power conductors to minimize interference and excavation damage.
- Question: Communications wires and cables without a metallic shield, running from the last outdoor support to the primary protector, shall be separated by _____ from electric light or power conductors not in a raceway or cable. a. 3 feet b. 4 feet c. 2 inches d. 4 inches Answer: d. 4 inches Explanation: NEC 800.50(B) requires a 4-inch separation for unshielded communications cables entering buildings to reduce inductive coupling and contact hazards.
- Question: All conductors installed inside a radio and television equipment transmitting station shall be separated by at least _____ from the conductors of any electric light, power or signaling circuit. a. 50 mm (2 in.) b. 75 mm (3 in.) c. 100 mm (4 in.) d. 300 mm (12 in.) Answer: c. 100 mm (4 in.) Explanation: NEC 810.70 mandates a 100 mm (4-inch) separation within transmitting stations to prevent interference and ensure operational safety.
- Question: CATV coaxial cables shall have a vertical clearance of not less than _____, where the roof has a slope of not less than 100 mm in 300 mm (4 in. in 12 in.). a. 450 mm (18 in.) b. 1.2 m (4 ft.) c. 2.5 m (8 ft.) d. 900 mm (3 ft.)
