Vehicle Communication, Navigation & EV Technologies – Complete Q&A Study Guide., Exams of Communications Engineering

Texas State UniversityCommunications Engineering

Why are two antennas usually required for an ILS system - Correct Answer.....One for the localizer reciever and one for the glide slope How often does the ATC transponder require certification - Correct Answer.....Every 24 calendar months What are the basic components of a communication system - Correct Answer.....Microphone, transmitter, transmitting antenna, receiving antenna, receiver, and headset What are the sensing elements of an autopilot system - Correct Answer.....Direction gyro, turn-and-bank gyro, attitude gyro, and altitude control What are three basic autopilot components - Correct Answer.....Gyros, servos, and an amplifier What are the actuating elemts of an autopilot system - Correct Answer.....Servos taht operate the control surfaces What is the most common communication system in us - Correct Answer.....VHF

Typology: Exams

2025/2026

Available from 05/27/2026

Martin-Ray-1
Martin-Ray-1 🇺🇸

4.7

(12)

9.9K documents

1 / 6

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

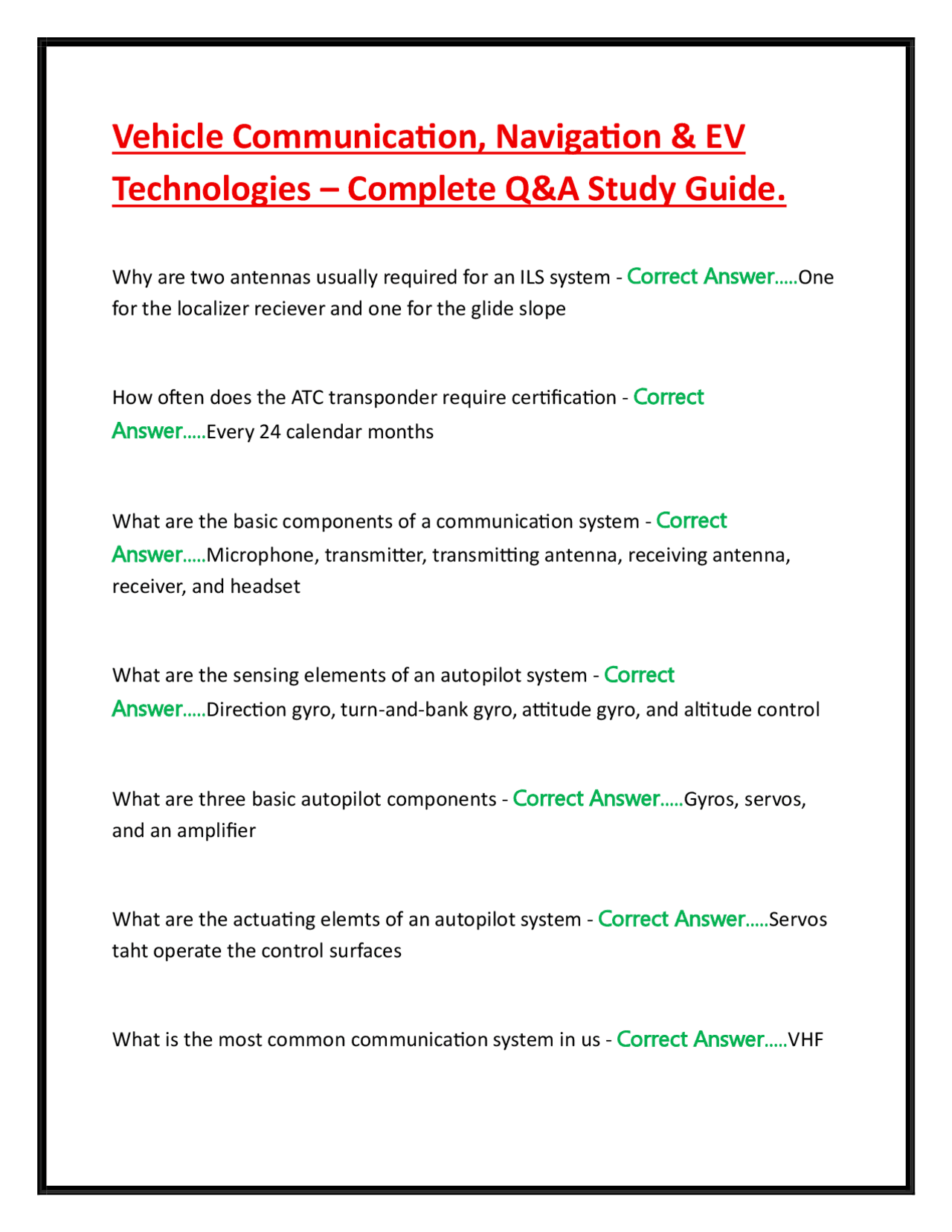

Vehicle Communication, Navigation & EV
Technologies – Complete Q&A Study Guide.
Why are two antennas usually required for an ILS system - Correct Answer.....One
for the localizer reciever and one for the glide slope
How often does the ATC transponder require certification - Correct
Answer.....Every 24 calendar months
What are the basic components of a communication system - Correct
Answer.....Microphone, transmitter, transmitting antenna, receiving antenna,
receiver, and headset
What are the sensing elements of an autopilot system - Correct
Answer.....Direction gyro, turn-and-bank gyro, attitude gyro, and altitude control
What are three basic autopilot components - Correct Answer.....Gyros, servos,
and an amplifier
What are the actuating elemts of an autopilot system - Correct Answer.....Servos
taht operate the control surfaces
What is the most common communication system in us - Correct Answer.....VHF
pf3
pf4
pf5

Partial preview of the text

Download Vehicle Communication, Navigation & EV Technologies – Complete Q&A Study Guide. and more Exams Communications Engineering in PDF only on Docsity!

Vehicle Communication, Navigation & EV

Technologies – Complete Q&A Study Guide.

Why are two antennas usually required for an ILS system - Correct Answer.....One for the localizer reciever and one for the glide slope How often does the ATC transponder require certification - Correct Answer.....Every 24 calendar months What are the basic components of a communication system - Correct Answer.....Microphone, transmitter, transmitting antenna, receiving antenna, receiver, and headset What are the sensing elements of an autopilot system - Correct Answer.....Direction gyro, turn-and-bank gyro, attitude gyro, and altitude control What are three basic autopilot components - Correct Answer.....Gyros, servos, and an amplifier What are the actuating elemts of an autopilot system - Correct Answer.....Servos taht operate the control surfaces What is the most common communication system in us - Correct Answer.....VHF

What are the components of a typical airborne VOR system - Correct Answer.....Receiver, visual indicator, frequency selector, antennas, and power supply How should coaxial cables be routed from an antenna to a receiver - Correct Answer.....Secured every two feet, not routed with other wire bundles, and bends at least ten times the cable diameter What is the purpose of a radio shock mount bonding jumper - Correct Answer.....To provide a low-impedance ground return How may the determination be made to replace the batteries in an ELT even though the set operates - Correct Answer.....The replacement date is marked on the outside of the transmitter What method is used to monitor the output signal during an ELT test - Correct Answer.....Use VHF communications receiver tuned to 121.5MHz What type antennas do most transponders have - Correct Answer.....Short stub usually mounted on the lower surface of the fuselage Where should DME antennas be located - Correct Answer.....On the lower surface of the aircraft in a position that will not be blanked out by the wings in a bank What is a DME - Correct Answer.....Distance measuring equipment

Which of the following is an attribute of Battery Electric Vehicles (BEVs) - Correct Answer.....less complex to build Why are lithium-ion battery packs preferred for use in Electrified Vehicles - Correct Answer.....they hold their charge longer, even when not in use The on-board charger is a component of plug-in vehicles that is designed to ___________________ - Correct Answer.....convert electricity supplied through the charge port from AC to DC power, so it can be stored in the battery The function of an EV engine's ability to stop and start when the vehicle has stopped is to _______________________ - Correct Answer.....shut off the ICE and electric motor when stopped to ensure no energy is wasted while idling The thermal cooling system in an Electrified Vehicle ________________________

  • Correct Answer.....maintains a proper operating temperature range of the engine, electric motor, and power electronics and other components Which of the following is an attribute of parallel hybrid technology - Correct Answer.....Both the electric motor and internal combustion engine drive the wheels Which of these factors does NOT affect battery range - Correct Answer.....the trim level of the vehicle

Which operating condition has been shown to cause an EV battery to degrade the quickest - Correct Answer.....extreme hot or cold temperatures Which of these components is necessary for a BEV - Correct Answer.....electric generator Having a higher kilowatt-hour (kWh) rating ____________________ - Correct Answer.....is like having a vehicle with a bigger gas tank How does a driver know when to switch a PHEV from Electric to Gas Mode? - Correct Answer.....the vehicle will switch automatically from electric to gas when the battery is depleted the most common EV technology-related questions your customers will ask include: - Correct Answer.....length of time to recharge batteries Customers can charge their PHEV by using ________________________ - Correct Answer.....either a Level 1 or Level 2 charger Which of the following is an operating feature of Plug-In Hybrid Electric Vehicles (PHEVs) - Correct Answer.....it can operate in all-electric mode Which of the following is a feature of Battery Electric Vehicles (BEVs) - Correct Answer.....they always operate in all-electric mode
