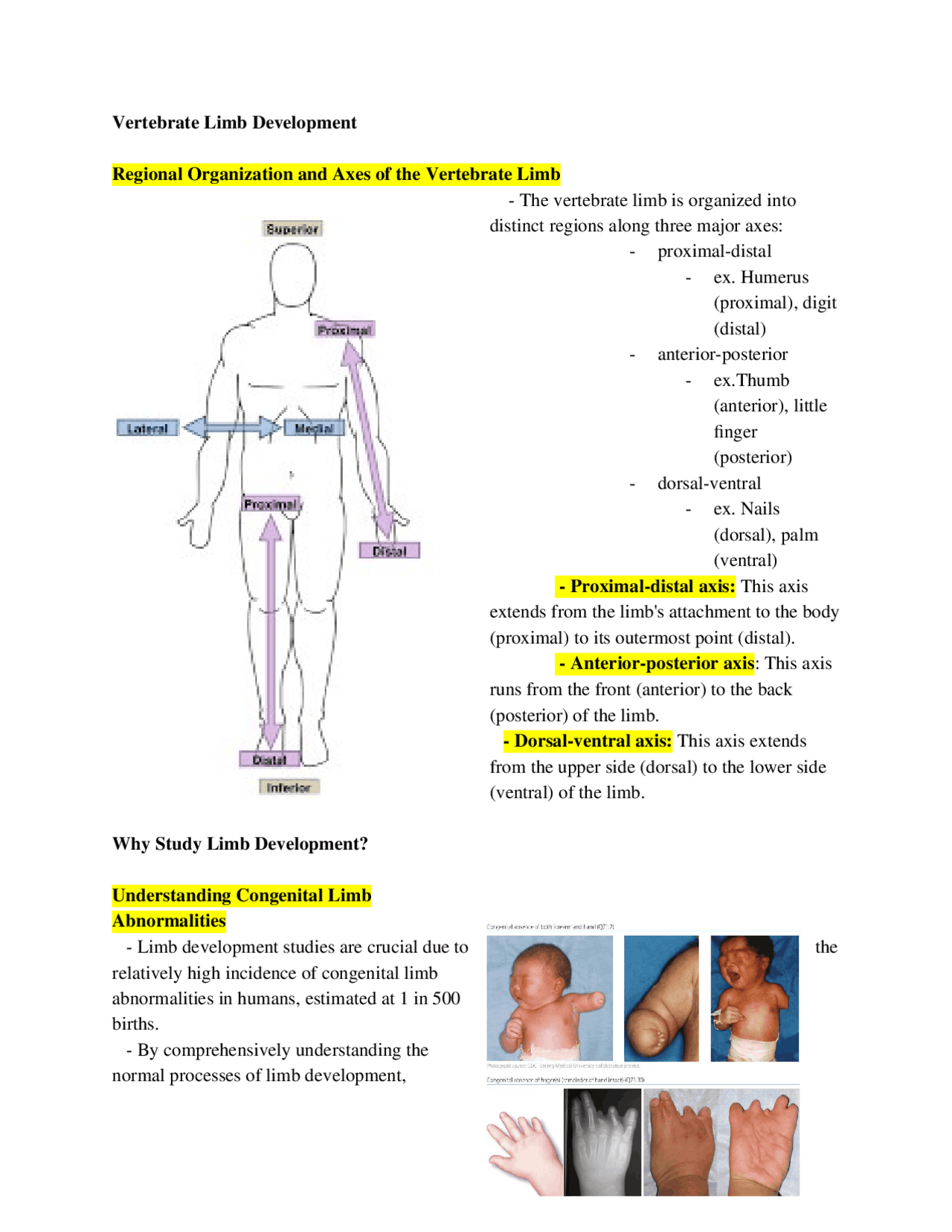

Vertebrate Limb Development
Regional Organization and Axes of the Vertebrate Limb
- The vertebrate limb is organized into
distinct regions along three major axes:
- proximal-distal
- ex. Humerus
(proximal), digit
(distal)
- anterior-posterior
- ex.Thumb
(anterior), little
finger
(posterior)
- dorsal-ventral
- ex. Nails
(dorsal), palm
(ventral)
- Proximal-distal axis: This axis
extends from the limb's attachment to the body
(proximal) to its outermost point (distal).
- Anterior-posterior axis: This axis
runs from the front (anterior) to the back
(posterior) of the limb.
- Dorsal-ventral axis: This axis extends
from the upper side (dorsal) to the lower side
(ventral) of the limb.
Why Study Limb Development?
Understanding Congenital Limb
Abnormalities
- Limb development studies are crucial due to the
relatively high incidence of congenital limb
abnormalities in humans, estimated at 1 in 500
births.
- By comprehensively understanding the
normal processes of limb development,
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff

Partial preview of the text

Download Vertebrate Limb Development and more Study notes Developmental biology in PDF only on Docsity!

Vertebrate Limb Development Regional Organization and Axes of the Vertebrate Limb

  • The vertebrate limb is organized into distinct regions along three major axes:
  • proximal-distal
  • ex. Humerus (proximal), digit (distal)
  • anterior-posterior
  • ex.Thumb (anterior), little finger (posterior)
  • dorsal-ventral
  • ex. Nails (dorsal), palm (ventral) - Proximal-distal axis: This axis extends from the limb's attachment to the body (proximal) to its outermost point (distal). - Anterior-posterior axis : This axis runs from the front (anterior) to the back (posterior) of the limb. - Dorsal-ventral axis: This axis extends from the upper side (dorsal) to the lower side (ventral) of the limb. Why Study Limb Development? Understanding Congenital Limb Abnormalities
  • Limb development studies are crucial due to the relatively high incidence of congenital limb abnormalities in humans, estimated at 1 in 500 births.
  • By comprehensively understanding the normal processes of limb development,

researchers can better grasp the molecular and genetic mechanisms underlying these abnormalities.

  • Insights gained from such studies aid in diagnosing, treating, and potentially preventing congenital limb anomalies, thus improving the quality of life for affected individuals. Insights into Evolutionary Biology
  • Limb development provides valuable insights into evolutionary biology, as the vertebrate limb structure has undergone significant diversification across species.
  • Comparative studies of limb development between different vertebrate groups shed light on the evolutionary changes that have occurred in limb morphology and function.
  • Understanding the genetic and developmental basis of limb diversity enhances our understanding of evolutionary processes and the mechanisms driving morphological adaptations. Advancing Regenerative Medicine and Tissue Engineering
  • Insights gained from studying limb development can inform regenerative medicine and tissue engineering efforts aimed at restoring or replacing damaged or lost limbs.
  • Understanding the molecular cues and signaling pathways involved in limb regeneration in certain species, such as amphibians, may provide clues for enhancing regenerative capacity in humans.
  • Additionally, knowledge of limb development can guide the design of tissue- engineered constructs for limb repair and regeneration. Unraveling Fundamental Developmental Processes
  • Limb development serves as a model system for studying fundamental developmental processes, including cell differentiation, pattern formation, and morphogenesis.
  • Investigating the intricate interactions between signaling pathways, gene regulatory networks, and cellular behaviors during limb development provides insights into broader principles of embryonic development.
  • Discoveries made in the context of limb development often have implications beyond limb biology, contributing to our understanding of development in other organ systems and tissues.
  • Additionally, interactions between various signaling centers, such as the apical ectodermal ridge (AER) and the zone of polarizing activity (ZPA), further regulate limb development and patterning. Timing of Limb Bud Formation:
  • Limb buds typically appear around 24 to 26 days post-fertilization in humans.
  • This marks a critical period in embryonic development when limb patterning begins. Composition of Limb Buds:
  • Limb buds consist of two primary tissue types:
  • Mesoderm-derived mesenchyme cells: These cells give rise to skeletal and connective tissues within the limb.
  • Ectoderm-derived epidermis: The outer layer of the limb bud, derived from the ectodermal tissue, which covers and protects the developing structures. Developmental Axes and Positional Information:
  • Embryonic cells within the limb bud possess the ability to sense their position along three axes: proximodistal, anteroposterior, and dorsoventral.
  • Acquisition of positional information is crucial for cells to develop structures appropriate to their location within the limb bud.
  • Cells interpret their positional value, or memory of their position, to initiate the formation of specific limb structures tailored to their location. Spatial Patterning and Differentiation:
  • The positional information acquired by embryonic cells guides the spatial patterning and differentiation of limb structures.
  • This process ensures the formation of diverse limb components, including bones, muscles, tendons, and vasculature, in precise spatial arrangements. Significance of Limb Development:
  • Limb development is a fundamental process in embryogenesis, essential for the formation of functional appendages necessary for locomotion, manipulation, and other physiological functions.
  • Understanding the molecular and cellular mechanisms underlying limb development provides insights into congenital limb abnormalities and potential therapeutic interventions.

Future Research:

  • Further research is needed to elucidate the intricate signaling pathways and genetic regulatory networks governing limb bud formation and patterning.
  • Insights gained from studying limb development may have broader implications for regenerative medicine, tissue engineering, and the treatment of limb-related birth defects and injuries. **Regional Organization and Axes of the Vertebrate Limb
  • Axes**
  • Proximodistal Axis : Extending from the attachment point of the limb to the body (proximal) to its outermost point (distal).
  • Anteroposterior Axis : Runs from the front (anterior) to the back (posterior) of the limb.
  • Dorsoventral Axis : Extends from the upper side (dorsal) to the lower side (ventral) of the limb.
  • Regions along the Proximodistal Axis :
  • Stylopod : Proximal region, including the upper arm (humerus in mammals) or thigh bone (femur).
  • Zeugopod : Middle region, including the forearm bones (radius and ulna) or the shin bones (tibia and fibula).
  • Autopod : Distal region, comprising the hand (carpals, metacarpals, and phalanges) or the foot (tarsals, metatarsals, and phalanges). Organization of the Limb Bud :
  • Composition
  • Mesenchymal Cells : Core component, derived from lateral plate mesoderm (skeletal and connective tissue) and somites (muscles and vasculature).
  • Epithelial Ectoderm Cells :Outer layer covering the mesenchymal cells.
  • Key Regions :
  • Example : Ectopic expression of Pitx1 in the forelimb region can induce hindlimb characteristics, indicating its role in specifying hindlimb fate. **Limb Bud Formation and Proximodistal Development: Formation of the Limb Bud:
  • Initiation Process** : Initiation of limb bud formation involves a complex interplay of molecular signals and gene regulatory networks. - Key Events :
  • Expression of specific signaling molecules, such as Fibroblast Growth Factors (FGFs), in the lateral plate mesoderm induces thickening of the overlying ectoderm, leading to limb bud formation.
  • Interactions between signaling centers, like the Apical Ectodermal Ridge (AER) and the Zone of Polarizing Activity (ZPA), further regulate limb development and patterning. **Development along the Proximodistal Axis:
  • Stages of Development** : Limb development proceeds along the proximodistal axis, involving the sequential differentiation of tissues from the proximal to the distal regions.
  • Distinct Regions :
  • Stylopod : Proximal region, giving rise to bones such as the humerus or femur.
  • Zeugopod : Middle region, forming bones like the radius and ulna or tibia and fibula.
  • Autopod : Distal region, where bones of the hand or foot, such as carpals, metacarpals, and phalanges, develop. Models of Proximodistal Pattern Formation:
  • Progress Zone Model :
  • Proposes that positional information along the proximodistal axis is determined by the rate of proliferation of undifferentiated mesenchymal cells in the progress zone.
  • Cells that spend more time proliferating in the progress zone differentiate into more distal structures.
  • Two-Signal Model :
    • Suggests that proximodistal patterning is controlled by interactions between two signaling centers: the AER and the ZPA.
  • AER produces signals promoting proliferation and outgrowth, while ZPA secretes Sonic hedgehog (Shh), influencing anteroposterior patterning. Role of Hox Genes in Proximodistal Development :
  • Hox Genes : Hox genes provide positional information along the anteroposterior axis and play a crucial role in specifying proximodistal regions of the limb.
  • Expression Pattern : Different Hox genes are expressed in specific regions of the developing limb, determining the identity of each segment along the proximodistal axis.
  • Example : Higher expression of Hox9-13 genes in the posterior region of the limb bud contributes to the development of more distal structures. Discovery of the Zone of Polarizing Activity (ZPA):
  • Experimental Evidence : Classic experiments, including grafting experiments conducted by Nüsslein-Volhard and Wieschaus in the 1970s, demonstrated the existence of a signaling region in the posterior limb bud capable of influencing anteroposterior patterning.
  • Role of Sonic Hedgehog (Shh): Subsequent studies identified Shh as the key signaling molecule secreted by the ZPA, responsible for specifying anteroposterior identity in the developing limb.
  • Experiment Setup : Conducted by Nüsslein-Volhard and Wieschaus in the late 1970s using chick embryos.
  • Procedure :
  1. A small piece of tissue from the ZPA region of one chick limb bud (donor embryo) was grafted onto the anterior margin of another chick limb bud (host embryo).
  2. The grafted ZPA tissue was positioned in such a way that it could influence the developing limb along the anterior-posterior axis.
  • Control Groups : Various control groups were included to ensure the specificity of the observed effects. - Interpretation of Results :
  • Mirror Image Duplication:
  • Remarkably, the host limb bud exhibited a duplicated pattern, with structures appearing in a mirror-image arrangement to those on the opposite side.
  • For example, if a digit normally developed on the anterior side of the limb, after ZPA grafting, a mirror-image duplicate digit appeared on the posterior side.
  • Evidence for a Morphogen:
  • These results suggested that the ZPA tissue secretes a morphogen, a signaling molecule capable of diffusing and forming a concentration gradient across the limb bud.
  • The morphogen establishes positional information along the anterior- posterior axis, guiding the development of limb structures in a spatially specific manner.
  • Morphogen's Role :
  • The morphogen from the ZPA induces differential gene expression in the mesenchyme along the anterior-posterior axis, leading to the formation of specific limb structures.
  • Cells exposed to higher concentrations of the morphogen acquire a posterior identity, while those exposed to lower concentrations adopt an anterior identity.
  • Mechanism of Action :
  • The morphogen model explains how a single signaling center, the ZPA, can orchestrate the development of complex limb structures along the anterior-posterior axis.
  • It accounts for the observed mirror-image duplication phenomenon and provides a mechanistic understanding of limb patterning during embryonic development. Sonic Hedgehog Protein and Signaling Pathway : Sonic Hedgehog (Shh) Protein and Signaling Pathway :
  • Shh Protein :
  • Shh is a secreted signaling protein belonging to the Hedgehog family, crucial for embryonic development, particularly limb patterning.
  • It acts as a morphogen, forming a concentration gradient to provide positional information during limb development.
  • Signaling Pathway :
  • Shh signaling pathway involves a complex cascade of events.
  • Binding of Shh to its receptor Patched (Ptch) relieves Ptch inhibition on Smoothened (Smo), leading to activation of downstream signaling events.
  • This ultimately results in the activation of target genes, including those involved in cell proliferation and differentiation. Evidence Supporting Shh as the ZPA Morphogen :
  • Experimental Evidence:
  • ZPA grafting experiments demonstrated that tissue from the ZPA region can induce mirror-image duplication of limb structures when grafted to anterior regions of developing limbs.
  • Further experiments showed that Shh is expressed specifically in the ZPA and its removal results in limb defects consistent with ZPA ablation. Function of Sonic Hedgehog in Determining Digit Identity :
  • Digit Patterning :
  • Shh signaling from the ZPA plays a crucial role in determining digit identity along the anterior-posterior axis of the limb.
  • The concentration gradient of Shh establishes a digital pattern, with higher concentrations corresponding to the formation of posterior digits. Interplay between ZPA and AER :
  • Mutual Maintenance :
  • The ZPA and Apical Ectodermal Ridge (AER) maintain each other's activity through reciprocal signaling.

Molecular Basis of Acheiropodia and Preaxial Polydactyly :

  • Acheiropodia :
    • Acheiropodia is a rare congenital limb malformation characterized by the absence of hands and feet, with limbs ending in rounded structures.
  • Molecular studies have identified mutations in the ZRS region of the Shh gene as the underlying cause of acheiropodia.
  • These mutations disrupt the normal regulation of Shh expression, leading to severe limb abnormalities.
  • Preaxial Polydactyly :
  • Preaxial polydactyly is a condition where extra digits form on the thumb side (preaxial side) of the hand or foot.
  • Mutations in the ZRS region can lead to overexpression of Shh in the anterior limb bud, resulting in the formation of additional digits.
  • This abnormal Shh expression pattern disrupts the normal patterning of the limb along the anterior-posterior axis, leading to polydactyly. Interplay between ZPA and AER:
  • Reciprocal Signaling :
  • The Zone of Polarizing Activity (ZPA) and Apical Ectodermal Ridge (AER) maintain each other's activity through reciprocal signaling.
  • Shh produced by the ZPA induces expression of Gremlin (Grem) in the AER, while Fibroblast Growth Factors (FGFs) secreted by the AER promote Shh expression in the ZPA.
  • This reciprocal interaction ensures proper limb development by coordinating anteroposterior patterning and outgrowth. Role of Apoptosis in Limb Development :
  • Apoptosis , or programmed cell death, plays a crucial role in sculpting and refining the structure of developing limbs.
  • Webbed Structure Elimination : Initially, the developing limb bud consists of

webbed structures between digits. Apoptosis selectively eliminates the tissue between digits, allowing for the separation of individual digits.

  • Interdigital Tissue Regression : This process involves the activation of apoptotic pathways specifically in the interdigital regions, leading to the removal of excess tissue and the formation of distinct digits.
  • Precision in Digit Formation : Apoptosis ensures precision in digit formation, contributing to the proper spacing and alignment of digits within the limb.
  • BMP-Triggered Apoptosis : Bone Morphogenetic Proteins (BMPs) play a key role in triggering apoptosis in interdigital mesenchyme, facilitating the separation of digits and ensuring proper digit formation. Pattern Formation along the Dorsoventral Axis :
  • Dorsoventral Patterning : In addition to proximodistal and anteroposterior patterning, limb development involves patterning along the dorsoventral axis, determining the dorsal (back) and ventral (front) sides of the limb.
  • Dorsoventral Signaling Centers : Signaling centers such as the Dorsal Ectodermal Ridge (DER) and the Ventral Ectodermal Ridge (VER) play crucial roles in dorsoventral patterning.
  • Differential Signaling :Signaling molecules such as Bone Morphogenetic Proteins (BMPs) and Wnts are involved in specifying dorsal identity, while factors like Sonic Hedgehog (Shh) are essential for ventral patterning.
  • Coordination with Proximodistal and Anteroposterior Patterning : Dorsoventral patterning is tightly coordinated with proximodistal and anteroposterior patterning to ensure the proper formation of functional limbs.
  • Key Regulators :
  • Wnt7a : Expressed in the dorsal ectoderm, Wnt7a signaling is crucial for specifying dorsal limb identity.
  • Lmxb1 : Expressed in the ventral ectoderm, Lmxb plays a role in specifying ventral limb identity.
  • These adaptations reflect changes in developmental pathways and gene regulation that accommodate specialized locomotion modes.
