Vertical Axis Wind Turbines
Technology, Design, and Environmental Impact

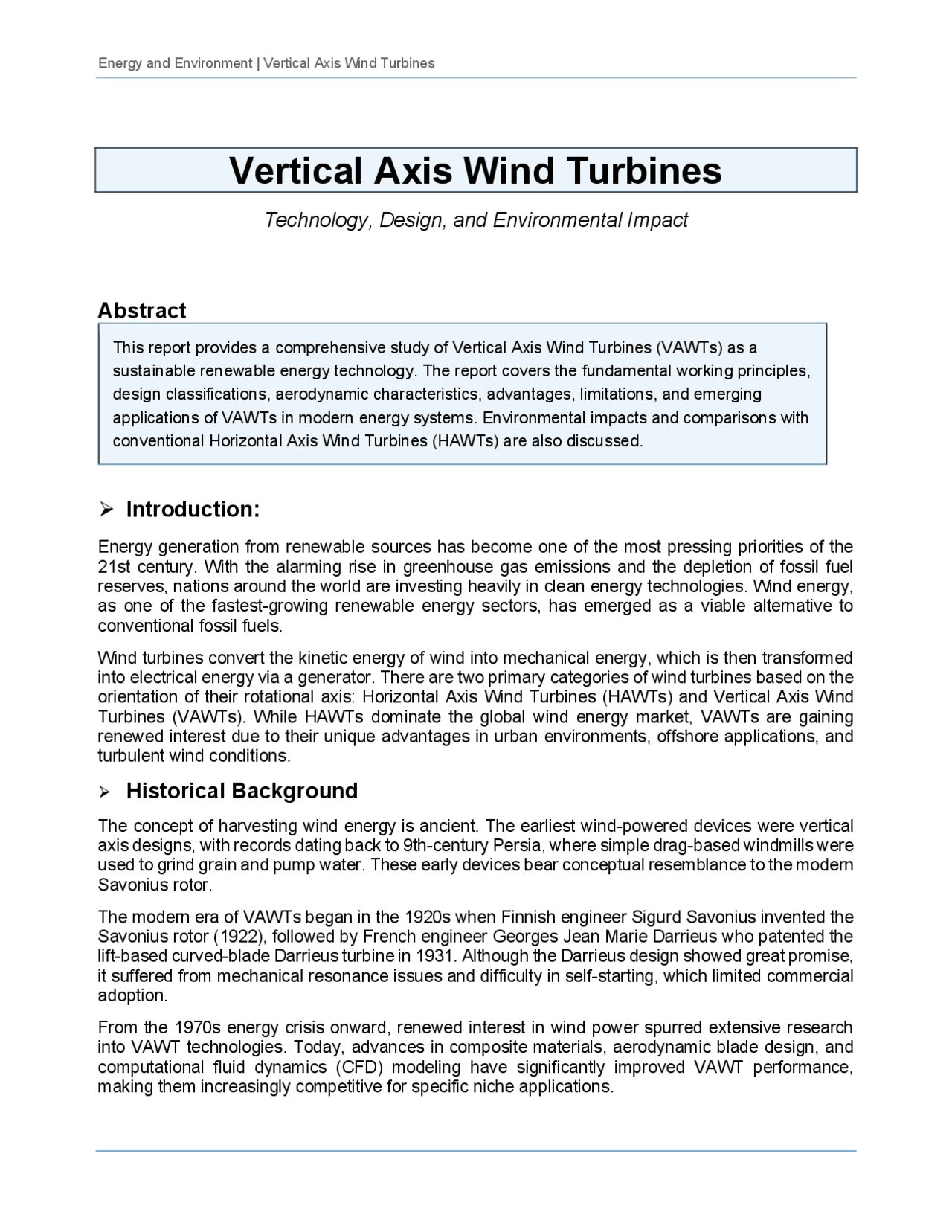

Abstract This report provides a comprehensive study of Vertical Axis Wind Turbines (VAWTs) as a sustainable renewable energy technology. The report covers the fundamental working principles, design classifications, aerodynamic characteristics, advantages, limitations, and emerging applications of VAWTs in modern energy systems. Environmental impacts and comparisons with conventional Horizontal Axis Wind Turbines (HAWTs) are also discussed. ➢ Introduction: Energy generation from renewable sources has become one of the most pressing priorities of the 21st century. With the alarming rise in greenhouse gas emissions and the depletion of fossil fuel reserves, nations around the world are investing heavily in clean energy technologies. Wind energy, as one of the fastest-growing renewable energy sectors, has emerged as a viable alternative to conventional fossil fuels. Wind turbines convert the kinetic energy of wind into mechanical energy, which is then transformed into electrical energy via a generator. There are two primary categories of wind turbines based on the orientation of their rotational axis: Horizontal Axis Wind Turbines (HAWTs) and Vertical Axis Wind Turbines (VAWTs). While HAWTs dominate the global wind energy market, VAWTs are gaining renewed interest due to their unique advantages in urban environments, offshore applications, and turbulent wind conditions. ➢ Historical Background The concept of harvesting wind energy is ancient. The earliest wind-powered devices were vertical axis designs, with records dating back to 9th-century Persia, where simple drag-based windmills were used to grind grain and pump water. These early devices bear conceptual resemblance to the modern Savonius rotor. The modern era of VAWTs began in the 1920s when Finnish engineer Sigurd Savonius invented the Savonius rotor (1922), followed by French engineer Georges Jean Marie Darrieus who patented the lift-based curved-blade Darrieus turbine in 1931. Although the Darrieus design showed great promise, it suffered from mechanical resonance issues and difficulty in self-starting, which limited commercial adoption. From the 1970s energy crisis onward, renewed interest in wind power spurred extensive research into VAWT technologies. Today, advances in composite materials, aerodynamic blade design, and computational fluid dynamics (CFD) modeling have significantly improved VAWT performance, making them increasingly competitive for specific niche applications.
➢ Types of Vertical Axis Wind Turbines VAWTs are classified primarily based on their operational mechanism, drag-based or lift-based, and the blade geometry employed. The three most important types are described below. Figure 1: Main types of Vertical Axis Wind Turbines — Savonius Rotor, Darrieus H-Rotor, and Darrieus Troposkein (Egg- beater)
- Savonius Rotor The Savonius rotor is one of the simplest and oldest VAWT designs. It consists of two or more S- shaped or half-cylindrical cups arranged around a central vertical shaft. The turbine operates on the principle of aerodynamic drag, the concave side of each cup catches more wind than the convex side, creating a net torque that drives rotation. ➢ Operating principle: Differential drag between concave and convex blade surfaces ➢ Self-starting capability: Yes, can start rotating at very low wind speeds (2–3 m/s) ➢ Efficiency: Relatively low (15–25% maximum power coefficient) ➢ Applications: Water pumping, anemometers, small off-grid power generation, signage ➢ Advantages: Simple construction, low cost, omni-directional, silent operation
- Darrieus Turbine (H-Rotor / Straight-Blade) The H-rotor, also called the straight-bladed Darrieus turbine, uses two or more symmetric airfoil blades oriented vertically and connected to the central shaft via horizontal support arms. It operates primarily on aerodynamic lift, similar to an aircraft wing, making it significantly more efficient than the Savonius rotor. ➢ Operating principle: Aerodynamic lift generated by airfoil blades in the wind stream ➢ Self-starting capability: Limited, typically requires a motor assist to initiate rotation
The angle of attack, the angle between the blade chord line and the incoming relative wind, changes continuously as the blade orbits around the central shaft. This cyclically varying angle of attack is what makes VAWT aerodynamics considerably more complex than HAWT aerodynamics.
- Tip Speed Ratio (TSR) The Tip Speed Ratio (TSR) is a critical dimensionless parameter in wind turbine performance analysis. It is defined as the ratio of the blade tip velocity to the free-stream wind velocity:
TSR (λ) = Blade Tip Speed / Wind Speed = (ω × R) / V∞
Optimal VAWTs typically operate at TSR values between 2 and 4, compared to 6–8 for HAWTs. A higher TSR generally corresponds to better aerodynamic efficiency, but structural loads also increase.
- Betz Limit The theoretical maximum efficiency of any wind turbine, regardless of design, is 59.3%, known as the Betz Limit. This limit arises from the physics of extracting kinetic energy from a moving fluid without completely stopping it. Practical VAWTs achieve 25–40% efficiency due to aerodynamic losses, mechanical friction, and wake effects.
- Omnidirectional Wind Acceptance One of the most distinctive advantages of VAWTs is their ability to accept wind from any horizontal direction without the need for a yaw control mechanism. As wind direction changes, lift forces automatically adjust to drive continued rotation. This makes VAWTs ideal for locations with turbulent or highly variable wind conditions such as urban areas, mountainous terrain, and coastal environments. ➢ VAWT vs. HAWT: Comparative Analysis While HAWTs currently dominate the commercial wind energy landscape due to their higher efficiency at large scales, VAWTs offer compelling advantages in specific deployment scenarios. Understanding these differences is crucial for selecting the appropriate technology. Figure 3: Structural comparison between VAWT (left) and HAWT (right), illustrating generator placement, blade configuration, and wind acceptance differences
Parameter VAWT HAWT Wind Direction Omnidirectional, no yaw needed Must actively face into wind Generator Location Ground level, easy access Nacelle atop tower, difficult access Self-Starting Savonius: Yes; Darrieus: No Yes, at moderate wind speeds Efficiency (Cp) 25 – 40% 40 – 50% Noise Level Very low, suitable for urban use Moderate to high Maintenance Cost Low, accessible components High, requires cranes/technicians Visual Impact Compact, lower height Tall, prominent visual presence Scalability Best at small-medium scale Excellent at large scale Turbulent Wind Performs well Reduced performance Wildlife Impact Minimal, slower blade tips Significant bird/bat mortality Table 1: Comprehensive comparison of VAWT and HAWT characteristics ➢ Advantages of VAWTs
➢ Low Wind Speed Operation
VAWTs, particularly the Savonius type, can begin generating electricity at wind speeds as low as 2– 3 m/s, making them suitable for locations where wind is gentle or intermittent.
➢ Reduced Noise Pollution
The slower rotational speeds of VAWTs, combined with enclosed blade paths, result in significantly lower aerodynamic noise compared to HAWTs. This makes them highly suitable for installation near residential areas and in urban environments.
➢ Lower Installation and Maintenance Costs
Since the gearbox and generator are located at the base of the tower rather than at the nacelle, installation and maintenance are dramatically simplified. Heavy lifting equipment is not required for servicing, reducing operational costs considerably.
➢ Wildlife Safety
The slower-moving blade tips and compact rotor footprint of VAWTs make them significantly safer for birds and bats compared to the fast-spinning blades of large HAWTs.
➢ Aesthetic Integration
VAWTs offer greater architectural flexibility. They can be integrated into building designs, placed on rooftops, or mounted on lamp posts and bridges. Some modern VAWTs are designed to be visually appealing, promoting public acceptance of wind energy infrastructure.
Offshore wind energy resources are considerably stronger and more consistent than onshore resources. Floating offshore VAWTs are being developed that can be deployed in deep-water locations inaccessible to conventional bottom-fixed HAWT structures. The lower center of gravity of VAWTs improves platform stability in offshore conditions.
➢ Hybrid Renewable Energy Systems
VAWTs are increasingly paired with photovoltaic (PV) solar panels in hybrid microgrids. Wind and solar energy complement each other, solar generation peaks during sunny days while wind energy can provide power during nighttime and overcast periods. Such systems improve energy reliability and reduce dependence on battery storage. ➢ Environmental Impact
➢ Positive Impacts
➢ Carbon-free electricity generation, no greenhouse gas emissions during operation ➢ Significantly lower life-cycle carbon footprint compared to fossil fuel power plants ➢ Minimal land use impact, VAWTs can be installed on existing structures ➢ Low water consumption, unlike thermal power plants, no cooling water required ➢ Reduced bird and bat fatalities compared to HAWTs
➢ Potential Negative Impacts
➢ Manufacturing of blades and magnets requires energy and rare earth materials ➢ End-of-life blade disposal presents environmental challenges (composite materials are difficult to recycle) ➢ Electromagnetic interference in some installations near communication equipment ➢ Visual impact on landscapes, though generally less than HAWTs
➢ Life-Cycle Assessment
Life-cycle assessments (LCAs) of VAWTs consistently show that the energy payback period, the time required for the turbine to generate as much energy as was consumed in its manufacture, installation, and decommissioning, ranges from 3 to 7 months for small VAWTs. Given a typical operational life of 20–25 years, VAWTs deliver a highly favorable energy return on investment (EROI).
- Recent Technological Advances Research and development in VAWT technology has accelerated significantly in the past decade. Key advances include: ➢ Biomimetic blade designs, blades inspired by humpback whale fins with leading-edge tubercles to reduce stall and improve efficiency ➢ Counter-rotating dual-rotor VAWTs, two co-axial rotors spinning in opposite directions for higher power density ➢ Smart pitch control systems, variable blade pitch adapting in real time to wind conditions ➢ Advanced composite materials, carbon fiber reinforced polymers enabling lighter, stronger blades
➢ Magnetic levitation bearings, frictionless bearings that significantly reduce mechanical losses and noise ➢ CFD-optimized blade profiles, computational fluid dynamics simulations generating highly efficient custom blade geometries ➢ Offshore floating VAWT platforms, innovative mooring and platform designs for deep-water deployment (e.g., Minesto, SeaTwirl projects) ➢ Notable Case Studies
- Bahrain World Trade Center The Bahrain World Trade Center (2008) was the first skyscraper in the world to incorporate wind turbines into its structural design. Three horizontal-axis turbines were mounted on sky bridges between the twin towers, but the project demonstrated the architectural feasibility of building- integrated wind energy, a concept now being extended to VAWT designs globally.
- Wind Tree, NewWind, France The Arbre à Vent (Wind Tree) by French company NewWind uses dozens of small leaf-shaped VAWTs mounted on a tree-like structure. The aesthetic design generates electricity from urban breezes while serving as an attractive public art installation. It represents how VAWT technology can be seamlessly integrated into urban environments.
- Urban Green Energy (UGE) VAWTs Urban Green Energy has deployed thousands of small VAWTs worldwide for urban, commercial, and off-grid applications. Their helical Savonius-based turbines are installed on rooftops and communication towers across North America, Europe, and Asia, demonstrating the global commercial viability of VAWT technology. ➢ Future Prospects The global push toward net-zero carbon emissions by mid-century creates strong momentum for VAWT adoption in several key areas: ➢ Smart cities and green buildings will increasingly adopt building-integrated VAWTs as part of distributed energy systems ➢ The growing offshore floating wind market presents an enormous opportunity for large-scale Darrieus VAWTs ➢ Miniaturized micro-VAWTs are being developed to power Internet of Things (IoT) sensors, wearable devices, and autonomous systems ➢ Wind-solar hybrid installations will proliferate as countries seek resilient, decentralized energy solutions ➢ Advances in additive manufacturing (3D printing) will enable rapid prototyping and customization of VAWT blade geometries The global VAWT market was valued at approximately USD 70 million in 2022 and is projected to grow at a compound annual growth rate (CAGR) of over 12% through 2030, reflecting increasing investment and commercialization.
15. References
- Paraschivoiu, I. (2002). Wind Turbine Design: With Emphasis on Darrieus Concept. Polytechnic International Press, Montreal.
- Tjiu, W., Marnoto, T., Mat, S., Ruslan, M. H., & Sopian, K. (2015). Darrieus vertical axis wind turbine for power generation II: Challenges in HAWT and the opportunity of multi-megawatt Darrieus VAWT development. Renewable Energy, 75, 560–571.
- Eriksson, S., Bernhoff, H., & Leijon, M. (2008). Evaluation of different turbine concepts for wind power. Renewable and Sustainable Energy Reviews, 12(5), 1419–1434.
- Hand, B., & Cashman, A. (2020). A review on the historical development of the lift-type vertical axis wind turbine: From onshore to offshore floating application. Sustainable Energy Technologies and Assessments, 38, 100646.
- Islam, M., Ting, D. S. K., & Fartaj, A. (2008). Aerodynamic models for Darrieus-type straight-bladed vertical axis wind turbines. Renewable and Sustainable Energy Reviews, 12(4), 1087–1109.
- International Energy Agency (IEA). (2023). World Energy Outlook 2023. IEA Publications, Paris.
- Kumar, R., Raahemifar, K., & Fung, A. S. (2018). A critical review of vertical axis wind turbines for urban applications. Renewable and Sustainable Energy Reviews, 89, 281–291.
- IRENA. (2022). Renewable Power Generation Costs in 2022. International Renewable Energy Agency, Abu Dhabi.
