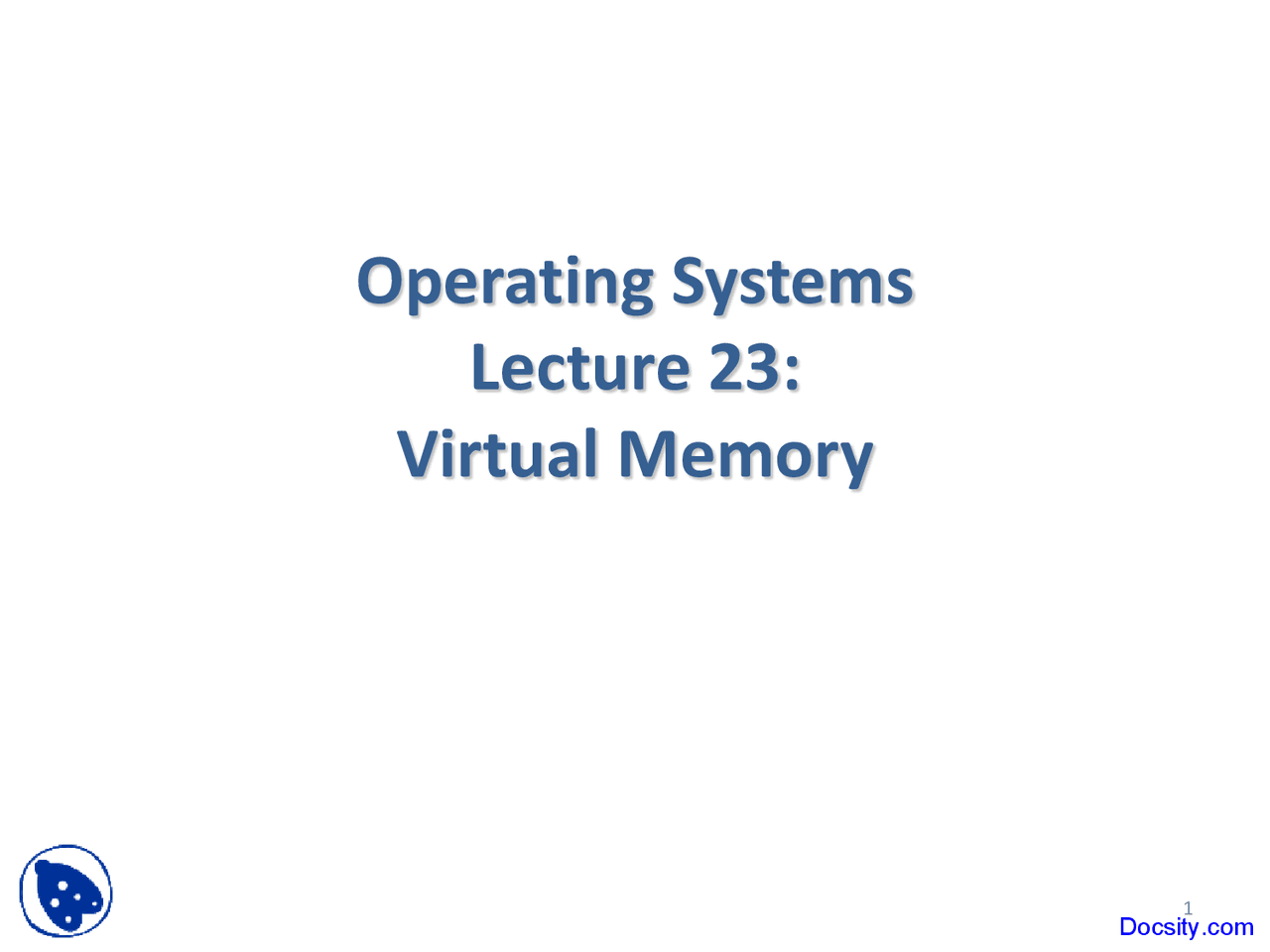

Operating Systems
Lecture 23:
Virtual Memory
1
Docsity.com
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34

Partial preview of the text

Download Virtual Memory Two - Operating Systems - Lecture Slides and more Slides Computer Science in PDF only on Docsity!

Operating Systems

Lecture 23:

Virtual Memory

Execution Behavior

Breakthrough in

Memory Management

  • If:
    • Memory references are logical addresses dynamically translated into physical addresses at run time (processes may be swapped in and out of main memory occupying different regions at different times)
    • A process may be broken up into pieces that do not need to be located contiguously in main memory
  • Then it is not necessary to have all pages of a process in main memory during execution. - If the next instruction, and the next data location are in memory, then execution can proceed

Chapter 9: Virtual Memory

Implications of

Virtual Memory

  • More processes may be maintained in main memory - Only load in some of the pieces of each process - With so many processes in main memory, it is very likely a process will be in the Ready state at any particular time
  • A process may be larger than all of main memory

Execution of a Process

  • Operating system brings into main memory a few pieces of the program - Resident set: portion of process that is in main memory
  • An interrupt is generated when an address is needed that is not in main memory
  • Operating system places the process in a blocking state

Support Needed for

Virtual Memory

  • Hardware must support paging and/or segmentation
  • Operating system must be able to manage the movement of pages and/or segments between secondary memory and main memory - What if no room in main memory? Which frame to replace?

Page Table

Entries Formats

Replacement Policy

  • When all of the frames in main memory are occupied and it is necessary to bring in a new page, the replacement policy determines which page currently in memory is to be replaced.
  • Subject to other design issues such as:
    • Number of frames per process
    • Local or global allocation

But…

  • Which page is replaced?
  • Page removed should be the page least likely to be referenced in the near future - How is that determined? - Principle of locality again
  • Most policies predict the future behavior on the basis of past behavior

Basic Replacement

Algorithms

  • There are certain basic algorithms that are used for the selection of a page to replace, they include - Optimal - Least recently used (LRU) - First-in-first-out (FIFO) - Clock

Optimal Page Replacement

Policy

  • Knows the future, minimizes page faults
  • Theoretical limit, not a practical algorithm

LRU Example

  • The LRU policy does nearly as well as the optimal policy. - In this example, there are four page faults

First-in, first-out (FIFO)

  • Treats page frames allocated to a process as a circular buffer
  • Pages are removed in round-robin style
    • Simplest replacement policy to implement
  • Page that has been in memory the longest is replaced - But, these pages may be needed again very soon if it hasn’t truly fallen out of use
