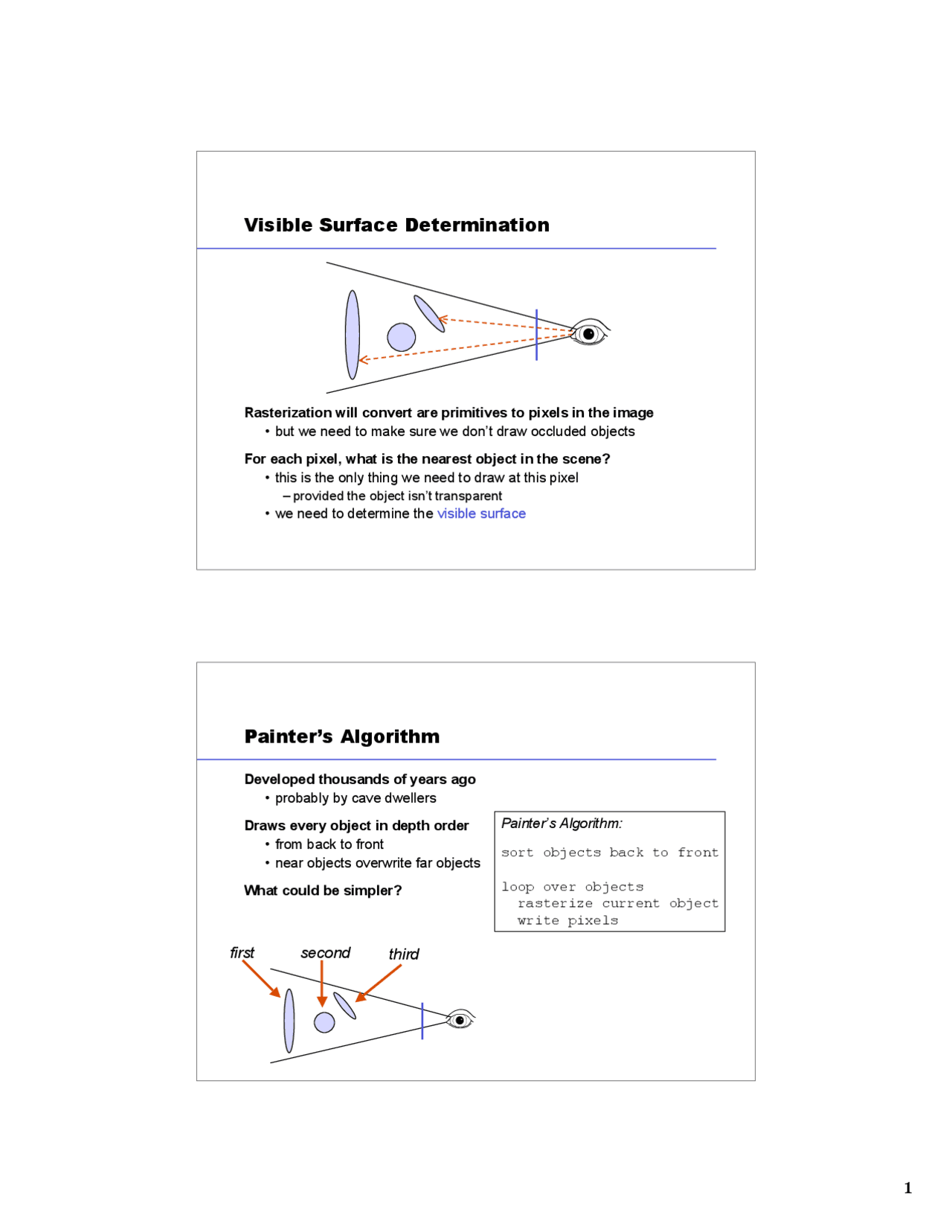

Visible Surface Determination
Rasterization will convert are primitives to pixels in the image • but we need to make sure we don’t draw occluded objects For each pixel, what is the nearest object in the scene? • this is the only thing we need to draw at this pixel
- we need to determine the^ –^ provided the object isn’t transparent visible surface
Painter’s Algorithm
Developed thousands of years ago • probably by cave dwellers Draws every object in depth order • from back to front
- near objects overwrite far objects What could be simpler?
Painter’s Algorithm: sort objects back to front loop over objects rasterize current object write pixels first second (^) third
But the Catch is in the Depth Sorting
What do we sort by? • minimum z value — no maximum z value — no
- in fact, there’s no single z value we can sort by
Worse yet, depth ordering of objects can be cyclic • may need to split polygons to break cycles
Looking at Painter’s Algorithm
It has some nice strengths
- • the principle is very simplehandles transparent objects nicely
- just composite new pixels with what’s already there But it also has some noticeable weaknesses • general sorting is a little expensive — worse than O(n)
- • need to do splitting for depth cycles, interpenetration,and what if the objects aren’t planar polygons? …
Looking at the Z-Buffer Algorithm
It has some attractive strengths • it’s very simple, and easy to implement in hardware
- can easily accommodate any primitive you can – not just planar polygons rasterize
But it does have a few problems • it doesn’t handle transparency well
- needs intelligent selection of – z-buffers typically use integer depth values znear & zfar clipping planes
- fixed bit precision mapped to range znear..zfar
Making Z-Buffers Efficient
When we • we could just compute it at every pixel rasterize a polygon, we need z value at each pixel
- but this is pretty expensive Can use a handy • the projected polygon satisfies some plane equation incrementalization trick
- we could compute the depth as
- but taking account of coherence
ax + by + cz + d = 0 z d^ ax^ by c
=^!^!^!
! z = "^ a c! x for fixed values of y
Ray Casting
This is a very general algorithm • works with any primitive we can write intersection tests for
- but it’s hard to make it run fast We’ • ll come back to this idea later can use it for much more than visibility testing
- shadows, refractive objects, reflections, motion blur, …
Ray Casting: loop over every pixel (x,y) shoot ray from eye through (x,y) intersect with all surfaces find first intersection point write pixel
Culling
Rendering is expensive — Don’t draw what you can’t see
- this becomes critical for top efficiency What can • anything in complete shadow ’t we see?
- • anything very much smaller than a pixelanything occluded by another object
- anything outside view volume We’ll focus on the last two categories
Culling with Bounding Volumes
Let • ’ s enclose our object in a bounding sphere convex volume
- – compact representationmay not fit object tightly
- bounding box – axis-aligned or oriented with object
- convex – allows tightest fit polytope
- most expensive to deal with Now test bounding volume first • if outside frustum, reject object
- otherwise visit individual components
Hierarchical Bounding Volumes
And we can do even better with a hierarchy of volumes Begin testing at the root node • if outside, reject all objects
- otherwise, recursively test sub-nodes Of course this raises the question: how best to build this hierarchy?
Back-face Culling
Even for polygons inside frustum, some may be culled • if we assume that our objects are closed
Consider the normal of a given polygon • if it’s pointing towards the eye, we may be able to see it
- pointing away means it’s on the opposite side of the object So, any back-facing polygon can be culled • again, assuming closed objects
- see glCullFace(…)
Visibility in Complex Worlds
Highly complex scenes lead to significant problems
- basic system draws every polygon every time We talked about culling to cut down on number of polygons • visibility culling is important for really high performance
- • hierarchical z-buffers are one examplecompute potentially visible sets for static worlds
To better resolve visibility, we often use spatial data structures
- • octreeshierarchical bounding volumes
- • gridsBSP trees
