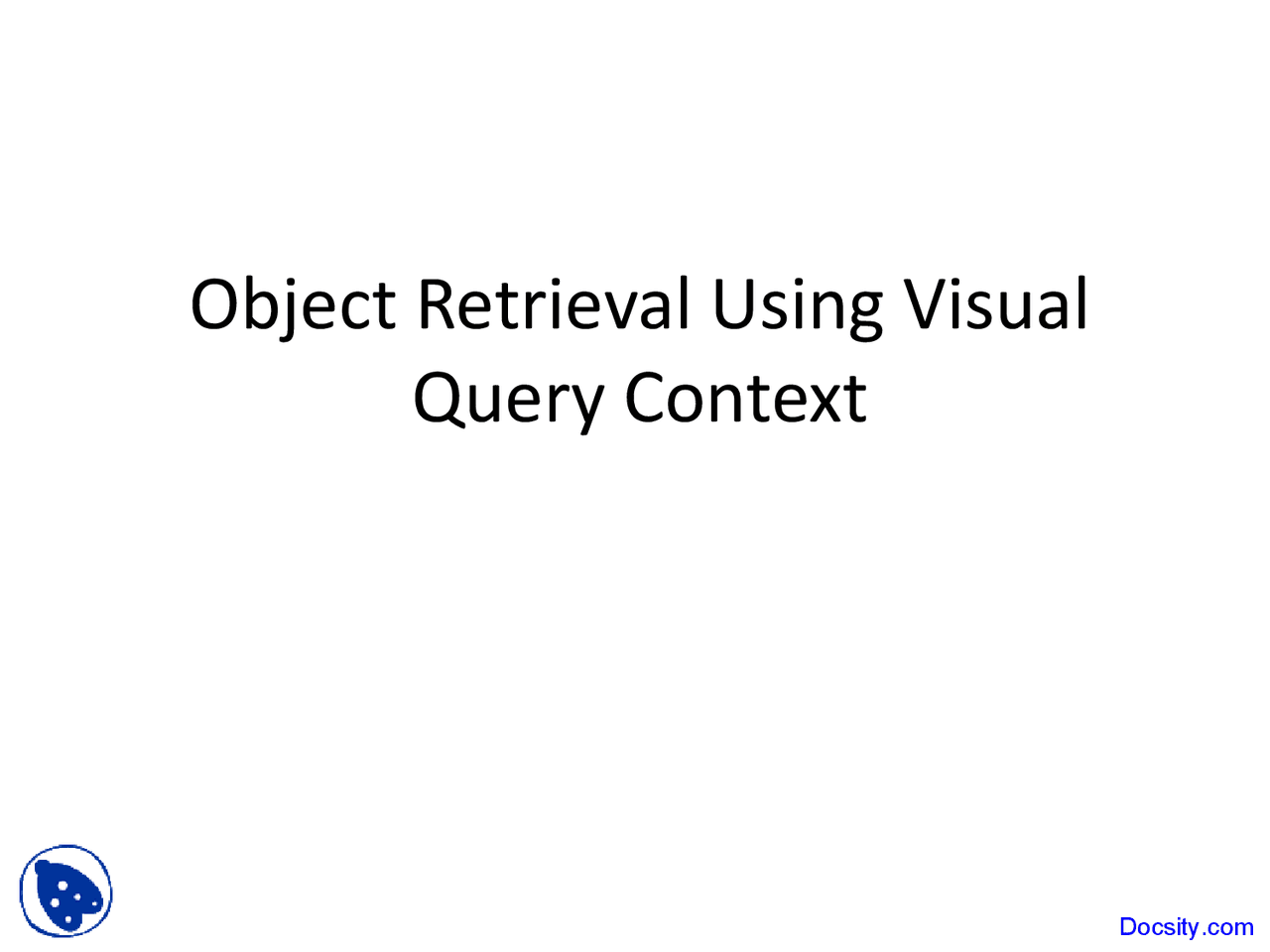

Object Retrieval Using Visual

Query Context

What is a Visual Query?

• TinEye

• Google Image Search

• Google Goggles

Bad Query Image vs. Good Query Image

How Can We Improve a Visual Query?

Objects in real-life aren’t bound by a box

Existing Methods

• Relevance feedback
• “Bag of visual words”
  • Scale-invariant feature transform (SIFT)
• Cosine retrieval model
• Language modeling

Proposed COR Model

• Based on the Kullbak-Leibler retrieval model
  • Detect interest points
  • Extract SIFT descriptors
  • Convert into visual words
  • Match words to documents in a database
• Uses Jelinek-Mercer smoothing method
  • Captures important patterns, while removing noise

COR Search Intent Score

• Standard LM approach uses binary search intent score
• Two proposed algorithms to compute SI from bounding box with context: 1. Based on pixel distance from bounding box (spatial propagation) 2. Based on color coherence of the pixels (appearance propagation)

Spatial Propagation (CORa)

• Bounding box is usually rough and inaccurate
  • Lack of user effort
  • Limiting rectangular shape
• Use smoothed approximation of bounding box
  • Dual-sigmoid function
  • Uses  as a control variable

Appearance Propagation (CORm)

• Assign high scores to object of interest, normally in foreground
• Assign low scores to background objects, or objects of no interest
• Similar to image matting
  • Separate foreground and background using alpha values
  • Separate relevant objects from irrelevant in bounding box

Appearance Propagation (CORm)

Three step approach:

1. Estimate foreground and background models guided by boundingbox
   • GrabCut algorithm
2. Use models to select foreground and background pixels
3. Search intent score estimated based on pixel information
   • Use pseudo-foreground and -background pixels to account for spatialsmoothness
   • Top 10% of foreground pixels from inside box and top 20% ofbackground pixels from outside box

Experiments

• Experiments performed using 3 image datasets: 1. Oxford5K 2. Oxford5K+ImageNet500K 3. Web1M

• 1, 2 use 11 landmarks (55 total images) as queries

• 3 adds an additional 45 images

• Randomly selected
• Various categories

Experiments

• COR models compared to 2 baseline retrieval models:
  1. Cosine
  2. General language modeling (context-unaware)
• Baseline models only use visual words from inside bounding box
• All models evaluated in terms of average precision (AP)
• AP over all queries are averaged to obtain mean average precision(MAP)

AP for different landmarks on Oxford5K dataset.
