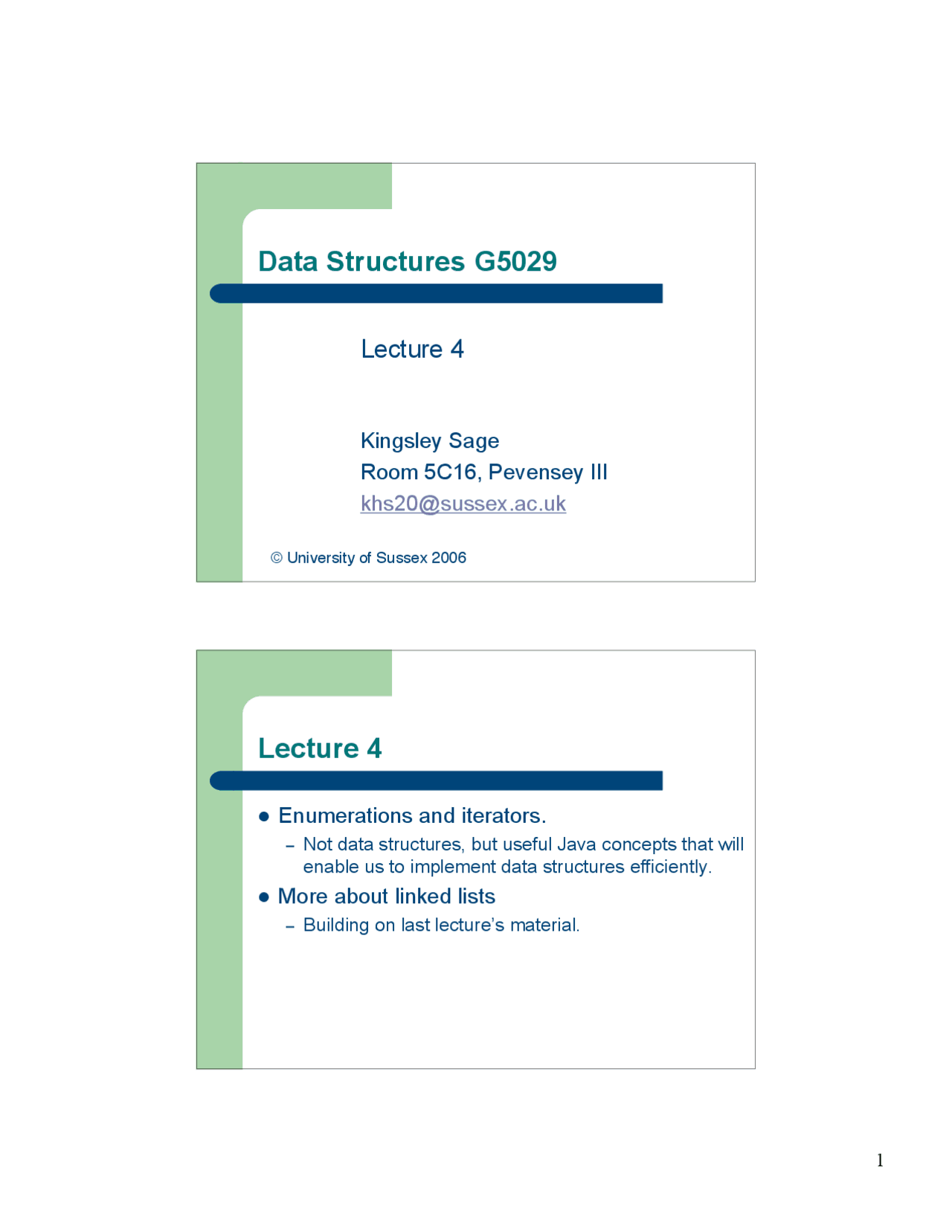

Data Structures G
Kingsley Sage
Room 5C16, Pevensey III
© University of Sussex 2006
Lecture 4
Lecture 4
Enumerations and iterators.
– Not data structures, but useful Java concepts that will
enable us to implement data structures efficiently.
More about linked lists
– Building on last lecture’s material.
Enumerations
It is frequently useful to be able to extract the elements
of a vector, list, tree graph etc. one at a time and do
something useful with them.
There is a standard way of doing this in Java which
makes use of the Enumeration interface in the
java.util package.
public interface Enumeration { boolean hasMoreElements(); Object nextElement(); }
Enumerations
The hasMoreElements method returns true or false
depending on whether the enumeration is exhausted.
The nextElement method returns the next element in the
enumeration, if there is a next element, so that successive calls to
this method enumerates the elements.
Any implementation of the Enumeration interface must implement
these two methods.
// This code will enumerate the elements of a vector v .. Enumeration e = v.elements(); while (e.hasMoreElements()) { System.out.println(e.nextElement()); }
Iterators – remove method
remove removes from the collection the element returned by the last call
to next. So, for example, the following removes all elements of the
vector v.
Iterator i=v.iterator(); while (i.hasNext()) { i.next(); i.remove(); }
remove may only be called once per call to next. An implementation
must ensure that an IllegalStateException is thrown if either the
next method has not yet been called, or remove has already been
called since the last next.
Behaviour of the iterator is unspecified if the collection is modified whilst
the iteration is in progress in any way other than by calling remove.
Linked lists
We saw last time the basic concept of the linked list
and how that could be used to implement stacks
(implementation for queues was left for your own study
– see the on-line course notes).
Now we go on to develop a Java class for a general
purpose singly linked list. You can also have doubly
linked lists, but we won’t cover these here (but what
extra properties might they have?).
What methods do we need to implement?
Linked lists
// For singly linked lists … public class LinkedList { public boolean isEmpty(); public int size(); public void addFIrst(Object item); public Object firstItem(); public void removeFirst(); public boolean contains(Object item); public void reverse(); public Iterator iterator(); public boolean equals(Object other); public String toString(); }
Linked lists
A list will be represented internally by a single ListNode
constituting the head of the list.
We set this value to null to indicate an empty list.
class ListNode { Object data; ListNode next; ListNode(Object data, ListNode next) { this.data = data; this.next = next; } } // this operator is self referential …
Linked lists – reversal
How does this work?
public void reverse() { ListNode current = head; head = null; while (current != null) { ListNode save = current; current = current.next; save.next = head; head = save; } }
Linked lists – enumeration
In order to be able to enumerate a linked list, we need to provide a
elements method to collect all the items into a collection:
public Enumeration elements(); // add to class def public Enumeration elements() { return new Enumeration() { // anonymous inner class private ListNode current = head; public boolean hasMoreElements() { return (current != null); } public Object nextElements() { if (current != null) { Object result = current.data; current = current.next; return results; } else { throw new NoSuchElemenExceprion(): } } }; }
Linked lists – testing equality
Two different ways of looking at equality:
- The two references are the same physical object
- There are two separate lists that have the same values
In the first case, all you would need to do is something like:
public boolean equals(Object obj) { return (this == obj); }
In the second case, you need to enumerate or iterate through the lists
comparing each item pairing one at a time. Can short circuit fail as soon as
any pairing does not match.
Linked lists – removing a mid item
If you need to remove an item from part way through
the list, you need to ensure that the list integrity is
maintained.
Necessary to implement iterator for linked lists
(remember they implement a remove method). Full
details are in the on-line course notes.
5 -32 11 END
