Welding Workshop Part 1-Workshop Practice-Lecture Slides, Slides of Mechanical Engineering
This lecture was delivered by Prof. Bhanudas Jayaraman at Aligarh Muslim University. This lecture is about workshop of Mechanical Engineering course. Its main points are: Welding, Workshop, Soldering, Joining, Process, Filler, Metal, Capillary, Attraction, Assembling, Electronics
Typology: Slides
2011/2012
1 / 24
This page cannot be seen from the preview
Don't miss anything!
Related documents
Partial preview of the text
Download Welding Workshop Part 1-Workshop Practice-Lecture Slides and more Slides Mechanical Engineering in PDF only on Docsity!

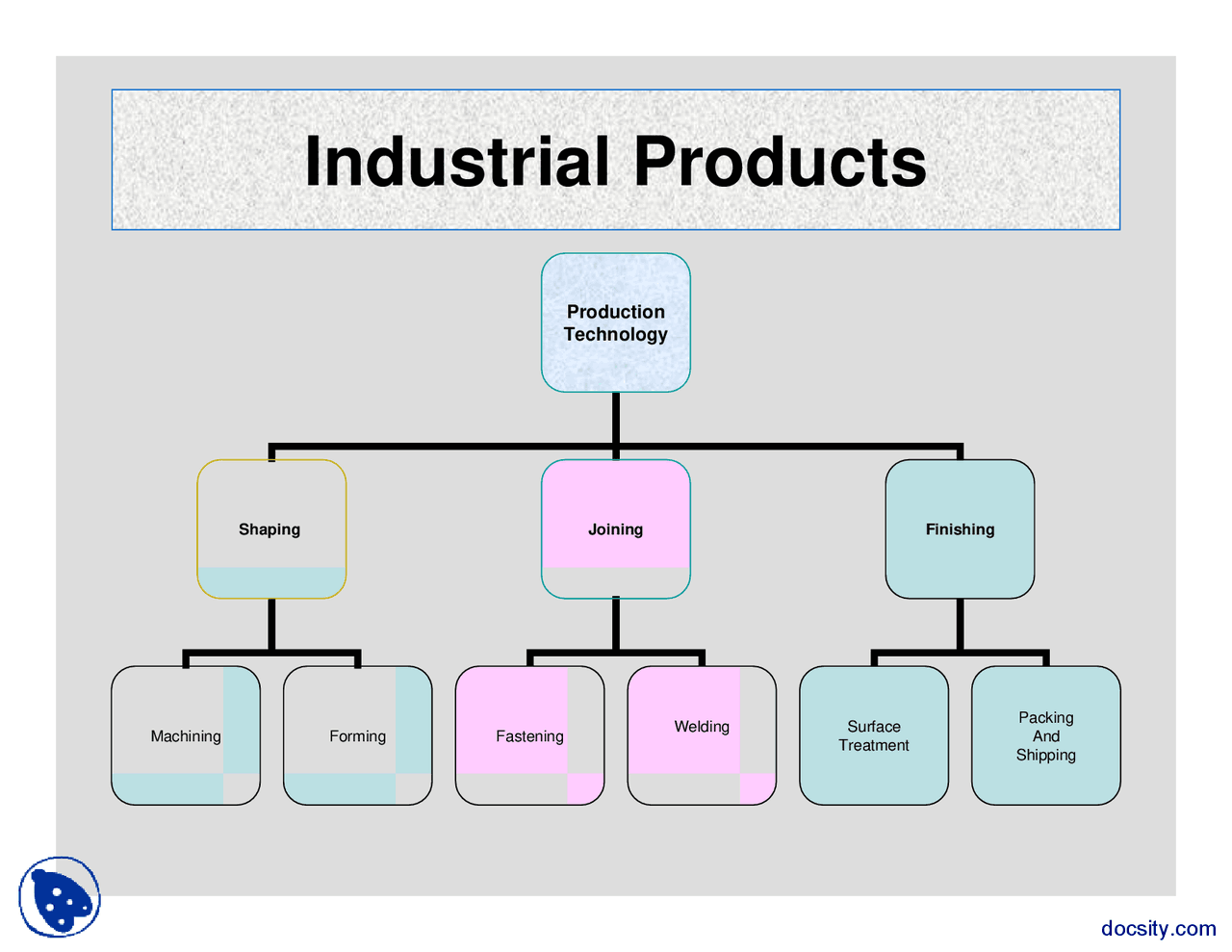

Industrial Products
ProductionTechnology
Shaping
Joining
Finishing
Machining
Fastening
Welding
SurfaceTreatment
PackingAndShipping
Forming
Soldering
•^
Soldering:
A joining process by which a
joint is produced by heating, generallybelow 800°F and using a nonferrous fillermetal that has a melting point below thatof the base metals. The filler metal isdistributed between the properly fittedparts by capillary attraction.
Application of Soldering
- Assembling electronic components• Jewelry• Automobile radiator etc
Soldering Application in Electronics
Soldering Equipments
- Soldering Iron• Solder• Flux• Nasal pliers
Soldering Equipments
Solder
Solders
- Common solder alloys are mixtures of tin
and lead, respectively:
- 63/37: melts at 183 °C (361 °F)• 60/40: melts between 183–190 °C (361–
374 °F)
50/50: melts between 185–215 °C (365–419 °F)
Brazing
- Brazing is a joining process that is
identical to soldering except that thejoining takes place at temperatures above840 °F. The filler metal is distributedbetween closely fitted surfaces of the jointby capillary attraction.
- Brazed joints are usually stronger than
soldered joints.
Braze
- A braze is a joint produced by heating an
assembly to suitable temperatures and byusing a filler metal having a liquidus above450 °C (840 °F) and below the solidus ofthe base metals. The filler metal isdistributed between the closely fittedsurfaces of the joint by capillary attraction.
Brazing Equipments
- Brazing Torch• Filler• Flux etc
Brazing Equipments
Flux
A braze joint
