Wien's Law and the Temperatures of Plants - Assignment 8 | Astr 138, Assignments of Astronomy

Washington State University (WSU or Wazzu)Astronomy

Material Type: Assignment; Class: [P] Planets and Planetary Systems; Subject: Astronomy; University: Washington State University; Term: Spring 2005;

Typology: Assignments

Pre 2010

Uploaded on 08/31/2009

koofers-user-7h6
koofers-user-7h6 🇺🇸

10 documents

1 / 2

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

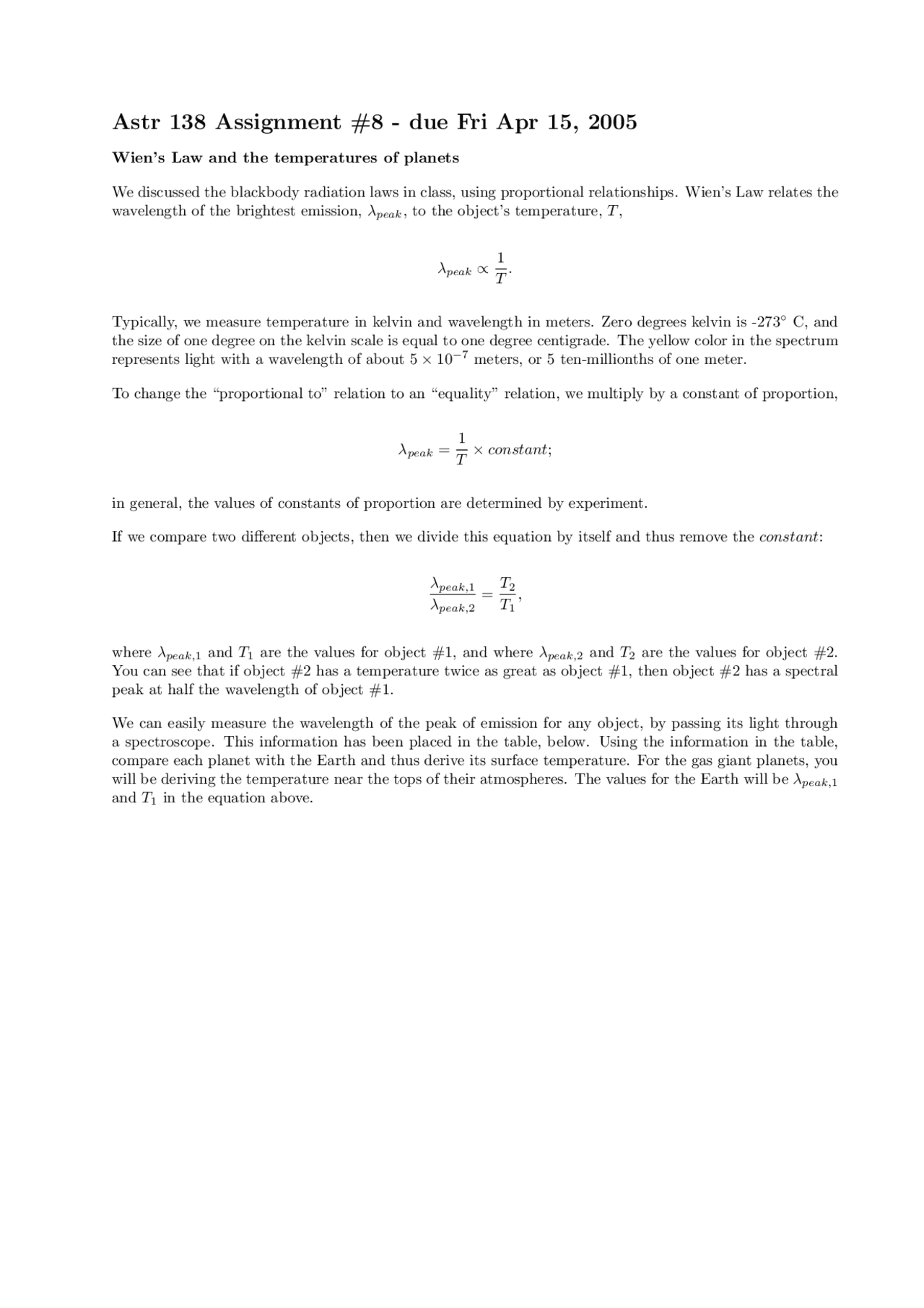

Astr 138 Assignment #8 - due Fri Apr 15, 2005
Wien’s Law and the temperatures of planets
We discussed the blackbody radiation laws in class, using proportional relationships. Wien’s Law relates the
wavelength of the brightest emission, λpeak , to the object’s temperature, T,
λpeak ∝1
T.
Typically, we measure temperature in kelvin and wavelength in meters. Zero degrees kelvin is -273◦C, and
the size of one degree on the kelvin scale is equal to one degree centigrade. The yellow color in the spectrum
represents light with a wavelength of about 5 ×10−7meters, or 5 ten-millionths of one meter.
To change the “proportional to” relation to an “equality” relation, we multiply by a constant of proportion,
λpeak =1
T×constant;
in general, the values of constants of proportion are determined by experiment.
If we compare two different ob jects, then we divide this equation by itself and thus remove the constant:
λpeak,1
λpeak,2
=T2
T1
,
where λpeak,1and T1are the values for object #1, and where λpeak,2and T2are the values for object #2.
You can see that if object #2 has a temperature twice as great as object #1, then object #2 has a spectral
peak at half the wavelength of object #1.
We can easily measure the wavelength of the peak of emission for any object, by passing its light through
a spectroscope. This information has been placed in the table, below. Using the information in the table,
compare each planet with the Earth and thus derive its surface temperature. For the gas giant planets, you
will be deriving the temperature near the tops of their atmospheres. The values for the Earth will be λpeak,1
and T1in the equation above.
pf2

Partial preview of the text

Download Wien's Law and the Temperatures of Plants - Assignment 8 | Astr 138 and more Assignments Astronomy in PDF only on Docsity!

Astr 138 Assignment #8 - due Fri Apr 15, 2005

Wien’s Law and the temperatures of planets

We discussed the blackbody radiation laws in class, using proportional relationships. Wien’s Law relates the wavelength of the brightest emission, λpeak, to the object’s temperature, T ,

λpeak ∝

T

Typically, we measure temperature in kelvin and wavelength in meters. Zero degrees kelvin is -273◦^ C, and the size of one degree on the kelvin scale is equal to one degree centigrade. The yellow color in the spectrum represents light with a wavelength of about 5 × 10 −^7 meters, or 5 ten-millionths of one meter.

To change the “proportional to” relation to an “equality” relation, we multiply by a constant of proportion,

λpeak =

T

× constant;

in general, the values of constants of proportion are determined by experiment.

If we compare two different objects, then we divide this equation by itself and thus remove the constant:

λpeak, 1 λpeak, 2

T 2

T 1

where λpeak, 1 and T 1 are the values for object #1, and where λpeak, 2 and T 2 are the values for object #2. You can see that if object #2 has a temperature twice as great as object #1, then object #2 has a spectral peak at half the wavelength of object #1.

We can easily measure the wavelength of the peak of emission for any object, by passing its light through a spectroscope. This information has been placed in the table, below. Using the information in the table, compare each planet with the Earth and thus derive its surface temperature. For the gas giant planets, you will be deriving the temperature near the tops of their atmospheres. The values for the Earth will be λpeak, 1 and T 1 in the equation above.

Planet Avg Distance Blackbody Peak T (avg at surface) from Sun (AU) (meters) (kelvin) Mercury 0.39 6. 41 × 10 −^6 Venus 0.72 3. 97 × 10 −^6 Earth 1.0 1. 02 × 10 −^5 Mars 1.5 1. 35 × 10 −^5 Jupiter 5.2 2. 42 × 10 −^5 Saturn 9.5 3. 29 × 10 −^5 Uranus 19 4. 91 × 10 −^5 Neptune 30 6. 04 × 10 −^5 Pluto 40 7. 83 × 10 −^5

Requirements

  1. Answer all questions on a clean sheet of paper or graph paper where appropriate. Either type or neatly print/write your answers. Complete your assignment in a professional manner.
  2. Complete the table, above, by using Wien’s Law to find the temperatures of each of the planets listed. You must show at least one example calculation, carrying units through all your equations.
  3. Find, on the web or in a textbook, the wavelength ranges of the major sections of the spectrum of light (γ-ray, X-ray, ultraviolet, visible, infrared, microwave, and radio) and STATE where in the spectrum each of the planets has its peak emission. For example, Earth’s peak at 1. 02 × 10 −^5 meters occurs in the infrared region.
  4. Make a graph of planetary temperature on the ordinate (the vertical or “y” axis), and the planet’s distance from the Sun on the abscissa (the horizontal or “x” axis). Plot the data for all nine planets. Plot the data as points, do not join them with lines. Describe how planetary temperatures change with increasing distance from the Sun.
  5. Venus has its temperature raised by greenhouse gases, whereas Mercury does not, and on Mars the thin atmosphere makes the greenhouse effect negligible. Make a second graph of T versus distance that includes only the inner four terrestrial planets. Connect the Mercury and Mars points with a line, and use this line to determine what the temperature would be on Venus in vacuum (i.e., if it were to lose its atmosphere). By how many degrees kelvin does the greenhouse effect raise the temperature on Venus?

[NOTES: (1) We cannot connect Mercury and Mars with a straight line unless we assume that the Sun is the dominant source of energy for heating a planetary surface. You should think about why this assumption must be made, and how the data validates it. (2) From the graph (and ignoring Venus), it is obvious that the trend of temperature with distance is not accurately represented by a straight line, but a curved one. You should think about whether we are underestimating or overestimating the magnitude of the greenhouse effect on Venus when using a straight line interpolation for its temperature in vacuum.]
