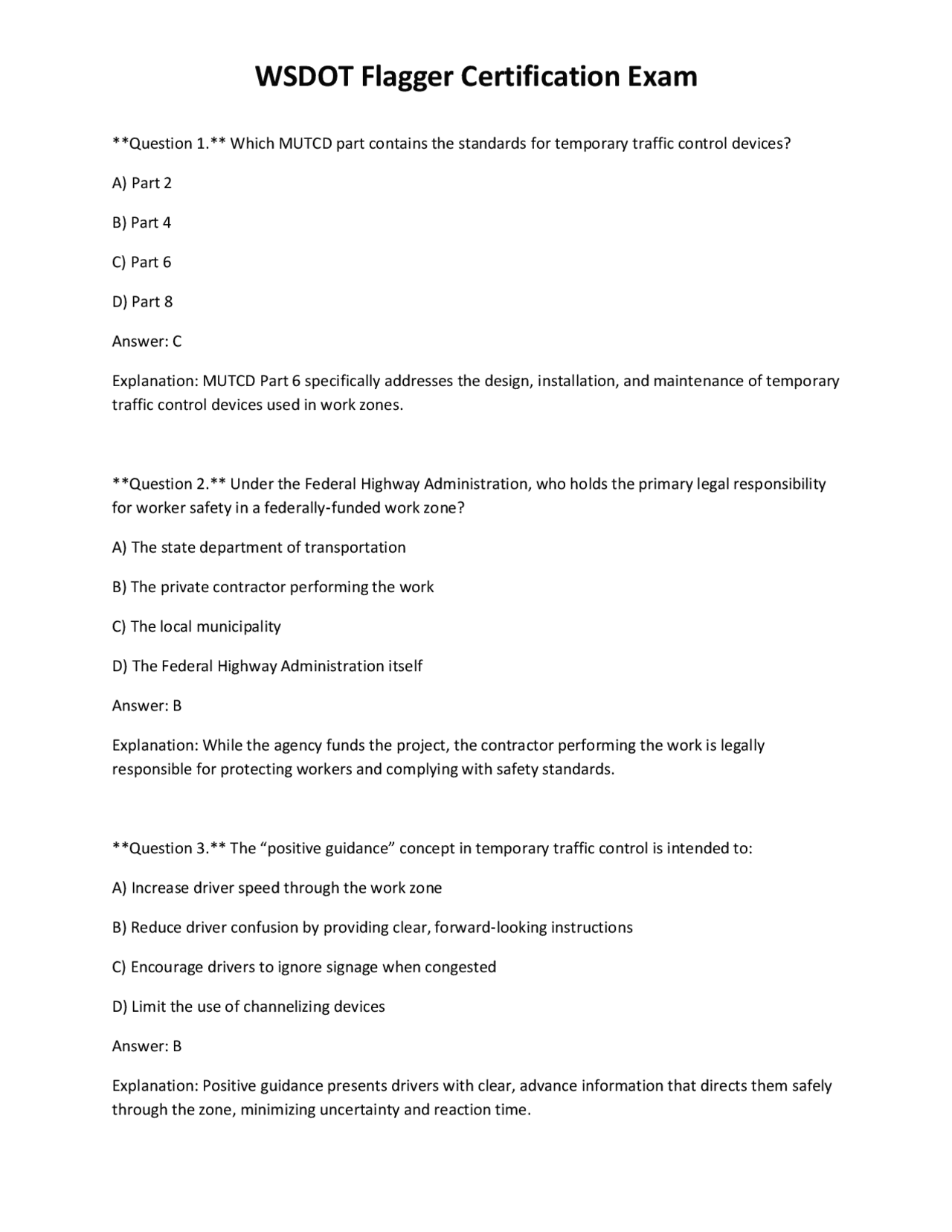

Question 1. Which MUTCD part contains the standards for temporary traffic control devices? A) Part 2 B) Part 4 C) Part 6 D) Part 8 Answer: C Explanation: MUTCD Part 6 specifically addresses the design, installation, and maintenance of temporary traffic control devices used in work zones. Question 2. Under the Federal Highway Administration, who holds the primary legal responsibility for worker safety in a federally‑funded work zone? A) The state department of transportation B) The private contractor performing the work C) The local municipality D) The Federal Highway Administration itself Answer: B Explanation: While the agency funds the project, the contractor performing the work is legally responsible for protecting workers and complying with safety standards. Question 3. The “positive guidance” concept in temporary traffic control is intended to: A) Increase driver speed through the work zone B) Reduce driver confusion by providing clear, forward‑looking instructions C) Encourage drivers to ignore signage when congested D) Limit the use of channelizing devices Answer: B Explanation: Positive guidance presents drivers with clear, advance information that directs them safely through the zone, minimizing uncertainty and reaction time.
Question 4. Which of the following is NOT a component of the four‑zone model of a work zone? A) Advance warning area B) Transition area C) Maintenance area D) Termination area Answer: C Explanation: The standard four zones are Advance Warning, Transition, Activity, and Termination. “Maintenance area” is not a defined zone. Question 5. In the activity area, the traffic space is defined as: A) The lane(s) occupied by workers and equipment B) The lane(s) left open for vehicle travel C) The buffer zone between traffic and work space D) The area where signage is installed Answer: B Explanation: Traffic space is the portion of the activity area that remains open for vehicle movement while work proceeds in the adjacent work space. Question 6. When selecting the spacing for “Road Work Ahead” signs in the advance warning area on a 55 mph rural highway, the minimum distance between signs should be: A) 500 ft B) 1,000 ft C) 1,500 ft D) 2,000 ft Answer: C
D) Drums, 30 in height with reflective bands Answer: C Explanation: Type III devices are larger, typically 48 in high plastic or metal barricades used for high‑speed or high‑volume traffic. Question 10. The minimum vertical clearance required for a portable changeable message sign (PCMS) to be visible to drivers on a 65 mph roadway is: A) 10 ft B) 12 ft C) 14 ft D) 16 ft Answer: C Explanation: MUTCD specifies a minimum mounting height of 14 ft for PCMS on roadways with design speeds of 65 mph or greater to ensure readability. Question 11. A flagger using a STOP/SLOW paddle must wear which level of high‑visibility apparel according to ANSI standards? A) Class 1 B) Class 2 C) Class 3 D) Class 4 Answer: C Explanation: Flaggers must wear ANSI Class 3 high‑visibility garments to be clearly seen in all lighting conditions. Question 12. The “End Road Work” sign should be placed at what distance from the termination of the work zone?
A) 100 ft B) 200 ft C) 300 ft D) 400 ft Answer: B Explanation: MUTCD requires the “End Road Work” sign to be installed 200 ft downstream of the work zone termination to give drivers adequate warning of the lane return. Question 13. Which of the following best describes a “shoulder taper”? A) A taper that moves traffic from a closed lane to an adjacent lane B) A taper used to close the roadway shoulder for equipment storage C) A taper that redirects traffic back to the original lane configuration D) A taper for guiding bicycles through a work zone Answer: B Explanation: A shoulder taper is employed when the roadway shoulder is closed to provide space for equipment or materials. Question 14. The required width of the buffer space between the traffic lane and the work space on a two‑lane road is at least: A) 6 ft B) 10 ft C) 15 ft D) 20 ft Answer: B Explanation: MUTCD recommends a minimum lateral buffer of 10 ft between traffic and work space on two‑lane roads to protect workers.
Explanation: Detour routes require “Detour” signs at the beginning and “Follow Route” arrows at each subsequent decision point to guide drivers correctly. Question 18. Temporary pavement markings placed with orange tape must be removed within how many days after the work zone is cleared? A) 7 days B) 14 days C) 21 days D) 30 days Answer: B Explanation: MUTCD requires temporary tape markings to be removed within 14 days of the work zone’s removal to prevent driver confusion. Question 19. The ANSI standard for reflective sheeting on traffic cones requires a minimum retro‑reflectivity of: A) 100 cd·sr⁻¹·m⁻² B) 200 cd·sr⁻¹·m⁻² C) 300 cd·sr⁻¹·m⁻² D) 400 cd·sr⁻¹·m⁻² Answer: C Explanation: ANSI/IES RP‑27.1 specifies a minimum retro‑reflectivity of 300 cd·sr⁻¹·m⁻² for orange traffic cones. Question 20. In a work zone that includes pedestrian crossing, the required width of the pedestrian path must be at least: A) 4 ft B) 5 ft
C) 6 ft D) 8 ft Answer: C Explanation: MUTCD mandates a minimum of 6 ft width for pedestrian paths through work zones to ensure safe passage. Question 21. Which of the following devices is most appropriate for channelizing traffic around a stationary vehicle on a two‑lane road? A) Type I cones spaced 30 ft apart B) Tubular markers spaced 50 ft apart C) Type II barricades spaced 20 ft apart D) Drums with reflective bands spaced 40 ft apart Answer: A Explanation: Type I cones are suitable for low‑speed, low‑volume situations such as a stationary vehicle on a two‑lane road. Question 22. The term “PRT” in the context of driver behavior stands for: A) Perceived Reaction Time B) Projected Road Travel C) Primary Response Threshold D) Pedestrian Response Time Answer: A Explanation: PRT refers to Perceived Reaction Time, the interval a driver needs to recognize a hazard and begin a response. Question 23. A flagger’s STOP paddle must be painted which color on the front face? A) Red
B) 300 ft C) 400 ft D) 500 ft Answer: B Explanation: MUTCD recommends a minimum of 300 ft spacing for vertical panels on roadways with speeds of 55 mph. Question 27. Which of the following statements about “shadow vehicles” is correct? A) They are only used on interstate highways. B) They must travel at the same speed as the traffic they are shadowing. C) They are equipped with flashing lights and a highly visible sign. D) They replace the need for any other channelizing devices. Answer: C Explanation: Shadow vehicles are equipped with flashing lights and a large “Shadow Vehicle” sign to increase visibility for drivers. Question 28. When a work zone requires a detour that adds 2 mi to a driver’s route, the detour signs must include: A) Estimated travel time for the detour B) Distance of the detour in miles C) Both A and B D) Neither A nor B Answer: B Explanation: Detour signs must display the distance of the detour to inform drivers of the added mileage. Question 29. The “Flashing Arrow Board” is classified under which device category?
A) Regulatory sign B) Warning sign C) Guide sign D) Lighting & warning device Answer: D Explanation: Flashing arrow boards are considered lighting and warning devices that provide dynamic direction to drivers. Question 30. A work zone on a 70 mph freeway requires a minimum downstream taper length of: A) 600 ft B) 800 ft C) 1,200 ft D) 1,400 ft Answer: D Explanation: For speeds ≥45 mph, the taper length L = W × S. Assuming a standard 20‑ft offset, L = 20 ft × 70 mph = 1,400 ft. Question 31. Which of the following is the correct order of signs in the advance warning area for a lane closure? A) “Lane Closed Ahead” → “Road Work Ahead” → “End Road Work” B) “Road Work Ahead” → “Lane Closed Ahead” → “Detour” (if applicable) C) “Detour” → “Road Work Ahead” → “Lane Closed Ahead” D) “Road Work Ahead” → “End Road Work” → “Lane Closed Ahead” Answer: B Explanation: The standard sequence is “Road Work Ahead” first, followed by “Lane Closed Ahead,” and then a detour sign if a detour is required.
Question 35. Which of the following is the correct minimum spacing for cones in a “single‑file” traffic control configuration on a 45 mph road? A) 10 ft B) 15 ft C) 20 ft D) 30 ft Answer: B Explanation: MUTCD specifies a 15‑ft spacing for single‑file cone configurations on roadways with speeds up to 45 mph. Question 36. When work is performed on the shoulder of a roadway, the required minimum width of the activity area is: A) 6 ft B) 10 ft C) 15 ft D) 20 ft Answer: C Explanation: A 15‑ft minimum activity area width is required when using the shoulder for equipment and materials. Question 37. The “Advance Warning” sign “Road Work Ahead” must be at least what height on a 65 mph highway? A) 24 in B) 30 in C) 36 in D) 42 in
Answer: C Explanation: MUTCD requires a minimum sign height of 36 in for “Road Work Ahead” on roadways with speeds of 65 mph or higher. Question 38. Which of the following statements about “High‑Intensity Flashing Arrow Boards” (HIFAB) is FALSE? A) They can be used to indicate lane closures. B) They must be placed at least 500 ft upstream of the work zone. C) They provide dynamic lane‑by‑lane guidance. D) They are only permitted on roads with a speed limit of 55 mph or less. Answer: D Explanation: HIFABs are allowed on any road where they improve safety; there is no speed‑limit restriction limiting them to ≤ 55 mph. Question 39. For a detour that utilizes a parallel roadway, the minimum distance between the detour signs and the start of the diversion must be: A) 200 ft B) 300 ft C) 400 ft D) 500 ft Answer: B Explanation: MUTCD requires detour signs to be placed at least 300 ft upstream of the point where drivers must leave the main roadway. Question 40. The minimum vertical clearance for an overhead temporary sign on a bridge with a 12 ft vertical clearance is: A) 4 ft
A) 2 in B) 3 in C) 4 in D) 5 in Answer: B Explanation: MUTCD requires a minimum of 3 in wide reflective strip on temporary orange tape. Question 44. When a flagger is directing traffic on a two‑lane road, the flagger must stand on which side of the road? A) The left (driver’s) side of the lane being controlled B) The right (passenger’s) side of the lane being controlled C) The center line of the road D) Either side, as long as visibility is maintained Answer: B Explanation: Flaggers must stand on the right side of the lane they are controlling to keep the driver’s side clear for vehicle operation. Question 45. For a work zone that includes a bicycle lane, the temporary signage must: A) Use the same color scheme as motor vehicle signs B) Include the “Bicycle Route” symbol in addition to standard warnings C) Be placed only on the roadway, not on sidewalks D) Be omitted if the bicycle lane is closed Answer: B Explanation: When a bicycle lane is affected, signs must incorporate the bicycle symbol to alert cyclists of the change.
Question 46. The minimum device spacing for cones on a 65 mph highway is: A) 30 ft B) 45 ft C) 60 ft D) 75 ft Answer: C Explanation: MUTCD specifies a 60‑ft spacing for cones on roadways with speeds of 65 mph. Question 47. Which of the following is NOT a requirement for a Portable Changeable Message Sign (PCMS)? A) Must be capable of displaying at least three lines of text B) Must be mounted on a vehicle or trailer C) Must be illuminated for nighttime visibility D) Must be operated only by a certified traffic engineer Answer: D Explanation: While PCMS operation requires trained personnel, there is no requirement that only a certified traffic engineer may operate it. Question 48. The minimum width of a detour lane on a parallel road must be: A) 10 ft B) 12 ft C) 14 ft D) 16 ft Answer: B Explanation: MUTCD specifies a minimum detour lane width of 12 ft to accommodate standard passenger vehicles.
Explanation: Temporary orange paint should remain effective for at least 60 days under normal traffic conditions. Question 52. The minimum distance between a “Detour” sign and the point where drivers must turn onto the detour route is: A) 100 ft B) 200 ft C) 300 ft D) 400 ft Answer: C Explanation: MUTCD requires detour signs to be placed at least 300 ft before the decision point. Question 53. Which of the following best describes a downstream taper? A) A taper that closes a lane and merges traffic into an adjacent lane B) A taper that re‑establishes the original lane configuration after the work zone C) A taper that moves traffic onto a shoulder D) A taper used only on roundabouts Answer: B Explanation: A downstream taper guides traffic back to the normal lane layout after the work zone ends. Question 54. For a temporary speed limit sign, the maximum allowable reduction from the posted speed is: A) 10 mph B) 15 mph C) 20 mph D) No specific limit; it may be set as needed for safety
Answer: D Explanation: Temporary speed limits can be set at any value deemed necessary to ensure safety, provided they are clearly posted. Question 55. The minimum vertical clearance for a temporary overhead sign over a 4‑lane roadway is: A) 12 ft B) 14 ft C) 16 ft D) 18 ft Answer: C Explanation: MUTCD requires at least 16 ft clearance for overhead signs on multi‑lane roadways to accommodate all vehicle types. Question 56. Which type of flagger is allowed to operate on an interstate highway? A) Untrained flagger with a red flag B) Certified flagger wearing ANSI Class 3 apparel and a STOP/SLOW paddle C) Any flagger as long as a police officer is present D) No flaggers are permitted on interstates; only automated devices may be used Answer: B Explanation: Certified flaggers with proper high‑visibility gear and paddles are authorized on interstates when required. Question 57. The minimum spacing between vertical panel signs on a 30 mph road is: A) 100 ft B) 150 ft C) 200 ft
