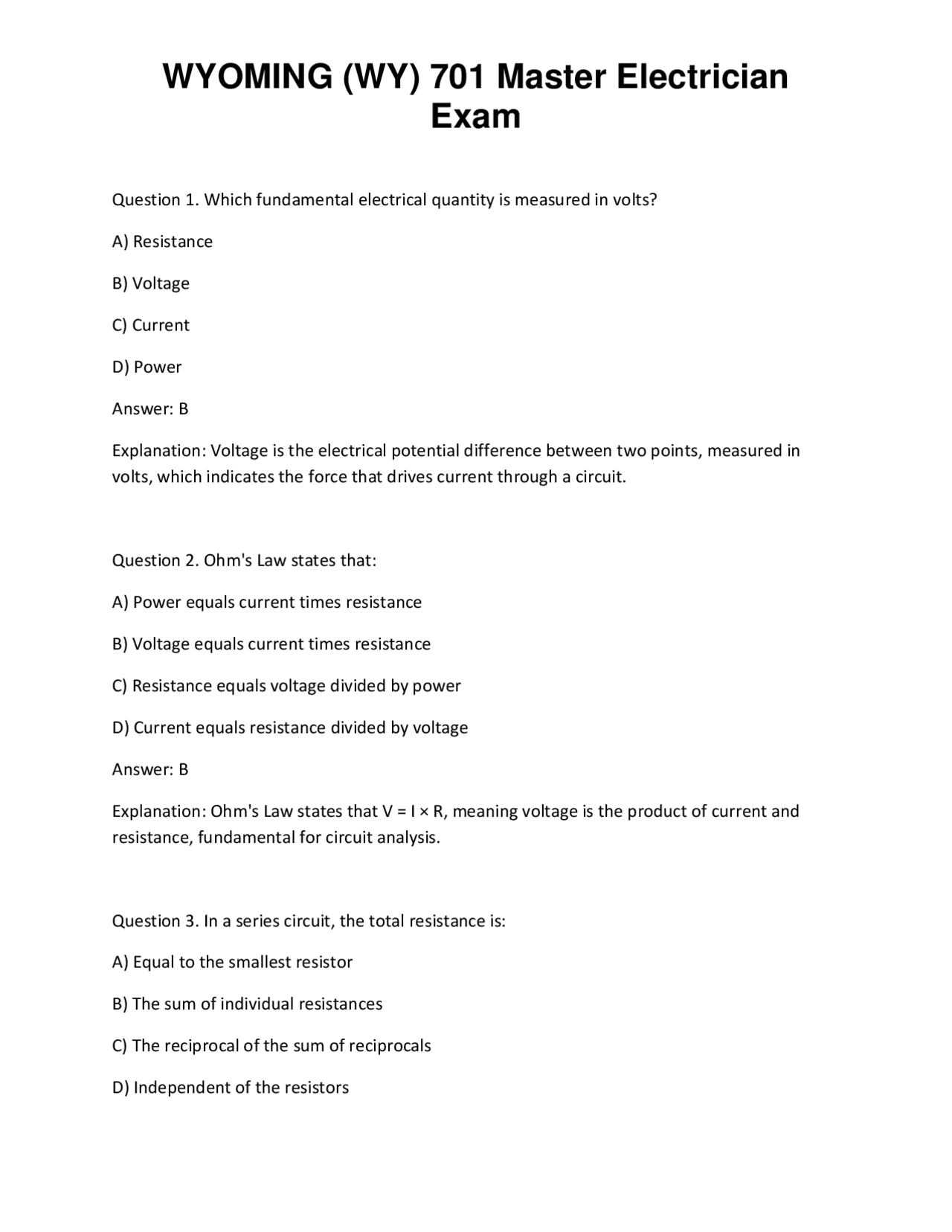

Exam
Question 1. Which fundamental electrical quantity is measured in volts? A) Resistance B) Voltage C) Current D) Power Answer: B Explanation: Voltage is the electrical potential difference between two points, measured in volts, which indicates the force that drives current through a circuit. Question 2. Ohm's Law states that: A) Power equals current times resistance B) Voltage equals current times resistance C) Resistance equals voltage divided by power D) Current equals resistance divided by voltage Answer: B Explanation: Ohm's Law states that V = I × R, meaning voltage is the product of current and resistance, fundamental for circuit analysis. Question 3. In a series circuit, the total resistance is: A) Equal to the smallest resistor B) The sum of individual resistances C) The reciprocal of the sum of reciprocals D) Independent of the resistors
Exam
Answer: B Explanation: In series circuits, resistances add directly; total resistance equals the sum of all individual resistances. Question 4. Kirchhoff's Voltage Law states that: A) The sum of currents entering a junction equals the sum leaving B) The sum of the voltages around any closed loop equals zero C) Resistance in a circuit is constant D) Power is conserved in all circuits Answer: B Explanation: Kirchhoff's Voltage Law (KVL) asserts that the algebraic sum of all voltages around any closed loop is zero, ensuring energy conservation. Question 5. AC circuits differ from DC circuits primarily because: A) AC circuits have constant voltage B) AC circuits involve sinusoidal voltage and current C) DC circuits have reactive components D) DC circuits cannot power motors Answer: B Explanation: Alternating current (AC) circuits involve voltages and currents that vary sinusoidally with time, unlike the steady flow in DC circuits. Question 6. The impedance in an AC circuit is a combination of:
Exam
Explanation: De-energizing circuits before work prevents electrical shock hazards, which is a fundamental safety practice. Question 9. Copper wire is commonly used because it: A) Has high resistance B) Is inexpensive and flexible C) Has high conductivity and good ductility D) Is non-conductive Answer: C Explanation: Copper has high electrical conductivity and ductility, making it ideal for wiring and electrical applications. Question 10. The ampacity of a conductor refers to: A) Its maximum voltage rating B) The maximum current it can safely carry C) Its resistance at room temperature D) Its physical diameter Answer: B Explanation: Ampacity indicates the maximum current a conductor can safely carry without exceeding its temperature rating. Question 11. An insulation type rated for high temperatures, such as 90°C, is suitable for: A) Low-voltage indoor wiring only
Exam
B) Environments with elevated temperatures C) Outdoor wiring only D) Conductors with high current capacity Answer: B Explanation: High-temperature rated insulation ensures safe operation in environments where ambient or conductor temperatures are elevated. Question 12. Raceway systems like conduit and cable trays are primarily used to: A) Reduce electrical resistance B) Protect conductors and organize wiring C) Increase voltage D) Cool electrical components Answer: B Explanation: Raceway systems protect conductors from physical damage and facilitate organized wiring pathways. Question 13. A device that automatically disconnects power when a ground fault is detected is called: A) Circuit breaker B) GFCI C) Fuse D) AFCI Answer: B
Exam
B) Protect the motor during startup and running C) Convert AC to DC power D) Reduce the motor's voltage Answer: B Explanation: Motor starters facilitate safe startup and provide overload protection during operation. Question 17. Standby generators are typically used to: A) Provide continuous power for all electrical loads B) Supply emergency power during utility outages C) Increase electrical system capacity D) Power only sensitive electronic equipment Answer: B Explanation: Standby generators supply emergency power during outages to critical systems as defined by code and safety requirements. Question 18. A series circuit has a total resistance of 50Ω, with a voltage supply of 120V. The current flowing through the circuit is: A) 2.4A B) 4.8A C) 0.42A D) 60A Answer: A
Exam
Explanation: Using Ohm's Law, I = V / R = 120V / 50Ω = 2.4A. Question 19. To calculate voltage drop in a branch circuit, you need to know: A) Conductor length, current, and resistance B) Conductor color C) Number of outlets D) Circuit breaker size Answer: A Explanation: Voltage drop is calculated based on conductor length, current flowing, and resistance per unit length. Question 20. The purpose of grounding in electrical systems is to: A) Provide a return path for current B) Protect against electrical shock and equipment damage C) Increase circuit voltage D) Reduce resistance Answer: B Explanation: Grounding provides a safe path for fault currents, protecting personnel and equipment from electrical hazards. Question 21. The NEC organizes its content primarily into: A) Chapters and subsections B) Articles, parts, and sections
Exam
Question 24. A wiring method that involves flexible tubing often used for connecting movable appliances is called: A) Rigid conduit B) Liquid-tight flexible conduit C) Cable tray D) Electrical tape Answer: B Explanation: Liquid-tight flexible conduit provides flexibility and protection, ideal for movable or vibration-prone connections. Question 25. The maximum allowable voltage for a residential branch circuit in typical practice is: A) 120V B) 240V C) 600V D) 12V Answer: B Explanation: Residential branch circuits usually operate at 120V or 240V, with 240V being common for certain appliances. Question 26. An overcurrent protective device rated at 20A will trip when the current exceeds: A) 10A B) 20A C) 30A
Exam
D) 15A
Answer: B Explanation: The device is designed to trip when current exceeds its rated capacity, in this case, 20A. Question 27. The primary purpose of a GFCI receptacle is to: A) Protect against overloads B) Protect against ground faults C) Provide surge protection D) Control lighting Answer: B Explanation: GFCIs detect ground faults and disconnect power to prevent electric shocks. Question 28. Which of the following is a typical application for AFCI protection? A) Outdoor lighting B) Bedroom circuits to prevent arcing faults C) Water heater circuits D) Emergency systems Answer: B Explanation: AFCIs protect against arcing faults, common causes of electrical fires, especially in bedroom circuits. Question 29. A transformer connected in a delta configuration supplies:
Exam
Answer: A Explanation: A standby generator system automatically activates during power outages to provide essential power. Question 32. A battery bank used for emergency lighting must: A) Have unlimited capacity B) Be maintained and tested regularly C) Never be connected to the main power D) Be larger than 100 kWh Answer: B Explanation: Regular maintenance and testing ensure batteries are functional when needed for emergency lighting. Question 33. In an industrial facility, a lighting fixture with an efficacy of 100 lumens per watt and a power draw of 50 watts produces: A) 5,000 lumens B) 500 lumens C) 50 lumens D) 1,000 lumens Answer: A Explanation: Light output = efficacy × power = 100 lm/W × 50 W = 5,000 lumens. Question 34. The load calculation for a commercial building requires considering:
Exam
A) Only lighting loads B) Connected load, demand factors, and diversity factors C) Only the size of the building D) Only the number of outlets Answer: B Explanation: Accurate load calculations include connected load, demand factors, and diversity to determine appropriate system sizing. Question 35. To calculate the voltage drop in a conductor, you need the conductor's: A) Cross-sectional area and length B) Resistance per unit length and current C) Color code D) Number of conductors Answer: B Explanation: Voltage drop depends on resistance per unit length and the current flowing through the conductor. Question 36. The equipment grounding conductor size is determined based on: A) The circuit voltage B) The overcurrent device rating and conductor material C) The number of outlets D) The length of the wiring run only Answer: B
Exam
B) Grounding and bonding C) Lighting fixtures D) Special occupancies Answer: B Explanation: Article 250 covers grounding and bonding requirements essential for electrical safety. Question 40. An example of a permissible wiring method for residential branch circuits is: A) Rigid metal conduit (RMC) B) Open wiring on insulators C) Knob and tube wiring D) Bare conductors in air Answer: A Explanation: RMC is a recognized wiring method permitted by the NEC for various applications, including residential wiring. Question 41. In the NEC, a luminaire's wiring must be protected by: A) A fuse only B) An overcurrent device or protection device C) An open circuit D) A surge protector Answer: B
Exam
Explanation: Lighting fixtures must be protected by appropriate overcurrent devices to prevent damage and hazards. Question 42. The main function of a panelboard is to: A) Distribute electrical power and house overcurrent devices B) Convert AC to DC C) Store electrical energy D) Serve as a conduit Answer: A Explanation: Panelboards distribute power and contain overcurrent protective devices to safeguard circuits. Question 43. An industrial control panel typically contains: A) Only lighting switches B) Control circuits, relays, and motor starters C) Only fuse holders D) Power outlets Answer: B Explanation: Control panels house control devices like relays, switches, and motor starters to manage equipment operation. Question 44. The primary consideration in wiring a hazardous (classified) location is: A) Aesthetics
Exam
Question 47. A solar photovoltaic system's main component is: A) A transformer B) Solar panels (modules) C) A generator D) A battery bank only Answer: B Explanation: Solar panels convert sunlight into electrical energy, forming the core of photovoltaic systems. Question 48. The purpose of a wind electric system is to: A) Generate power from wind energy B) Store electrical energy C) Regulate voltage D) Provide backup power Answer: A Explanation: Wind electric systems harness wind energy to produce electricity, often integrated with storage. Question 49. An energy storage system typically uses: A) Capacitors exclusively B) Batteries or other storage devices C) Transformers only D) Only mechanical means
Exam
Answer: B Explanation: Energy storage systems primarily use batteries or similar devices to store electrical energy for later use. Question 50. The correct wire size for a 60A branch circuit in a dwelling, based on NEC ampacity tables, is generally: A) 10 AWG B) 8 AWG C) 6 AWG D) 12 AWG Answer: B Explanation: For 60A circuits, #8 AWG copper conductors are typically rated for the required ampacity, considering correction factors. Question 51. When calculating conduit fill, the NEC specifies that the maximum fill for a raceway with multiple conductors is: A) 100% B) 40% C) 53% D) 75% Answer: C Explanation: The NEC generally limits conduit fill to 53% of the cross-sectional area for multiple conductors to ensure safety and heat dissipation.
