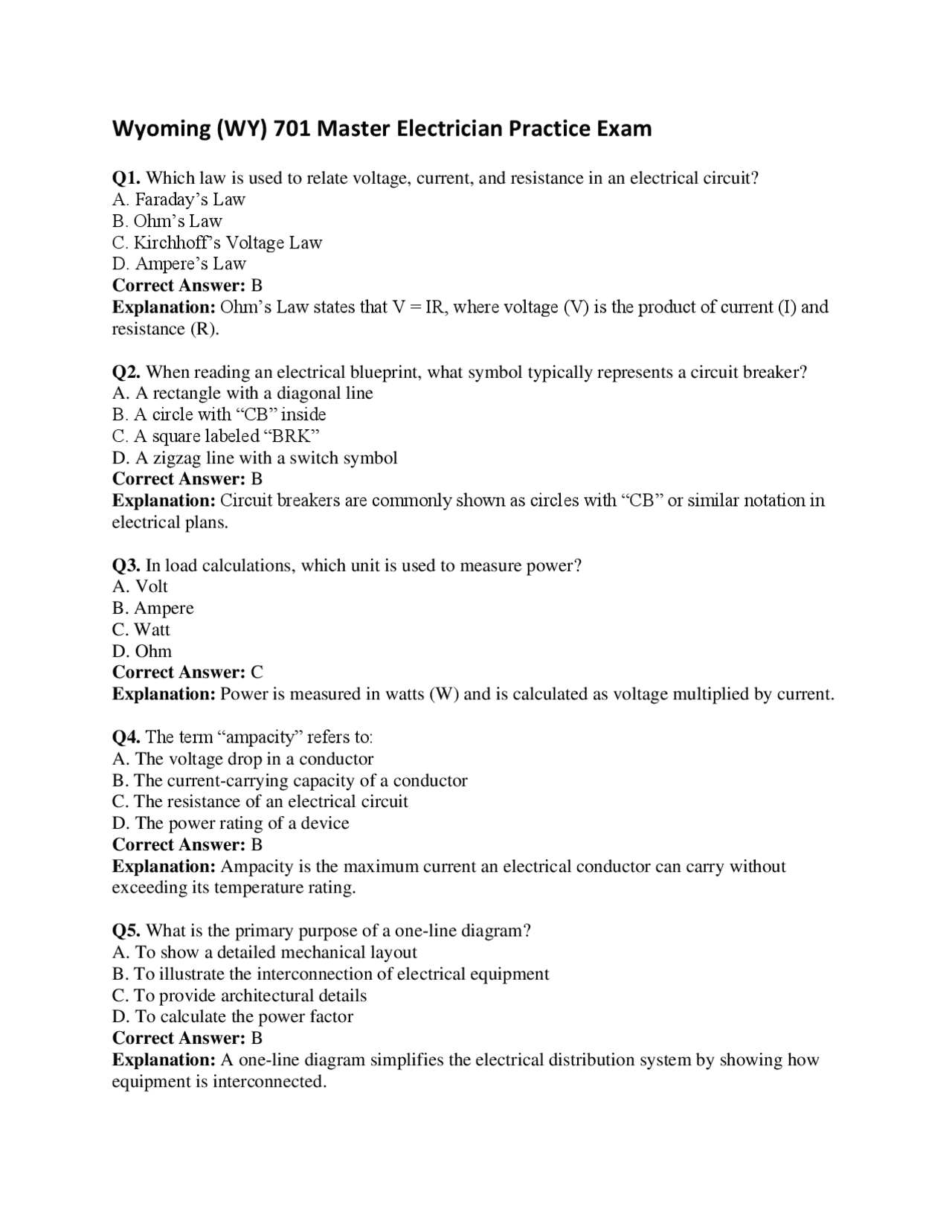

Wyoming (WY) 701 Master Electrician Practice Exam
Q1. Which law is used to relate voltage, current, and resistance in an electrical circuit? A. Faraday’s Law B. Ohm’s Law C. Kirchhoff’s Voltage Law D. Ampere’s Law Correct Answer: B Explanation: Ohm’s Law states that V = IR, where voltage (V) is the product of current (I) and resistance (R). Q2. When reading an electrical blueprint, what symbol typically represents a circuit breaker? A. A rectangle with a diagonal line B. A circle with “CB” inside C. A square labeled “BRK” D. A zigzag line with a switch symbol Correct Answer: B Explanation: Circuit breakers are commonly shown as circles with “CB” or similar notation in electrical plans. Q3. In load calculations, which unit is used to measure power? A. Volt B. Ampere C. Watt D. Ohm Correct Answer: C Explanation: Power is measured in watts (W) and is calculated as voltage multiplied by current. Q4. The term “ampacity” refers to: A. The voltage drop in a conductor B. The current-carrying capacity of a conductor C. The resistance of an electrical circuit D. The power rating of a device Correct Answer: B Explanation: Ampacity is the maximum current an electrical conductor can carry without exceeding its temperature rating. Q5. What is the primary purpose of a one-line diagram? A. To show a detailed mechanical layout B. To illustrate the interconnection of electrical equipment C. To provide architectural details D. To calculate the power factor Correct Answer: B Explanation: A one-line diagram simplifies the electrical distribution system by showing how equipment is interconnected.
Q6. In a schematic drawing, the symbol for a resistor is: A. A zigzag line B. A straight line with an arrow C. A circle with a plus sign D. A series of dots Correct Answer: A Explanation: Resistors are typically represented by a zigzag line in electrical schematics. Q7. What does NEC stand for in electrical installations? A. National Energy Code B. National Electrical Code C. National Engineering Council D. National Equipment Certification Correct Answer: B Explanation: NEC stands for National Electrical Code, which sets the standards for safe electrical design, installation, and inspection. Q8. Which calculation is necessary to determine conductor size in a branch circuit? A. Voltage drop calculation B. Load calculation C. Resistance calculation D. Capacitance calculation Correct Answer: B Explanation: Load calculations help determine the proper conductor size to safely carry the expected current. Q9. What is the significance of the “duty cycle” in an electrical system? A. It determines the conductor’s ampacity B. It specifies the operating duration versus rest periods C. It measures voltage drop D. It indicates insulation type Correct Answer: B Explanation: The duty cycle is the ratio of operating time to the total cycle time, important for devices that are not continuously on. Q10. In plan reading, what does a “section view” show? A. An overhead view B. A cut-through of a building’s interior C. A detailed circuit diagram D. An electrical load schedule Correct Answer: B Explanation: A section view cuts through a structure to reveal interior details not visible in plan or elevation views. Q11. Which of the following is essential when performing a load calculation? A. The ambient temperature
C. A dashed line D. A solid dot Correct Answer: B Explanation: Ground is typically shown as three descending horizontal lines, indicating a connection to earth. Q17. What does the term “derating” refer to in electrical installations? A. Increasing conductor size B. Reducing the ampacity due to conditions such as temperature C. Upgrading circuit breakers D. Adjusting voltage levels Correct Answer: B Explanation: Derating reduces the maximum allowable current in a conductor due to factors like ambient temperature or bundling of cables. Q18. When performing a plan reading, what is the purpose of a “schedule”? A. To list the order of construction tasks B. To provide information on circuit ratings, conductor sizes, and device types C. To outline project timelines D. To display the floor plan layout Correct Answer: B Explanation: Electrical schedules detail the specifications for circuits, including breaker ratings, conductor sizes, and fixture details. Q19. Which mathematical principle is most critical in circuit analysis? A. Calculus B. Algebra C. Geometry D. Trigonometry Correct Answer: B Explanation: Algebra is often used in circuit analysis to solve equations related to voltage, current, and resistance. Q20. In the context of plan reading, what does the abbreviation “OC” typically represent? A. Overcurrent protection B. Outlet cover C. Open circuit D. Oil circuit Correct Answer: A Explanation: “OC” usually stands for overcurrent, referring to devices or conditions designed to protect circuits from excessive current. Q21. A schematic diagram that uses a single line to represent a circuit is called a: A. Multi-line diagram B. One-line diagram C. Ladder diagram
D. Block diagram Correct Answer: B Explanation: A one-line diagram simplifies complex circuits by representing them with a single line while indicating key components. Q22. Which of the following is a key element in electrical theory? A. Photosynthesis B. Inductance C. Oxidation D. Polymerization Correct Answer: B Explanation: Inductance is a fundamental electrical property related to the generation of electromotive force. Q23. What factor is most important when calculating a load for a residential circuit? A. The length of the conductor B. The total wattage of connected devices C. The color of the wiring D. The age of the building Correct Answer: B Explanation: The total wattage of connected devices determines the load on a circuit and guides proper conductor sizing. Q24. Which document defines the standard for electrical installations in the United States? A. IEEE Standards B. National Electrical Code (NEC) C. International Building Code (IBC) D. OSHA Regulations Correct Answer: B Explanation: The NEC is the primary document governing safe electrical installation practices in the United States. Q25. What does “voltage drop” refer to? A. An increase in voltage along a conductor B. A decrease in voltage from the source to the load C. The difference between AC and DC voltage D. The rating of a transformer Correct Answer: B Explanation: Voltage drop is the reduction in voltage that occurs when current flows through a conductor with resistance. Q26. In plan reading, the abbreviation “NEMA” most often refers to: A. A type of switch B. The National Electrical Manufacturers Association C. A standard for wiring methods D. A unit of electrical power
(30 Questions) Q31. What is the primary purpose of a service entrance? A. To distribute power within the building B. To protect the building from lightning C. To connect the utility supply to the building’s electrical system D. To provide grounding for electrical equipment Correct Answer: C Explanation: The service entrance is the point where the utility’s supply connects to the building’s electrical system. Q32. Service load calculations are essential for: A. Determining the color of wires B. Sizing the service equipment correctly C. Choosing the right type of conduit D. Identifying circuit paths Correct Answer: B Explanation: Calculating the service load ensures that service equipment, such as panels and disconnects, is correctly sized for safety and functionality. Q33. When calculating a service load, which of the following must be included? A. The lighting fixture wattage only B. All continuous and noncontinuous loads C. Only the HVAC load D. Only the motor loads Correct Answer: B Explanation: Service load calculations must include all continuous and noncontinuous loads to ensure accurate sizing of service equipment. Q34. The term “service equipment” typically includes: A. Only the main disconnect B. Distribution panels, disconnects, and overcurrent devices C. Only transformers D. Only branch circuit breakers Correct Answer: B Explanation: Service equipment encompasses all devices that control, distribute, and protect the incoming service, including panels and disconnects. Q35. Which of the following best describes “temporary service wiring”? A. Wiring installed permanently in a building B. Wiring used during construction or for short-term power needs C. Wiring for emergency generators D. Wiring for low-voltage applications Correct Answer: B Explanation: Temporary service wiring is used for construction sites or temporary installations and must comply with specific safety requirements.
Q36. What is the purpose of bonding in electrical systems? A. To connect conductors to the neutral B. To create a continuous electrical path for safety C. To increase the circuit’s resistance D. To measure voltage drops Correct Answer: B Explanation: Bonding ensures that all conductive parts are electrically connected, reducing the risk of shock. Q37. In a service entrance, the equipment grounding conductor is used to: A. Carry normal current loads B. Provide a path for fault current C. Regulate voltage fluctuations D. Serve as the neutral conductor Correct Answer: B Explanation: The equipment grounding conductor provides a low-impedance path for fault current, improving safety. Q38. Which of the following is a common method for calculating service loads? A. The square footage method B. The demand factor method C. The color coding method D. The insulation rating method Correct Answer: B Explanation: The demand factor method is used to adjust the calculated load based on typical usage patterns. Q39. In service equipment installations, what does “overcurrent protection” mean? A. Preventing voltage spikes B. Protecting circuits from excessive current C. Minimizing conductor resistance D. Increasing service capacity Correct Answer: B Explanation: Overcurrent protection devices, such as circuit breakers, are designed to interrupt excessive currents and prevent damage. Q40. Which code section primarily governs service equipment installation? A. NEC Article 100 B. NEC Article 230 C. NEC Article 310 D. NEC Article 400 Correct Answer: B Explanation: NEC Article 230 covers service entrance conductors and equipment, including load calculations and safety requirements.
A. It is not rated for long-term use B. It interferes with load calculations C. It is not color coded D. It increases the building’s aesthetic appeal Correct Answer: A Explanation: Temporary wiring is intended for short-term use and does not meet long-term installation standards. Q47. The “main bonding jumper” is used to: A. Connect neutral to ground B. Disconnect the transformer C. Increase circuit resistance D. Provide backup power Correct Answer: A Explanation: The main bonding jumper connects the neutral and ground at the service equipment to ensure a common reference point. Q48. In service load calculations, which of the following is applied to account for diversity? A. The conductor color code B. The demand factor C. The insulation type D. The installation method Correct Answer: B Explanation: A demand factor accounts for the fact that not all loads are used simultaneously, thereby reducing the calculated load. Q49. What is a typical consequence of undersized service equipment? A. Increased energy efficiency B. Overheating and potential fire hazards C. Better voltage regulation D. Improved power quality Correct Answer: B Explanation: Undersized equipment can overheat under load, creating a significant safety risk. Q50. Which NEC article covers temporary wiring installations? A. Article 250 B. Article 590 C. Article 110 D. Article 300 Correct Answer: B Explanation: NEC Article 590 provides guidelines for temporary installations to ensure safety during construction or other temporary conditions. Q51. What is the key purpose of service equipment maintenance? A. To update the wiring colors B. To ensure safety and reliable operation
C. To lower the energy consumption D. To expand the building’s floor area Correct Answer: B Explanation: Regular maintenance of service equipment is crucial for safe and reliable operation of the electrical system. Q52. In service load calculations, continuous loads are typically: A. Ignored B. Multiplied by 125% C. Multiplied by 100% D. Divided by 2 Correct Answer: B Explanation: Continuous loads are typically multiplied by 125% to ensure that equipment is sized to handle prolonged use. Q53. What is the role of a “main disconnect” in service equipment? A. To connect branch circuits B. To enable safe isolation of the entire system C. To regulate circuit voltage D. To provide a ground fault path Correct Answer: B Explanation: The main disconnect allows all power to be shut off safely during maintenance or in an emergency. Q54. Which of the following best describes “equipment grounding”? A. Connecting all electrical equipment to the main neutral B. Creating a low-impedance path to earth C. Isolating circuits from one another D. Increasing the conductor size Correct Answer: B Explanation: Equipment grounding provides a path for fault current, ensuring that exposed metal parts do not become energized. Q55. How does proper service equipment installation affect electrical safety? A. It reduces electromagnetic interference B. It minimizes the risk of shock and fire hazards C. It increases system voltage D. It enhances conductor insulation Correct Answer: B Explanation: Proper installation of service equipment ensures that electrical systems operate safely by preventing overcurrent and providing effective grounding. Q56. Which method is used to verify proper service equipment installation? A. Visual inspection only B. Functional testing of disconnects and grounding continuity C. Temperature measurement of the wires
Q61. In feeder circuits, which of the following must be calculated first? A. Voltage drop B. Load demand C. Conductor length D. Ambient temperature Correct Answer: B Explanation: Calculating load demand is the first step to properly size feeder conductors and related protection. Q62. Feeder conductors are required to be: A. Oversized compared to branch circuits B. Sized based on calculated load and conductor insulation C. The same size as service conductors D. Only sized for short distances Correct Answer: B Explanation: Feeder conductors must be sized according to the calculated load, taking into account insulation and installation conditions. Q63. What is the primary purpose of grounding feeder circuits? A. To increase the current capacity B. To provide a safe path for fault current C. To reduce conductor cost D. To balance the load Correct Answer: B Explanation: Proper grounding ensures that any fault current in feeder circuits has a safe path to earth. Q64. Which NEC article addresses feeder installations? A. Article 215 B. Article 250 C. Article 300 D. Article 400 Correct Answer: A Explanation: NEC Article 215 covers feeders and their proper installation methods. Q65. When calculating feeder loads, which factor is particularly important? A. The frequency of the supply B. The length of the feeder run C. The type of conductor insulation D. The number of terminations Correct Answer: B Explanation: The length of the feeder affects voltage drop, which must be calculated to ensure proper performance. Q66. Feeder circuits are generally run from: A. The branch circuit panel
B. The service equipment or main distribution panel C. Individual disconnects D. The ground bus only Correct Answer: B Explanation: Feeders typically run from the service equipment or main distribution panel to sub-panels or large equipment. Q67. The term “feeder” refers to: A. A circuit used for lighting only B. A conductors system that carries power from a main panel to subsidiary panels C. A branch circuit supplying a receptacle D. A temporary wiring method Correct Answer: B Explanation: Feeders supply power from the main service equipment to sub-panels or other distribution points. Q68. What is one common method to reduce voltage drop in feeder circuits? A. Increasing conductor size B. Using lower-rated breakers C. Increasing conductor length D. Reducing ambient temperature Correct Answer: A Explanation: Increasing the conductor size decreases resistance, thereby reducing voltage drop. Q69. In feeder load calculations, which safety factor is sometimes applied? A. A 25% increase for continuous loads B. A 10% decrease for short runs C. A 50% increase for branch circuits D. A 100% increase for all loads Correct Answer: A Explanation: Continuous loads in feeders are typically increased by 25% to ensure safe operation. Q70. Which of the following is a key consideration when grounding feeder circuits? A. The color of the grounding conductor B. Ensuring a continuous, low-resistance path to ground C. The length of the conductor D. The type of insulation on the feeder Correct Answer: B Explanation: A continuous, low-resistance grounding path is essential for safely clearing faults. Q71. Feeder circuits must be protected by: A. Ground fault interrupters only B. Overcurrent protection devices C. Voltage regulators D. Isolation transformers
Correct Answer: B Explanation: The NEC sets the standards for installation methods for all feeders. Q77. When sizing feeders, why is it important to consider future load expansion? A. To reduce initial installation costs B. To avoid frequent upgrades and maintain safety C. To match the color scheme of the building D. To comply with aesthetic guidelines Correct Answer: B Explanation: Considering future loads prevents the need for expensive upgrades and ensures long-term safety and compliance. Q78. In feeder installations, the term “voltage regulation” refers to: A. Maintaining a constant current B. Keeping voltage within acceptable limits under load C. Increasing voltage during peak hours D. Adjusting conductor size Correct Answer: B Explanation: Voltage regulation ensures that voltage remains within acceptable limits, even when loads vary. Q79. Which instrument is best used to measure voltage drop in a feeder circuit? A. Clamp meter B. Digital multimeter C. Oscilloscope D. Infrared thermometer Correct Answer: B Explanation: A digital multimeter is commonly used to measure voltage drop across conductors accurately. Q80. What is the effect of a long feeder run on circuit performance? A. Reduced voltage drop B. Increased voltage drop C. No impact D. Improved current capacity Correct Answer: B Explanation: Longer runs result in higher resistance, which in turn increases the voltage drop along the feeder.
Section 4: Branch Circuits and Conductors
(50 Questions)
Q81. What is the primary purpose of a branch circuit? A. To supply power to the entire building B. To distribute power to specific areas or devices C. To increase overall voltage D. To provide grounding only Correct Answer: B Explanation: Branch circuits deliver power to designated areas or equipment throughout the building. Q82. When calculating branch circuit loads, which factor must be considered? A. The number of conductors in the cable B. The total wattage of connected devices C. The color of the circuit breaker D. The physical size of the panel Correct Answer: B Explanation: The total wattage of devices on a branch circuit determines the current requirement and proper conductor sizing. Q83. Overcurrent protection in branch circuits is provided by: A. Fuses or circuit breakers B. Voltage regulators C. Insulation materials D. Conduit fill calculations Correct Answer: A Explanation: Fuses and circuit breakers protect branch circuits by interrupting the circuit when current exceeds safe levels. Q84. Which of the following is true regarding branch circuit conductor sizing? A. It is determined solely by the length of the circuit B. It is based on the load current and conductor insulation C. It does not require derating D. It is independent of ambient temperature Correct Answer: B Explanation: Conductor size is chosen based on the expected load current, insulation type, and environmental factors. Q85. How many branch circuits are required at a typical residential kitchen countertop area according to NEC? A. One circuit for all outlets B. At least two 20-amp circuits C. Three 15-amp circuits D. One 30-amp circuit Correct Answer: B Explanation: The NEC typically requires at least two 20-amp branch circuits for kitchen countertop receptacles for safety and load distribution.
Q91. Which of the following is a key requirement for AFCI-protected circuits? A. They must be installed in kitchens only B. They must be installed in bedrooms and living areas per code C. They are only required for outdoor circuits D. They are optional in new installations Correct Answer: B Explanation: Current NEC requirements typically mandate AFCI protection for circuits in bedrooms and living areas. Q92. In branch circuit wiring, what does “equipment grounding” ensure? A. Increased voltage B. A safe path for fault current C. A reduced number of conductors D. Enhanced conductor insulation Correct Answer: B Explanation: Equipment grounding provides a safety path for fault currents to reduce the risk of shock. Q93. What is the purpose of a multiwire branch circuit? A. To supply power from one neutral to multiple circuits B. To combine multiple circuits into one C. To isolate devices from the ground D. To reduce conductor size Correct Answer: A Explanation: A multiwire branch circuit uses a shared neutral to supply power to more than one circuit, but proper care must be taken to balance the load. Q94. Which conductor is typically used for the equipment grounding conductor in a branch circuit? A. A green or bare copper wire B. A white insulated wire C. A black insulated wire D. A red insulated wire Correct Answer: A Explanation: Equipment grounding conductors are typically identified by green insulation or are bare copper. Q95. What does “overcurrent” mean in the context of branch circuits? A. A current that is below the safe operating limit B. A current that exceeds the safe operating limit C. A current that is balanced D. A current that is alternating Correct Answer: B Explanation: Overcurrent refers to current that exceeds the safe limit for a circuit, necessitating the use of protective devices.
Q96. When planning the number and location of outlets, which factor is most critical? A. Aesthetic considerations B. The expected load and code requirements C. The type of conduit used D. The color of the walls Correct Answer: B Explanation: Outlet placement is based on load requirements and must also comply with NEC spacing and quantity rules. Q97. Which of the following best describes conductor insulation? A. It provides mechanical protection and prevents short circuits B. It increases the conductor’s resistance C. It is only decorative D. It enhances electrical conductivity Correct Answer: A Explanation: Insulation protects the conductor from physical damage and prevents accidental contact with other conductors or grounded surfaces. Q98. What is the typical consequence of an improperly sized branch circuit? A. Improved efficiency B. Voltage drop or overheating C. Increased branch circuit length D. Reduced installation cost Correct Answer: B Explanation: An undersized branch circuit may overheat or experience excessive voltage drop, leading to safety hazards. Q99. The placement of GFCI outlets is required in which areas of a dwelling? A. Bedrooms and hallways B. Kitchens, bathrooms, garages, and outdoor locations C. Only in living rooms D. Only in basements Correct Answer: B Explanation: GFCI protection is mandated in wet or damp areas like kitchens, bathrooms, garages, and outdoors to reduce shock risk. Q100. What does the term “voltage drop” imply for branch circuits? A. No significant effect B. A reduction in voltage along the circuit due to resistance C. An increase in voltage at the load D. A factor only in service conductors Correct Answer: B Explanation: Voltage drop is the loss of voltage that occurs along a conductor due to its inherent resistance, which must be kept within acceptable limits.
