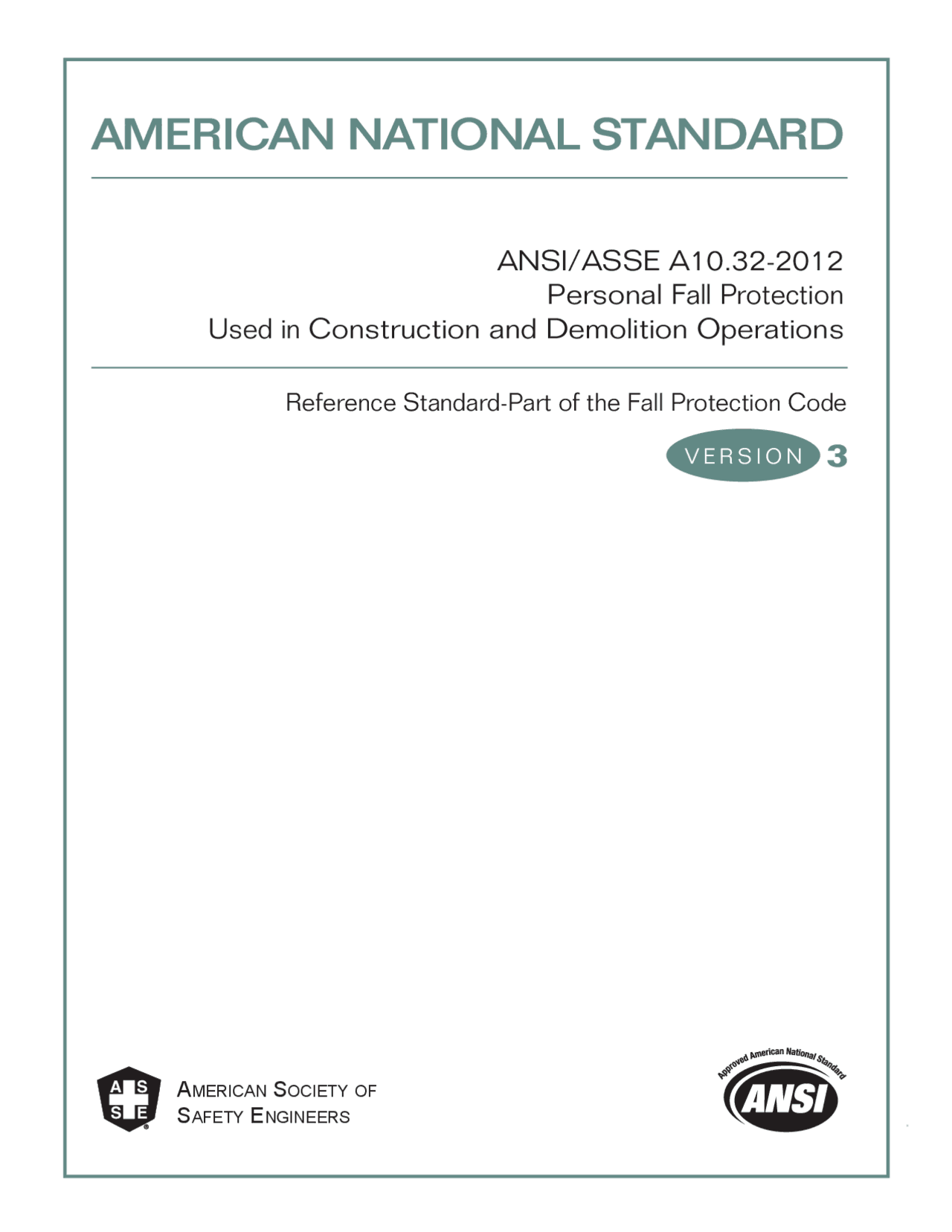

AS
SE
AMERICAN SOCIETY OF
SAFETY ENGINEERS
AMERICAN NATIONAL STANDARD
Reference Standard-Part of the Fall Protection Code
ANSI/ASSE A10.32-2012
Personal
Fall Protection
Used in
Construction and Demolition Operations
VErSIoN 3
Prepara tus exámenes
Prepara tus exámenes y mejora tus resultados gracias a la gran cantidad de recursos disponibles en Docsity
Consigue puntos base para descargar
Gana puntos ayudando a otros estudiantes o consíguelos activando un Plan Premium
Orientación Universidad
Prepara tus exámenes
Prepara tus exámenes y mejora tus resultados gracias a la gran cantidad de recursos disponibles en Docsity
Busca documentos
Prepara tus exámenes con los documentos que comparten otros estudiantes como tú en Docsity
Busca tu universidad
Encuentra los documentos específicos para los exámenes de tu universidad
Video Cursos
Estudia con lecciones y exámenes resueltos basados en los programas académicos de las mejores universidades
Quiz
Responde a preguntas de exámenes reales y pon a prueba tu preparación
Consigue puntos base para descargar
Gana puntos ayudando a otros estudiantes o consíguelos activando un Plan Premium
Comunidad
Pregúntale a la comunidad
Pide ayuda a la comunidad y resuelve tus dudas de estudio
Ebooks gratuitos
¡Nuestros e-books salva-estudiantes!
Descarga nuestras guías gratuitas sobre técnicas de estudio, métodos para controlar la ansiedad y consejos para la tesis preparadas por los tutores de Docsity
ansi de consulta alturas, Monografías, Ensayos de Seguridad en el Lugar de Trabajo
documentos para altruas y equipos de segruidad
Tipo: Monografías, Ensayos
2018/2019
1 / 30
Esta página no es visible en la vista previa
¡No te pierdas las partes importantes!
Documentos relacionados
Vista previa parcial del texto
¡Descarga ansi de consulta alturas y más Monografías, Ensayos en PDF de Seguridad en el Lugar de Trabajo solo en Docsity!
A S
S E
AMERICAN SOCIETY OF SAFETY ENGINEERS
AMERICAN NATIONAL STANDARD
Reference Standard-Part of the Fall Protection Code
ANSI/ASSE A10.32-
Personal Fall Protection
Used in Construction and Demolition Operations
V E r S I o N 3
The information and materials contained in this publication have been developed from sources believed to be reliable. However, the American Society of Safety Engineers (ASSE) as secretariat of the ANSI accredited A10 Committee or individual committee members accept no legal responsibility for the correctness or com- pleteness of this material or its application to specific factual situations. By publication of this standard, ASSE or the A10 Committee does not ensure that adherence to these recommendations will protect the safety or health of any persons, or preserve property
Approval of an American National Standard requires verification by ANSI that the requirements for due process, consensus, and other criteria for approval have been met by the standards developer. Consensus is established when, in the judgment of the ANSI Board of Standards Review, substantial agreement has been reached by directly and materially affected interests. Substantial agreement means much more than a simple majority, but not necessarily unanimity. Consensus requires that all views and objections be considered, and that a concerted effort be made toward their resolution. The use of American National Standards is completely voluntary; their existence does not in any respect preclude anyone, whether he/she has approved the standards or not, from manufacturing, marketing, purchasing, or using products, processes, or procedures not conforming to the standards. The American National Standards Institute does not develop standards and will in no circumstance give an interpretation of any American National Standard. Moreover, no person shall have the right or authority to issue an interpretation of an American National Standard in the name of the American National Standards Institute. Requests for interpretation should be addressed to the secretariat or sponsor whose name appears on the title page of this standard.
Caution Notice: This American National Standard may be revised or withdrawn at any time. The procedures of the American National Standards Institute require that action be taken periodically to reaffirm, revise, or withdraw this standard. Purchasers of American National Standards may receive current information on all standards by calling or writing the American National Standards Institute.
Effective January 14, 2013
Published October, 2012 by
American Society of Safety Engineers 1800 East Oakton Street Des Plaines, Illinois 60018- (847) 699-2929 • www.asse.org
Copyright ©2012 by American Society of Safety Engineers All Rights Reserved.
No part of this publication may be reproduced in any form, in an electronic retrieval system or otherwise, without the prior written permission of the publisher.
Printed in the United States of America
American
National
Standard
Foreword (This Foreword is not a part of American National Standard A10.32-2012.)
This standard is one of a series of safety standards that have been formulated by the Accredited Standards Committee on Safety in Construction and Demolition Operations, A10. It is expected that the standards in the A10 series will find a major application in industry, serving as a guide to contractors, labor, and equipment manufacturers. For the convenience of users, a list of existing and proposed standards in the A10 series for Safety Requirements in Construction and Demolition Operations follows.
A10.1 Pre-Project & Pre-Task Safety & Health Planning A10.2 Safety, Health, and Environmental Training (under development) A10.3 Powder-Actuated Fastening Systems A10.4 Personnel Hoists and Employee Elevators A10.5 Material Hoists A10.6 Demolition Operations A10.7 Transportation, Storage, Handling, and Use of Commercial Explosives and Blasting Agents A10.8 Scaffolding A10.9 Concrete and Masonry Construction A10.10 Temporary and Portable Space Heating Devices A10.11 Personnel and Debris Nets A10.12 Excavation A10.13 Steel Erection A10.15 Dredging A10.16 Tunnels, Shafts, and Caissons A10.17 Safe Operating Practices for Hot Mix Asphalt (HMA) Construction A10.18 Temporary Roof and Floor Holes, Wall Openings, Stairways, and Other Unprotected Edges A10.19 Pile Installation and Extraction Operations A10.20 Ceramic Tile, Terrazzo, and Marble Work A10.21 Safe Construction and Demolition of Wind Generation/Turbine Facilities (under development) A10.22 Rope-Guided and Non-Guided Workers’ Hoists A10.23 Safety Requirements for the Installation of Drilled Shafts (under development) A10.24 Roofing – Safety Requirements for Low-Sloped Roofs A10.25 Sanitation in Construction A10.26 Emergency Procedures for Construction Sites A10.27 Hot Mix Asphalt Facilities A10.28 Work Platforms Suspended from Cranes or Derricks A10.29 Aerial Platforms in Construction (under development) A10.31 Digger-Derricks A10.32 Personal Fall Protection Used in Construction and Demolition Operations A10.33 Safety and Health Program Requirements for Multi-Employer Projects A10.34 Public Protection A10.37 Debris Nets A10.38 Basic Elements of a Program to Provide a Safe and Healthful Work Environment A10.39 Construction Safety and Health Audit Program A10.40 Reduction of Musculoskeletal Problems in Construction A10.41 Equipment Operator and Supervisor Qualifications and Responsibilities (under development) A10.42 Rigging Qualifications and Responsibilities in the Construction Industry A10.43 Confined Spaces in Construction (under development)
Richard King, CSP, Chair James Tomaseski, Vice Chair Timothy R. Fisher, CSP, CHMM, ARM, CPEA, Secretary Jennie Dalesandro, Administrative Technical Support
Organization Represented Name of Representative
Accident Prevention Corporation Frank Burg, CSP, P.E. Michael Serpe, CSP Aegis Corporation Matthew J. Burkart, P.E. Judith Burkart Alstom Power Robert Renney Ted P. Sharp American Insurance Services Group Thad Nosal James G. Borchardt, CSP, CPE, CRIS ASCE - Construction Institute Committee William R. Nash, P.E. Harlan Fair American Society of Safety Engineers Ken Shorter, CSP, ARM A. David Brayton, CSP, CPC American Wind Energy Association Michele Myers Mihelic American Work Platform Training, Inc. Dennis W. Eckstine Associated Builders and Contractors, Inc. Ralph Riley Chris Williams Associated General Contractors of America, The Charlie Bird Kevin Cannon Association of Union Constructors, The Wayne Creasap, II Brian Doran A-Z Safety Resources, Inc. Jane F. Williams, CPEA, CCA Barton-Malow Company Mark Klimbal, CSP, ARM Clayton Shafer Black & Veatch Richard F. King, CSP John H. Johnson, CSP Bovis Lend Lease Joel C. Pickering Michael Lentz Building & Construction Trades Department Pete Stafford Jim Platner, Ph.D., CIH CPWR - Center for Construction Research & Training Chris Trahan, CIH Pete Stafford Capital Safety Group Scott C. Casebolt J. Thomas Wolner, P.E. Clark Construction Group Tim Sirofchuck, CSP Kurt Dunmire Cole-Preferred Safety Consulting, Inc. Barry Cole Philip L. Colleran Philip L. Colleran, CSP Construction & Realty Safety Group, Inc. Ron Lattanzio Frank Marino ECI Safety Services Co. Anthony Merisola Patrick Brennan, CSHM, CSSM Edison Electric Institute R. Lee Reed, Jr. Charles Kelly E. I. Dupont de Nemours & Company Gary Birchall Ronald Probasco, CSP Elevator Industry Preservation Fund Garry Kosinski
Michael D. Morand Ellis Fall Safety Solutions J. Nigel Ellis, Ph.D., P.E., CSP, CPE John Whitty, P.E. Gilbane Building Co. Anthony O’Dea, CSP, CHST Charles Praul, Jr., CSP Richard D. Hislop Richard Hislop Independent Electrical Contractors, Inc. John P. Masarick Bob Baird Institute of Makers of Explosives Lon D. Santis Susan JP Flanagan Insulators International Union Terry Lynch Jim E. Lapping, MS, P.E., CSP International Association of Bridge, Structural, Ornamental and Reinforcing Iron Workers Steve Rank Robert Migliaccio, Sr. International Brotherhood of Boilermakers Brian Loftus Bridget Connors International Brotherhood of Electrical Workers James Tomaseski International Brotherhood of Teamsters LaMont Byrd, CIH Julie Plavka International Safety Equipment Association Cristine Fargo International Union of Bricklayers & Allied Craftworkers Michael Kassman, CHST Gerard Scarano International Union of Operating Engineers Barbara McCabe Steve Brown Jack L. Mickle & Associates Jack Mickle, Ph.D., P.E. Steve Stock, P.E., PLS Laborers’ International Union of North America Scott Schneider, MS, CIH Walter A. Jones, MS Marsh USA, Inc. Timothy Bergeron, CSP Maryland Occupational Safety & Health Mischelle Vanreusel Eric Uttenreither Mechanical Contractors Association of America Peter Chaney, MS, CSP Dennis Langley National Association of Home Builders Robert Matuga Dylan Hardison National Association of Railroad Safety Consultants & Investigators Lewis Barbe, P.E., CSP, CRSP National Electrical Contractors Association Michael J. Johnston Jerry Rivera National Institute for Occupational Safety & Health Thomas G. Bobick, Ph.D., P.E., CSP, CPE Matt Gillen, CIH National Railroad Contractors & Maintenance Association Jeffrey D. Meddin, CSP, CHCM, CHEP National Roofing Contractors Association Harry Dietz Tom Shanahan National Society of Professional Engineers E. Ross Curtis, P.E., DFE Paul Swanson, P.E. Operative Plasterers and Cement Masons International Association Deven Johnson Rob Mason Daniel M. Paine Daniel M. Paine Barbara Paine Phoenix Fabricators and Erectors, Inc. Robert E. Clouse, CSP, CHST Frank Massey Powder Actuated Tool Manufacturer’s Institute James A. Borchers
Contents SECTION................................................................................................ PAGE
- General
- 1.1 Scope...........................................................................................
- 1.2 Purpose
- 1.3 Application
- 1.4 Resolutions
- 1.5 Exceptions
- Definitions
- General Requirements
- 3.1 Planning
- 3.2 Work Areas
- 3.3 Prior to Start of Task
- 3.4 Fall Protection Equipment Removal from Service
- Equipment
- 4.1 Condition
- 4.2 Components
- 4.3 Vertical Lifelines
- 4.4 Horizontal Lifelines
- 4.5 Lanyards
- 4.6 Restraint Systems
- 4.7 Energized Power Sources
- Performance Requirements
- 5.1 Anchorages
- 5.2 Fall Arrest
- 5.3 Self-Retracting Lanyards (SRL)
- 5.4 Rope Grabs
- 5.5 Vertical Lifeline Connectors
- 5.6 Snaphooks and Carabiners
- Requirements for Marking and User Instructions
- 6.1 General Marking Requirements
- 6.2 Special Marking Requirements for Individual Components
- Employer Requirements
- 7.1 Training
- 7.2 Rescue
- 7.3 Inspection
- 7.4 Compatibility
- 7.5 Hazard Protection
- 7.6 Equipment Selection
- Appendix A - Job/Task Safety Analysis
AMERICAN NATIONAL STANDARD A10.32-
10
AMERICAN NATIONAL STANDARD A10.
PERSONAL FALL PROTECTION USED IN
CONSTRUCTION AND DEMOLITION OPERATIONS
1. GENERAL
1.1 Scope. This standard establishes performance criteria for personal fall protection equipment and systems in construction and demolition and provides guidelines, recommendations for their use and inspection. It includes, but is not limited to; fall arrest, restraint, positioning, climbing, descending, rescue, escape and training activities.
Exceptions: This standard does not include lineman’s body belts, pole straps, window washer’s belts, chest/waist harnesses and sports equipment.
1.2 Purpose. The purpose of this standard is to provide minimum guidelines to users of personal fall protection equipment.
1.3 Application. This standard applies to users of personal fall protection equipment; to those personnel responsible for the selection, procurement, inspection, use, care and maintenance of the equipment; and to those responsible for training and supervision of the users.
1.4 Resolutions. In order to provide for superior protection to the user, this standard permits:
1.4.1 Only full body harnesses shall be used for fall arrest. The fall arrest attachment point of the body harness shall be at the center of the user’s back near shoulder level.
1.4.2 Maximum arresting force imposed on the user’s body shall not exceed 1, pounds (8kN).
1.4.3 All equipment used in a fall protection system shall be compatible to limit force levels, maintain system strength and prevent accidental disengagement.
1.4.4 Equipment serviced by the manufacturer or their authorized representative shall be capable of meeting all performance requirements of this standard.
1.5 Exceptions. In cases of practical difficulty or undue hardship, the responsible authority may grant exceptions to the literal requirements of this standard or permit the use of other devices or methods, but only when it is clearly evident that personnel and equipment protection is assured.
2. DEFINITIONS
2.1 Accidental Disengagement. A process whereby a connector uninten- tionally comes free from the component to which it is attached.
2.2 Activation Distance. The dis- tance traveled by a fall arrester or the amount of line payed out by a self-retracting lanyard (SRL) from the point of onset of a fall to the point where the fall arrester or self-retracting lifeline begins to apply a braking or stopping force.
2.3 Active Fall Protection. A fall protection system that requires authorized persons to wear or use fall protection equipment and that requires fall protection training.
2.4 Anchorage. The terminating com- ponent of a fall protection system or rescue system that is intended to support any forces applied to the system.
AMERICAN NATIONAL STANDARD A10.32-
12
2.18 Connector. A component or element that is used to couple parts of the system together. A connector may be an independent component (such as a carabiner) of a system or it may be an integral element of a component, hybrid component, subsystem or system (such as a buckle or D-Ring sewn into a body support or a snaphook spliced or sewn into a lanyard or self-retracting lanyard). Connectors are sometimes referred to as hardware.
2.19 Deceleration Device. Any mech- anism which serves to dissipate energy during a fall.
2.20 Deceleration Distance. The vertical distance between the user's fall arrest attachment at the onset of fall arrest forces during a fall, and after the fall arrest attachment comes to a complete stop.
2.21 Descent Control Device. An automatic or manually controlled lowering device for escape or rescue. May be used as part of a single point suspended scaffold in conjunction with an independent lifeline fall arrest system.
2.22 Energy (Shock) Absorber. A component whose primary function is to dissipate energy and limit deceleration forces which the system imposes on the body during fall arrest.
2.22.1 Energy Absorber, Horizontal Lifeline. An energy absorber that is attached to one of the end anchorages or anchorage connectors of a horizontal lifeline subsystem.
2.22.2 Energy Absorber, Personal. An energy absorber that is attached to a harness.
2.22.3 Energy Absorber, Vertical Lifeline. An energy absorber that is attached to the top anchorage or anchorage connector of a vertical lifeline subsystem.
2.23 Fall Arrest. The action or event of stopping a free fall or the instant where the downward free fall has been stopped.
2.24 Fall Protection. Any equipment, device or system that prevents an accidental fall from elevation or that mitigates the effect of such a fall. Fall protection includes eliminating or controlling hazards, passive fall protection, fall restraint, fall arrest and administrative controls.
2.25 Force Factor. The ratio of the peak arresting force recorded using a rigid weight in laboratory testing to that on a human body having the same weight, both falling under identical conditions. For the purposes of this standard, a registered peak force shall be divided by 1.1 to allow for body compression.
2.26 Free Fall. The act of falling before a fall protection system begins to apply forces to arrest the fall.
2.27 Free-Fall Distance. The vertical distance traveled during a fall, measured from the onset of a fall from a walking working surface to the point at which the fall protection system begins to arrest the fall. This distance excludes deceleration distance and the elongation of a lifeline or lanyard, but includes any distance that a deceleration device slides before engaging or the distance that a self-retracting lifeline or lanyard extends before fall arrest forces are applied.
2.28 Hardware. A rigid component or element that is used to couple parts of the system together.
2.29 Inspection. An examination of equipment or systems to assess conformance to a particular standard.
2.30 Integral. Not removable from the component, subsystem or system without
AMERICAN NATIONAL STANDARD A10.32-
13
destroying or mutilating any element or without use of a special tool.
2.31 Lanyard. A component consisting of a flexible rope, wire rope or strap, which typically has a connector at each end for connecting to the body support and to a fall arrester, energy absorber, anchorage connector or anchorage. Lanyards perform a tethering function that restricts movement and can arrest a fall.
2.32 Leading Edge. A leading edge means the unprotected side or edge during periods when it is actively or continuously under construction.
2.33 Lifeline. A component of a fall protection system consisting of a flexible line designed to hang either vertically (vertical lifeline) or for connection to anchorages or anchorage connectors at both ends to span horizontally (horizontal lifeline).
2.34 Manufacturer. Any producer of fall protection equipment with written product labels and instructions meeting the requirements of this standard.
2.35 Non-Certified Fall Arrest Anchorage. A fall arrest anchorage that a competent person can judge to be capable of supporting the predetermined anchorage forces as prescribed in this standard.
2.36 Passive Fall Protection System. Fall protection that does not require the wearing or use of personal fall protection equipment. Examples of passive fall protection systems include safety nets, guardrail systems or other means that protect an authorized person from a fall hazard.
2.37 Pendulum (Swing) Fall. A fall resulting in a user connected to an anchorage swinging in a pendulum motion under the action of gravity.
2.38 Personal Fall Arrest System (PFAS). An assembly of components and subsystems used to arrest a person in a free fall.
2.39 Positioning. The act of supporting the body with a positioning system for the purpose of working with hands free.
2.40 Positioning Lanyard. A lanyard used to transfer forces from a body support to an anchorage or anchorage connector in a positioning system. A positioning system can enable an authorized person to have both hands free for work.
2.41 Qualified Person. A person with a recognized degree or professional certificate and with extensive knowledge, training and experience in the fall protection and rescue field who is capable of designing, analyzing, evaluating and specifying fall protection and rescue systems to the extent required by this standard.
2.42 Qualified Person Trainer. A qualified person who meets the requirements of this standard and who is also qualified to provide fall protection training.
2.43 Registered Professional Engi- neer. A licensed/registered professional engineer with the expertise in the discipline applicable to the scope of work.
2.44 Rope (or Strap) Adjuster. A mechanical means of readily moving a vertical line attachment or changing the position of an intermediate anchorage device between an anchorage (connector) and a body support while loaded with the authorized person’s weight or partial weight while leaning. May be a manual rope grab type device or a descent control device, which provides an adjustment feature. An automatic rope grab is typically used as a fall arrester for a vertical lifeline, which can act as back-up fall protection to a work
AMERICAN NATIONAL STANDARD A10.32-
15
covers on floor openings, as opposed to fall arrest.
Note: For more information on plans, refer to ANSI/ASSE A10.1 and ANSI/ASSE A10.33.
3.1.2 At the initiation of a construction project and for critical stages of the work, a written fall prevention hazard analysis shall be conducted and a site specific fall prevention plan prepared and included in the project specific safety plan. This plan shall describe potential hazards and actions required in order to eliminate or control each identified fall hazard.
3.1.3 The site specific fall protection plan shall define:
- Any areas or tasks for which passive protection cannot be provided.
- The reason why such pro- tection cannot be provided.
- The name of the person who shall prepare the Job Safety Analysis (JSA) required in Section 3.2 below.
- Retention responsibilities for the JSA.
Note: For more information on JSAs, refer to ANSI/ASSE A10.33.
3.2 Work Areas.
3.2.1 Prior to the start of a task, potential fall hazards found to be in the workplace shall be eliminated when feasible by changing the work means and methods, erection sequence or design. Areas requiring active fall protection in the site specific safety plan shall be addressed and active protection shall be provided for those areas.
3.2.2 At each location that a fall hazard cannot be eliminated and a worker is asked to rely on an active system, a written Job Safety Analysis (see ANSI/ASSE A10.33) explaining the hazard, why it cannot be eliminated and in detail how it will be mitigated shall be developed. This JSA shall:
3.2.2.1 Identify the equipment to be utilized and document that it is currently inspected and in good condition. This equipment will be noted in the plan and consideration shall be noted of the total weight (worker, tools and materials) to be imposed on the system.
3.2.2.2 Identify and mark the travel path of workers from a safe area to the work location and return.
3.2.2.3 Identify the location and type of each anchorage to be utilized, as well as the certification basis for each anchorage.
3.2.2.4 Perform and document a review of the fall distances anticipated with the equipment being used to insure a clear area is available beneath the worker, taking into account the predicted elongation of the system and whatever pendulum effect might exist. This shall be coordinated with other contractors on the site in order to ensure compliance with this section.
3.2.2.5 Include a proposed rescue procedure to be utilized should a fall occur and provide a prompt rescue to a safe area, in conformance with ANSI/ASSE A10.26, Emergency Procedures for Construction Sites.
3.3 Prior to Start of Task.
3.3.1 The competent person, foreman and worker(s) shall review and approve the Job Site Analysis (JSA) before the task is started.
AMERICAN NATIONAL STANDARD A10.32-
16
3.3.2 JSA’s must be maintained by the contractor for the duration of the job.
3.4 Fall Protection Equipment Removal from Service. Fall protection equipment shall be removed from service upon evidence of defects, damage or deterioration; once it has been subjected to impact loading; or upon expiration of the manufacturer’s specified service life, whichever comes first.
4. EQUIPMENT
4.1 Condition. All fall protection equipment shall be inspected by a qualified person for condition and suitability prior to use.
4.2 Components. All personal fall arrest components shall meet the testing and performance requirements of ANSI/ASSE Z359.1-2007. All fall protection equipment shall be inspected by a qualified person for condition and suitability prior to use.
4.2.1 Equipment not specified in ANSI/ASSE Z359.1-2007 must be tested and approved by a registered professional engineer.
4.2.2 All fall protection equipment shall be inspected by the user at least daily prior to use.
4.2.3 All fall arrest systems shall meet the testing and performance requirements of the ANSI/ASSE Z359, Fall Protection Code.
4.2.4 All connections within a fall arrest system shall be evaluated by a competent person for compatibility.
4.2.5 All methods of attaching components within a fall protection system shall be approved by the equipment manufacturer.
4.2.6 All components of a fall arrest system must be used as originally designed, and not modified unless under direct written consent of the original equipment manufacturer.
4.2.7 All equipment manufacturers’ labels, instructions and recommendations shall be followed.
4.2.7.1 A copy of the manufacturers’ instructions shall be provided to the user of the equipment.
4.2.7.2 All fall protection equipment shall be used only for its intended purpose, as defined by the manufacturer.
4.2.7.3 Labels shall be maintained on equipment and shall be legible.
4.2.8 All load-bearing components of a fall arrest system shall be made from metal or from pure non-recycled synthetic material having the strength, aging, abrasion and heat resistance characteristics equivalent or superior to polyamide or polyester.
4.2.8.1 All fall protection equipment shall be inspected prior to first use by the site safety manager, qualified person or a competent person.
4.2.8.2 Any used equipment shall be inspected prior to first use by a competent person.
4.2.8.3 All fall protection equipment shall be inspected at least every six months after initial service by a competent person.
4.2.9 A fall protection system shall be used in all work applications that expose the worker to a fall of 6 feet (1.8m) or greater.
4.3 Vertical Lifelines. When vertical lifelines are used, they shall be limited to one user per lifeline.
AMERICAN NATIONAL STANDARD A10.32-
18
engineer in the state where the work is being performed.
5.1.1 Fall Arrest Anchorages.
5.1.1.1 Anchorages selected for fall arrest systems shall have sufficient strength capable of sustaining static loads applied in the directions permitted by the system of at least:
A. 5,000 pounds (22.2kN) for non-certified anchorages, or
B. Two times the maximum arrest force for certified anchorages.
5.1.1.2 When more than one fall arrest system is attached to an anchorage, the strengths set forth in (A) and (B) above shall be multiplied by the number of systems attached to the anchorage.
5.1.1.3 Design, selection and installation of certified fall arrest anchorages shall include determining a safe location where and how to connect to those anchorages by taking into consideration the forces generated by arresting a fall, total existing and anticipated loading, load path, structural member strengths, connection and support strengths, stability, clearance requirements, swing fall, rescue deflection of the system and impact on the structural members to which the fall arrest system is attached.
5.1.1.4 When designing, selecting and certifying fall arrest anchorage, the designer shall be a registered professional engineer and shall include the limitations on use of the system in fall protection procedures described in this standard (refer to Section 3).
5.1.1.5 Fall arrest anchorages used for personal fall arrest systems shall be marked to prevent other uses.
5.1.1.6 In locations where fall arrest anchorage points will continue to be
required for foreseeable maintenance or construction over the life of the structure, the design shall consider permanent anchorages and conditions for maintenance and re-use.
5.1.2 Anchorages for Work Position- ing.
5.1.2.1 Anchorages selected for work positioning systems shall have sufficient strength capable of sustaining static loads applied in the directions permitted by the system of at least:
A. 3,000 pounds (13.3kN) for non-certified anchorages, or
B. Two times the foreseeable force for certified anchorages.
5.1.2.2 When more than one work positioning system is attached to an anchorage, the strengths set forth in (A) and (B) above shall be the sum of the loads applied by the systems attached to the anchorage times two (or other appropriate safety factor) unless otherwise designed by a registered professional engineer or manufacturer.
5.1.2.3 If the anchorage is used as an anchorage for fall arrest, it shall comply with the requirements for fall arrest anchorages as indicated in this standard.
5.1.3 Anchorages for Restraint and Travel Restraint Systems.
5.1.3.1 Anchorages selected for restraint and travel restraint systems shall have sufficient strength capable of sustaining static loads applied in the directions permitted by the system of at least:
A. 1,000 pounds (4.5kN) for non-certified anchorages, or
B. Two times the foreseeable force for certified anchorages.
AMERICAN NATIONAL STANDARD A10.32-
19
5.1.3.2 When more than one restraint and travel restraint system is attached to an anchorage, the strengths set forth in (A) and (B) above shall be multiplied by the number of systems attached to the anchorage.
5.1.3.3 If the anchorage is also used as an anchorage for fall arrest, it shall comply with the requirements for fall arrest anchorages as indicated in this standard.
5.1.4 Anchorages for Horizontal Life- line Systems.
5.1.4.1 Anchorages for horizontal lifeline systems shall be certified and designed, prior to use, by a qualified person with experience and training in the design and use of horizontal lifeline systems.
NOTE: Non-certified anchorages shall not be used for horizontal lifelines.
5.1.4.2 Anchorage for horizontal lifelines shall be capable of sustaining at least two times the maximum tension developed in the lifeline during fall arrest in the direction applied by the lifeline forces. The number of persons attached to a horizontal lifeline shall be used in determining the maximum tension in the horizontal lifeline under conditions of an accidental fall.
5.1.4.3 Fall arrest anchorages shall be located as high as practicable above a worker to minimize the free fall and the total fall distance and to prevent contact with an obstruction or the lower level.
5.1.4.4 The maximum angle from the point of attachment of the anchorage connector to the worker shall be in accordance with manufacturer’s instructions for swing falls. The anchorage connector shall be located in such a way to minimize the pendulum-like motion during a fall.
5.1.4.5 Welders shall be certified to a recognized welding standard when the anchorage connector is welded to the anchorage.
5.1.4.6 Accessibility, location and ease of connecting shall be taken into consideration when planning and selecting anchorages.
5.1.4.7 When selecting an eyebolt for an anchorage connector, it shall be rated along its intended-use axis in accordance with manufacturer’s instructions. The diameter of the eyebolt shall be compatible to the snaphook or carabiner of the fall protection system.
5.1.5 Anchorage for Rescue Systems.
5.1.5.1 Anchorages selected for rescue systems shall have sufficient strength capable of sustaining static loads applied in the directions permitted by the system of at least:
A. 3,000 pounds (13.3kN) for non-certified anchorages, or
B. Five times the applied load for certified anchorages.
5.1.5.2 When more than one rescue system is attached to an anchorage, the strengths set forth in (A) and (B) above shall be multiplied by the number of systems attached to the anchorage.
5.1.5.3 If the anchorage is used as an anchorage for fall arrest, it shall comply with the requirements for fall arrest anchorages as indicated in this standard.
5.1.6 Inspection of Anchorage Systems.
5.1.6.1 Anchorage systems shall be inspected by the authorized person prior to each use and by a qualified or competent person at least annually in accordance with the manufacturer’s or qualified person’s instructions.
5.1.6.2 Those inspecting the anchorage systems shall check for any cracks in the
