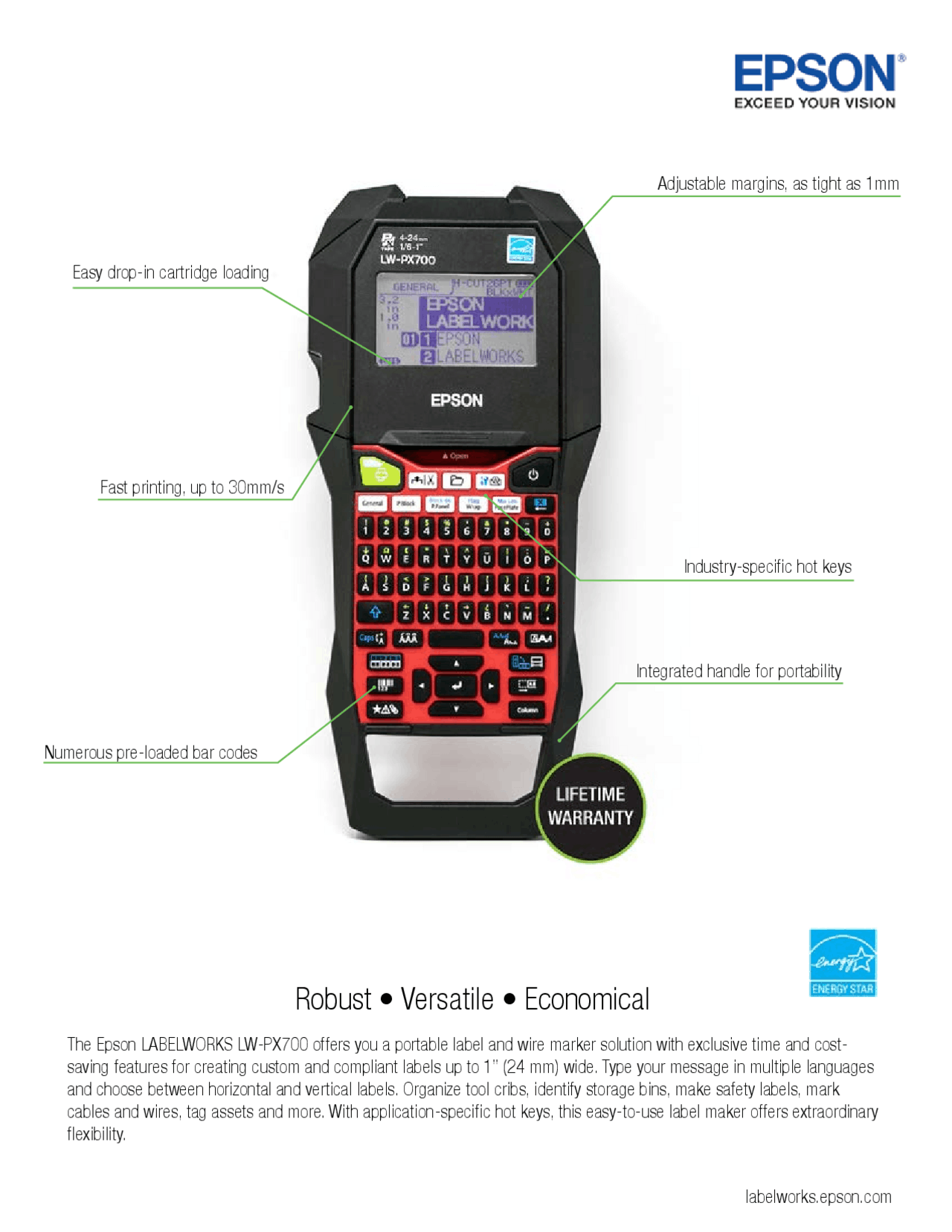

LW-PX700
Robust • Versatile • Economical
The Epson LABELWORKS LW-PX700 offers you a portable label and wire marker solution with exclusive time and cost-
saving features for creating custom and compliant labels up to 1” (24 mm) wide. Type your message in multiple languages
and choose between horizontal and vertical labels. Organize tool cribs, identify storage bins, make safety labels, mark
cables and wires, tag assets and more. With application-specific hot keys, this easy-to-use label maker offers extraordinary
flexibility.
Easy drop-in cartridge loading
Fast printing, up to 30mm/s
Integrated handle for portability
Industry-specific hot keys
Numerous pre-loaded bar codes
Adjustable margins, as tight as 1mm
labelworks.epson.com
pf3
pf4

Vista previa parcial del texto

¡Descarga CATALOGO EPSON MP300 y más Guías, Proyectos, Investigaciones en PDF de Matemáticas solo en Docsity!

LW-PX

Robust • Versatile • Economical

The Epson LABELWORKS LW-PX700 offers you a portable label and wire marker solution with exclusive time and cost-

saving features for creating custom and compliant labels up to 1” (24 mm) wide. Type your message in multiple languages

and choose between horizontal and vertical labels. Organize tool cribs, identify storage bins, make safety labels, mark

cables and wires, tag assets and more. With application-specific hot keys, this easy-to-use label maker offers extraordinary

flexibility.

Easy drop-in cartridge loading

Fast printing, up to 30mm/s

Integrated handle for portability

Industry-specific hot keys

Numerous pre-loaded bar codes

Adjustable margins, as tight as 1mm

labelworks.epson.com

Automatic Half-Cut Mixed Length Function

Store image files Save Tape

Upload and store up to 5 image files with the LW-PX

using Epson’s Label Editor Software. This is perfect for

photos, company logos, icons and symbols specific to

your company. Or choose from the 1000+ industrial

symbols programmed in the printer.

Say goodbye to unnecessary tape waste! Customize

your margins for optimal tape savings. Epson’s auto-

rewind technology pulls unused tape back into the

machine, giving a tight 4mm lead margin and 1mm

margins on printed labels.

In many cases, industrial labeling calls for a diverse array of

labels of varying length. Our mixed-length function gives you

the freedom to print labels of varying lengths in succession

without constraints. With Epson LabelWorks, you determine

the length of your labels, not the limitations of your printer.

With Epson’s unique half-cut option, you can print a

strip of labels and automatically cut only the label – not

the backing layer. This keeps your labels together, but

makes them easy to separate and apply. So go ahead

and print as many labels as you need and take them with

you – whether they’re the same length or different. The

half-cut feature makes peeling and applying them fast

and convenient.

FEATURES AND FUNCTIONS

ALL LABELWORKS PX PRINTERS

COME WITH AN INDUSTRY-LEADING

LIFETIME WARRANTY

Software-Compatible

Use Epson’s Label Editor software to create profes-

sional labels for your entire workplace. Print images,

bar and QR codes, tables and logos. Batch print by

importing spreadsheets. It makes printing efficient!

*Screen Content Simulated

SPECIFICATIONS

LABELWORKS PX LW-PX

LW-PX

LW-PX700PCD Kit

SKU: LW-PX700PCD

  • LW-PX700 printer
  • AC adapter
  • 212BWPX tape cartridge
  • Label Editor software download
  • USB cable
  • Lithium ion battery
  • Owner’s manual
  • Industrial carrying case
Dealer’s Stamp
Information correct as of December 2020
© 2020 Epson LABELWORKS PX. All Rights Reserved.
Reproduction in part or in whole, without the written
permission from Epson, is strictly prohibited.
EPSON and EXCEED YOUR VISION are registered trademarks
of Seiko Epson Corporation. All other products names and
other company names used herein are for identification
purposes only and are the trademarks or registered
trademarks of their respective owners. Epson disclaims
any and all rights in those marks. Print samples shown are
simulations only. Specifications and product availability are
subject to change without notice and may vary between
countries. Please check with local Epson offices for more
information.

LW-PX700PCD

Model Number LW-PX

Printing
Technology Thermal Transfer
Tape Width 4-24mm
Resolution 180 dpi
Printer head width 18.1 mm
Max Print Speed 30mm / sec (With AC Adapter)
Store and Print Images Yes, up to 5
Print Settings
Repeat Printing Yes
Auto Increment Yes
Data Import Yes
Number Serialization Up to 4 alpha-numeric characters
Mirror Printing Yes
Vertical Printing Yes
Mix Length Yes
Margins Minimum 4mm lead on standard industrial tapes. Specialty tape lead margin varies by supply
Batch printing settings from 1 to 500mm
Fixed Length Auto / Custom
Cable Wrap Yes
Flag Yes
QR Code Yes
Barcodes via Handheld: 9 types EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, ITF, CodaBar, QR Code

via Label Editor: 15 types EAN 8, EAN 13, Code 39, Code 128, UPC-A, UPC-E, ITF, CodaBar, QR Code,

NW-7 (CodaBar), EAN-128 (GS1-128), GS1 DataBar, MaxiCode, PDF417, DataMatrix

Symbols 859 industrial and professional symbols
Hardware
Cutter Automatic with full-cut and half-cut function
Detection Cover Open, Battery Level, Tape Detection (Type and size), Tape End

Drop-Stop & Pick-and-Print Prints, cuts and holds tape until it is pulled from printer before printing the next label in the batch automatically

LCD 140 x 80 dot back-lit monochrome LCD
Internal Memory Up to 100 files
Connectivity
Interface USB
Software Download Epson Label Editor: Windows 7, 8, 8.1, 10
Other Information
AC Adapter Yes
Battery 6AA (Not Included), Lithium ion battery (LW-PX700PCD kit only)

LW-PX700 Basic Kit

SKU: LW-PX

  • LW-PX700 printer
  • AC Adapter
  • 212BWPX tape cartridge
