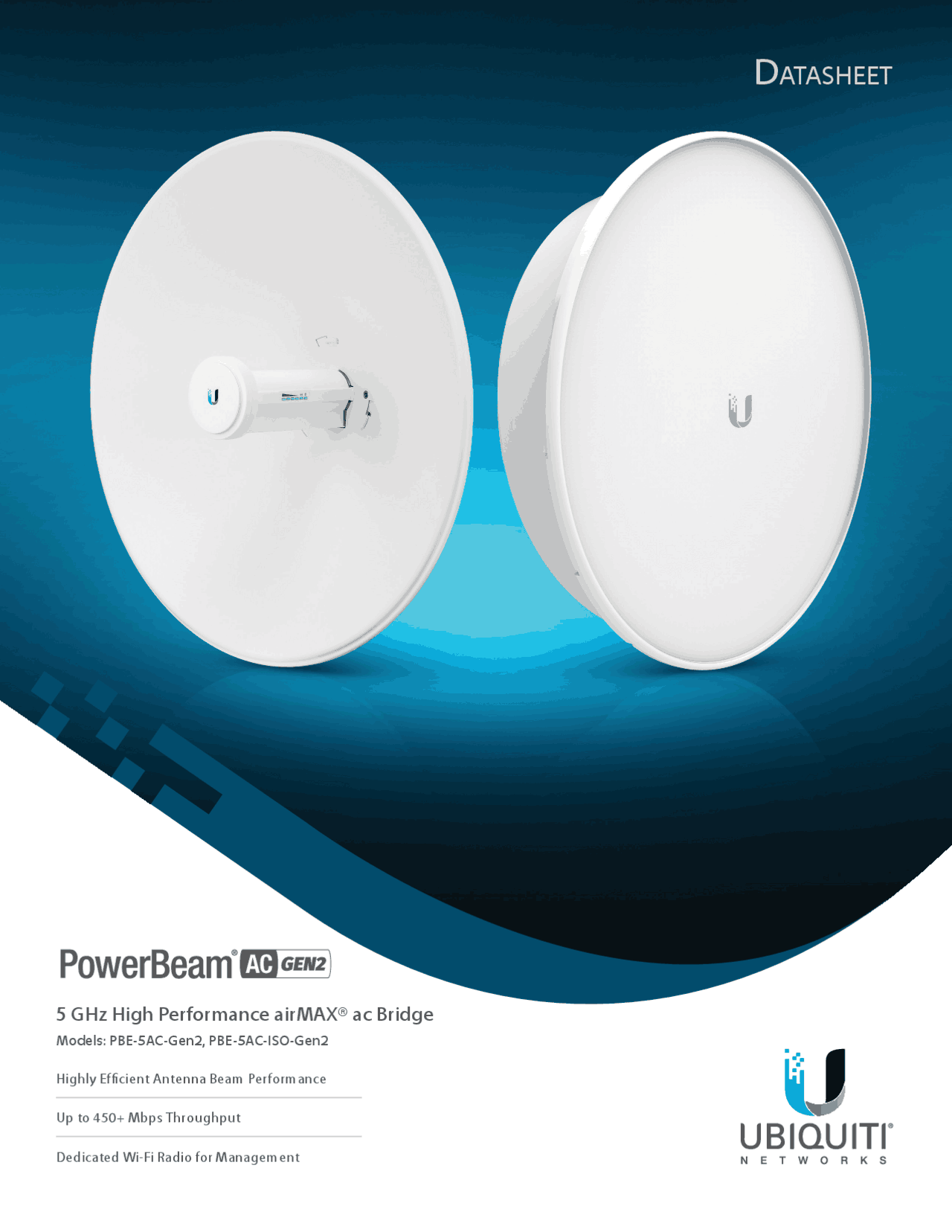

5 GHz High Performance airMAX® ac Bridge

Models: PBE-5AC-Gen2, PBE-5AC-ISO-Gen

Highly Efficient Antenna Beam Performance

Up to 450+ Mbps Throughput

Dedicated Wi-Fi Radio for Management

Datasheet

D

ATASHEET

Overview

Ubiquiti Networks launches the

latest generation of airMAX® CPE

(Customer Premises Equipment),

the PowerBeam® 5AC Gen 2, with

dedicated Wi-Fi management.

Improved Noise Immunity

The PowerBeam 5AC Gen 2 directs

RF energy in a tighter beamwidth.

With the focus in one direction, the

PowerBeam 5AC Gen 2 blocks or

spatially filters out noise, so noise

immunity is improved. This feature

is especially important in an area

crowded with other RF signals of the

same or similar frequency.

Integrated Design

Ubiquiti’s InnerFeed® technology

integrates the radio into the feedhorn

of an antenna, so there is no need for

a cable. This improves performance

because it eliminates cable losses.

Featuring high performance

and innovative design, the

PowerBeam 5AC Gen 2 is versatile

and cost-effective to deploy.

Software

airOS® 8 is the revolutionary operating

system for Ubiquiti® airMAX ac

products.

Powerful Wireless Features

• Access Point PtMP airMAX

Mixed Mode

• airMAX ac Protocol Support
• Long-Range PtP Link Mode
• Selectable Channel Width
  • PtP: 10/20/30/40/50/60/80 MHz
  • PtMP: 10/20/30/40 MHz
• Automatic Channel Selection
• Transmit Power Control:

Automatic/Manual

• Automatic Distance Selection

(ACK Timing)

• Strongest WPA2 Security

Usability Enhancements

• airMagic® Channel Selection Tool
• Redesigned User Interface
• Dynamic Configuration Changes
• Instant Input Validation
• HTML5 Technology
• Optimization for Mobile Devices
• Detailed Device Statistics
• Comprehensive Array of Diagnostic

Tools, including RF Diagnostics and

airView® Spectrum Analyzer

Application Examples

PtMP Client Links

The PowerBeam 5AC Gen 2 used as a CPE device for each client in an

airMAX Point-to-MultiPoint (PtMP) network.

PtP Link

Use a PowerBeam 5AC Gen 2 on each side of a Point-to-Point (PtP) link.

D

ATASHEET

Technology

Unlike standard Wi-Fi protocol,

Ubiquiti’s Time Division Multiple

Access (TDMA) airMAX protocol

allows each client to send and receive

data using pre-designated time

slots scheduled by an intelligent AP

controller.

This time slot method eliminates

hidden node collisions and maximizes

airtime efficiency, so airMAX

technology provides performance

improvements in latency, noise

immunity, scalability, and throughput

compared to other outdoor systems in

its class.

Intelligent QoS Priority assigned to

voice/video for seamless streaming.

Scalability High capacity and

scalability.

Long Distance Capable of

high-speed, carrier-class links.

Superior Performance

The next-generation airMAX ac

technology boosts the advantages of

our proprietary TDMA protocol.

Ubiquiti’s airMAX engine with custom

IC dramatically improves TDMA

latency and network scalability. The

custom silicon provides hardware

acceleration capabilities to the airMAX

scheduler, to support the high data

rates and dense modulation used in

airMAX ac technology.

Throughput Breakthrough

airMAX ac supports high data rates,

which require dense modulation:

256QAM – a significant increase from

64QAM, which is used in airMAX.

With their use of proprietary

airMAX ac technology, airMAX ac

products supports up to 450+ Mbps

real TCP/IP throughput – up to triple

the throughput of standard airMAX

products.

airMAX Network Scalability

U - A M E - G 1 - B R 4 A

N K C 9 6 6. 0 0 1 B

1 4 1 2

T A I W A N

Superior Throughput Performance

150+ Mbps 150+ Mbps

450+ Mbps

0 50 100 150 200 250 300 350 400 450 Mbps

airMAX ac TDMA Technology

Time Slot 1 Time Slot 2Time Slot 3Time Slot 4

Timeline

Time Slots

Packet Prioritization

VOIP

Data VOIPVOIP

Up to 100 airMAX ac stations can be connected to an airMAX ac Sector;

four airMAX ac stations are shown to illustrate the general concept.

D

ATASHEET

Hardware Overview

The PowerBeam 5AC Gen 2 supports up to 450+ Mbps real

TCP/IP throughput and features improved surge protection.

Innovative Mechanical Design

• Built-in mechanical tilt Mounting bracket conveniently

offers elevation adjustments: ± 20° tilt.

• Quick assembly Minimal fasteners simplify installation.
• Easy removal The antenna feed can be detached with

the push of a button.

Industrial-Strength Construction

• Fasteners GEOMET-coated for improved corrosion

resistance when compared with zinc-plated fasteners.

• Dish and brackets Made of galvanized steel that is

powder-coated for superior corrosion resistance. The

hardware also prevents paint from being removed from the

metal brackets for improved corrosion resistance.

• Optional support In high-wind environments, you can

enhance support with additional hardware (not included).

PBE-5AC-Gen

The dish reflector design of the PBE-5AC-Gen2 makes it an

ideal CPE for deployments requiring maximum performance.

A protective radome is available as an optional accessory for

the PBE-5AC-Gen2.

Model Frequency PBE-5AC-Gen2 Dish Reflector

PBE-RAD-400 5 GHz ü 400 mm

PBE-5AC-ISO-Gen

The PBE-5AC-ISO-Gen2 offers a rear housing with a

metal-plated interior, designed to enhance RF shielding.

Additionally, an included protective radome shields the

PowerBeam 5AC ISO Gen 2 from nature's harshest elements.

Breakthrough RF Isolation

The integrated isolator design spatially filters out

interference, so the PBE-5AC-ISO-Gen2 delivers improved

noise immunity in co-location deployments.

Compare the two near-field plots below, and note the

superior performance of the integrated RF isolator.

Both near-field plots are displayed in watts and use a linear

scale. The strength of the electromagnetic field is color-

coded:

• Red: Highest strength
• Green: Medium strength
• Indigo: Lowest strength

Without Integrated RF Isolator With Integrated RF Isolator

D

ATASHEET

Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation

Return Loss

D

ATASHEET

Specifications

PBE-5AC-ISO-Gen

Dimensions 459 x 459 x 261 mm (18.07 x 18.07 x 10.28")

Weight (Mount Included) 3.22 kg (7.10 lbs)

Power Supply 24V, 0.5A Gigabit PoE Adapter (Included)

Max. Power Consumption 8.5W

Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)

Supported Voltage Range 20 to 26VDC

Gain 25 dBi

Networking Interface (1) 10/100/1000 Ethernet Port

Processor Specs MIPS 74Kc

Memory 64 MB

LEDs Power, Ethernet, (4) Signal Strength

Channel Sizes PtP Mode PtMP Mode

10/20/30/40/50/60/80 MHz 10/20/30/40 MHz

Enclosure Characteristics Antenna Feed Dish Reflector

Outdoor UV Stabilized Plastic Powder-Coated SPCC

Mounting Pole-Mounting Kit (Included)

Wind Loading 559 N @ 200 km/h (125.7 lbf @ 125 mph)

Wind Survivability 200 km/h (125 mph)

ESD/EMP Protection Air: ± 24 kV, Contact: ± 24 kV

Operating Temperature -40 to 70° C (-40 to 158° F)

Operating Humidity 5 to 95% Noncondensing

RoHS Compliance Yes

Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.

Vibration Test IEC 68-2-

Temperature Shock Test IEC 68-2-

UV Test IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-

Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.

Certifications CE, FCC, IC

Operating Frequency (MHz)

Worldwide 5150 - 5875

USA U-NII-1:

U-NII-2A:

5250 - 5350 MHz

U-NII-2C:

5470 - 5725 MHz

U-NII-3:

Management Radio (MHz)

Worldwide 2412 - 2472

USA 2412 - 2462

PBE-5AC-ISO-Gen2 Output Power: 24 dBm

TX Power Specifications RX Power Specifications

Modulation Data Rate Avg. TX Tolerance Modulation Data Rate Sensitivity Tolerance

airMAX ac

1x BPSK (½) 24 dBm ± 2 dB

airMAX ac

1x BPSK (½) -96 dBm Min. ± 2 dB

2x QPSK (½) 24 dBm ± 2 dB 2x QPSK (½) -95 dBm ± 2 dB

2x QPSK (¾) 24 dBm ± 2 dB 2x QPSK (¾) -92 dBm ± 2 dB

4x 16QAM (½) 24 dBm ± 2 dB 4x 16QAM (½) -90 dBm ± 2 dB

4x 16QAM (¾) 24 dBm ± 2 dB 4x 16QAM (¾) -86 dBm ± 2 dB

6x 64QAM (2/3) 23 dBm ± 2 dB 6x 64QAM (2/3) -83 dBm ± 2 dB

6x 64QAM (¾) 23 dBm ± 2 dB 6x 64QAM (¾) -77 dBm ± 2 dB

6x 64QAM (5/6) 22 dBm ± 2 dB 6x 64QAM (5/6) -74 dBm ± 2 dB

8x 256QAM (¾) 20 dBm ± 2 dB 8x 256QAM (¾) -69 dBm ± 2 dB

8x 256QAM (5/6) 20 dBm ± 2 dB 8x 256QAM (5/6) -65 dBm ± 2 dB
