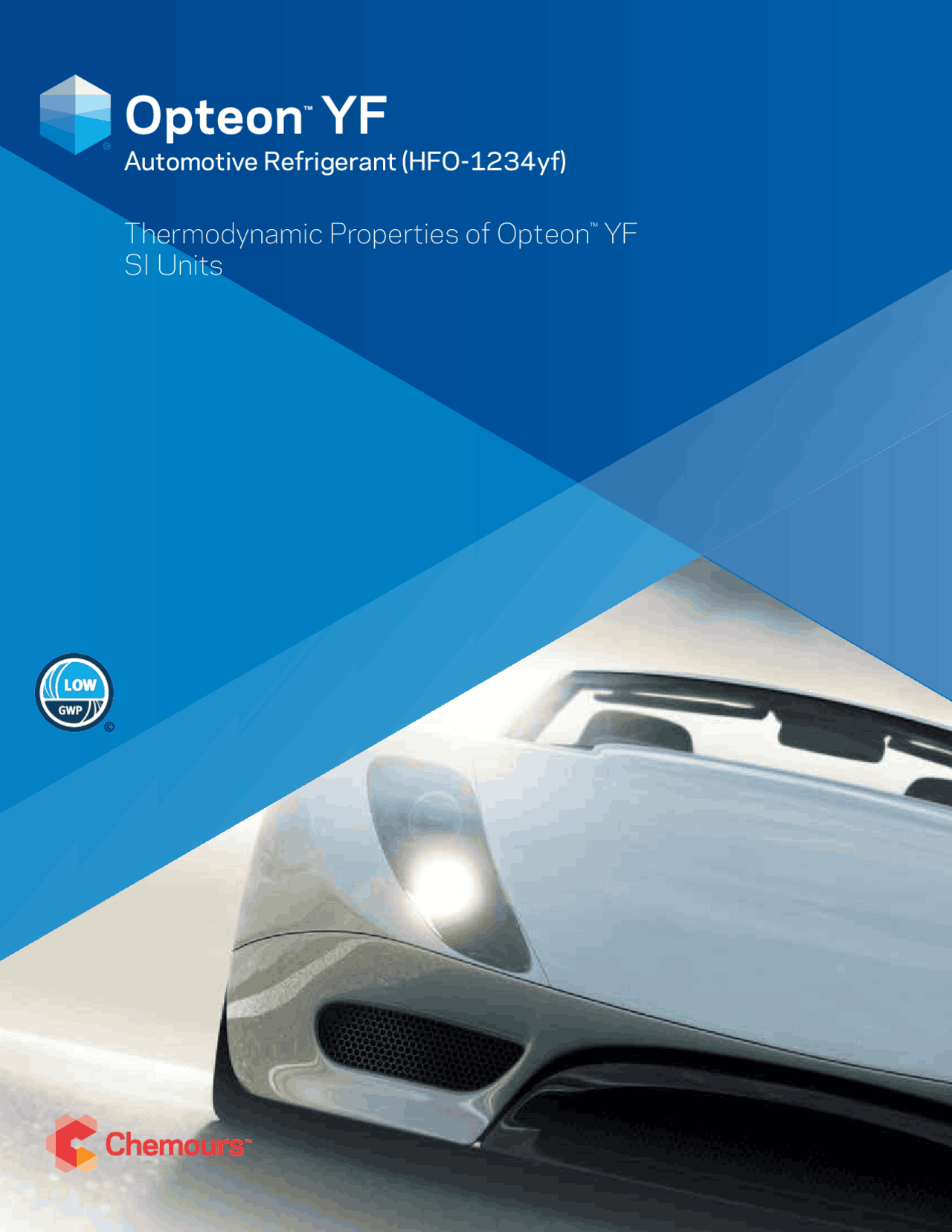

Opteon

YF

Automotive Refrigerant (HFO-1234yf)

Thermodynamic Properties of Opteon™^ YF

SI Units

Physical Properties

Refrigerant Classification .................................................................. HFO

Molecular Weight ...............................................................114.04 g/mol

Boiling Point at One Atmosphere..................................... -29.45 °C

Critical Temperature ..................................................................94.70 °C

Critical Pressure ..................................................................3382.20 kPa

Critical Density .................................................................. 475.55 kg/m^3

Critical Volume ................................................................... 0.0221 m^3 /kg

Ozone Depletion Potential .......................................................................

Global Warming Potential (AR5) ...........................................................

ASHRAE Standard 34 Safety Rating ........................................ A2L

Units and Factors

t = temperature in °C

P = pressure in kiloPascals absolute [kPa (abs)]

v f = volume of saturated liquid in m^3 /kg

v g = volume of saturated vapor in m^3 /kg

V = volume of superheated vapor in m 3 /kg

d f = 1/vf = density of saturated liquid in kg/m^3

d g = 1/vg = density of saturated vapor in kg/m^3

h f = enthalpy of saturated liquid in kJ/kg

h fg = enthalpy of vaporization in kJ/kg

h g = enthalpy of saturated vapor in kJ/kg

H = enthalpy of superheated vapor in kJ/kg

s f = entropy of saturated liquid in kJ/(kg) (K)

s g = entropy of saturated vapor in kJ/(kg) (K)

S = entropy of superheated vapor in kJ/(kg) (K)

One atmosphere = 101.325 kPa

Reference point for enthalpy and entropy:

h f = 200 kJ/kg at 0 °C

s f = 1 kJ/kg·K at 0 °C

Information generated using REFPROP version 9, release

date November 2010.

Opteon™ YF (HFO-1234yf) Saturation Properties - Temperature Table

Temp °C Pressure [kPa] Volume [m 3 /kg] Density [kg/m 3 ] Enthalpy [kJ/kg] Entropy [kJ/K-kg] Temp °C

Opteon™ YF (HFO-1234yf) Saturation Properties - Temperature Table

Temp °C Pressure [kPa] Volume [m 3 /kg] Density [kg/m 3 ] Enthalpy [kJ/kg] Entropy [kJ/K-kg] Temp °C

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

Opteon™ YF (HFO-1234yf) Superheated Vapor - Constant Pressure Tables

V = Volume in m^3 /kg H = Enthalpy in kJ/kg S = Entropy in kJ/k·K Saturation Properties in Light Blue

Absolute Pressure, kPa

• -50 37.423 37.423 0.000758 0.4247 1318.4 2.355 139.6 190.2 329.9 0.757 1.610 - Liquid p f Vapor p g Liquid v f Vapor v g Liquid d f Vapor d g Liquid H f Latent H fg Vapor H g Liquid S f Vapor S g
• -49 39.477 39.477 0.000760 0.4040 1315.8 2.475 140.8 189.8 330.5 0.762 1.609 -
• -48 41.622 41.622 0.000762 0.3846 1313.2 2.600 141.9 189.3 331.2 0.767 1.608 -
• -47 43.859 43.859 0.000763 0.3662 1310.5 2.731 143.0 188.8 331.9 0.772 1.607 -
• -46 46.192 46.192 0.000765 0.3489 1307.9 2.866 144.2 188.4 332.5 0.777 1.607 -
• -45 48.624 48.624 0.000766 0.3326 1305.2 3.007 145.3 187.9 333.2 0.782 1.606 -
• -44 51.157 51.157 0.000768 0.3172 1302.6 3.153 146.5 187.4 333.9 0.787 1.605 -
• -43 53.795 53.795 0.000769 0.3026 1299.9 3.305 147.6 186.9 334.6 0.792 1.605 -
• -42 56.540 56.540 0.000771 0.2889 1297.2 3.462 148.8 186.5 335.2 0.797 1.604 -
• -41 59.397 59.397 0.000772 0.2758 1294.6 3.625 149.9 186.0 335.9 0.802 1.604 -
• -40 62.367 62.367 0.000774 0.2635 1291.9 3.795 151.1 185.5 336.6 0.807 1.603 -
• -39 65.454 65.454 0.000776 0.2519 1289.2 3.970 152.2 185.0 337.3 0.812 1.603 -
• -38 68.661 68.661 0.000777 0.2409 1286.5 4.152 153.4 184.5 337.9 0.817 1.602 -
• -37 71.992 71.992 0.000779 0.2304 1283.8 4.340 154.6 184.0 338.6 0.822 1.602 -
• -36 75.450 75.450 0.000781 0.2205 1281.0 4.535 155.7 183.5 339.3 0.827 1.601 -
• -35 79.039 79.039 0.000782 0.2111 1278.3 4.737 156.9 183.0 339.9 0.832 1.601 -
• -34 82.761 82.761 0.000784 0.2022 1275.6 4.946 158.1 182.5 340.6 0.837 1.600 -
• -33 86.620 86.620 0.000786 0.1937 1272.8 5.162 159.3 182.0 341.3 0.842 1.600 -
• -32 90.620 90.620 0.000787 0.1857 1270.1 5.386 160.4 181.5 342.0 0.847 1.600 -
• -31 94.764 94.764 0.000789 0.1780 1267.3 5.617 161.6 181.0 342.6 0.852 1.599 -
• -30 99.056 99.056 0.000791 0.1708 1264.5 5.855 162.8 180.5 343.3 0.857 1.599 -
• -29 103.500 103.500 0.000793 0.1639 1261.8 6.102 164.0 180.0 344.0 0.861 1.599 -
• -28 108.098 108.098 0.000794 0.1573 1259.0 6.357 165.2 179.5 344.7 0.866 1.598 -
• -27 112.856 112.856 0.000796 0.1511 1256.2 6.620 166.4 178.9 345.3 0.871 1.598 -
• -26 117.775 117.775 0.000798 0.1451 1253.4 6.891 167.6 178.4 346.0 0.876 1.598 -
• -25 122.861 122.861 0.000800 0.1394 1250.5 7.171 168.8 177.9 346.7 0.881 1.598 -
• -24 128.117 128.117 0.000801 0.1340 1247.7 7.460 170.0 177.4 347.4 0.886 1.598 -
• -23 133.548 133.548 0.000803 0.1289 1244.9 7.758 171.2 176.8 348.0 0.891 1.597 -
• -22 139.155 139.155 0.000805 0.1240 1242.0 8.066 172.4 176.3 348.7 0.895 1.597 -
• -21 144.945 144.945 0.000807 0.1193 1239.2 8.383 173.7 175.7 349.4 0.900 1.597 -
• -20 150.921 150.921 0.000809 0.1148 1236.3 8.709 174.9 175.2 350.1 0.905 1.597 -
• -19 157.086 157.086 0.000811 0.1105 1233.4 9.046 176.1 174.6 350.7 0.910 1.597 -
• -18 163.444 163.444 0.000813 0.1065 1230.5 9.392 177.3 174.1 351.4 0.915 1.597 -
• -17 170.001 170.001 0.000815 0.1026 1227.6 9.750 178.6 173.5 352.1 0.919 1.597 -
• -16 176.759 176.759 0.000817 0.0988 1224.7 10.117 179.8 172.9 352.7 0.924 1.597 -
• -15 183.724 183.724 0.000818 0.0953 1221.8 10.496 181.0 172.4 353.4 0.929 1.597 -
• -14 190.898 190.898 0.000820 0.0919 1218.8 10.885 182.3 171.8 354.1 0.934 1.597 -
• -13 198.287 198.287 0.000822 0.0886 1215.9 11.286 183.5 171.2 354.7 0.939 1.597 -
• -12 205.895 205.895 0.000824 0.0855 1212.9 11.699 184.8 170.6 355.4 0.943 1.597 -
• -11 213.726 213.726 0.000826 0.0825 1209.9 12.123 186.0 170.0 356.1 0.948 1.597 -
• -10 221.783 221.783 0.000829 0.0796 1207.0 12.559 187.3 169.5 356.7 0.953 1.597 -
  • -9 230.072 230.072 0.000831 0.0769 1203.9 13.008 188.5 168.9 357.4 0.958 1.597 -
  • -8 238.597 238.597 0.000833 0.0742 1200.9 13.469 189.8 168.3 358.0 0.962 1.597 -
  • -7 247.363 247.363 0.000835 0.0717 1197.9 13.943 191.0 167.7 358.7 0.967 1.597 -
  • -6 256.373 256.373 0.000837 0.0693 1194.9 14.431 192.3 167.0 359.4 0.972 1.597 -
  • -5 265.632 265.632 0.000839 0.0670 1191.8 14.931 193.6 166.4 360.0 0.976 1.597 -
  • -4 275.144 275.144 0.000841 0.0647 1188.7 15.446 194.9 165.8 360.7 0.981 1.597 -
  • -3 284.915 284.915 0.000843 0.0626 1185.6 15.974 196.1 165.2 361.3 0.986 1.597 -
  • -2 294.948 294.948 0.000846 0.0605 1182.5 16.517 197.4 164.6 362.0 0.991 1.598 -
  • -1 305.249 305.249 0.000848 0.0586 1179.4 17.074 198.7 163.9 362.6 0.995 1.598 -
    • 0 315.821 315.821 0.000850 0.0567 1176.3 17.647 200.0 163.3 363.3 1.000 1.598
    • 1 326.670 326.670 0.000852 0.0548 1173.1 18.234 201.3 162.6 363.9 1.005 1.598
    • 2 337.800 337.800 0.000855 0.0531 1170.0 18.837 202.6 162.0 364.6 1.009 1.598
    • 3 349.216 349.216 0.000857 0.0514 1166.8 19.457 203.9 161.3 365.2 1.014 1.598
    • 4 360.923 360.923 0.000859 0.0498 1163.6 20.092 205.2 160.7 365.9 1.019 1.599
    • 5 372.925 372.925 0.000862 0.0482 1160.4 20.744 206.5 160.0 366.5 1.023 1.599
    • 6 385.227 385.227 0.000864 0.0467 1157.2 21.413 207.8 159.3 367.2 1.028 1.599 Liquid p f Vapor p g Liquid v f Vapor v g Liquid d f Vapor d g Liquid H f Latent H fg Vapor H g Liquid S f Vapor S g
    • 7 397.833 397.833 0.000867 0.0452 1153.9 22.100 209.1 158.7 367.8 1.033 1.599
    • 8 410.750 410.750 0.000869 0.0439 1150.6 22.804 210.5 158.0 368.4 1.037 1.599
    • 9 423.981 423.981 0.000872 0.0425 1147.3 23.526 211.8 157.3 369.1 1.042 1.600
• 10 437.532 437.532 0.000874 0.0412 1144.0 24.267 213.1 156.6 369.7 1.047 1.600
  • 11 451.408 451.408 0.000877 0.0400 1140.7 25.027 214.4 155.9 370.3 1.051 1.600
  • 12 465.613 465.613 0.000879 0.0387 1137.4 25.807 215.8 155.2 371.0 1.056 1.600
  • 13 480.152 480.152 0.000882 0.0376 1134.0 26.606 217.1 154.5 371.6 1.061 1.601
  • 14 495.031 495.031 0.000884 0.0365 1130.6 27.425 218.5 153.8 372.2 1.065 1.601
  • 15 510.255 510.255 0.000887 0.0354 1127.2 28.266 219.8 153.0 372.8 1.070 1.601
  • 16 525.828 525.828 0.000890 0.0343 1123.8 29.127 221.2 152.3 373.4 1.075 1.601
  • 17 541.756 541.756 0.000893 0.0333 1120.3 30.011 222.5 151.6 374.1 1.079 1.602
  • 18 558.044 558.044 0.000895 0.0323 1116.9 30.916 223.9 150.8 374.7 1.084 1.602
  • 19 574.697 574.697 0.000898 0.0314 1113.4 31.845 225.2 150.1 375.3 1.088 1.602
  • 20 591.721 591.721 0.000901 0.0305 1109.9 32.796 226.6 149.3 375.9 1.093 1.602
  • 21 609.120 609.120 0.000904 0.0296 1106.3 33.772 228.0 148.5 376.5 1.098 1.603
  • 22 626.901 626.901 0.000907 0.0288 1102.8 34.772 229.3 147.7 377.1 1.102 1.603
  • 23 645.068 645.068 0.000910 0.0279 1099.2 35.797 230.7 147.0 377.7 1.107 1.603
  • 24 663.626 663.626 0.000913 0.0271 1095.5 36.848 232.1 146.2 378.3 1.112 1.603
  • 25 682.582 682.582 0.000916 0.0264 1091.9 37.925 233.5 145.4 378.9 1.116 1.604
  • 26 701.940 701.940 0.000919 0.0256 1088.2 39.029 234.9 144.6 379.5 1.121 1.604
  • 27 721.707 721.707 0.000922 0.0249 1084.5 40.161 236.3 143.7 380.0 1.125 1.604
  • 28 741.887 741.887 0.000925 0.0242 1080.8 41.321 237.7 142.9 380.6 1.130 1.605
  • 29 762.487 762.487 0.000928 0.0235 1077.1 42.510 239.1 142.1 381.2 1.135 1.605
  • 30 783.511 783.511 0.000932 0.0229 1073.3 43.729 240.5 141.2 381.8 1.139 1.605
  • 31 804.966 804.966 0.000935 0.0222 1069.5 44.979 241.9 140.4 382.3 1.144 1.605
  • 32 826.857 826.857 0.000938 0.0216 1065.7 46.260 243.4 139.5 382.9 1.148 1.606
  • 33 849.190 849.190 0.000942 0.0210 1061.8 47.573 244.8 138.7 383.4 1.153 1.606
  • 34 871.971 871.971 0.000945 0.0204 1057.9 48.920 246.2 137.8 384.0 1.158 1.606
• 35 895.206 895.206 0.000949 0.0199 1054.0 50.301 247.6 136.9 384.5 1.162 1.606
• 36 918.900 918.900 0.000952 0.0193 1050.0 51.717 249.1 136.0 385.1 1.167 1.607
• 37 943.060 943.060 0.000956 0.0188 1046.0 53.169 250.5 135.1 385.6 1.171 1.607
• 38 967.691 967.691 0.000960 0.0183 1042.0 54.658 252.0 134.1 386.1 1.176 1.607
  • 39 992.800 992.800 0.000963 0.0178 1037.9 56.186 253.4 133.2 386.7 1.181 1.607
  • 40 1018.393 1018.393 0.000967 0.0173 1033.8 57.753 254.9 132.3 387.2 1.185 1.608
  • 41 1044.476 1044.476 0.000971 0.0168 1029.6 59.360 256.4 131.3 387.7 1.190 1.608
  • 42 1071.055 1071.055 0.000975 0.0164 1025.5 61.010 257.8 130.3 388.2 1.194 1.608
  • 43 1098.137 1098.137 0.000979 0.0159 1021.2 62.702 259.3 129.4 388.7 1.199 1.608
  • 44 1125.728 1125.728 0.000983 0.0155 1017.0 64.440 260.8 128.4 389.2 1.204 1.608
  • 45 1153.834 1153.834 0.000988 0.0151 1012.6 66.223 262.3 127.4 389.7 1.208 1.608
  • 46 1182.462 1182.462 0.000992 0.0147 1008.3 68.053 263.8 126.3 390.1 1.213 1.609
  • 47 1211.618 1211.618 0.000996 0.0143 1003.9 69.933 265.3 125.3 390.6 1.217 1.609
  • 48 1241.310 1241.310 0.001001 0.0139 999.4 71.863 266.8 124.3 391.1 1.222 1.609
  • 49 1271.543 1271.543 0.001005 0.0135 994.9 73.846 268.3 123.2 391.5 1.227 1.609
  • 50 1302.325 1302.325 0.001010 0.0132 990.4 75.884 269.9 122.1 392.0 1.231 1.609
  • 51 1333.663 1333.663 0.001014 0.0128 985.8 77.978 271.4 121.0 392.4 1.236 1.609
  • 52 1365.563 1365.563 0.001019 0.0125 981.1 80.130 272.9 119.9 392.8 1.241 1.609
  • 53 1398.032 1398.032 0.001024 0.0121 976.4 82.343 274.5 118.8 393.3 1.245 1.609
  • 54 1431.079 1431.079 0.001029 0.0118 971.6 84.619 276.0 117.7 393.7 1.250 1.609
  • 55 1464.709 1464.709 0.001034 0.0115 966.7 86.961 277.6 116.5 394.1 1.254 1.610
  • 56 1498.931 1498.931 0.001040 0.0112 961.8 89.371 279.2 115.3 394.5 1.259 1.610
  • 57 1533.751 1533.751 0.001045 0.0109 956.8 91.852 280.7 114.1 394.9 1.264 1.610
  • 58 1569.178 1569.178 0.001051 0.0106 951.7 94.407 282.3 112.9 395.2 1.269 1.609
  • 59 1605.219 1605.219 0.001056 0.0103 946.6 97.040 283.9 111.7 395.6 1.273 1.609
  • 60 1641.882 1641.882 0.001062 0.0100 941.3 99.754 285.5 110.4 395.9 1.278 1.609
  • 61 1679.174 1679.174 0.001068 0.0098 936.0 102.552 287.1 109.1 396.3 1.283 1.609
• 62 1717.104 1717.104 0.001075 0.0095 930.6 105.438 288.8 107.8 396.6 1.287 1.609 Liquid p f Vapor p g Liquid v f Vapor v g Liquid d f Vapor d g Liquid H f Latent H fg Vapor H g Liquid S f Vapor S g
• 63 1755.680 1755.680 0.001081 0.0092 925.1 108.418 290.4 106.5 396.9 1.292 1.609
• 64 1794.911 1794.911 0.001088 0.0090 919.5 111.496 292.1 105.1 397.2 1.297 1.609
• 65 1834.805 1834.805 0.001094 0.0087 913.7 114.676 293.7 103.7 397.5 1.302 1.609
• 66 1875.370 1875.370 0.001101 0.0085 907.9 117.964 295.4 102.3 397.7 1.307 1.608
  • 67 1916.617 1916.617 0.001109 0.0082 901.9 121.367 297.1 100.9 398.0 1.311 1.608
  • 68 1958.553 1958.553 0.001116 0.0080 895.8 124.891 298.8 99.4 398.2 1.316 1.608
  • 69 2001.189 2001.189 0.001124 0.0078 889.6 128.544 300.5 97.9 398.4 1.321 1.607
  • 70 2044.535 2044.535 0.001132 0.0076 883.2 132.332 302.2 96.3 398.6 1.326 1.607
  • 71 2088.600 2088.600 0.001141 0.0073 876.7 136.266 304.0 94.8 398.7 1.331 1.606
  • 72 2133.395 2133.395 0.001149 0.0071 870.0 140.355 305.7 93.1 398.9 1.336 1.606
  • 73 2178.931 2178.931 0.001159 0.0069 863.1 144.611 307.5 91.5 399.0 1.341 1.605
  • 74 2225.219 2225.219 0.001168 0.0067 856.1 149.044 309.3 89.8 399.1 1.346 1.605
  • 75 2272.271 2272.271 0.001178 0.0065 848.8 153.671 311.1 88.0 399.1 1.351 1.604
  • 76 2320.100 2320.100 0.001189 0.0063 841.4 158.505 313.0 86.2 399.2 1.356 1.603
  • 77 2368.717 2368.717 0.001199 0.0061 833.7 163.566 314.8 84.3 399.2 1.361 1.602
  • 78 2418.137 2418.137 0.001211 0.0059 825.7 168.874 316.7 82.4 399.1 1.366 1.601
  • 79 2468.375 2468.375 0.001223 0.0057 817.5 174.454 318.6 80.4 399.0 1.372 1.600
  • 80 2519.445 2519.445 0.001236 0.0055 809.0 180.333 320.5 78.4 398.9 1.377 1.599 - -46.51 -44.45 -42.56 -40. Temp °C - 0.3575 332.2 1.607 0.3240 333.6 1.606 0.2964 334.9 1.604 0.2732 336.0 1. V H S V H S V H S V H S Temp °C
  • -45 0.3602 333.3 1.612 -
  • -40 0.3688 337.2 1.629 0.3310 337.0 1.620 0.3001 336.8 1.613 0.2743 336.7 1.606 -
  • -35 0.3774 341.0 1.645 0.3388 340.9 1.637 0.3072 340.7 1.630 0.2809 340.6 1.623 -
  • -30 0.3860 345.0 1.661 0.3466 344.8 1.653 0.3143 344.7 1.646 0.2874 344.5 1.639 -
  • -25 0.3945 348.9 1.678 0.3543 348.8 1.670 0.3214 348.7 1.662 0.2939 348.5 1.655 -
  • -20 0.4030 353.0 1.694 0.3620 352.8 1.686 0.3284 352.7 1.678 0.3004 352.6 1.672 -
  • -15 0.4115 357.0 1.710 0.3696 356.9 1.702 0.3354 356.8 1.694 0.3069 356.7 1.688 -
  • -10 0.4199 361.2 1.725 0.3773 361.0 1.717 0.3424 360.9 1.710 0.3133 360.8 1.704 -
    • -5 0.4283 365.3 1.741 0.3849 365.2 1.733 0.3493 365.1 1.726 0.3197 365.0 1.719 -
      • 0 0.4367 369.6 1.757 0.3924 369.5 1.749 0.3562 369.3 1.742 0.3260 369.2 1.735
      • 5 0.4451 373.8 1.772 0.4000 373.7 1.764 0.3631 373.6 1.757 0.3324 373.5 1.750
    • 10 0.4534 378.1 1.788 0.4075 378.0 1.780 0.3700 378.0 1.773 0.3387 377.9 1.766
    • 15 0.4617 382.5 1.803 0.4151 382.4 1.795 0.3769 382.3 1.788 0.3450 382.2 1.781
    • 20 0.4701 386.9 1.818 0.4226 386.8 1.810 0.3837 386.7 1.803 0.3513 386.7 1.796
    • 25 0.4784 391.4 1.833 0.4301 391.3 1.825 0.3905 391.2 1.818 0.3576 391.1 1.812
    • 30 0.4867 395.9 1.848 0.4375 395.8 1.840 0.3973 395.7 1.833 0.3639 395.6 1.827
    • 35 0.4949 400.4 1.863 0.4450 400.4 1.855 0.4042 400.3 1.848 0.3701 400.2 1.842
    • 40 0.5032 405.0 1.878 0.4525 405.0 1.870 0.4110 404.9 1.863 0.3764 404.8 1.856
    • 45 0.5115 409.7 1.893 0.4599 409.6 1.885 0.4177 409.5 1.878 0.3826 409.5 1.871
    • 50 0.5197 414.4 1.907 0.4674 414.3 1.899 0.4245 414.2 1.892 0.3888 414.2 1.886
    • 55 0.5280 419.1 1.922 0.4748 419.0 1.914 0.4313 419.0 1.907 0.3950 418.9 1.900
    • 60 0.5362 423.9 1.936 0.4822 423.8 1.928 0.4380 423.8 1.921 0.4012 423.7 1.915
    • 65 0.5444 428.7 1.951 0.4896 428.6 1.943 0.4448 428.6 1.936 0.4074 428.5 1.929
    • 70 0.5526 433.6 1.965 0.4970 433.5 1.957 0.4516 433.4 1.950 0.4136 433.4 1.943
    • 75 0.5609 438.5 1.979 0.5044 438.4 1.971 0.4583 438.4 1.964 0.4198 438.3 1.958
  • 80 0.5691 443.4 1.993 0.5118 443.4 1.985 0.4650 443.3 1.978 0.4260 443.3 1.972
  • 85 0.5773 448.4 2.007 0.5192 448.4 1.999 0.4718 448.3 1.992 0.4322 448.3 1.986
    • 90 0.5855 453.4 2.021 0.5266 453.4 2.013 0.4785 453.3 2.006 0.4384 453.3 2.000
    • 95 0.5937 458.5 2.035 0.5340 458.5 2.027 0.4852 458.4 2.020 0.4445 458.4 2.014
• 100 0.6019 463.6 2.049 0.5414 463.6 2.041 0.4919 463.5 2.034 0.4507 463.5 2.028 - 90 100 101.325 Absolute Pressure, kPa - -32.15 -29.78 -29.49 -27. Temp °C - 0.1869 341.9 1.600 0.1693 343.5 1.599 0.1672 343.7 1.599 0.1548 344.9 1. V H S V H S V H S V H S Temp °C
  • -30 0.1888 343.6 1.607 -
  • -25 0.1933 347.7 1.623 0.1732 347.4 1.615 0.1708 347.3 1.614 0.1567 347.1 1.607 -
  • -20 0.1978 351.8 1.640 0.1773 351.5 1.631 0.1748 351.5 1.630 0.1604 351.2 1.623 -
  • -15 0.2022 355.9 1.656 0.1813 355.6 1.647 0.1788 355.6 1.646 0.1642 355.4 1.640 -
  • -10 0.2066 360.1 1.672 0.1853 359.9 1.664 0.1828 359.8 1.663 0.1678 359.6 1.656 -
    • -5 0.2110 364.3 1.688 0.1893 364.1 1.680 0.1867 364.1 1.679 0.1715 363.9 1.672 -
      • 0 0.2153 368.6 1.704 0.1932 368.4 1.695 0.1906 368.4 1.694 0.1751 368.2 1.688
      • 5 0.2197 372.9 1.719 0.1971 372.7 1.711 0.1945 372.7 1.710 0.1787 372.5 1.704
    • 10 0.2240 377.3 1.735 0.2010 377.1 1.727 0.1983 377.1 1.726 0.1822 376.9 1.719
    • 15 0.2283 381.7 1.750 0.2049 381.5 1.742 0.2022 381.5 1.741 0.1858 381.3 1.735
    • 20 0.2325 386.1 1.766 0.2088 386.0 1.758 0.2060 385.9 1.757 0.1893 385.8 1.750
    • 25 0.2368 390.6 1.781 0.2126 390.5 1.773 0.2098 390.4 1.772 0.1929 390.3 1.765
    • 30 0.2410 395.2 1.796 0.2165 395.0 1.788 0.2136 395.0 1.787 0.1964 394.9 1.781
    • 35 0.2453 399.8 1.811 0.2203 399.6 1.803 0.2174 399.6 1.802 0.1999 399.5 1.796
    • 40 0.2495 404.4 1.826 0.2241 404.2 1.818 0.2211 404.2 1.817 0.2034 404.1 1.811
    • 45 0.2537 409.1 1.841 0.2279 408.9 1.833 0.2249 408.9 1.832 0.2068 408.8 1.825
    • 50 0.2579 413.8 1.855 0.2317 413.6 1.847 0.2286 413.6 1.846 0.2103 413.5 1.840
    • 55 0.2621 418.5 1.870 0.2355 418.4 1.862 0.2324 418.4 1.861 0.2138 418.3 1.855
    • 60 0.2663 423.3 1.884 0.2393 423.2 1.877 0.2361 423.2 1.876 0.2172 423.1 1.869
    • 65 0.2705 428.2 1.899 0.2431 428.0 1.891 0.2399 428.0 1.890 0.2207 427.9 1.884
    • 70 0.2746 433.0 1.913 0.2468 432.9 1.905 0.2436 432.9 1.904 0.2241 432.8 1.898
    • 75 0.2788 438.0 1.927 0.2506 437.9 1.920 0.2473 437.8 1.919 0.2275 437.8 1.912
    • 80 0.2830 442.9 1.942 0.2544 442.8 1.934 0.2510 442.8 1.933 0.2310 442.7 1.927
    • 85 0.2871 447.9 1.956 0.2581 447.8 1.948 0.2547 447.8 1.947 0.2344 447.7 1.941
  • 90 0.2913 453.0 1.970 0.2619 452.9 1.962 0.2584 452.9 1.961 0.2378 452.8 1.955
  • 95 0.2954 458.1 1.984 0.2656 458.0 1.976 0.2621 458.0 1.975 0.2412 457.9 1.969
• 100 0.2996 463.2 1.997 0.2693 463.1 1.990 0.2658 463.1 1.989 0.2446 463.0 1.982
• 105 0.3037 468.4 2.011 0.2731 468.3 2.003 0.2695 468.3 2.002 0.2480 468.2 1.996
• 110 0.3078 473.6 2.025 0.2768 473.5 2.017 0.2731 473.5 2.016 0.2514 473.4 2.010
• 115 0.3120 478.8 2.038 0.2805 478.7 2.031 0.2768 478.7 2.030 0.2548 478.7 2.024 - -25.56 -23.65 -21.85 -20. Temp °C - 0.1426 346.3 1.598 0.1322 347.6 1.598 0.1233 348.8 1.597 0.1155 349.9 1. V H S V H S V H S V H S Temp °C
  • -25 0.1430 346.8 1.600 -
  • -20 0.1464 350.9 1.616 0.1346 350.7 1.610 0.1244 350.4 1.603 0.1156 350.1 1.598 -
  • -15 0.1499 355.1 1.633 0.1378 354.9 1.626 0.1274 354.6 1.620 0.1184 354.3 1.614 -
  • -10 0.1533 359.4 1.649 0.1409 359.1 1.642 0.1304 358.9 1.636 0.1212 358.6 1.631 -
    • -5 0.1566 363.6 1.665 0.1441 363.4 1.659 0.1333 363.2 1.653 0.1240 362.9 1.647 -
      • 0 0.1600 367.9 1.681 0.1472 367.7 1.675 0.1362 367.5 1.669 0.1267 367.3 1.663
      • 5 0.1633 372.3 1.697 0.1503 372.1 1.690 0.1391 371.9 1.684 0.1294 371.7 1.679
    • 10 0.1666 376.7 1.712 0.1533 376.5 1.706 0.1420 376.3 1.700 0.1321 376.1 1.695
    • 15 0.1699 381.1 1.728 0.1564 380.9 1.722 0.1448 380.8 1.716 0.1348 380.6 1.710
    • 20 0.1731 385.6 1.743 0.1594 385.4 1.737 0.1477 385.3 1.731 0.1375 385.1 1.726
    • 25 0.1764 390.1 1.759 0.1624 390.0 1.752 0.1505 389.8 1.747 0.1401 389.6 1.741
    • 30 0.1796 394.7 1.774 0.1655 394.5 1.768 0.1533 394.4 1.762 0.1428 394.2 1.756
    • 35 0.1828 399.3 1.789 0.1684 399.1 1.783 0.1561 399.0 1.777 0.1454 398.8 1.772
    • 40 0.1861 403.9 1.804 0.1714 403.8 1.798 0.1589 403.6 1.792 0.1480 403.5 1.787
    • 45 0.1893 408.6 1.819 0.1744 408.5 1.813 0.1616 408.3 1.807 0.1506 408.2 1.801
    • 50 0.1925 413.4 1.833 0.1773 413.2 1.827 0.1644 413.1 1.822 0.1532 413.0 1.816
    • 55 0.1956 418.1 1.848 0.1803 418.0 1.842 0.1671 417.9 1.836 0.1557 417.7 1.831
    • 60 0.1988 422.9 1.863 0.1832 422.8 1.857 0.1699 422.7 1.851 0.1583 422.6 1.846
    • 65 0.2020 427.8 1.877 0.1862 427.7 1.871 0.1726 427.6 1.865 0.1609 427.4 1.860
    • 70 0.2051 432.7 1.892 0.1891 432.6 1.885 0.1753 432.5 1.880 0.1634 432.4 1.875
    • 75 0.2083 437.6 1.906 0.1920 437.5 1.900 0.1781 437.4 1.894 0.1660 437.3 1.889
    • 80 0.2114 442.6 1.920 0.1949 442.5 1.914 0.1808 442.4 1.908 0.1685 442.3 1.903
    • 85 0.2146 447.6 1.934 0.1978 447.5 1.928 0.1835 447.4 1.922 0.1711 447.3 1.917
    • 90 0.2177 452.7 1.948 0.2007 452.6 1.942 0.1862 452.5 1.937 0.1736 452.4 1.931
    • 95 0.2209 457.8 1.962 0.2037 457.7 1.956 0.1889 457.6 1.950 0.1761 457.5 1.945
• 100 0.2240 462.9 1.976 0.2065 462.8 1.970 0.1916 462.7 1.964 0.1786 462.6 1.959
• 105 0.2271 468.1 1.990 0.2094 468.0 1.984 0.1943 467.9 1.978 0.1812 467.8 1.973
• 110 0.2302 473.3 2.003 0.2123 473.2 1.997 0.1970 473.1 1.992 0.1837 473.1 1.987
• 115 0.2334 478.6 2.017 0.2152 478.5 2.011 0.1997 478.4 2.005 0.1862 478.3 2.000
• 120 0.2365 483.9 2.031 0.2181 483.8 2.025 0.2023 483.7 2.019 0.1887 483.6 2.014 - -18.54 -17.00 -15.53 -14. Temp °C - 0.1086 351.0 1.597 0.1026 352.1 1.597 0.0972 353.0 1.597 0.0923 354.0 1. V H S V H S V H S V H S Temp °C
  • -15 0.1105 354.1 1.609 0.1036 353.8 1.603 0.0974 353.5 1.598 -
  • -10 0.1132 358.4 1.625 0.1061 358.1 1.620 0.0998 357.8 1.615 0.0942 357.6 1.610 -
    • -5 0.1158 362.7 1.641 0.1086 362.4 1.636 0.1022 362.2 1.632 0.0965 362.0 1.627 -
      • 0 0.1184 367.1 1.658 0.1111 366.8 1.653 0.1045 366.6 1.648 0.0987 366.4 1.643
      • 5 0.1210 371.5 1.674 0.1135 371.2 1.669 0.1069 371.0 1.664 0.1009 370.8 1.659
    • 10 0.1235 375.9 1.689 0.1159 375.7 1.684 0.1092 375.5 1.680 0.1031 375.3 1.675
    • 15 0.1261 380.4 1.705 0.1183 380.2 1.700 0.1114 380.0 1.696 0.1053 379.8 1.691
    • 20 0.1286 384.9 1.721 0.1207 384.7 1.716 0.1137 384.5 1.711 0.1074 384.3 1.707
    • 25 0.1311 389.4 1.736 0.1231 389.3 1.731 0.1160 389.1 1.727 0.1096 388.9 1.722
    • 30 0.1335 394.0 1.751 0.1254 393.9 1.747 0.1182 393.7 1.742 0.1117 393.5 1.738
    • 35 0.1360 398.7 1.766 0.1277 398.5 1.762 0.1204 398.4 1.757 0.1138 398.2 1.753
    • 40 0.1385 403.3 1.782 0.1301 403.2 1.777 0.1226 403.0 1.772 0.1159 402.9 1.768
    • 45 0.1409 408.1 1.796 0.1324 407.9 1.792 0.1248 407.8 1.787 0.1180 407.6 1.783
    • 50 0.1433 412.8 1.811 0.1347 412.7 1.807 0.1270 412.5 1.802 0.1201 412.4 1.798
    • 55 0.1458 417.6 1.826 0.1370 417.5 1.821 0.1292 417.3 1.817 0.1222 417.2 1.813
    • 60 0.1482 422.4 1.841 0.1393 422.3 1.836 0.1313 422.2 1.832 0.1242 422.1 1.827
    • 65 0.1506 427.3 1.855 0.1415 427.2 1.850 0.1335 427.1 1.846 0.1263 427.0 1.842
    • 70 0.1530 432.2 1.870 0.1438 432.1 1.865 0.1356 432.0 1.861 0.1283 431.9 1.856
    • 75 0.1554 437.2 1.884 0.1461 437.1 1.879 0.1378 437.0 1.875 0.1303 436.9 1.871
    • 80 0.1578 442.2 1.898 0.1483 442.1 1.894 0.1399 442.0 1.889 0.1324 441.9 1.885
    • 85 0.1602 447.2 1.912 0.1506 447.1 1.908 0.1420 447.0 1.903 0.1344 446.9 1.899
    • 90 0.1626 452.3 1.926 0.1528 452.2 1.922 0.1442 452.1 1.917 0.1364 452.0 1.913
    • 95 0.1649 457.4 1.940 0.1551 457.3 1.936 0.1463 457.2 1.931 0.1384 457.1 1.927
• 100 0.1673 462.6 1.954 0.1573 462.5 1.950 0.1484 462.4 1.945 0.1405 462.3 1.941
• 105 0.1697 467.7 1.968 0.1595 467.6 1.963 0.1505 467.6 1.959 0.1425 467.5 1.955
• 110 0.1720 473.0 1.982 0.1618 472.9 1.977 0.1526 472.8 1.973 0.1445 472.7 1.969
• 115 0.1744 478.2 1.995 0.1640 478.1 1.991 0.1547 478.1 1.987 0.1465 478.0 1.982
• 120 0.1767 483.5 2.009 0.1662 483.4 2.004 0.1568 483.4 2.000 0.1485 483.3 1.996
• 125 0.1791 488.9 2.023 0.1684 488.8 2.018 0.1589 488.7 2.014 0.1505 488.6 2.010
• 130 0.1815 494.2 2.036 0.1706 494.2 2.031 0.1610 494.1 2.027 0.1524 494.0 2.023 - -12.77 -11.47 -10.22 -9. Temp °C - 0.0879 354.9 1.597 0.0839 355.7 1.597 0.0802 356.6 1.597 0.0769 357.4 1. V H S V H S V H S V H S Temp °C
  • -10 0.0891 357.3 1.606 0.0845 357.0 1.602 0.0803 356.8 1.597 -
    • -5 0.0913 361.7 1.623 0.0866 361.5 1.618 0.0824 361.2 1.614 0.0785 360.9 1.610 -
      • 0 0.0934 366.1 1.639 0.0887 365.9 1.635 0.0843 365.7 1.631 0.0804 365.4 1.627
      • 5 0.0956 370.6 1.655 0.0907 370.4 1.651 0.0863 370.1 1.647 0.0823 369.9 1.643
    • 10 0.0977 375.1 1.671 0.0927 374.9 1.667 0.0883 374.7 1.663 0.0842 374.4 1.659
    • 15 0.0997 379.6 1.687 0.0947 379.4 1.683 0.0902 379.2 1.679 0.0860 379.0 1.675
    • 20 0.1018 384.2 1.703 0.0967 384.0 1.699 0.0921 383.8 1.695 0.0878 383.6 1.691
    • 25 0.1039 388.7 1.718 0.0987 388.6 1.714 0.0940 388.4 1.710 0.0896 388.2 1.707
    • 30 0.1059 393.4 1.733 0.1006 393.2 1.730 0.0958 393.0 1.726 0.0914 392.9 1.722
    • 35 0.1079 398.0 1.749 0.1025 397.9 1.745 0.0977 397.7 1.741 0.0932 397.6 1.737
    • 40 0.1099 402.7 1.764 0.1045 402.6 1.760 0.0995 402.4 1.756 0.0950 402.3 1.753
    • 45 0.1119 407.5 1.779 0.1064 407.3 1.775 0.1013 407.2 1.771 0.0967 407.0 1.768
    • 50 0.1139 412.3 1.794 0.1083 412.1 1.790 0.1032 412.0 1.786 0.0985 411.8 1.783
    • 55 0.1159 417.1 1.809 0.1101 417.0 1.805 0.1050 416.8 1.801 0.1002 416.7 1.798
    • 60 0.1178 421.9 1.823 0.1120 421.8 1.819 0.1068 421.7 1.816 0.1020 421.6 1.812
    • 65 0.1198 426.8 1.838 0.1139 426.7 1.834 0.1086 426.6 1.830 0.1037 426.5 1.827
    • 70 0.1217 431.8 1.852 0.1158 431.6 1.849 0.1103 431.5 1.845 0.1054 431.4 1.841
    • 75 0.1237 436.7 1.867 0.1176 436.6 1.863 0.1121 436.5 1.859 0.1071 436.4 1.856
    • 80 0.1256 441.7 1.881 0.1195 441.6 1.877 0.1139 441.5 1.874 0.1088 441.4 1.870
    • 85 0.1275 446.8 1.895 0.1213 446.7 1.891 0.1157 446.6 1.888 0.1105 446.5 1.884
    • 90 0.1295 451.9 1.909 0.1231 451.8 1.906 0.1174 451.7 1.902 0.1122 451.6 1.899
    • 95 0.1314 457.0 1.923 0.1250 456.9 1.920 0.1192 456.8 1.916 0.1139 456.7 1.913
• 100 0.1333 462.2 1.937 0.1268 462.1 1.934 0.1209 462.0 1.930 0.1155 461.9 1.927
• 105 0.1352 467.4 1.951 0.1286 467.3 1.947 0.1227 467.2 1.944 0.1172 467.1 1.940
• 110 0.1371 472.6 1.965 0.1305 472.5 1.961 0.1244 472.4 1.958 0.1189 472.3 1.954
• 115 0.1390 477.9 1.979 0.1323 477.8 1.975 0.1261 477.7 1.971 0.1206 477.6 1.968
• 120 0.1409 483.2 1.992 0.1341 483.1 1.988 0.1279 483.0 1.985 0.1222 482.9 1.981
• 125 0.1428 488.5 2.006 0.1359 488.5 2.002 0.1296 488.4 1.998 0.1239 488.3 1.995
• 130 0.1447 493.9 2.019 0.1377 493.8 2.015 0.1313 493.8 2.012 0.1255 493.7 2.008
• 135 0.1466 499.3 2.032 0.1395 499.3 2.029 0.1331 499.2 2.025 0.1272 499.1 2.022 - -7.84 -6.70 -5.60 -4. Temp °C - 0.0738 358.2 1.597 0.0710 358.9 1.597 0.0684 359.6 1.597 0.0659 360.3 1. V H S V H S V H S V H S Temp °C
  • -5 0.0749 360.7 1.606 0.0716 360.4 1.603 0.0686 360.2 1.599 -
    • 0 0.0768 365.2 1.623 0.0734 364.9 1.619 0.0703 364.7 1.616 0.0675 364.4 1.612
    • 5 0.0786 369.7 1.639 0.0752 369.5 1.636 0.0721 369.2 1.632 0.0691 369.0 1.629
  • 10 0.0804 374.2 1.656 0.0769 374.0 1.652 0.0738 373.8 1.649 0.0708 373.6 1.645
  • 15 0.0822 378.8 1.672 0.0787 378.6 1.668 0.0754 378.4 1.665 0.0724 378.2 1.661
  • 20 0.0840 383.4 1.687 0.0804 383.2 1.684 0.0771 383.0 1.681 0.0740 382.8 1.677
  • 25 0.0857 388.0 1.703 0.0821 387.9 1.700 0.0787 387.7 1.696 0.0756 387.5 1.693
  • 30 0.0874 392.7 1.719 0.0837 392.5 1.715 0.0803 392.4 1.712 0.0772 392.2 1.709
  • 35 0.0891 397.4 1.734 0.0854 397.2 1.731 0.0819 397.1 1.727 0.0787 396.9 1.724
  • 40 0.0908 402.1 1.749 0.0870 402.0 1.746 0.0835 401.8 1.743 0.0803 401.7 1.739
  • 45 0.0925 406.9 1.764 0.0887 406.8 1.761 0.0851 406.6 1.758 0.0818 406.5 1.755
  • 50 0.0942 411.7 1.779 0.0903 411.6 1.776 0.0867 411.4 1.773 0.0833 411.3 1.770
  • 55 0.0959 416.5 1.794 0.0919 416.4 1.791 0.0882 416.3 1.788 0.0848 416.1 1.785
  • 60 0.0976 421.4 1.809 0.0935 421.3 1.806 0.0898 421.2 1.802 0.0863 421.0 1.799
  • 65 0.0992 426.3 1.824 0.0951 426.2 1.820 0.0913 426.1 1.817 0.0878 426.0 1.814
  • 70 0.1009 431.3 1.838 0.0967 431.2 1.835 0.0928 431.1 1.832 0.0893 430.9 1.829
  • 75 0.1025 436.3 1.852 0.0983 436.2 1.849 0.0944 436.1 1.846 0.0907 435.9 1.843
  • 80 0.1041 441.3 1.867 0.0998 441.2 1.864 0.0959 441.1 1.861 0.0922 441.0 1.858
  • 85 0.1058 446.4 1.881 0.1014 446.3 1.878 0.0974 446.2 1.875 0.0937 446.1 1.872
  • 90 0.1074 451.5 1.895 0.1030 451.4 1.892 0.0989 451.3 1.889 0.0951 451.2 1.886
  • 95 0.1090 456.6 1.909 0.1045 456.5 1.906 0.1004 456.4 1.903 0.0966 456.3 1.900
• 100 0.1106 461.8 1.923 0.1061 461.7 1.920 0.1019 461.6 1.917 0.0980 461.5 1.914
• 105 0.1122 467.0 1.937 0.1076 466.9 1.934 0.1034 466.8 1.931 0.0995 466.7 1.928
• 110 0.1138 472.3 1.951 0.1092 472.2 1.948 0.1049 472.1 1.945 0.1009 472.0 1.942
• 115 0.1154 477.5 1.965 0.1107 477.4 1.961 0.1064 477.4 1.958 0.1023 477.3 1.956
• 120 0.1170 482.9 1.978 0.1122 482.8 1.975 0.1078 482.7 1.972 0.1038 482.6 1.969
• 125 0.1186 488.2 1.992 0.1138 488.1 1.989 0.1093 488.0 1.986 0.1052 488.0 1.983
• 130 0.1202 493.6 2.005 0.1153 493.5 2.002 0.1108 493.4 1.999 0.1066 493.4 1.996
• 135 0.1218 499.0 2.019 0.1168 499.0 2.015 0.1123 498.9 2.012 0.1080 498.8 2.010
• 140 0.1234 504.5 2.032 0.1184 504.4 2.029 0.1137 504.3 2.026 0.1094 504.3 2.023 - -3.50 -2.49 -1.51 -0. Temp °C - 0.0637 361.0 1.597 0.0615 361.7 1.597 0.0596 362.3 1.598 0.0577 362.9 1. V H S V H S V H S V H S Temp °C - 0 0.0648 364.2 1.609 0.0623 363.9 1.606 0.0600 363.7 1.603 0.0579 363.4 1.600 - 5 0.0664 368.8 1.626 0.0639 368.5 1.622 0.0616 368.3 1.619 0.0594 368.1 1.616
  • 10 0.0680 373.4 1.642 0.0655 373.2 1.639 0.0631 372.9 1.636 0.0609 372.7 1.633
  • 15 0.0696 378.0 1.658 0.0670 377.8 1.655 0.0646 377.6 1.652 0.0623 377.4 1.649
  • 20 0.0712 382.6 1.674 0.0685 382.4 1.671 0.0661 382.2 1.668 0.0638 382.0 1.665
  • 25 0.0727 387.3 1.690 0.0700 387.1 1.687 0.0675 386.9 1.684 0.0652 386.8 1.681
  • 30 0.0742 392.0 1.706 0.0715 391.8 1.703 0.0690 391.7 1.700 0.0666 391.5 1.697
  • 35 0.0757 396.7 1.721 0.0730 396.6 1.718 0.0704 396.4 1.715 0.0680 396.2 1.713
  • 40 0.0772 401.5 1.736 0.0744 401.4 1.734 0.0718 401.2 1.731 0.0693 401.0 1.728
  • 45 0.0787 406.3 1.752 0.0758 406.2 1.749 0.0732 406.0 1.746 0.0707 405.9 1.743
  • 50 0.0802 411.1 1.767 0.0773 411.0 1.764 0.0746 410.9 1.761 0.0720 410.7 1.758
  • 55 0.0816 416.0 1.782 0.0787 415.9 1.779 0.0759 415.7 1.776 0.0733 415.6 1.773
  • 60 0.0831 420.9 1.797 0.0801 420.8 1.794 0.0773 420.6 1.791 0.0747 420.5 1.788
  • 65 0.0845 425.8 1.811 0.0815 425.7 1.808 0.0786 425.6 1.806 0.0760 425.5 1.803
  • 70 0.0860 430.8 1.826 0.0829 430.7 1.823 0.0800 430.6 1.820 0.0773 430.5 1.818
  • 75 0.0874 435.8 1.840 0.0842 435.7 1.838 0.0813 435.6 1.835 0.0786 435.5 1.832
  • 80 0.0888 440.9 1.855 0.0856 440.8 1.852 0.0827 440.6 1.849 0.0799 440.5 1.847
  • 85 0.0902 445.9 1.869 0.0870 445.8 1.866 0.0840 445.7 1.864 0.0812 445.6 1.861
  • 90 0.0916 451.1 1.883 0.0884 451.0 1.880 0.0853 450.9 1.878 0.0825 450.7 1.875
  • 95 0.0930 456.2 1.897 0.0897 456.1 1.894 0.0866 456.0 1.892 0.0837 455.9 1.889
• 100 0.0944 461.4 1.911 0.0911 461.3 1.909 0.0879 461.2 1.906 0.0850 461.1 1.903
• 105 0.0958 466.6 1.925 0.0924 466.5 1.922 0.0892 466.4 1.920 0.0863 466.3 1.917
• 110 0.0972 471.9 1.939 0.0938 471.8 1.936 0.0905 471.7 1.934 0.0875 471.6 1.931
• 115 0.0986 477.2 1.953 0.0951 477.1 1.950 0.0918 477.0 1.947 0.0888 476.9 1.945
• 120 0.1000 482.5 1.966 0.0964 482.4 1.964 0.0931 482.3 1.961 0.0901 482.3 1.958
• 125 0.1013 487.9 1.980 0.0978 487.8 1.977 0.0944 487.7 1.975 0.0913 487.6 1.972
• 130 0.1027 493.3 1.993 0.0991 493.2 1.991 0.0957 493.1 1.988 0.0926 493.0 1.986
• 135 0.1041 498.7 2.007 0.1004 498.6 2.004 0.0970 498.6 2.002 0.0938 498.5 1.999
• 140 0.1055 504.2 2.020 0.1017 504.1 2.017 0.0983 504.0 2.015 0.0950 504.0 2.012
• 145 0.1068 509.7 2.033 0.1031 509.6 2.031 0.0996 509.6 2.028 0.0963 509.5 2.026 - 0.39 1.30 2.19 3. Temp °C - 0.0560 363.5 1.598 0.0543 364.1 1.598 0.0528 364.7 1.598 0.0513 365.3 1. V H S V H S V H S V H S Temp °C - 5 0.0573 367.8 1.613 0.0554 367.6 1.611 0.0535 367.3 1.608 0.0518 367.1 1.605
  • 10 0.0588 372.5 1.630 0.0568 372.3 1.627 0.0549 372.0 1.624 0.0532 371.8 1.622
  • 15 0.0602 377.2 1.646 0.0582 376.9 1.644 0.0563 376.7 1.641 0.0545 376.5 1.638
  • 20 0.0616 381.8 1.662 0.0596 381.7 1.660 0.0576 381.4 1.657 0.0558 381.2 1.654
  • 25 0.0630 386.6 1.678 0.0609 386.4 1.676 0.0589 386.2 1.673 0.0571 386.0 1.671
  • 30 0.0643 391.3 1.694 0.0622 391.1 1.692 0.0602 391.0 1.689 0.0584 390.8 1.686
  • 35 0.0657 396.1 1.710 0.0635 395.9 1.707 0.0615 395.7 1.705 0.0596 395.6 1.702
  • 40 0.0670 400.9 1.725 0.0648 400.7 1.723 0.0628 400.6 1.720 0.0609 400.4 1.718
  • 45 0.0683 405.7 1.741 0.0661 405.6 1.738 0.0641 405.4 1.735 0.0621 405.2 1.733
  • 50 0.0696 410.6 1.756 0.0674 410.4 1.753 0.0653 410.3 1.751 0.0633 410.1 1.748
  • 55 0.0709 415.5 1.771 0.0687 415.3 1.768 0.0665 415.2 1.766 0.0645 415.0 1.763
  • 60 0.0722 420.4 1.786 0.0699 420.2 1.783 0.0677 420.1 1.781 0.0657 420.0 1.778
  • 65 0.0735 425.3 1.800 0.0712 425.2 1.798 0.0690 425.1 1.795 0.0669 425.0 1.793
  • 70 0.0748 430.3 1.815 0.0724 430.2 1.813 0.0702 430.1 1.810 0.0681 430.0 1.808
  • 75 0.0760 435.4 1.830 0.0736 435.2 1.827 0.0714 435.1 1.825 0.0692 435.0 1.822
  • 80 0.0773 440.4 1.844 0.0748 440.3 1.842 0.0726 440.2 1.839 0.0704 440.1 1.837
  • 85 0.0785 445.5 1.858 0.0761 445.4 1.856 0.0737 445.3 1.854 0.0715 445.2 1.851
  • 90 0.0798 450.6 1.873 0.0773 450.5 1.870 0.0749 450.4 1.868 0.0727 450.3 1.865
  • 95 0.0810 455.8 1.887 0.0785 455.7 1.884 0.0761 455.6 1.882 0.0738 455.5 1.880
• 100 0.0823 461.0 1.901 0.0797 460.9 1.898 0.0773 460.8 1.896 0.0750 460.7 1.894
• 105 0.0835 466.3 1.915 0.0809 466.2 1.912 0.0784 466.1 1.910 0.0761 466.0 1.908
• 110 0.0847 471.5 1.929 0.0821 471.4 1.926 0.0796 471.3 1.924 0.0772 471.2 1.922
• 115 0.0859 476.8 1.942 0.0833 476.7 1.940 0.0807 476.7 1.938 0.0784 476.6 1.935
• 120 0.0872 482.2 1.956 0.0844 482.1 1.954 0.0819 482.0 1.951 0.0795 481.9 1.949
• 125 0.0884 487.6 1.970 0.0856 487.5 1.967 0.0830 487.4 1.965 0.0806 487.3 1.963
• 130 0.0896 493.0 1.983 0.0868 492.9 1.981 0.0842 492.8 1.978 0.0817 492.7 1.976
• 135 0.0908 498.4 1.997 0.0880 498.3 1.994 0.0853 498.3 1.992 0.0828 498.2 1.990
• 140 0.0920 503.9 2.010 0.0892 503.8 2.007 0.0865 503.7 2.005 0.0839 503.7 2.003
• 145 0.0932 509.4 2.023 0.0903 509.3 2.021 0.0876 509.3 2.018 0.0850 509.2 2.016
• 150 0.0944 515.0 2.036 0.0915 514.9 2.034 0.0887 514.8 2.032 0.0861 514.7 2.029 - 3.92 4.76 5.58 6. Temp °C - 0.0499 365.8 1.598 0.0486 366.4 1.599 0.0473 366.9 1.599 0.0461 367.4 1. V H S V H S V H S V H S Temp °C - 5 0.0502 366.8 1.602 0.0486 366.6 1.599
  • 10 0.0515 371.6 1.619 0.0500 371.3 1.616 0.0485 371.1 1.614 0.0471 370.9 1.611
  • 15 0.0528 376.3 1.636 0.0512 376.1 1.633 0.0497 375.9 1.630 0.0483 375.6 1.628
  • 20 0.0541 381.0 1.652 0.0525 380.8 1.649 0.0510 380.6 1.647 0.0495 380.4 1.644
  • 25 0.0554 385.8 1.668 0.0537 385.6 1.666 0.0522 385.4 1.663 0.0507 385.2 1.661
  • 30 0.0566 390.6 1.684 0.0549 390.4 1.681 0.0534 390.2 1.679 0.0519 390.0 1.677
  • 35 0.0578 395.4 1.700 0.0561 395.2 1.697 0.0545 395.1 1.695 0.0530 394.9 1.693
  • 40 0.0591 400.2 1.715 0.0573 400.1 1.713 0.0557 399.9 1.710 0.0541 399.7 1.708
  • 45 0.0602 405.1 1.731 0.0585 404.9 1.728 0.0568 404.8 1.726 0.0553 404.6 1.724
  • 50 0.0614 410.0 1.746 0.0597 409.8 1.743 0.0580 409.7 1.741 0.0564 409.5 1.739
  • 55 0.0626 414.9 1.761 0.0608 414.8 1.759 0.0591 414.6 1.756 0.0575 414.5 1.754
  • 60 0.0638 419.8 1.776 0.0619 419.7 1.774 0.0602 419.6 1.771 0.0586 419.4 1.769
  • 65 0.0649 424.8 1.791 0.0631 424.7 1.788 0.0613 424.6 1.786 0.0596 424.4 1.784
  • 70 0.0661 429.8 1.805 0.0642 429.7 1.803 0.0624 429.6 1.801 0.0607 429.5 1.799
  • 75 0.0672 434.9 1.820 0.0653 434.8 1.818 0.0635 434.6 1.816 0.0618 434.5 1.813
  • 80 0.0683 440.0 1.835 0.0664 439.8 1.832 0.0646 439.7 1.830 0.0628 439.6 1.828
  • 85 0.0695 445.1 1.849 0.0675 445.0 1.847 0.0656 444.9 1.845 0.0639 444.7 1.842
  • 90 0.0706 450.2 1.863 0.0686 450.1 1.861 0.0667 450.0 1.859 0.0649 449.9 1.857
  • 95 0.0717 455.4 1.877 0.0697 455.3 1.875 0.0678 455.2 1.873 0.0660 455.1 1.871
• 100 0.0728 460.6 1.891 0.0708 460.5 1.889 0.0688 460.4 1.887 0.0670 460.3 1.885
• 105 0.0739 465.9 1.905 0.0718 465.8 1.903 0.0699 465.7 1.901 0.0680 465.6 1.899
• 110 0.0750 471.2 1.919 0.0729 471.1 1.917 0.0709 471.0 1.915 0.0690 470.9 1.913
• 115 0.0761 476.5 1.933 0.0740 476.4 1.931 0.0720 476.3 1.929 0.0701 476.2 1.927
• 120 0.0772 481.8 1.947 0.0751 481.7 1.945 0.0730 481.7 1.943 0.0711 481.6 1.940
• 125 0.0783 487.2 1.960 0.0761 487.1 1.958 0.0740 487.1 1.956 0.0721 487.0 1.954
• 130 0.0794 492.6 1.974 0.0772 492.6 1.972 0.0751 492.5 1.970 0.0731 492.4 1.968
• 135 0.0805 498.1 1.987 0.0782 498.0 1.985 0.0761 497.9 1.983 0.0741 497.9 1.981
• 140 0.0815 503.6 2.001 0.0793 503.5 1.999 0.0771 503.4 1.997 0.0751 503.4 1.995
• 145 0.0826 509.1 2.014 0.0803 509.0 2.012 0.0782 509.0 2.010 0.0761 508.9 2.008
• 150 0.0837 514.7 2.027 0.0814 514.6 2.025 0.0792 514.5 2.023 0.0771 514.4 2.021 - 7.17 9.08 10.90 12. Temp °C - 0.0450 367.9 1.599 0.0424 369.1 1.600 0.0401 370.3 1.600 0.0380 371.4 1. V H S V H S V H S V H S Temp °C
  • 10 0.0457 370.6 1.609 0.0426 370.0 1.603
  • 15 0.0469 375.4 1.626 0.0438 374.8 1.620 0.0410 374.3 1.614 0.0385 373.7 1.609
  • 20 0.0481 380.2 1.642 0.0449 379.7 1.636 0.0421 379.1 1.631 0.0396 378.6 1.625
  • 25 0.0493 385.0 1.658 0.0461 384.5 1.653 0.0432 384.0 1.647 0.0406 383.5 1.642
  • 30 0.0504 389.9 1.674 0.0472 389.4 1.669 0.0442 388.9 1.664 0.0416 388.4 1.658
  • 35 0.0516 394.7 1.690 0.0482 394.3 1.685 0.0453 393.8 1.680 0.0426 393.4 1.675
  • 40 0.0527 399.6 1.706 0.0493 399.2 1.701 0.0463 398.7 1.695 0.0436 398.3 1.690
  • 45 0.0538 404.5 1.721 0.0503 404.1 1.716 0.0473 403.7 1.711 0.0446 403.3 1.706
  • 50 0.0549 409.4 1.737 0.0514 409.0 1.732 0.0483 408.6 1.727 0.0455 408.2 1.722
  • 55 0.0559 414.3 1.752 0.0524 414.0 1.747 0.0493 413.6 1.742 0.0465 413.2 1.737
  • 60 0.0570 419.3 1.767 0.0534 419.0 1.762 0.0502 418.6 1.757 0.0474 418.3 1.752
  • 65 0.0581 424.3 1.782 0.0544 424.0 1.777 0.0512 423.7 1.772 0.0483 423.3 1.767
  • 70 0.0591 429.3 1.797 0.0554 429.0 1.792 0.0521 428.7 1.787 0.0492 428.4 1.782
  • 75 0.0601 434.4 1.811 0.0564 434.1 1.806 0.0531 433.8 1.802 0.0501 433.5 1.797
  • 80 0.0612 439.5 1.826 0.0574 439.2 1.821 0.0540 438.9 1.816 0.0510 438.6 1.812
  • 85 0.0622 444.6 1.840 0.0584 444.4 1.835 0.0549 444.1 1.831 0.0519 443.8 1.826
  • 90 0.0632 449.8 1.855 0.0593 449.5 1.850 0.0559 449.3 1.845 0.0528 449.0 1.841
  • 95 0.0642 455.0 1.869 0.0603 454.7 1.864 0.0568 454.5 1.859 0.0536 454.2 1.855
• 100 0.0652 460.2 1.883 0.0612 460.0 1.878 0.0577 459.7 1.873 0.0545 459.5 1.869
• 105 0.0662 465.5 1.897 0.0622 465.3 1.892 0.0586 465.0 1.887 0.0554 464.8 1.883
• 110 0.0672 470.8 1.911 0.0631 470.6 1.906 0.0595 470.3 1.901 0.0562 470.1 1.897
• 115 0.0682 476.1 1.925 0.0641 475.9 1.920 0.0604 475.7 1.915 0.0571 475.4 1.911
• 120 0.0692 481.5 1.938 0.0650 481.3 1.934 0.0613 481.0 1.929 0.0579 480.8 1.925
• 125 0.0702 486.9 1.952 0.0660 486.7 1.947 0.0622 486.5 1.943 0.0588 486.2 1.938
• 130 0.0712 492.3 1.966 0.0669 492.1 1.961 0.0630 491.9 1.956 0.0596 491.7 1.952
• 135 0.0722 497.8 1.979 0.0678 497.6 1.974 0.0639 497.4 1.970 0.0604 497.2 1.966
• 140 0.0732 503.3 1.993 0.0687 503.1 1.988 0.0648 502.9 1.983 0.0613 502.7 1.979
• 145 0.0742 508.8 2.006 0.0697 508.6 2.001 0.0657 508.4 1.997 0.0621 508.2 1.992
• 150 0.0751 514.4 2.019 0.0706 514.2 2.014 0.0666 514.0 2.010 0.0629 513.8 2.006
• 155 0.0761 520.0 2.032 0.0715 519.8 2.027 0.0674 519.6 2.023 0.0638 519.4 2.019 - 14.33 15.95 17.51 19. Temp °C - 0.0361 372.4 1.601 0.0344 373.4 1.601 0.0328 374.4 1.602 0.0314 375.3 1. V H S V H S V H S V H S Temp °C
  • 15 0.0362 373.1 1.603
  • 20 0.0373 378.0 1.620 0.0352 377.5 1.615 0.0333 376.9 1.610 0.0316 376.3 1.606
  • 25 0.0383 383.0 1.637 0.0362 382.5 1.632 0.0343 381.9 1.627 0.0325 381.4 1.623
  • 30 0.0393 387.9 1.653 0.0371 387.4 1.649 0.0352 386.9 1.644 0.0334 386.4 1.640
  • 35 0.0402 392.9 1.670 0.0381 392.4 1.665 0.0361 392.0 1.660 0.0343 391.5 1.656
  • 40 0.0412 397.9 1.686 0.0390 397.4 1.681 0.0370 397.0 1.677 0.0352 396.5 1.672
  • 45 0.0421 402.9 1.701 0.0399 402.4 1.697 0.0378 402.0 1.693 0.0360 401.6 1.688
  • 50 0.0430 407.9 1.717 0.0408 407.5 1.713 0.0387 407.1 1.708 0.0368 406.7 1.704
  • 55 0.0439 412.9 1.732 0.0416 412.5 1.728 0.0395 412.1 1.724 0.0376 411.7 1.720
  • 60 0.0448 417.9 1.748 0.0425 417.6 1.743 0.0404 417.2 1.739 0.0384 416.8 1.735
  • 65 0.0457 423.0 1.763 0.0433 422.6 1.759 0.0412 422.3 1.754 0.0392 422.0 1.750
  • 70 0.0466 428.1 1.778 0.0442 427.8 1.774 0.0420 427.4 1.769 0.0400 427.1 1.766
  • 75 0.0474 433.2 1.793 0.0450 432.9 1.788 0.0428 432.6 1.784 0.0408 432.3 1.780
  • 80 0.0483 438.3 1.807 0.0458 438.0 1.803 0.0436 437.8 1.799 0.0415 437.5 1.795
  • 85 0.0491 443.5 1.822 0.0466 443.2 1.818 0.0444 443.0 1.814 0.0423 442.7 1.810
  • 90 0.0500 448.7 1.836 0.0474 448.5 1.832 0.0451 448.2 1.828 0.0430 447.9 1.824
  • 95 0.0508 454.0 1.851 0.0482 453.7 1.846 0.0459 453.4 1.843 0.0438 453.2 1.839
• 100 0.0516 459.2 1.865 0.0490 459.0 1.861 0.0467 458.7 1.857 0.0445 458.5 1.853
• 105 0.0524 464.5 1.879 0.0498 464.3 1.875 0.0474 464.0 1.871 0.0452 463.8 1.867
• 110 0.0533 469.9 1.893 0.0506 469.6 1.889 0.0482 469.4 1.885 0.0460 469.1 1.881
• 115 0.0541 475.2 1.907 0.0514 475.0 1.903 0.0489 474.8 1.899 0.0467 474.5 1.895
• 120 0.0549 480.6 1.921 0.0522 480.4 1.917 0.0497 480.2 1.913 0.0474 479.9 1.909
• 125 0.0557 486.0 1.934 0.0529 485.8 1.930 0.0504 485.6 1.927 0.0481 485.4 1.923
• 130 0.0565 491.5 1.948 0.0537 491.3 1.944 0.0512 491.1 1.940 0.0488 490.9 1.937
• 135 0.0573 497.0 1.961 0.0545 496.8 1.958 0.0519 496.6 1.954 0.0495 496.4 1.950
• 140 0.0581 502.5 1.975 0.0552 502.3 1.971 0.0526 502.1 1.967 0.0502 501.9 1.964
• 145 0.0589 508.1 1.988 0.0560 507.9 1.984 0.0534 507.7 1.981 0.0510 507.5 1.977
• 150 0.0597 513.6 2.002 0.0568 513.5 1.998 0.0541 513.3 1.994 0.0516 513.1 1.990
• 155 0.0605 519.3 2.015 0.0575 519.1 2.011 0.0548 518.9 2.007 0.0523 518.7 2.004
• 160 0.0613 524.9 2.028 0.0583 524.7 2.024 0.0555 524.6 2.020 0.0530 524.4 2.017 - 20.48 21.89 23.27 24. Temp °C - 0.0301 376.2 1.602 0.0288 377.0 1.603 0.0277 377.8 1.603 0.0267 378.6 1. V H S V H S V H S V H S Temp °C
  • 25 0.0309 380.8 1.618 0.0294 380.2 1.614 0.0280 379.6 1.609 0.0267 379.1 1.605
  • 30 0.0318 385.9 1.635 0.0303 385.4 1.631 0.0289 384.8 1.627 0.0276 384.3 1.622
  • 35 0.0326 391.0 1.652 0.0311 390.5 1.648 0.0297 390.0 1.643 0.0284 389.5 1.639
  • 40 0.0335 396.1 1.668 0.0319 395.6 1.664 0.0305 395.1 1.660 0.0292 394.7 1.656
  • 45 0.0343 401.2 1.684 0.0327 400.7 1.680 0.0313 400.3 1.676 0.0299 399.8 1.673
  • 50 0.0351 406.3 1.700 0.0335 405.9 1.696 0.0320 405.4 1.692 0.0307 405.0 1.689
  • 55 0.0359 411.4 1.716 0.0343 411.0 1.712 0.0328 410.6 1.708 0.0314 410.2 1.705
  • 60 0.0367 416.5 1.731 0.0350 416.1 1.727 0.0335 415.7 1.724 0.0321 415.4 1.720
  • 65 0.0374 421.6 1.747 0.0358 421.3 1.743 0.0342 420.9 1.739 0.0328 420.6 1.736
  • 70 0.0382 426.8 1.762 0.0365 426.4 1.758 0.0349 426.1 1.754 0.0335 425.8 1.751
  • 75 0.0389 431.9 1.777 0.0372 431.6 1.773 0.0357 431.3 1.769 0.0342 431.0 1.766
  • 80 0.0397 437.1 1.792 0.0379 436.8 1.788 0.0363 436.5 1.784 0.0349 436.2 1.781
  • 85 0.0404 442.4 1.806 0.0386 442.1 1.803 0.0370 441.8 1.799 0.0355 441.5 1.796
  • 90 0.0411 447.6 1.821 0.0393 447.3 1.817 0.0377 447.1 1.814 0.0362 446.8 1.810
  • 95 0.0418 452.9 1.835 0.0400 452.6 1.832 0.0384 452.4 1.828 0.0368 452.1 1.825
• 100 0.0425 458.2 1.850 0.0407 458.0 1.846 0.0390 457.7 1.843 0.0375 457.4 1.839
• 105 0.0432 463.5 1.864 0.0414 463.3 1.860 0.0397 463.0 1.857 0.0381 462.8 1.854
• 110 0.0439 468.9 1.878 0.0421 468.7 1.874 0.0404 468.4 1.871 0.0388 468.2 1.868
• 115 0.0446 474.3 1.892 0.0428 474.1 1.888 0.0410 473.8 1.885 0.0394 473.6 1.882
• 120 0.0453 479.7 1.906 0.0434 479.5 1.902 0.0417 479.3 1.899 0.0400 479.1 1.896
• 125 0.0460 485.2 1.919 0.0441 485.0 1.916 0.0423 484.7 1.913 0.0406 484.5 1.910
• 130 0.0467 490.7 1.933 0.0447 490.5 1.930 0.0429 490.2 1.927 0.0413 490.0 1.923
• 135 0.0474 496.2 1.947 0.0454 496.0 1.943 0.0436 495.8 1.940 0.0419 495.6 1.937
• 140 0.0481 501.7 1.960 0.0461 501.5 1.957 0.0442 501.3 1.954 0.0425 501.1 1.951
• 145 0.0487 507.3 1.974 0.0467 507.1 1.970 0.0448 506.9 1.967 0.0431 506.7 1.964
• 150 0.0494 512.9 1.987 0.0474 512.7 1.984 0.0455 512.5 1.980 0.0437 512.3 1.977
• 155 0.0501 518.5 2.000 0.0480 518.4 1.997 0.0461 518.2 1.994 0.0443 518.0 1.991
• 160 0.0508 524.2 2.013 0.0486 524.0 2.010 0.0467 523.8 2.007 0.0449 523.7 2.004
• 165 0.0514 529.9 2.026 0.0493 529.7 2.023 0.0473 529.6 2.020 0.0455 529.4 2.017
• 170 0.0521 535.6 2.039 0.0499 535.5 2.036 0.0479 535.3 2.033 0.0461 535.1 2.030 - 25.90 27.16 28.40 29. Temp °C - 0.0257 379.4 1.604 0.0248 380.1 1.604 0.0239 380.8 1.605 0.0231 381.5 1. V H S V H S V H S V H S Temp °C
  • 30 0.0264 383.7 1.618 0.0252 383.1 1.614 0.0242 382.6 1.610 0.0232 382.0 1.606
  • 35 0.0272 389.0 1.635 0.0260 388.4 1.632 0.0250 387.9 1.628 0.0240 387.3 1.624
  • 40 0.0279 394.2 1.652 0.0268 393.7 1.649 0.0257 393.2 1.645 0.0247 392.7 1.641
  • 45 0.0287 399.4 1.669 0.0275 398.9 1.665 0.0264 398.5 1.662 0.0254 398.0 1.658
  • 50 0.0294 404.6 1.685 0.0282 404.2 1.681 0.0271 403.7 1.678 0.0261 403.3 1.675
  • 55 0.0301 409.8 1.701 0.0289 409.4 1.697 0.0278 409.0 1.694 0.0268 408.6 1.691
  • 60 0.0308 415.0 1.717 0.0296 414.6 1.713 0.0285 414.2 1.710 0.0274 413.8 1.707
  • 65 0.0315 420.2 1.732 0.0303 419.8 1.729 0.0291 419.5 1.726 0.0281 419.1 1.722
  • 70 0.0322 425.4 1.748 0.0309 425.1 1.744 0.0298 424.7 1.741 0.0287 424.4 1.738
  • 75 0.0328 430.7 1.763 0.0316 430.3 1.759 0.0304 430.0 1.756 0.0293 429.7 1.753
  • 80 0.0335 435.9 1.778 0.0322 435.6 1.775 0.0310 435.3 1.771 0.0299 435.0 1.768
  • 85 0.0341 441.2 1.793 0.0329 440.9 1.789 0.0316 440.6 1.786 0.0305 440.3 1.783
  • 90 0.0348 446.5 1.807 0.0335 446.2 1.804 0.0322 445.9 1.801 0.0311 445.6 1.798
  • 95 0.0354 451.8 1.822 0.0341 451.5 1.819 0.0328 451.3 1.816 0.0317 451.0 1.813
• 100 0.0360 457.2 1.836 0.0347 456.9 1.833 0.0334 456.6 1.830 0.0323 456.4 1.827
• 105 0.0367 462.5 1.851 0.0353 462.3 1.847 0.0340 462.0 1.845 0.0328 461.8 1.842
• 110 0.0373 467.9 1.865 0.0359 467.7 1.862 0.0346 467.5 1.859 0.0334 467.2 1.856
• 115 0.0379 473.4 1.879 0.0365 473.1 1.876 0.0352 472.9 1.873 0.0340 472.7 1.870
• 120 0.0385 478.8 1.893 0.0371 478.6 1.890 0.0358 478.4 1.887 0.0345 478.1 1.884
• 125 0.0391 484.3 1.907 0.0377 484.1 1.904 0.0363 483.9 1.901 0.0351 483.6 1.898
• 130 0.0397 489.8 1.920 0.0382 489.6 1.917 0.0369 489.4 1.915 0.0356 489.2 1.912
• 135 0.0403 495.4 1.934 0.0388 495.2 1.931 0.0375 494.9 1.928 0.0362 494.7 1.926
• 140 0.0409 500.9 1.948 0.0394 500.7 1.945 0.0380 500.5 1.942 0.0367 500.3 1.939
• 145 0.0415 506.5 1.961 0.0400 506.3 1.958 0.0386 506.1 1.955 0.0373 505.9 1.953
• 150 0.0421 512.2 1.974 0.0405 512.0 1.972 0.0391 511.8 1.969 0.0378 511.6 1.966
• 155 0.0426 517.8 1.988 0.0411 517.6 1.985 0.0397 517.4 1.982 0.0383 517.3 1.979
• 160 0.0432 523.5 2.001 0.0417 523.3 1.998 0.0402 523.1 1.995 0.0389 523.0 1.993
• 165 0.0438 529.2 2.014 0.0422 529.0 2.011 0.0408 528.9 2.008 0.0394 528.7 2.006
• 170 0.0444 535.0 2.027 0.0428 534.8 2.024 0.0413 534.6 2.021 0.0399 534.4 2.019
• 175 0.0450 540.7 2.040 0.0434 540.6 2.037 0.0419 540.4 2.034 0.0404 540.2 2.032 - 30.77 33.04 35.20 37. Temp °C - 0.0224 382.2 1.605 0.0210 383.4 1.606 0.0198 384.6 1.606 0.0187 385.7 1. V H S V H S V H S V H S Temp °C
  • 35 0.0230 386.8 1.620 0.0213 385.6 1.613
  • 40 0.0237 392.2 1.638 0.0220 391.1 1.631 0.0204 390.0 1.624 0.0190 388.8 1.617
  • 45 0.0244 397.5 1.655 0.0227 396.5 1.648 0.0211 395.5 1.641 0.0197 394.5 1.635
  • 50 0.0251 402.8 1.671 0.0233 401.9 1.665 0.0218 401.0 1.658 0.0203 400.0 1.652
  • 55 0.0258 408.1 1.687 0.0240 407.3 1.681 0.0224 406.4 1.675 0.0209 405.5 1.669
  • 60 0.0264 413.4 1.703 0.0246 412.6 1.697 0.0230 411.8 1.691 0.0215 411.0 1.685
  • 65 0.0271 418.7 1.719 0.0252 418.0 1.713 0.0236 417.2 1.707 0.0221 416.4 1.702
  • 70 0.0277 424.0 1.735 0.0258 423.3 1.729 0.0241 422.6 1.723 0.0227 421.8 1.718
  • 75 0.0283 429.3 1.750 0.0264 428.7 1.744 0.0247 428.0 1.739 0.0232 427.3 1.733
  • 80 0.0289 434.7 1.765 0.0270 434.0 1.760 0.0253 433.4 1.754 0.0237 432.7 1.749
  • 85 0.0295 440.0 1.780 0.0275 439.4 1.775 0.0258 438.8 1.769 0.0243 438.1 1.764
  • 90 0.0300 445.3 1.795 0.0281 444.8 1.790 0.0263 444.2 1.784 0.0248 443.6 1.779
  • 95 0.0306 450.7 1.810 0.0286 450.2 1.804 0.0268 449.6 1.799 0.0253 449.0 1.794
• 100 0.0312 456.1 1.824 0.0292 455.6 1.819 0.0274 455.0 1.814 0.0258 454.5 1.809
• 105 0.0317 461.5 1.839 0.0297 461.0 1.833 0.0279 460.5 1.828 0.0263 460.0 1.823
• 110 0.0323 467.0 1.853 0.0302 466.5 1.848 0.0284 466.0 1.843 0.0267 465.5 1.838
• 115 0.0328 472.4 1.867 0.0307 471.9 1.862 0.0289 471.5 1.857 0.0272 471.0 1.852
• 120 0.0334 477.9 1.881 0.0313 477.4 1.876 0.0294 477.0 1.871 0.0277 476.5 1.866
• 125 0.0339 483.4 1.895 0.0318 483.0 1.890 0.0299 482.5 1.885 0.0282 482.1 1.880
• 130 0.0344 489.0 1.909 0.0323 488.5 1.904 0.0304 488.1 1.899 0.0286 487.7 1.894
• 135 0.0350 494.5 1.923 0.0328 494.1 1.918 0.0308 493.7 1.913 0.0291 493.3 1.908
• 140 0.0355 500.1 1.936 0.0333 499.7 1.931 0.0313 499.3 1.926 0.0296 498.9 1.922
• 145 0.0360 505.7 1.950 0.0338 505.4 1.945 0.0318 505.0 1.940 0.0300 504.6 1.935
• 150 0.0366 511.4 1.963 0.0343 511.0 1.958 0.0323 510.6 1.953 0.0305 510.3 1.949
• 155 0.0371 517.1 1.977 0.0348 516.7 1.972 0.0327 516.3 1.967 0.0309 516.0 1.962
• 160 0.0376 522.8 1.990 0.0353 522.4 1.985 0.0332 522.1 1.980 0.0314 521.7 1.976
• 165 0.0381 528.5 2.003 0.0358 528.2 1.998 0.0337 527.8 1.993 0.0318 527.5 1.989
• 170 0.0386 534.3 2.016 0.0362 533.9 2.011 0.0341 533.6 2.007 0.0322 533.3 2.002
• 175 0.0391 540.1 2.029 0.0367 539.7 2.024 0.0346 539.4 2.020 0.0327 539.1 2.015
• 180 0.0396 545.9 2.042 0.0372 545.6 2.037 0.0350 545.2 2.032 0.0331 544.9 2.028 - 39.28 43.07 46.60 49. Temp °C - 0.0177 386.8 1.607 0.0159 388.7 1.608 0.0145 390.4 1.609 0.0132 391.9 1. V H S V H S V H S V H S Temp °C
  • 40 0.0178 387.6 1.610
  • 45 0.0184 393.4 1.628 0.0162 391.0 1.615
  • 50 0.0190 399.0 1.646 0.0168 396.9 1.634 0.0149 394.6 1.622 0.0132 392.0 1.609
  • 55 0.0196 404.6 1.663 0.0174 402.6 1.651 0.0155 400.6 1.640 0.0138 398.3 1.629
  • 60 0.0202 410.1 1.680 0.0179 408.3 1.669 0.0160 406.4 1.658 0.0144 404.4 1.647
  • 65 0.0208 415.6 1.696 0.0185 413.9 1.685 0.0165 412.2 1.675 0.0149 410.3 1.665
  • 70 0.0213 421.1 1.712 0.0190 419.5 1.702 0.0170 417.9 1.692 0.0154 416.2 1.682
  • 75 0.0218 426.6 1.728 0.0195 425.1 1.718 0.0175 423.6 1.708 0.0158 422.0 1.699
  • 80 0.0224 432.0 1.743 0.0200 430.6 1.734 0.0180 429.2 1.724 0.0163 427.7 1.715
  • 85 0.0229 437.5 1.759 0.0205 436.2 1.749 0.0184 434.8 1.740 0.0167 433.4 1.731
  • 90 0.0234 442.9 1.774 0.0209 441.7 1.764 0.0189 440.4 1.755 0.0172 439.1 1.747
  • 95 0.0238 448.4 1.789 0.0214 447.2 1.780 0.0193 446.0 1.771 0.0176 444.8 1.762
• 100 0.0243 453.9 1.804 0.0218 452.8 1.795 0.0197 451.6 1.786 0.0180 450.4 1.778
• 105 0.0248 459.4 1.818 0.0223 458.3 1.809 0.0202 457.2 1.801 0.0184 456.1 1.793
• 110 0.0253 464.9 1.833 0.0227 463.9 1.824 0.0206 462.8 1.816 0.0188 461.8 1.808
• 115 0.0257 470.5 1.847 0.0231 469.5 1.838 0.0210 468.5 1.830 0.0192 467.4 1.822
• 120 0.0262 476.0 1.862 0.0236 475.1 1.853 0.0214 474.1 1.845 0.0195 473.1 1.837
• 125 0.0266 481.6 1.876 0.0240 480.7 1.867 0.0218 479.8 1.859 0.0199 478.8 1.851
• 130 0.0271 487.2 1.890 0.0244 486.3 1.881 0.0222 485.4 1.873 0.0203 484.5 1.866
• 135 0.0275 492.8 1.904 0.0248 492.0 1.895 0.0225 491.1 1.887 0.0206 490.2 1.880
• 140 0.0280 498.5 1.917 0.0252 497.7 1.909 0.0229 496.8 1.901 0.0210 496.0 1.894
• 145 0.0284 504.2 1.931 0.0256 503.4 1.923 0.0233 502.6 1.915 0.0213 501.7 1.907
• 150 0.0288 509.9 1.944 0.0260 509.1 1.936 0.0237 508.3 1.928 0.0217 507.5 1.921
• 155 0.0293 515.6 1.958 0.0264 514.8 1.950 0.0241 514.1 1.942 0.0220 513.3 1.935
• 160 0.0297 521.3 1.971 0.0268 520.6 1.963 0.0244 519.9 1.955 0.0224 519.1 1.948
• 165 0.0301 527.1 1.985 0.0272 526.4 1.976 0.0248 525.7 1.969 0.0227 525.0 1.962
• 170 0.0305 532.9 1.998 0.0276 532.2 1.990 0.0252 531.5 1.982 0.0231 530.8 1.975
• 175 0.0310 538.7 2.011 0.0280 538.1 2.003 0.0255 537.4 1.995 0.0234 536.7 1.988
• 180 0.0314 544.6 2.024 0.0284 544.0 2.016 0.0259 543.3 2.008 0.0238 542.6 2.001
• 185 0.0318 550.5 2.037 0.0288 549.8 2.029 0.0262 549.2 2.021 0.0241 548.6 2.014
