testing to perfection

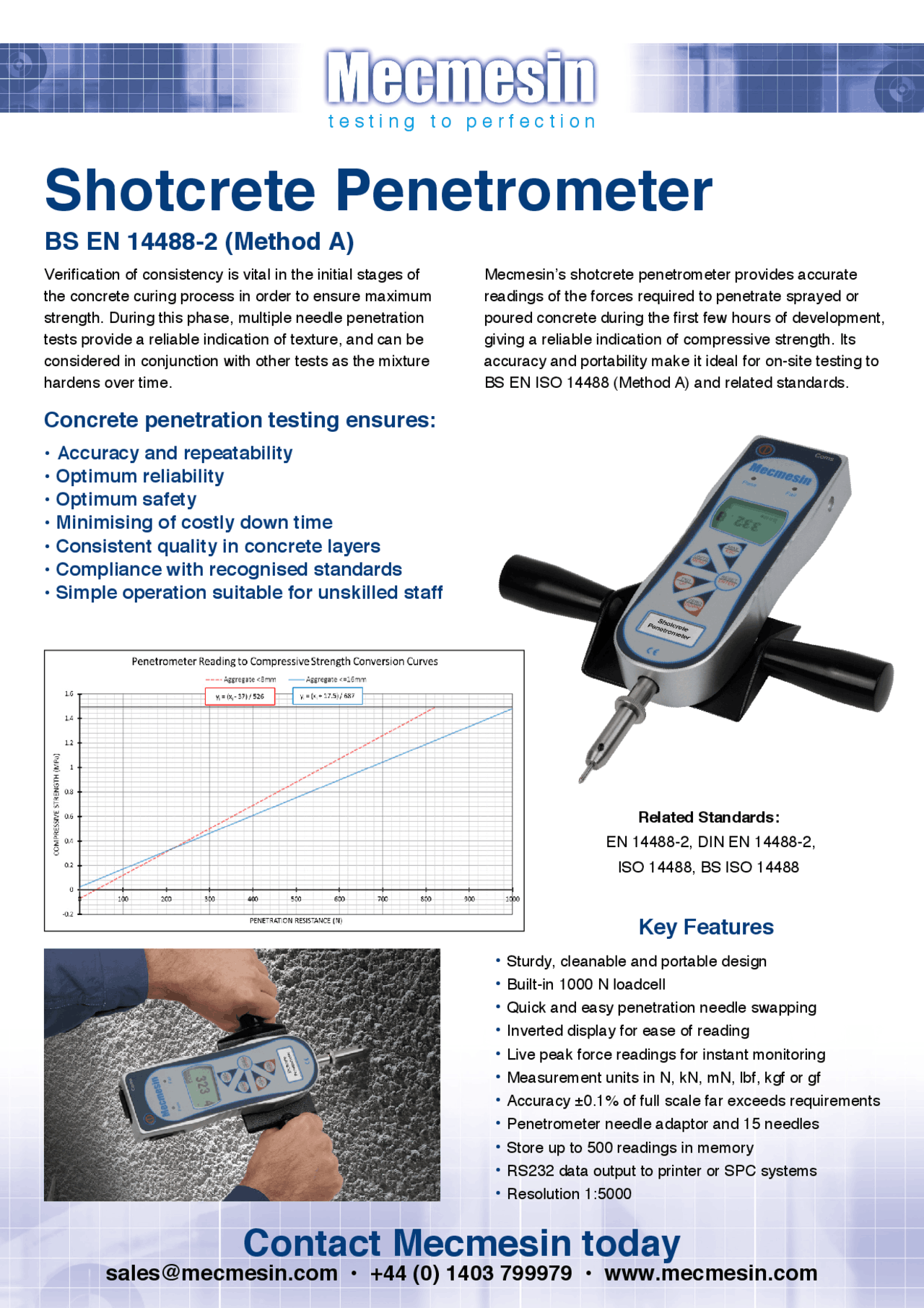

Shotcrete Penetrometer
Concrete penetration testing ensures:
• Accuracy and repeatability
• Optimum reliability
• Optimum safety
• Minimising of costly down time
• Consistent quality in concrete layers
• Compliance with recognised standards
• Simple operation suitable for unskilled staff
[email protected] • +44 (0) 1403 799979 • www.mecmesin.com
Verification of consistency is vital in the initial stages of
the concrete curing process in order to ensure maximum
strength. During this phase, multiple needle penetration
tests provide a reliable indication of texture, and can be
considered in conjunction with other tests as the mixture
hardens over time.
Contact Mecmesin today
BS EN 14488-2 (Method A)
Key Features
• Sturdy, cleanable and portable design
• Built-in 1000 N loadcell
• Quick and easy penetration needle swapping
• Inverted display for ease of reading
• Live peak force readings for instant monitoring
• Measurement units in N, kN, mN, lbf, kgf or gf
• Accuracy ±0.1% of full scale far exceeds requirements
• Penetrometer needle adaptor and 15 needles
• Store up to 500 readings in memory
• RS232 data output to printer or SPC systems
• Resolution 1:5000
Mecmesin’s shotcrete penetrometer provides accurate
readings of the forces required to penetrate sprayed or
poured concrete during the first few hours of development,
giving a reliable indication of compressive strength. Its
accuracy and portability make it ideal for on-site testing to
BS EN ISO 14488 (Method A) and related standards.
Related Standards:
EN 14488-2, DIN EN 14488-2,
ISO 14488, BS ISO 14488
