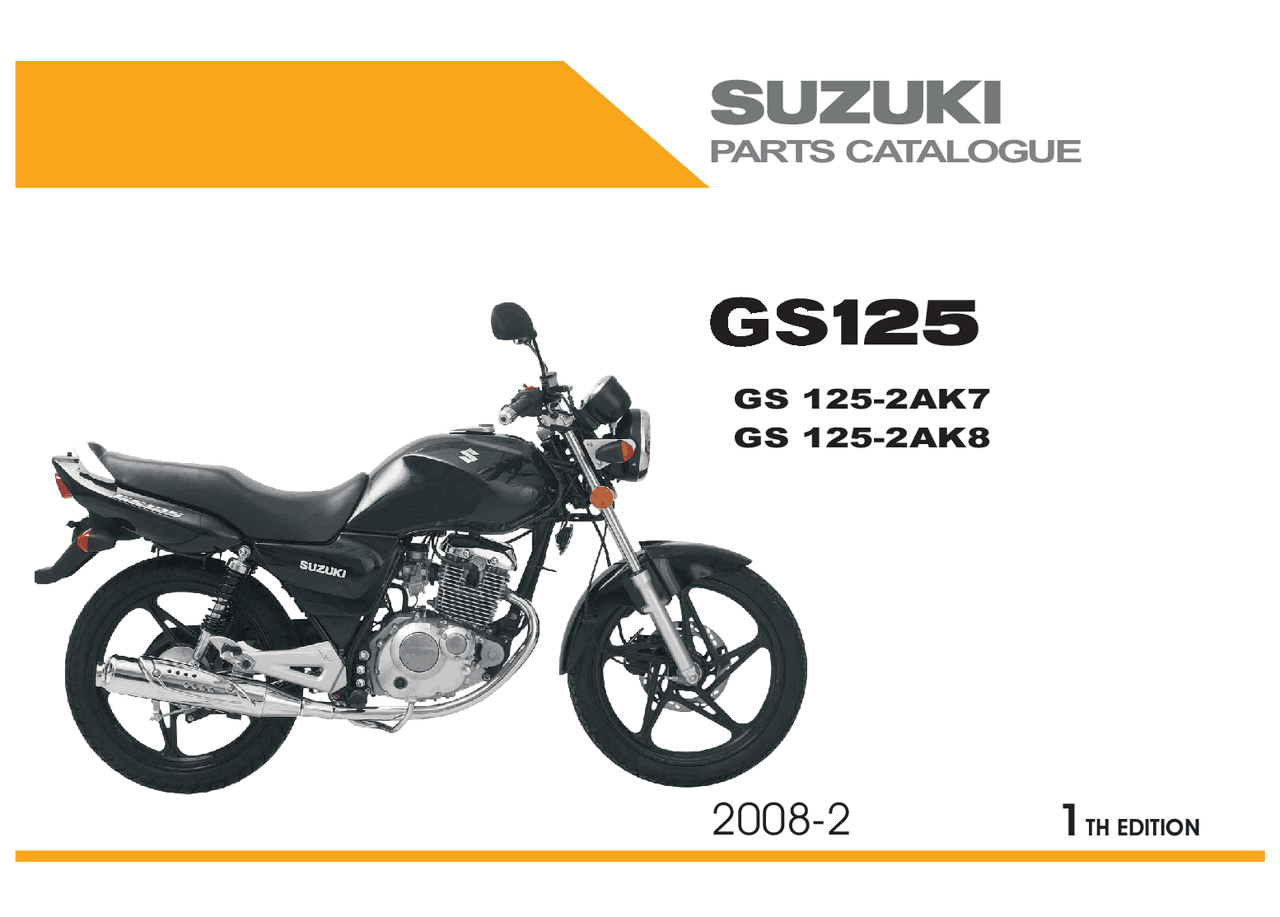

PARTS CATALOGUE

1 TH EDITION

G

GS 125-2AK

GS 125-2AK

INFORMATION

ILLUSTRATION INDEX

ENGINE

TRASMISSION

ELECTRICAL

BODY

PARTS NUMBER INDEX

• GS 125-2AK
• GS 125-2AK

• 1 -

FIG.

CYLINDER HEAD

FIG.

CYLINDER

FIG.

CRANKCASE

FIG.

CRANKCASE COVER

FIG.

CRANKSHAFT

FIG.

STARTER CLUTCH

FIG.

CAM SHAFT / VALVE

FIG.

GASKET SET

(B-2) GASKET SET (B-3) CYLINDER HEAD (B-5) CYLINDER^ (B-6) CRANKCASE

(B-7) CRANKCASE COVER (B-9) CRANKSHAFT (B-11) STARTER CLUTCH (C-2) CAM SHAFT - VALVE

• 3 -

FIG.

STARTING MOTOR

FIG.

MAGNETO

BATTERY ELECTRICAL

5 7 7A

1C

1B

1D

3A 1A

FIG.19 FIG.

SPEEDOMETER

FIG.21 FIG.22^ FIG.23^ FIG.

6B

6A

HEADLAMP

TURNSIGNAL LAMP REAR COMBINATION LAMP

(D-7) STARTING MOTOR (DENSO) (D-8) MAGNETO (D-9) BATTERY (D-10) ELECTRICAL

(D-11) SPEEDOMETER (E-2) HEADLAMP (E-3) TURN SIGNAL LAMP^ (E-4) REAR COMBINATION LAMP

• 4 -

FIG.

WIRING HARNESS

FIG.25A

HANDLE SWITCH

FIG.

FRAME

FIG.

STAND

FIG.

FOOTREST

FIG.

CARRIER

FIG.30 FIG.

FUEL COCK

FUEL TANK

(E-5) WIRING HARNESS (E-6) HANDLESWITCH (F-2) FRAME (F-3) STAND

(F-4 )FOOTREST (F-5) CARRIER (OPTIONAL) (F-6) FUEL TANK (F-7) FUEL COCK

• 6 -

FIG.

SEAT TAIL COVER

FIG.41 FIG.42 (^) FIG.

FRONT DAMPER STEERING STEM FRONT WHEEL

FIG.44 FIG.45A^ FIG.46^ FIG.

FRONT CALIPER

FRONT MASTER CYLINDER REAR SWINGINGARM

CHAIN CASE

(H-3) SEAT TAIL COVER (H-4) FRONT DAMPER^ (H-5) STEERING STEM (I-2) FRONT WHEEL

(I-3) FRONT CALIPER (I-4) FRONT MASTER CYLINDER (I-5) REAR SWINGING ARM (I-6) CHAIN CASE

• 7 -

REAR WHEEL

FIG.

(J-2) REAR WHEEL

FIG.

GS125K7_

GASKET SET

FIG.1 (B-2) GASKET SET

REF Nº PART Nº DESCRIPTION REMARKS

Q`TY

GS125K

1 11402-12851 GASKET SET 1 OPT

2 11141-12F50 .GASKET CYLINDER HEAD 1

3 11241-05311 .GASKET, CYLINDER (NA) 1

4 11482-05311 .GASKET, CLUTCH COVER 1

5 11483-05312 .GASKET, MAGNETO COVER 1 NOT SHOWN

6 12837-32410 .GASKET, TENSIONER ADJUSTER 1 NOT SHOWN

7 14181-14D00-000 .GASKET, EXHAUST PIPE 1 NOT SHOWN

8 09280-13004 .O RING (D:1.9,ID:13) 1 NOT SHOWN

9 09280-30001 .O RING (D:3,ID:29.5) 2 NOT SHOWN

10 09280-32006 .O RING (D:2.4,ID:31.7) 1 NOT SHOWN

11 09280-54001 .O RING (D:2.4,ID:52.6) 1 NOT SHOWN

12 09280-60005 .O RING 1 NOT SHOWN

FIG.

GS125K7_

CYLINDER HEAD

FIG.2 (B-3) CYLINDER HEAD

REF Nº PART Nº DESCRIPTION REMARKS

Q`TY

GS125K

1 11100-12F50 HEAD ASSY, CYLINDER 1

2 09381-10004 .RING, VALVE GUIDE 2

3 09206-08001 .PIN 2

4 11115-12F70 GUIDE, VALVE (OS:0.3) 2 OPT

5 01550-06357 BOLT (6X35) 4

6 01550-06407 BOLT (6X40) 4

7 01550-06607 BOLT (6X60) 2

8 11141-12F50 GASKET, CYLINDER HEAD 1

9 04211-11169 PIN, CYLINDER HEAD 2

10 09168-06023 WASHER 1

11 11151-45000 PAD, RUBBER 16

12 09159-08049 NUT 2

13 09159-08049 NUT 2

14 09168-08032 GASKET (8.5X17X2.3) 2

15 09168-08032 GASKET (8.5X17X2.3) 2

16 -1 09482-00456 SPARK PLUG (NGK,CR8E) 1

16 -2 09482-00578 SPARK PLUG (B8RC) 1

16 -3 09482-00516 SPARK PLUG (NGK,CR7E) 1 OPT

16 -4 09482-00458- SPARK PLUG (NGK,CR9E) 1 OPT

16 -5 09482-00515 SPARK PLUG (ND,U22ESR-N) 1 OPT

16 -6 09482-00459 SPARK PLUG (ND,U27ESR-N) 1 OPT

16 -7 09482-00577 SPARK PLUG (B7RC) 1 OPT

17 11175-18910 CAP, INSPECTION 2

18 09280-30001 O RING (D:3.0,ID:29.5) 2

19 09241-22002 PLUG, HEAD 1

20 26431-05220-000 GEAR, TACHOMETER DRIVEN 1

21 26441-49000 SLEEVE 1

22 26451-45000 SEAL BAND 1

23 09128-05101 SCREW 1

24 09289-05002 OIL SEAL 1

25 13101-053A0 PIPE ASSY, INTAKE 1

FIG.

GS125K7_

CYLINDER

FIG.3 (B-5) CYLINDER

REF Nº PART Nº DESCRIPTION REMARKS

Q`TY

1 11210-12F50-0F0 CYLINDER 1

2 09140-10043 STUD BOLT (L:150) 2

3 09108-08089 STUD BOLT (L:155) 2

4 01421-06257 STUD BOLT (L:25) 4

5 08316-10067 NUT 4

6 11241-05311 GASKET, CYLINDER (NA) 1

7 04211-11169 PIN (L:16) 2

GS125K

FIG.

GS125K7_

CRANKCASE

FIG.4 (B-6) CRANKCASE

REF Nº PART Nº DESCRIPTION REMARKS

Q`TY

GS125K

1 11300-05380 CRANKCASE ASSY 1

2 04211-13189 .PIN 2

3 01547-06557 .BOLT (6X55) 4

4 01547-06607 .BOLT (6X60) 4

5 01547-06757 01547-06757-000 3

6 01547-06857 .BOLT, CRANKCASE 1

7 11319-05220 .PLATE 1

8 01500-06103 .BOLT (6X10) 1

9 11325-12F50 .SPACER, CRANKCASE BOLT 1

10 09103-08016 BOLT (8X80) 2

11 09103-08010 BOLT (8X88) 1

12 08319-31088 NUT 3
