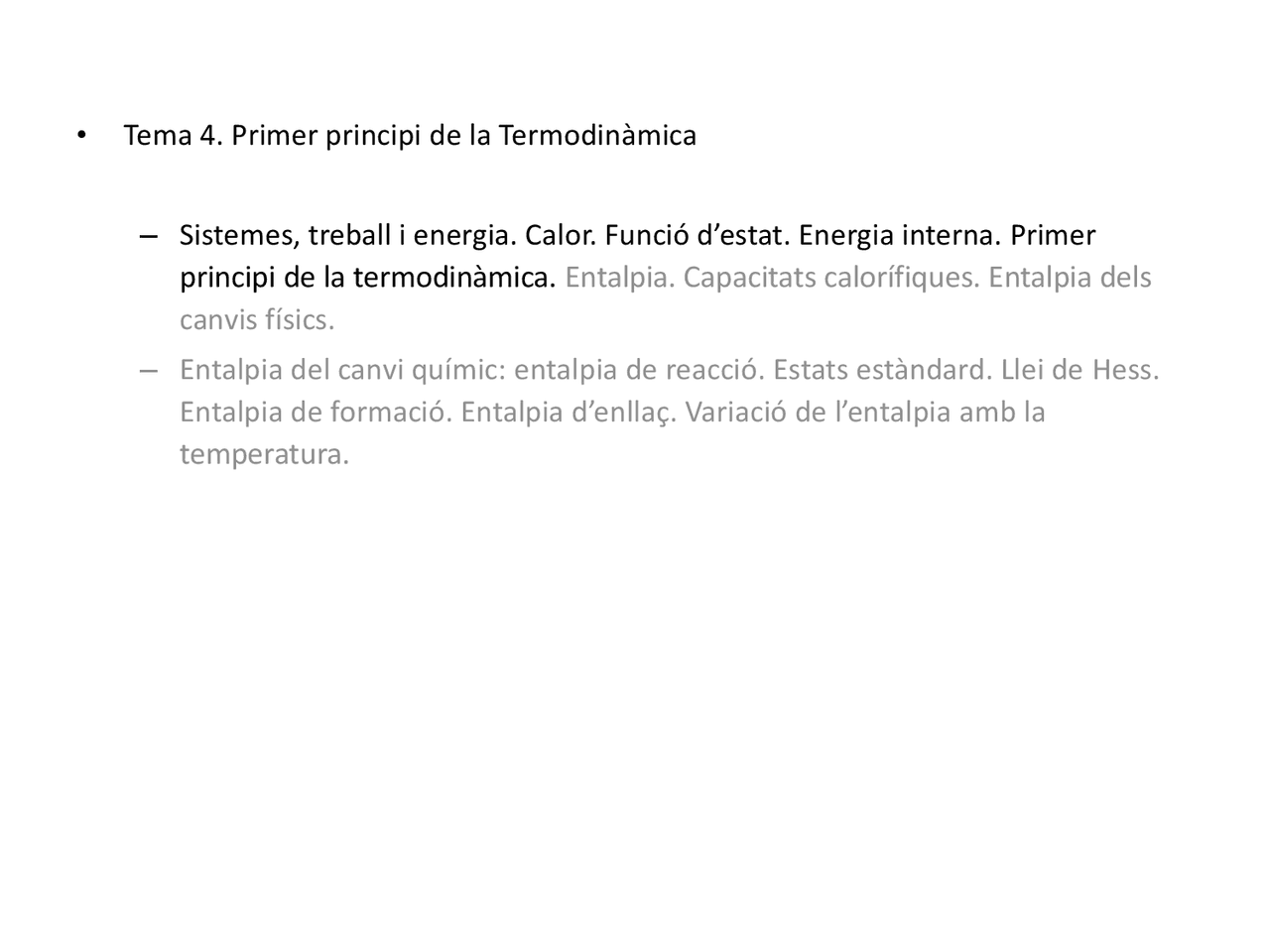

Tema 4. Primer principi de la Termodinàmica
Sistemes, treball i energia. Calor. Funció d’estat. Energia interna. Primer
principi de la termodinàmica. Entalpia. Capacitats calorífiques. Entalpia dels
canvis físics.
Entalpia del canvi químic: entalpia de reacció. Estats estàndard. Llei de Hess.
Entalpia de formació. Entalpia d’enllaç. Variació de l’entalpia amb la
temperatura.
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
pf29
pf2a
pf2b
pf2c
pf2d
pf2e
pf2f
pf30
pf31
pf32
pf33
pf34
pf35
pf36
pf37
pf38
pf39
pf3a
pf3b
pf3c
pf3d
pf3e
pf3f
pf40
pf41
pf42
pf43
pf44
pf45
pf46
pf47

Vista previa parcial del texto

¡Descarga Temas Básicos de Termodinámica: Conceptos Clave y Origen - Prof. Gargallo y más Apuntes en PDF de Química solo en Docsity!

  • Tema 4. Primer principi de la Termodinàmica
    • Sistemes, treball i energia. Calor. Funció d’estat. Energia interna. Primer

principi de la termodinàmica. Entalpia. Capacitats calorífiques. Entalpia dels

canvis físics.

  • Entalpia del canvi químic: entalpia de reacció. Estats estàndard. Llei de Hess.

Entalpia de formació. Entalpia d’enllaç. Variació de l’entalpia amb la

temperatura.

Química: una ciencia en tres niveles

Un químico:

  • piensa a nivel microscópico (átomos, moléculas, electrones,…)
  • realiza experimentos a nivel macroscópico (utillaje, instrumentos,…), y
  • representa ambos simbólicamente (fórmulas, ecuaciones,…)

Origins of Thermodynamics

"Half an ounce of coal can carry two tons over a mile“ (R.W. Emerson, s. XIX)

Coal ( mass ) + O 2  Chemical products + ability to carry a load over long distances

A question was raised at that time: how to increase the efficiency of steam engines?

Thomas Newcomen’s engine (around 1712)

Stephenson’s rocket (around 1829)

Research in Thermodynamics along XIX century

Sadi Carnot (France, 1796-1832) “ Reflections on the Motive Power of Fire ”: a treatise on heat, power (work), and engine efficiency Proponent of caloric model of work

James Prescott Joule (UK, 1818-1889) Demonstrated that heat and work are forms of energy : theory of conservation of energy

William Thomson (1st^ Lord Kelvin)(UK, 1824-1907) He coined the term thermodynamics “There is nothing new to be discovered in physics now. All that remains is more and more precise measurement“ (Lord Kelvin ??? , end of XIX century)

Rudolf Clausius (Ge, 1850): lost energy or entropy ( S )

James Clerk Maxwell (UK) and Ludwig Boltzmann (Ge): Statistical thermodynamics

Willard Gibbs (US, 1876): free energy ( G )

Thermodynamics: a macroscopic approach

Laws of Thermodynamics were postulated from experimental observations (s. XIX)

prior to any knowledge about atomic and molecular structure (s. XX)

Thermodynamics is a macroscopic theory, not molecular or atomic

Atomic theory

Thermodynamics

Statistical thermodynamics / statistical mechanics

(QF III)

Definitions

  • Thermodynamic systems
    • Boundaries
    • Intensive and extensive properties
  • Temperature and thermal equilibrium
  • Heat
    • Heat capacity
    • Specific and molar heat capacity
  • Work
  • Internal energy

Thermodynamic systems. Boundaries

  • Boundaries can be:
    • Real or imaginary. For closed systems, boundaries are real while for open system boundaries are often imaginary.
    • Fixed (e.g. a constant volume reactor) or moveable (e.g. a piston). Fixed boundaries do not allow transfer of energy as work.
    • Adiabatic or insulating: without heat transfer.
    • Isothermal: the temperature remains constants. Therefore, heat transfer occurs.
    • Permeable or semipermeable: mass transfer occurs
  • The characteristics of boundaries may be combined: fixed and permeable / moveable and adiabatic / …
  • Anything that passes across the boundary that effects a change in the internal energy needs to be accounted for in the energy balance equation.
  • The volume of the system can be:
    • A single atom resonating energy (Planck)
    • Air in a steam engine (Carnot, 1824);
    • A tropical cyclone (Kerry Emanuel, 1986) in the field of atmospheric thermodynamics

Thermodynamic systems. Types

Adiabatic

boundaries

  • Temperature (T):
    • Wikipedia: “It is a numerical measure of hot or cold”
    • TERMCAT: “ Magnitud termodinàmica que descriu la possibilitat de transferir calor a un altre

cos o de rebre'n.

  • Kinetic theory of gases:
  • Thermodynamics requires a unique T scale: Kelvin scale
  • The lowest T is 0 K (-273.15oC)… what happens there to atoms? And to electrons? Charles’s law?
  • Thermal equilibrium: when two systems are at the same temperature, they are at thermal

equilibrium

Temperature and thermal equilibrium

  • Zeroth law (Fowler, 1931): “If two thermodynamic systems are separately in thermal equilibrium with a third, they are

also in thermal equilibrium with each other”

Energy transfer: heat

System

A

75 oC

System

B

25 oC

System

A

60 oC

System

B

60 oC

Time

After equilibration time, both systems are at the same T: thermal equilibrium

Energy has been transferred from A (high T) to B (low T) as heat ( q or Q )

Heat: energy transferred across the system boundary because a temperature difference exists between both systems

If thermal equilibrium exists, no transfer of energy as heat occurs.

No change: thermal equilibrium

Questions:

  • Are the walls (boundaries) adiabatic?, what systems could we define?
  • Is the heat a fluid?, how heat is transferred?

Heat capacity of a system (C)

C: relationship between heat transferred to a system and the observed increase of T:

C = q / DT

Units : J (oC)-

Specific heat capacity of a system (c or Cs)

Capacidad calorífica específica (“calor específico”): Cs = C / m

Capacidad calorífica molar (“capacidad calorífica”): Cm = C / n

Resum

  • L’energia interna d’un sistema termodinàmic té dos components: energia potencial i energia

cinètica

  • Un gas que es comporta idealment només té energia cinètica i, per tant, la seva energia

interna només depèn de la temperatura

  • Un gas real sí té energia potencial i, per això, es pot observar l’efecte Joule-Thomson
  • La calor és una forma de transferència d’energia
  • La calor passa d’un sistema a un altre, sempre que el primer tingui una temperatura major
  • Els mecanismes per transferir energia en forma de calor són: conducció, convecció i radiació
  • La capacitat calorífica relaciona la calor transferida a un sistema i l’augment observat de T
  • Temperatura: T (no Tª)

Energy transfer: definition of work

  • Work, such as heat, is a form of energy transfer
  • Some definitions:
    • “Motion against an opposite force” (Atkins)
    • “Energy required to move an object from one point to another point” (Química, un proyecto de la ACS”)
  • From Classical Mechanics:
    • w = F · d = m · a · d
    • 1 Joule = 1 N · 1 m = 1 kg · m s-2^ · m = kg m^2 s-
  • Examples: raising a weight, electrical work, ...
