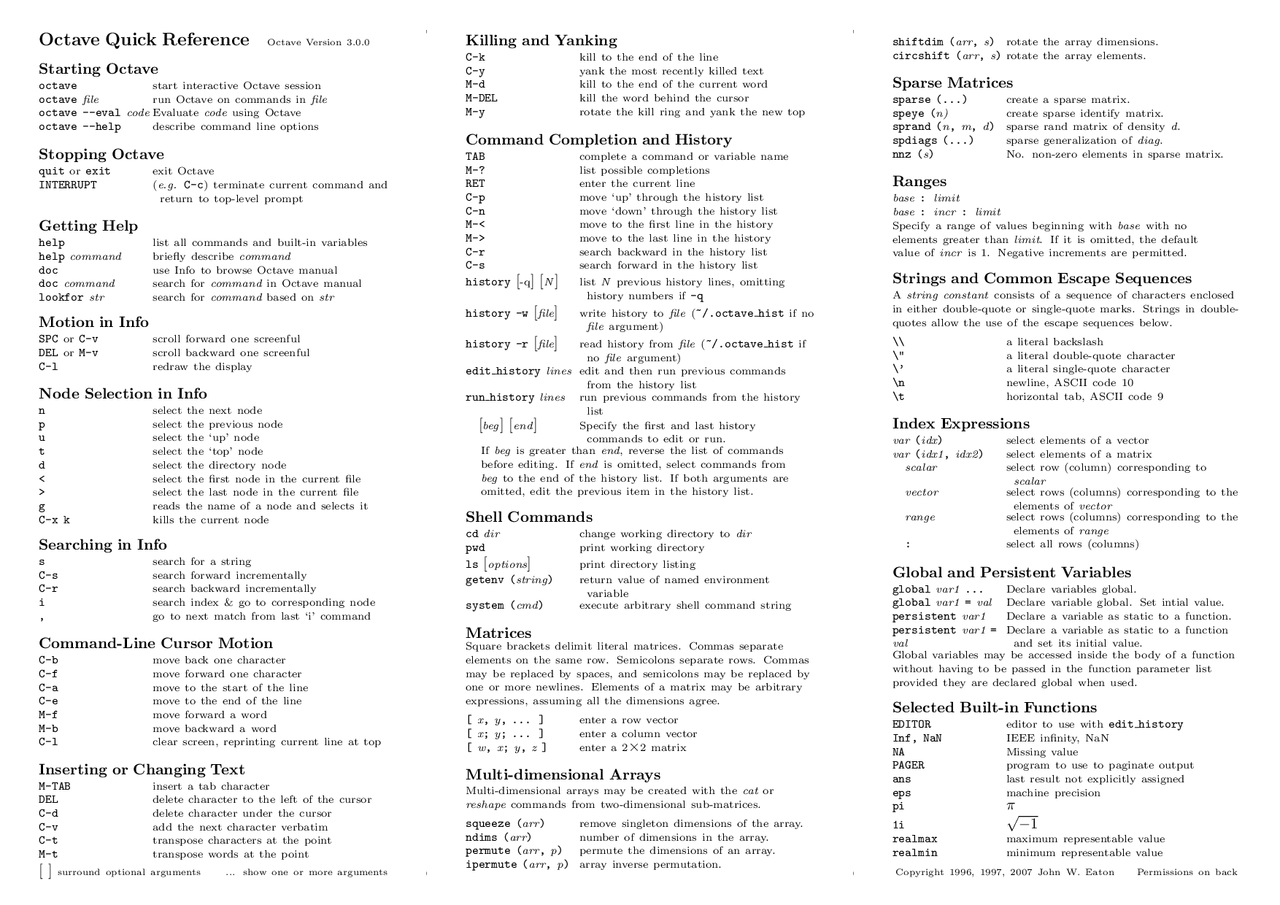

Octave Quick Reference Octave Version 3.0.0

Starting Octave

octave start interactive Octave session

octave file run Octave on commands in file

octave --eval code Evaluate code using Octave

octave --help describe command line options

Stopping Octave

quit or exit exit Octave

INTERRUPT (e.g. C-c) terminate current command and

return to top-level prompt

Getting Help

help list all commands and built-in variables

help command briefly describe command

doc use Info to browse Octave manual

doc command search for command in Octave manual

lookfor str search for command based on str

Motion in Info

SPC or C-v scroll forward one screenful

DEL or M-v scroll backward one screenful

C-l redraw the display

Node Selection in Info

nselect the next node

pselect the previous node

uselect the ‘up’ node

tselect the ‘top’ node

dselect the directory node

<select the first node in the current file

>select the last node in the current file

greads the name of a node and selects it

C-x k kills the current node

Searching in Info

ssearch for a string

C-s search forward incrementally

C-r search backward incrementally

isearch index & go to corresponding node

,go to next match from last ‘i’ command

Command-Line Cursor Motion

C-b move back one character

C-f move forward one character

C-a move to the start of the line

C-e move to the end of the line

M-f move forward a word

M-b move backward a word

C-l clear screen, reprinting current line at top

Inserting or Changing Text

M-TAB insert a tab character

DEL delete character to the left of the cursor

C-d delete character under the cursor

C-v add the next character verbatim

C-t transpose characters at the point

M-t transpose words at the point

[ ] surround optional arguments ... show one or more arguments

Killing and Yanking

C-k kill to the end of the line

C-y yank the most recently killed text

M-d kill to the end of the current word

M-DEL kill the word behind the cursor

M-y rotate the kill ring and yank the new top

Command Completion and History

TAB complete a command or variable name

M-? list possible completions

RET enter the current line

C-p move ‘up’ through the history list

C-n move ‘down’ through the history list

M-< move to the first line in the history

M-> move to the last line in the history

C-r search backward in the history list

C-s search forward in the history list

history [-q] [N]list Nprevious history lines, omitting

history numbers if -q

history -w [file]write history to file (~/.octave hist if no

file argument)

history -r [file]read history from file (~/.octave hist if

no file argument)

edit history lines edit and then run previous commands

from the history list

run history lines run previous commands from the history

list

[beg] [end]Specify the first and last history

commands to edit or run.

If beg is greater than end, reverse the list of commands

before editing. If end is omitted, select commands from

beg to the end of the history list. If b oth arguments are

omitted, edit the previous item in the history list.

Shell Commands

cd dir change working directory to dir

pwd print working directory

ls [options]print directory listing

getenv (string)return value of named environment

variable

system (cmd)execute arbitrary shell command string

Matrices

Square brackets delimit literal matrices. Commas separate

elements on the same row. Semicolons separate rows. Commas

may be replaced by spaces, and semicolons may be replaced by

one or more newlines. Elements of a matrix may be arbitrary

expressions, assuming all the dimensions agree.

[x,y, ... ] enter a row vector

[x;y; ... ] enter a column vector

[w,x;y,z]enter a 2×2 matrix

Multi-dimensional Arrays

Multi-dimensional arrays may be created with the cat or

reshape commands from two-dimensional sub-matrices.

squeeze (arr)remove singleton dimensions of the array.

ndims (arr)number of dimensions in the array.

permute (arr,p)permute the dimensions of an array.

ipermute (arr,p)array inverse permutation.

shiftdim (arr,s)rotate the array dimensions.

circshift (arr,s)rotate the array elements.

Sparse Matrices

sparse (...) create a sparse matrix.

speye (n) create sparse identify matrix.

sprand (n,m,d)sparse rand matrix of density d.

spdiags (...) sparse generalization of diag.

nnz (s)No. non-zero elements in sparse matrix.

Ranges

base :limit

base :incr :limit

Specify a range of values beginning with base with no

elements greater than limit. If it is omitted, the default

value of incr is 1. Negative increments are permitted.

Strings and Common Escape Sequences

Astring constant consists of a sequence of characters enclosed

in either double-quote or single-quote marks. Strings in double-

quotes allow the use of the escape sequences below.

\\ a literal backslash

\" a literal double-quote character

\’ a literal single-quote character

\n newline, ASCII code 10

\t horizontal tab, ASCII code 9

Index Expressions

var (idx)select elements of a vector

var (idx1,idx2)select elements of a matrix

scalar select row (column) corresponding to

scalar

vector select rows (columns) corresponding to the

elements of vector

range select rows (columns) corresponding to the

elements of range

:select all rows (columns)

Global and Persistent Variables

global var1 ... Declare variables global.

global var1 =val Declare variable global. Set intial value.

persistent var1 Declare a variable as static to a function.

persistent var1 =

val

Declare a variable as static to a function

and set its initial value.

Global variables may be accessed inside the body of a function

without having to be passed in the function parameter list

provided they are declared global when used.

Selected Built-in Functions

EDITOR editor to use with edit history

Inf, NaN IEEE infinity, NaN

NA Missing value

PAGER program to use to paginate output

ans last result not explicitly assigned

eps machine precision

pi π

1i √−1

realmax maximum representable value

realmin minimum representable value
