What to knowCharts

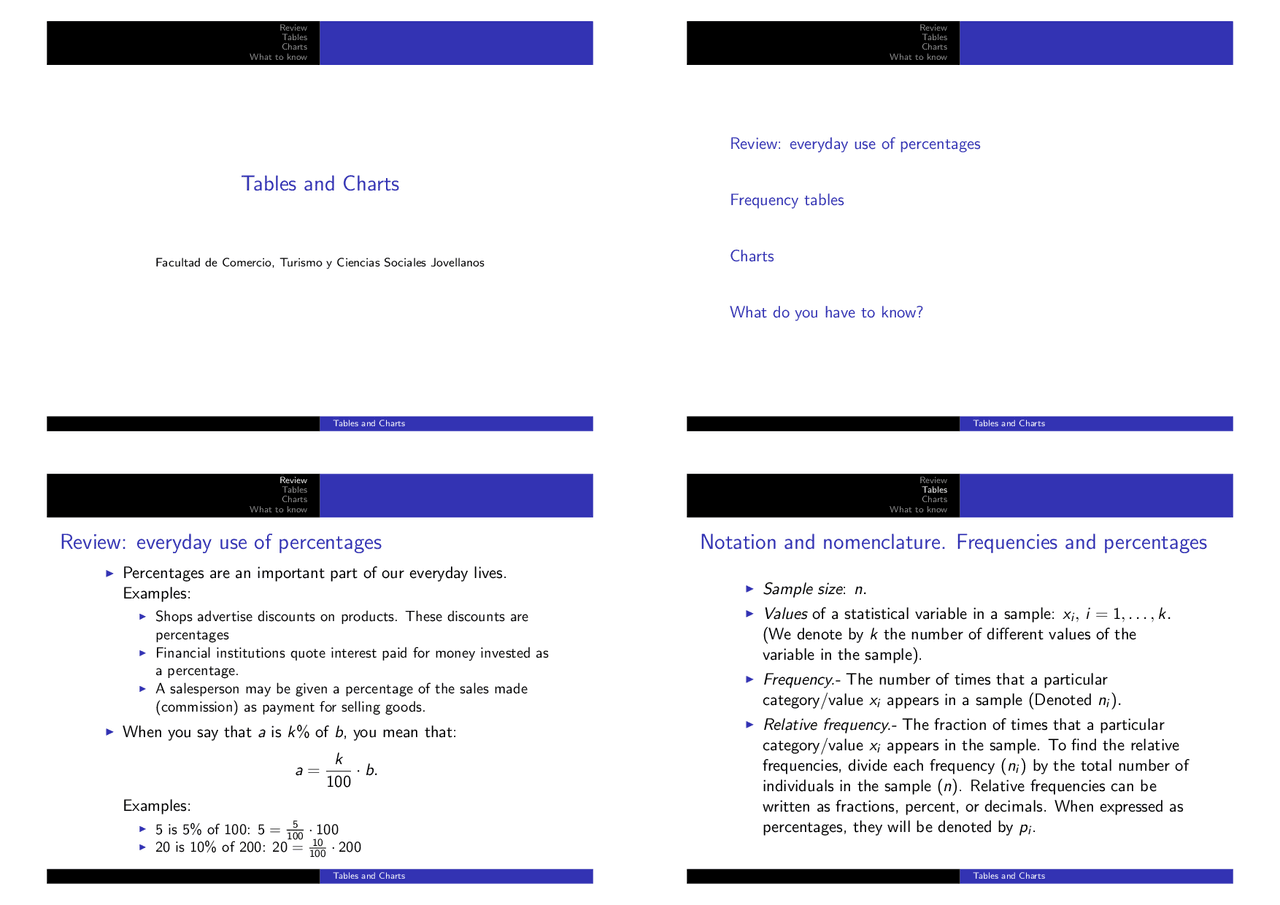

Tables and Charts
Facultad de Comercio, Turismo y Ciencias Sociales Jovellanos
Tables and Charts
What to knowCharts
Review: everyday use of percentages
Frequency tables
Charts
What do you have to know?
Tables and Charts
Review TablesCharts What to know
Review: everyday use of percentages
I (^) Percentages are an important part of our everyday lives. Examples: I (^) Shops advertise discounts on products. These discounts are percentages I (^) Financial institutions quote interest paid for money invested as a percentage. I (^) A salesperson may be given a percentage of the sales made (commission) as payment for selling goods. I (^) When you say that a is k% of b, you mean that:
a =
k 100
· b.
Examples: I (^) 5 is 5% of 100: 5 = 1005 · 100 I (^) 20 is 10% of 200: 20 = 10010 · 200
Review TablesCharts What to know
Notation and nomenclature. Frequencies and percentages
I (^) Sample size: n. I (^) Values of a statistical variable in a sample: xi , i = 1,... , k. (We denote by k the number of different values of the variable in the sample). I (^) Frequency.- The number of times that a particular category/value xi appears in a sample (Denoted ni ). I (^) Relative frequency.- The fraction of times that a particular category/value xi appears in the sample. To find the relative frequencies, divide each frequency (ni ) by the total number of individuals in the sample (n). Relative frequencies can be written as fractions, percent, or decimals. When expressed as percentages, they will be denoted by pi.
What to knowCharts
Frequencies and percentages: example
(Source: J. Buglear, Stats to go, Butterworth-Heinemann, Oxford,
- ) The number of passengers in each of 20 cars boarding a ferry were: 2 3 5 2 4 2 4 4 4 3 2 5 3 2 3 4 4 3 2 4 I (^) n = 20 I (^) k = 4 x 1 = 2, x 2 = 3, x 3 = 4, x 4 = 5 I (^) n 1 = 6, n 2 = 5, n 3 = 7, n 4 = 2 I (^) p 1 = 30%, p 2 = 25%, p 3 = 35%, p 4 = 10%
Tables and Charts
What to knowCharts
Frequency tables (tablas de frecuencias)
I (^) Frequency table.- A table listing the frequency (number) and/or the percentage of observations in different categories or ranges. I (^) Frequency table in the example of ferry passengers:
xi ni pi 2 6 30% 3 5 25% 4 7 35% 5 2 10%
Tables and Charts
Review TablesCharts What to know
Cumulative frequencies and percentages
(frecuencias y porcentajes acumulados)
Only for ordinal and numerical statistical variables: I (^) Cumulative frequency.- The sum of the frequencies of all the values up to a given value. If the values (or ordinal categories) x 1 <... < xk appear with respective frequencies n 1 ,... , nk , then the cumulative frequency of xi is equal to n 1 +... + ni. It is denoted Ni. I (^) Cumulative percent.- The sum of the percentages of all the values up to a given value. If the values (or ordinal categories) x 1 <... < xk appear with respective percents p 1 ,... , pk , then the cumulative frequency of vi is equal to p 1 +... + pi. It is denoted Pi.
Review TablesCharts What to know
Cumulative frequencies and percentages: example of
passengers
xi ni pi 2 6 30% 3 5 25% 4 7 35% 5 2 10%
N 1 = 6 P 1 = 206 · 100% = 30% N 2 = 6 + 5 = 11 P 2 = 1120 · 100% = 55% N 3 = 6 + 5 + 7 = 18 P 3 = 1820 · 100% = 90% N 4 = 6 + 5 + 2 = 20 = n P 4 = 2020 · 100% = 100%
Remark: Nk = n 1 +... + nk = n and Pk = p 1 +... + pk = 100%
What to knowCharts
Example of a pie chart
Pie chart - smoking habits
daily smokers occasionally smokers non smokers
Pie chart associated to the frequency table:
xi ni daily smoker 30 occas. smoker 24 non smoker 96
Tables and Charts
What to knowCharts
Pareto chart
I (^) Named after Vilfredo Pareto. I (^) Valid: all types of variables (categorical, ordinal or numerical). I (^) Recommended for variables with few different values in the sample (k), specially when the values indicate “causes”. I (^) Description: I (^) It contains both bars and a line graph. I (^) Values are represented in descending order by bars. I (^) The cumulative percentages are represented by the line. I (^) Each rectangle corresponds to a possible value or category of the variable. I (^) The left vertical axis is the frequency of occurrence. I (^) The right vertical axis is the cumulative percentage of the total number of occurrences.
Tables and Charts
Review TablesCharts What to know
Example of a Pareto chart
(Source: whatis.techtarget.com)
The business manager first thought about customer dissatisfaction with the clothing line he was selling. After analyzing a customer survey, however, he realized that parking difficulties, rude sales people and poor lighting were hurting his business most.
Review TablesCharts What to know
Introduction to histograms: grouped data
I (^) Sometimes, the number of different values of the statistical variable is very high (weight of people measured in kg., length of people measured in cm., for instance). I (^) Before charting data, it is useful to previously group them into class intervals. I (^) Notation: I (^) Class intervals will be denoted by I 1 ,... , Ik. I (^) The endpoints of interval Ii will be denoted respectively by li− 1 and li. I (^) Frequency of interval Ii : ni. I (^) Percentage of individuals falling in interval Ii : pi.
What to knowCharts
Histogram
I (^) Only valid for quantitative statistical variables. I (^) Recommended for variables with many different values in the sample, previously grouped into intervals. I (^) Description: I (^) A set of rectangles sitting on the horizontal axis. I (^) The bases of the rectangles are the class intervals I (^) The heights of the rectangles are equal to: I (^) their frequencies (frequency histogram) or to I (^) their percentages (percentage histogram).
(Another variant is the so-called density histogram. It is similar to frequency histogram except heights of rectangles are calculated by dividing relative frequencies by class width.)
Tables and Charts
What to knowCharts
Example of a histogram
Tables and Charts
Review TablesCharts What to know
Statistical variables expressed as functions of other
statistical variables: example
I (^) A company awards employees a bonus payment of 100 Eur (monthly) and an additional payment of 40 Eur for each child. I (^) Frequency table of X = “number of children of the employee”: xi ni pi 0 8 50% 1 4 25% 2 3 18.75% 3 1 6.25% I (^) If Y =“received bonus payment”, then Y = 100 + 40X. I (^) Frequency table of Y : xi ni pi 100 8 50% 140 4 25% 180 3 18.75% 220 1 6.25%
Review TablesCharts What to know
What do you have to know?
I (^) Answering questions like: What is k% of b? a is what percent of b? a is k% of what? I (^) The meaning of the terms frequency, cumulative frequency, percentage and cumulative percentage. I (^) Calculate percentages from frequencies. I (^) Calculate frequencies from percentages (known sample size). I (^) Calculate cumulative frequencies from frequencies. I (^) Calculate the number and percentage of the individuals in a sample satisfying a certain condition. I (^) Calculate the sample size from the frequency table. I (^) Construct frequency tables from raw datasets. I (^) Select an appropriate chart for each kind of data. I (^) Determine the complete frequency table from any kind of chart. I (^) Understand and interpret the information provided by charts. I (^) Express a statistical variable Y as a function of another variable X. I (^) Understand the meaning of the sum of values of a quantitative variable in a sample. Calculate it.
