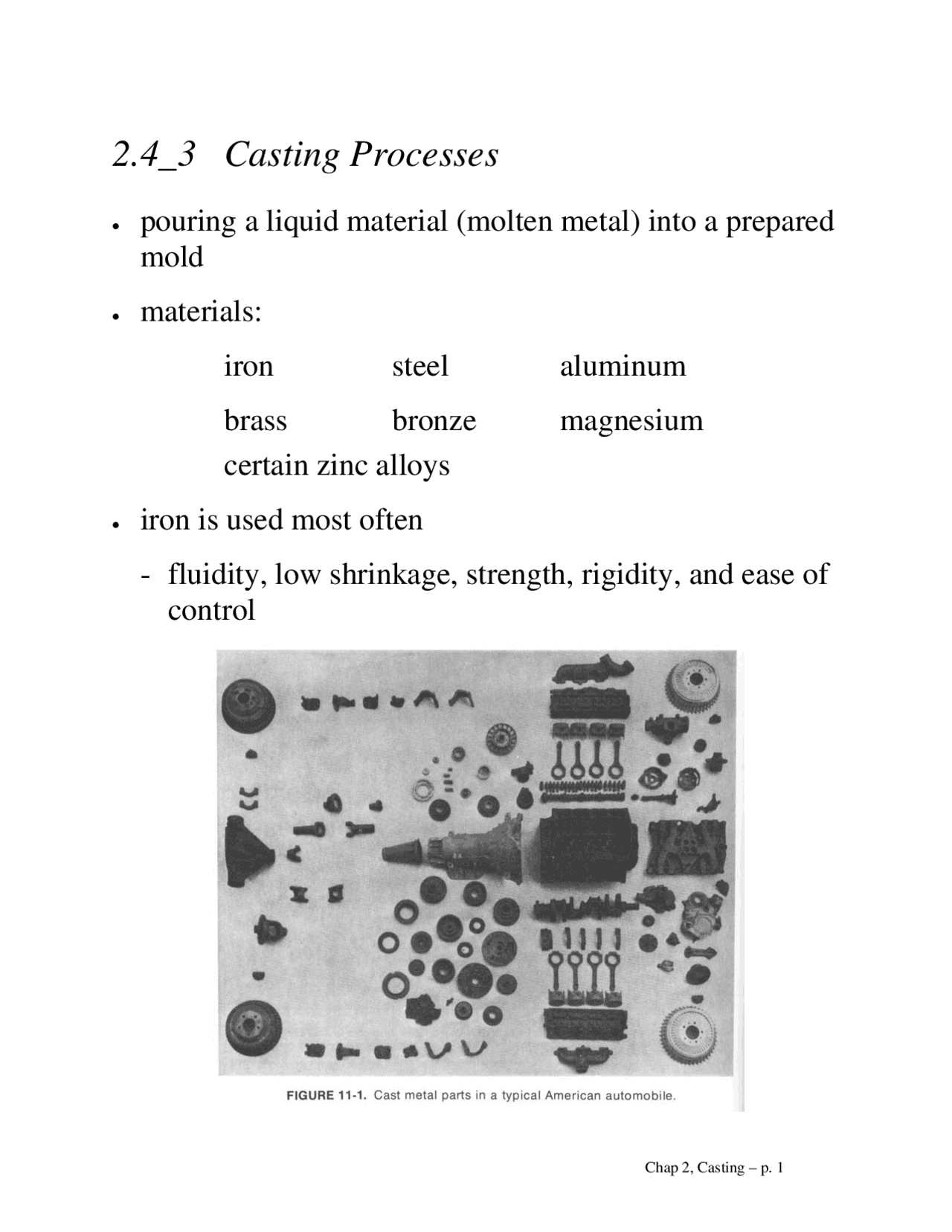

2.4_3 Casting Processes
• pouring a liquid material (molten metal) into a prepared
mold
• materials:
iron steel aluminum
brass bronze magnesium
certain zinc alloys
• iron is used most often
- fluidity, low shrinkage, strength, rigidity, and ease of
control
Chap 2, Casting – p. 1
pf3
pf4
pf5
pf8
pf9
pfa

Partial preview of the text

Download Casting Processes: Types, Factors, and Techniques and more Study notes History of film in PDF only on Docsity!

2.4_3 Casting Processes

  • pouring a liquid material (molten metal) into a prepared mold
  • materials:

iron steel aluminum

brass bronze magnesium certain zinc alloys

  • iron is used most often
    • fluidity, low shrinkage, strength, rigidity, and ease of control
  • Six factors of the casting process:
  1. A mold cavity must be produced.
  • must have desired shape
  • must allow for shrinkage of the solidifying metal
  • a new mold must be made for each casting, or a permanent mold must be made
  1. A suitable means must exist to melt the metal.
  • high temperatures
  • quality mix
  • low cost

  1. The molten metal must be introduced into the mold so that all air or gases in the mold will escape. The mold must be completely filled so that there are no air holes.

  2. The mold must be designed so that it does not impede the shrinkage of the metal upon cooling.

  3. It must be possible to remove the casting from the mold.

  4. Finishing operations must usually be performed on the part after it is removed from the mold.

Patterns

  • a pattern is a duplicate of the part being made
  • pattern material is dependent upon the number of parts being made - wood is most common for small quantities - aluminum is used for larger quantities
  • the pattern must be made slightly larger than the part
    • metal will shrink as it cools
    • cast iron 1/10 to 1/8 inch per foot steel 3/16 to 1/ aluminum 1/8 to 5/
  • the pattern maker uses a special shrink ruler
  • split patterns are most common

Cores

  • an advantage of casting is that holes can be cast into a part with relative ease
  • sand cores are inserted into the mold cavity

Permanent-Mold Casting Processes

  • a disadvantage of sand castings is that a new mold must be made for every part
  • permanent-mold casting only uses gravity to introduce the metal
  • molds are made of cast iron or steel
  • permanent molds are heated at the beginning of a pour
  • permanent-mold castings have better dimensional accuracy and smoother surfaces than can be obtained with sand casting

Melting and Pouring

The furnace used to melt the metal should:

  1. provide adequate temperature

  2. minimize contamination

  3. allow for holding the metal at high temperature without harmful effects for long period of time (while chemical composition is adjusted)

  4. be economical

  5. avoid atmospheric pollution

Pouring Practice

  • must transfer the metal from the melting furnace into the molds
  • a pouring device or a ladle are used
  • metal must be kept at proper temperature during the pour
