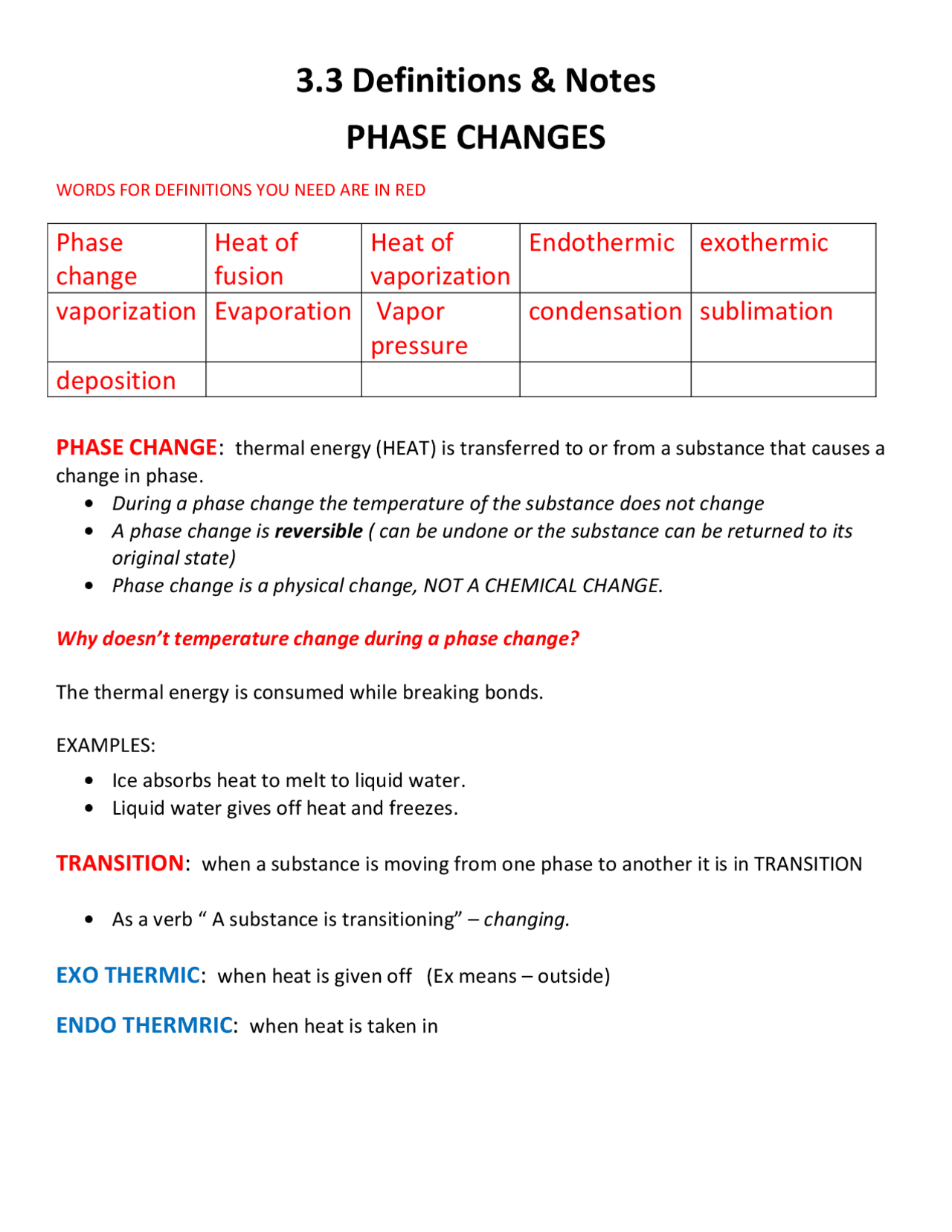

3.3 Definitions & Notes
PHASE CHANGES
WORDS FOR DEFINITIONS YOU NEED ARE IN RED
Phase
change
Heat of
fusion
Heat of
vaporization
Endothermic
exothermic
vaporization
Evaporation
Vapor
pressure
condensation
sublimation
deposition
PHASE CHANGE: thermal energy (HEAT) is transferred to or from a substance that causes a
change in phase.
During a phase change the temperature of the substance does not change
A phase change is reversible ( can be undone or the substance can be returned to its
original state)
Phase change is a physical change, NOT A CHEMICAL CHANGE.
Why doesn’t temperature change during a phase change?
The thermal energy is consumed while breaking bonds.
EXAMPLES:
Ice absorbs heat to melt to liquid water.
Liquid water gives off heat and freezes.
TRANSITION: when a substance is moving from one phase to another it is in TRANSITION
As a verb “ A substance is transitioning” – changing.
EXO THERMIC: when heat is given off (Ex means outside)
ENDO THERMRIC: when heat is taken in
pf3
pf4
pf5
pf8

Partial preview of the text

Download 3.3 Definitions & Notes PHASE CHANGES and more Exams Solid State Physics in PDF only on Docsity!

3.3 Definitions & Notes

PHASE CHANGES

WORDS FOR DEFINITIONS YOU NEED ARE IN RED

Phase

change

Heat of

fusion

Heat of

vaporization

Endothermic exothermic

vaporization Evaporation Vapor

pressure

condensation sublimation

deposition

PHASE CHANGE : thermal energy (HEAT) is transferred to or from a substance that causes a

change in phase.  During a phase change the temperature of the substance does not changeA phase change is reversible ( can be undone or the substance can be returned to its original state)Phase change is a physical change, NOT A CHEMICAL CHANGE.

Why doesn’t temperature change during a phase change?

The thermal energy is consumed while breaking bonds.

EXAMPLES:

 Ice absorbs heat to melt to liquid water.  Liquid water gives off heat and freezes.

TRANSITION : when a substance is moving from one phase to another it is in TRANSITION

 As a verb “ A substance is transitioning” – changing.

EXO THERMIC : when heat is given off (Ex means – outside)

ENDO THERMRIC : when heat is taken in

THE TRANSITIONS WE ALREADY KNOW

TRANSITION Description

Melting

 The transition from solid to liquid

 Heat is absorbed by substance or added to substance

Freezing

 The transition from liquid to solid

 Heat is given off by substance or absorbed by the

surroundings

Condensation

 The transition from Gas to liquid

 Heat is given off by substance or absorbed by the

surroundings

Vaporization

 The transition from Liquid to Gas AT the Boiling point

 Heat is absorbed by substance or added to substance

Evaporation

 The transition from Liquid to Gas BELOW the Boiling

point

 Heat is absorbed by substance or added to substance

THE TRANSITIONS WE MAY NOT ALREADY KNOW

TRANSITION Description

SUBLIMATION

 The transition from solid directly to gas

 Heat is absorbed by substance or added to substance

Example?

DEPOSITION

 The transition from gas directly to solid

 Heat is given off by the substance or taken away

Example?

EVAPORATION

What are the best conditions for evaporation to occur?

Air Temperature?

Humidity?

Water

Temperature?

Container? Open with a high surface area

Sublimation of Dry Ice (Frozen Carbon Dioxide) http://www.youtube.com/watch?v=WGD-5FfqOws

STUDENT NOTES- THE TRANSITIONS WE ALREADY KNOW

TRANSITION Description

Melting

Freezing

Condensation

Vaporization

Evaporation

THE TRANSITIONS WE MAY NOT ALREADY KNOW

TRANSITION Description

SUBLIMATION

DEPOSITION

BEST CONDITIONS FOR EVAPORATION

ENERGY PHASE DIAGRAMS

WHAT IS HAPPENING IN THIS GRAPH ENERGY IS ADDED (Moving left to right)? Energy Temp Phase Bonds A B C D E F

C LATENT HEAT OF FUSION

E LATENT HEAT OF

VAPORIZATION
