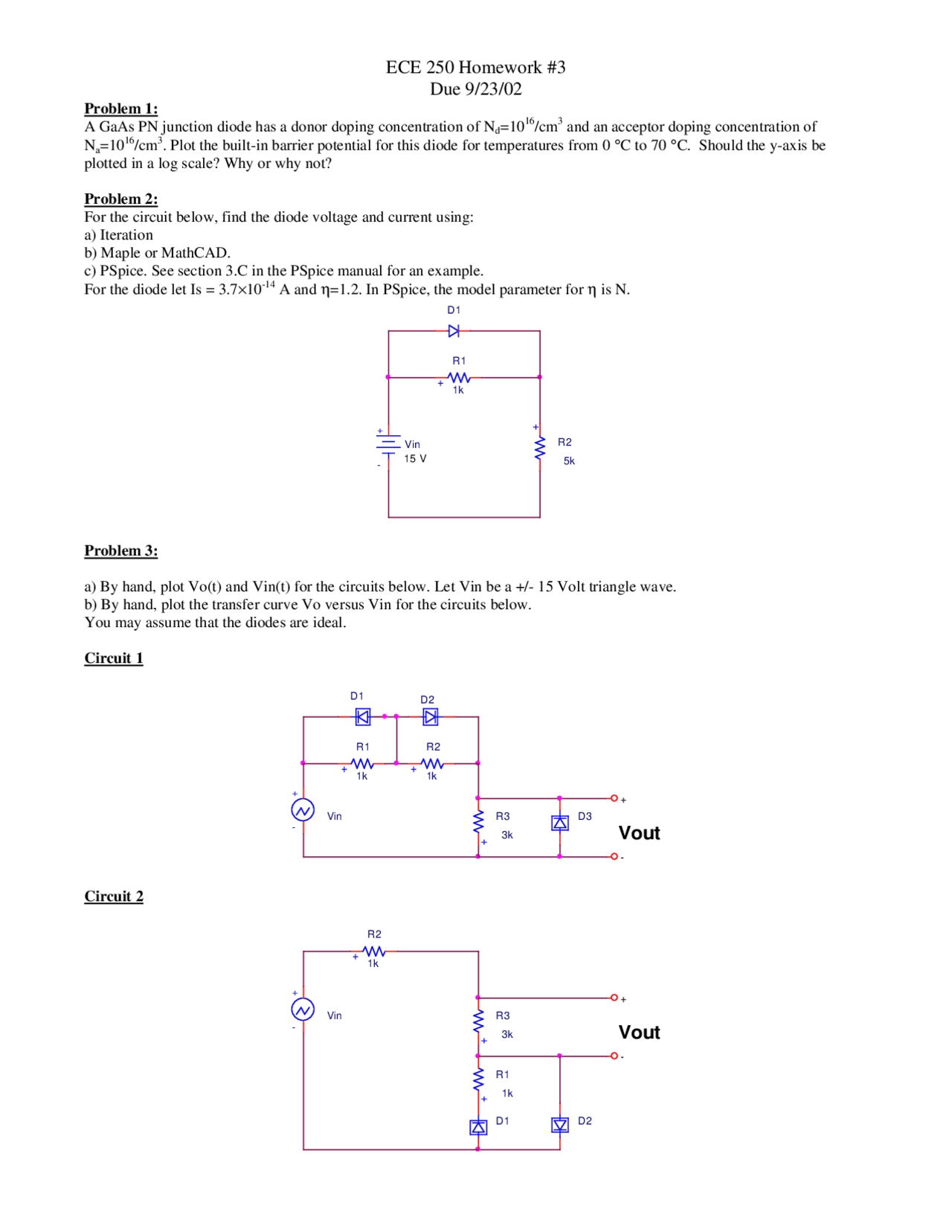

ECE 250 Homework #3
Due 9/23/02
Problem 1:
A GaAs PN junction diode has a donor doping concentration of Nd=1016/cm3 and an acceptor doping concentration of
Na=1016/cm3. Plot the built-in barrier potential for this diode for temperatures from 0 °C to 70 °C. Should the y-axis be
plotted in a log scale? Why or why not?
Problem 2:
For the circuit below, find the diode voltage and current using:
a) Iteration
b) Maple or MathCAD.
c) PSpice. See section 3.C in the PSpice manual for an example.
For the diode let Is = 3.7×10-14 A and η=1.2. In PSpice, the model parameter for η is N.
+
-
Vin
15 V
D1
+
R1
1k
+
R2
5k
Problem 3:
a) By hand, plot Vo(t) and Vin(t) for the circuits below. Let Vin be a +/- 15 Volt triangle wave.
b) By hand, plot the transfer curve Vo versus Vin for the circuits below.
You may assume that the diodes are ideal.
Circuit 1
D3
D2
Vout
D1
+
R2
1k
+
+
R1
1k
+
R3
3k
-
+
Vin
-
Circuit 2
+
R2
1k
D2
Vout
+
R3
3k
-
+
Vin
+
D1
-
+
R1
1k
pf2

Partial preview of the text

Download ECE 250 Homework #3: Semiconductor Diodes and Circuits - Prof. Marc E. Herniter and more Assignments Electrical and Electronics Engineering in PDF only on Docsity!

ECE 250 Homework

Due 9/23/

Problem 1: A GaAs PN junction diode has a donor doping concentration of Nd=10^16 /cm^3 and an acceptor doping concentration of

Na=10^16 /cm^3. Plot the built-in barrier potential for this diode for temperatures from 0 °C to 70 °C. Should the y-axis be plotted in a log scale? Why or why not?

Problem 2: For the circuit below, find the diode voltage and current using: a) Iteration b) Maple or MathCAD. c) PSpice. See section 3.C in the PSpice manual for an example. For the diode let Is = 3.7× 10 -14^ A and η=1.2. In PSpice, the model parameter for η is N.

Vin 15 V

D

R

1k

R 5k

Problem 3:

a) By hand, plot Vo(t) and Vin(t) for the circuits below. Let Vin be a +/- 15 Volt triangle wave. b) By hand, plot the transfer curve Vo versus Vin for the circuits below. You may assume that the diodes are ideal.

Circuit 1

D

D

Vout

D

R

1k

R

1k

R

  • 3k

Vin

Circuit 2

R

1k

D

+^ Vout

R

  • 3k

Vin

D

R 1k

Circuit 3

R

1k

Vin D

+^ Vout

R 3k

D

D

R

1k

D

Problem 4: Use PSpice to plot Vo(t) and Vin(t) versus time for the circuits of problem 4. Let Vin(t) be a +/- 15 Volt triangle wave. Plot both traces on the same plot. You will need to use Probe to generate these plots. See Chapter 2 of the PSpice manual for examples using Probe. See Section 6.F of the PSpice manual for an example. Use the following parts: Vtri, R, and D_ideal. Make sure that you use part 0 for ground.
