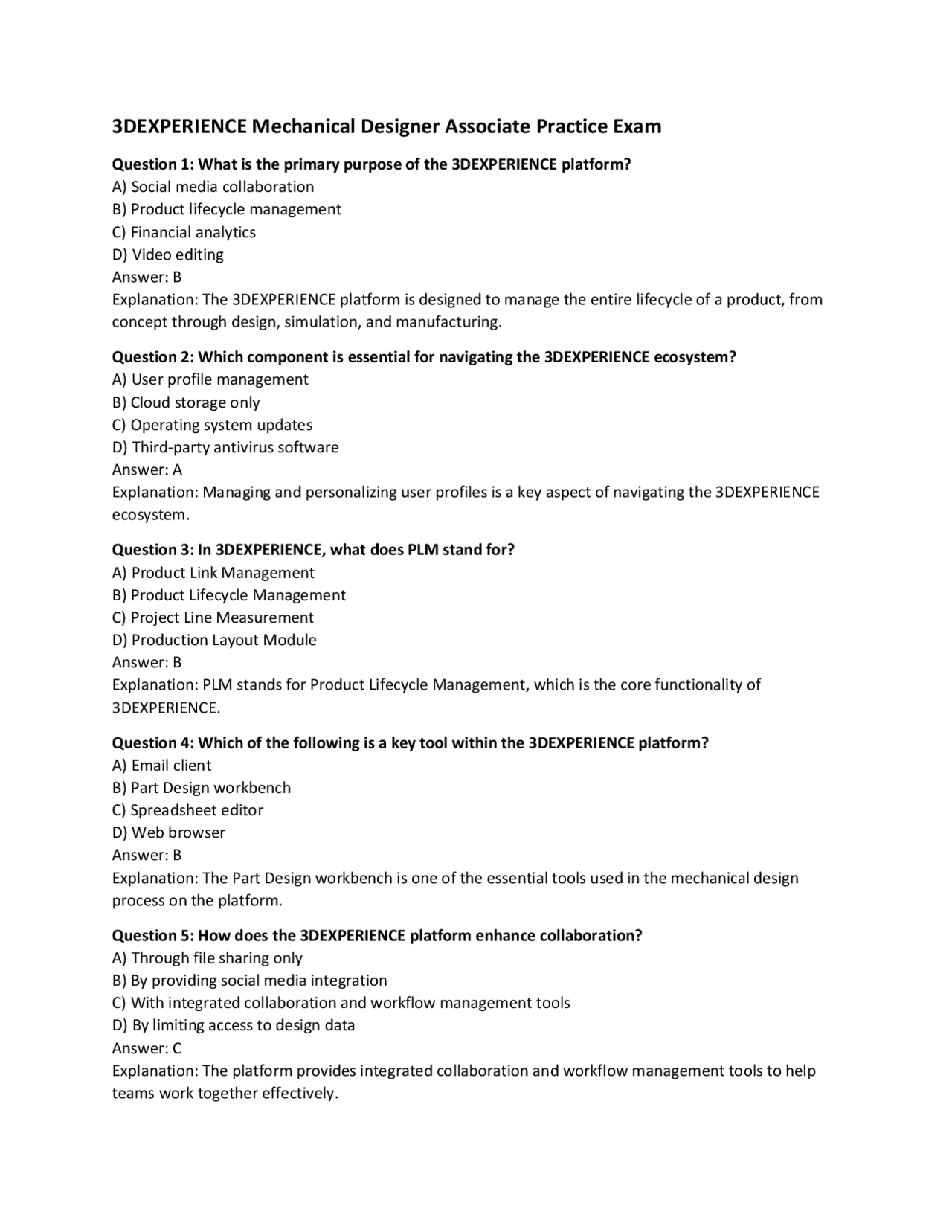

3DEXPERIENCE Mechanical Designer Associate Practice Exam
Question 1: What is the primary purpose of the 3DEXPERIENCE platform? A) Social media collaboration B) Product lifecycle management C) Financial analytics D) Video editing Answer: B Explanation: The 3DEXPERIENCE platform is designed to manage the entire lifecycle of a product, from concept through design, simulation, and manufacturing. Question 2: Which component is essential for navigating the 3DEXPERIENCE ecosystem? A) User profile management B) Cloud storage only C) Operating system updates D) Third-party antivirus software Answer: A Explanation: Managing and personalizing user profiles is a key aspect of navigating the 3DEXPERIENCE ecosystem. Question 3: In 3DEXPERIENCE, what does PLM stand for? A) Product Link Management B) Product Lifecycle Management C) Project Line Measurement D) Production Layout Module Answer: B Explanation: PLM stands for Product Lifecycle Management, which is the core functionality of 3DEXPERIENCE. Question 4: Which of the following is a key tool within the 3DEXPERIENCE platform? A) Email client B) Part Design workbench C) Spreadsheet editor D) Web browser Answer: B Explanation: The Part Design workbench is one of the essential tools used in the mechanical design process on the platform. Question 5: How does the 3DEXPERIENCE platform enhance collaboration? A) Through file sharing only B) By providing social media integration C) With integrated collaboration and workflow management tools D) By limiting access to design data Answer: C Explanation: The platform provides integrated collaboration and workflow management tools to help teams work together effectively.
Question 6: What is the significance of the user interface in the 3DEXPERIENCE platform? A) It hides complex tools from users B) It simplifies navigation and enhances user productivity C) It restricts customization D) It primarily supports gaming Answer: B Explanation: A well-designed user interface in 3DEXPERIENCE simplifies navigation and improves overall user productivity. Question 7: Which of the following best describes the 3DEXPERIENCE ecosystem? A) A single software module B) An integrated suite of tools and applications C) A set of independent mobile apps D) A collection of unrelated utilities Answer: B Explanation: The ecosystem comprises an integrated suite of tools and applications designed for product development and management. Question 8: What is one advantage of personalizing the 3DEXPERIENCE interface? A) It eliminates the need for training B) It allows users to tailor their workspace for efficiency C) It prevents data sharing D) It disables advanced features Answer: B Explanation: Personalizing the interface enables users to create a workspace that best suits their workflow and improves efficiency. Question 9: What type of login process does 3DEXPERIENCE employ? A) Open public access B) Secure user authentication C) Guest mode without credentials D) Single sign-on without any verification Answer: B Explanation: The platform uses a secure user authentication process to ensure that only authorized users can access sensitive design data. Question 10: What role does the 3DEXPERIENCE platform play in PLM? A) It only handles 3D modeling B) It supports the entire product lifecycle from concept to manufacturing C) It is used for marketing and sales only D) It solely manages financial data Answer: B Explanation: The 3DEXPERIENCE platform supports all phases of the product lifecycle, integrating design, simulation, manufacturing, and data management. Question 11: Which aspect of the platform is crucial for team collaboration? A) Isolated work environments
Answer: B Explanation: The platform integrates multiple functions such as PLM, simulation, and 3D design, unlike traditional CAD systems which may focus only on design. Question 17: In the context of 3DEXPERIENCE, what does “ecosystem” refer to? A) Only the design modules B) The interconnected suite of applications, tools, and data management systems C) The physical hardware used for design D) External third-party plugins only Answer: B Explanation: The ecosystem refers to the interconnected suite of applications, tools, and data management systems that work together seamlessly. Question 18: Which of the following is a benefit of using the 3DEXPERIENCE platform for design teams? A) Increased isolation of team members B) Streamlined workflows and enhanced collaboration C) Limited data access D) Reduced functionality compared to standalone tools Answer: B Explanation: The platform offers streamlined workflows and enhanced collaboration, improving overall team productivity. Question 19: How does the 3DEXPERIENCE platform support decision-making in design? A) By eliminating simulation tools B) Through integrated analysis and simulation features C) By offering only manual data entry D) Through a single view with no data visualization Answer: B Explanation: Integrated analysis and simulation tools help users make informed decisions about design performance and improvements. Question 20: What does user customization on the platform primarily affect? A) The operating system configuration B) The layout and tool accessibility within the workspace C) The network security settings D) The hardware components Answer: B Explanation: Customization affects the layout and accessibility of tools within the workspace, optimizing the user experience. Question 21: Which process is simplified by the 3DEXPERIENCE platform’s interface? A) Manual accounting B) Navigation between multiple design and management modules C) Internet browsing D) Operating system maintenance Answer: B
Explanation: The interface is designed to allow smooth navigation between various design, simulation, and management modules. Question 22: What is one of the key components that define the 3DEXPERIENCE ecosystem? A) Standalone desktop calculators B) Cloud-based collaborative tools C) Traditional paper-based documentation D) Outdated file management systems Answer: B Explanation: Cloud-based collaborative tools are central to the ecosystem, enabling remote and real- time teamwork. Question 23: What is an important consideration when setting up the 3DEXPERIENCE workspace? A) Disabling user preferences B) Configuring a personalized interface for efficient workflow C) Removing all collaborative features D) Using a generic template without customization Answer: B Explanation: Configuring a personalized interface helps in creating an efficient workflow suited to the user's design process. Question 24: Which statement best describes the integration of PLM in 3DEXPERIENCE? A) PLM is an external add-on B) PLM is natively integrated to manage design data and workflows C) PLM is used only for simulation D) PLM functions are limited to file storage Answer: B Explanation: PLM is natively integrated within the 3DEXPERIENCE platform to effectively manage design data and workflows. Question 25: How does 3DEXPERIENCE support rapid design iterations? A) By using static design files B) Through dynamic updates and integrated collaboration tools C) By limiting design changes D) Through offline work only Answer: B Explanation: Dynamic updates and integrated collaboration tools allow rapid design iterations and real- time feedback. Question 26: What type of workspace does 3DEXPERIENCE provide to its users? A) A pre-configured, non-customizable workspace B) A customizable workspace that adapts to user needs C) A workspace with only one view D) A workspace that restricts tool access Answer: B Explanation: The platform offers a customizable workspace, enabling users to arrange tools and views according to their preferences.
Question 32: In the mechanical design environment, which workbench is primarily used for part creation? A) Assembly Design workbench B) Part Design workbench C) Drafting workbench D) Simulation workbench Answer: B Explanation: The Part Design workbench is specifically tailored for creating and modifying individual parts. Question 33: What does the Assembly Design workbench primarily support? A) 2D sketching only B) The creation and management of assemblies C) Financial planning D) User interface customization Answer: B Explanation: The Assembly Design workbench is used to build and manage assemblies by organizing individual parts into a complete structure. Question 34: How are design files primarily managed in the 3DEXPERIENCE Mechanical Design Environment? A) Through local storage only B) Within a centralized product structure and PLM system C) Using standalone file folders D) Through email attachments Answer: B Explanation: Design files are managed within a centralized product structure integrated with the PLM system, ensuring version control and data integrity. Question 35: Which statement is true about the integration of different workbenches in 3DEXPERIENCE? A) They operate in isolation B) They are interconnected, allowing data to flow seamlessly between design, simulation, and manufacturing C) They require manual data export between each other D) They do not support file sharing Answer: B Explanation: The workbenches are integrated, meaning data flows seamlessly between different design phases, enhancing overall productivity. Question 36: What is a key benefit of using the mechanical design environment in 3DEXPERIENCE? A) It requires multiple software installations B) It provides an all-in-one solution for design, simulation, and management C) It limits design options D) It focuses only on aesthetic design Answer: B
Explanation: The all-in-one environment helps streamline the design process by integrating multiple functionalities in one platform. Question 37: How does the 3DEXPERIENCE platform manage design revisions in the mechanical design environment? A) By creating separate files for each revision B) Through integrated version control within the PLM system C) By using manual file renaming D) By ignoring revision history Answer: B Explanation: Integrated version control ensures that all design revisions are tracked and managed systematically within the PLM system. Question 38: Which tool is critical for modifying design files in the mechanical design environment? A) Internet browser B) 3D modeling and editing tools C) Spreadsheet application D) Video player Answer: B Explanation: 3D modeling and editing tools allow designers to modify parts and assemblies effectively within the platform. Question 39: What is the role of simulation within the mechanical design environment? A) To create marketing presentations B) To evaluate design performance under various conditions C) To manage financial budgets D) To replace physical prototypes without analysis Answer: B Explanation: Simulation tools are used to evaluate how designs perform under stress, thermal loads, and other conditions, thereby optimizing the design. Question 40: Which process is streamlined by the integration of design and PLM within 3DEXPERIENCE? A) Offline data backups B) Design file check-in and check-out C) Manual data entry for spreadsheets D) Separate software licensing Answer: B Explanation: The integration allows for a smooth check-in and check-out process, ensuring that design files are properly version controlled. Question 41: In 3DEXPERIENCE, how are design modifications typically handled? A) By creating an entirely new file for every change B) Through parametric and non-parametric modeling tools that update the design C) By using external software D) By only allowing read-only access to design files Answer: B
Explanation: Parametric modeling allows designers to define relationships and dimensions, so that changes in one parameter automatically update the design. Question 47: Which workbench is typically used for creating initial sketches in the design process? A) Simulation workbench B) Sketcher workbench C) Drafting workbench D) Data management workbench Answer: B Explanation: The Sketcher workbench is specifically designed for creating 2D sketches that serve as the foundation for 3D models. Question 48: How does the mechanical design environment support the concept of “design intent”? A) By discouraging modifications B) Through parametric constraints and relationships that maintain design intent C) By randomizing dimensions D) By preventing user input Answer: B Explanation: Parametric constraints and relationships help ensure that any modifications maintain the original design intent. Question 49: Which of the following is an advantage of using a centralized design environment? A) Increased risk of file loss B) Consistent data management and improved collaboration C) Limited access to advanced tools D) Isolated design iterations Answer: B Explanation: Centralized design environments ensure consistent data management and enhance collaboration among design teams. Question 50: What is the benefit of using non-parametric models in 3DEXPERIENCE? A) They allow for rigid, unchangeable designs B) They provide flexibility in cases where design intent does not rely on adjustable parameters C) They automatically update with every change D) They require extensive manual input Answer: B Explanation: Non-parametric models offer flexibility when the design does not need to follow strict parametric relationships. Question 51: Which tool is primarily used for creating and editing 2D geometry in 3DEXPERIENCE? A) Assembly Design workbench B) Sketching tool C) Simulation module D) Cloud management interface Answer: B Explanation: The sketching tool is essential for creating and editing 2D geometries, which form the basis for 3D models.
Question 52: How does constraint management benefit the sketching process? A) It complicates design modifications B) It ensures that geometric relationships remain consistent as changes are made C) It disables editing features D) It prevents any modifications after initial creation Answer: B Explanation: Constraint management maintains the intended geometric relationships even when the design is modified. Question 53: What is the primary outcome of a well-defined sketch in 3DEXPERIENCE? A) A complex assembly without clear structure B) A precise profile that can be used to create accurate 3D models C) A basic outline with no further use D) A set of unrelated geometric shapes Answer: B Explanation: A well-defined sketch provides a precise profile that serves as the foundation for creating accurate 3D models. Question 54: Which technique is fundamental to effective sketching in 3DEXPERIENCE? A) Random point placement B) Use of geometric constraints and relations C) Ignoring symmetry D) Overcomplicating the sketch with unnecessary details Answer: B Explanation: Utilizing geometric constraints and relations is fundamental to creating coherent and modifiable sketches. Question 55: What is a key characteristic of a good sketch-based design in 3DEXPERIENCE? A) Lack of dimensions B) Well-defined constraints that guide feature creation C) Multiple overlapping shapes without purpose D) Absence of symmetry Answer: B Explanation: A good sketch should have well-defined constraints to ensure that subsequent features are created accurately and consistently. Question 56: What does extruding a sketch accomplish in part design? A) It converts the sketch into a 3D solid model B) It deletes the sketch C) It converts the sketch into a 2D drawing D) It only changes the color of the sketch Answer: A Explanation: Extruding a sketch is the process of transforming a 2D sketch into a 3D solid by adding depth. Question 57: How do fillets and chamfers contribute to part design? A) They serve as decorative elements only
C) The file naming convention D) The external hardware used Answer: B Explanation: Accurate constraints and dimensions in a sketch directly impact the precision of the resulting 3D model. Question 63: In the context of part creation, what is the main benefit of using extrude features? A) They complicate the design process B) They create 3D geometry from 2D sketches quickly C) They are used only for decorative purposes D) They convert 3D models back to 2D sketches Answer: B Explanation: Extrude features allow designers to rapidly convert a 2D sketch into a 3D model by adding depth. Question 64: How do designers typically update a part model in 3DEXPERIENCE? A) By starting from scratch each time B) By modifying existing features using parametric tools C) By exporting to a different software D) By printing a new sketch every time Answer: B Explanation: Designers update part models by modifying existing features through parametric tools, ensuring consistency in design changes. Question 65: What is a common strategy to avoid errors in sketch-based designs? A) Ignoring constraints B) Using fully defined sketches with proper constraints C) Relying solely on intuition D) Avoiding the use of dimensions Answer: B Explanation: Fully defining a sketch with appropriate constraints minimizes errors and leads to more robust designs. Question 66: How does the integration of sketching and part design benefit the overall design process? A) It slows down design iterations B) It creates a seamless transition from 2D sketches to 3D models C) It isolates design elements D) It only works for non-parametric models Answer: B Explanation: The integrated workflow allows a smooth transition from 2D sketches to fully realized 3D models, enhancing efficiency. Question 67: What is the primary purpose of the Assembly Design workbench? A) To create detailed 2D drawings only B) To assemble individual parts into a coherent product structure C) To perform financial analysis
D) To manage user profiles Answer: B Explanation: The Assembly Design workbench enables the creation and management of assemblies by positioning and constraining individual parts. Question 68: Which feature is crucial when inserting components into an assembly? A) Random placement B) Use of constraints such as mate and align C) Ignoring component orientation D) Manual file copying Answer: B Explanation: Constraints like mate and align ensure that components are correctly positioned relative to one another. Question 69: How can designers manage large assemblies effectively in 3DEXPERIENCE? A) By working with each component separately without structure B) By utilizing assembly trees and hierarchical organization C) By avoiding the use of constraints D) By reducing the assembly to 2D drawings only Answer: B Explanation: Assembly trees and hierarchical organization help manage complex assemblies by providing a clear structure for components. Question 70: What is the purpose of interference checking in assembly design? A) To decorate the assembly B) To identify and resolve overlapping components or collisions C) To enhance the color scheme D) To increase file size Answer: B Explanation: Interference checking is used to detect and correct instances where components interfere with each other, ensuring proper assembly fit. Question 71: Which tool is primarily used to analyze the motion of assemblies in 3DEXPERIENCE? A) Financial module B) Motion simulation tool C) Spreadsheet application D) Static rendering engine Answer: B Explanation: The motion simulation tool is designed to analyze how assemblies move and interact under different conditions. Question 72: How does the Assembly Design workbench support design modifications? A) By locking the assembly structure B) By allowing designers to move, edit, and update component relationships easily C) By preventing any changes once an assembly is created D) By requiring reassembly from scratch Answer: B
Question 78: What is the purpose of scaling in 2D drafting within 3DEXPERIENCE? A) To reduce file size only B) To accurately represent the dimensions of the 3D model on paper C) To distort the design intentionally D) To create abstract sketches Answer: B Explanation: Scaling ensures that the 2D drawing is a true representation of the 3D model’s dimensions for accurate production. Question 79: How are annotations used in 2D drawings? A) To clutter the drawing B) To provide additional information such as dimensions, notes, and symbols C) To replace the need for measurements D) To only enhance the visual appeal without functional details Answer: B Explanation: Annotations add essential details that explain dimensions, tolerances, and other specifications needed for manufacturing. Question 80: What is a BOM in the context of drafting and detailing? A) A type of simulation software B) A Bill of Materials that lists all components in a design C) A financial report D) A color coding scheme Answer: B Explanation: A Bill of Materials (BOM) is a comprehensive list of components, parts, and materials required to build a product. Question 81: How does detailing enhance a 2D drawing? A) By removing dimensions B) By adding tolerances, surface finish notes, and other critical annotations C) By simplifying the drawing D) By excluding component names Answer: B Explanation: Detailing provides additional information such as tolerances and surface finishes, ensuring that the drawing contains all necessary manufacturing details. Question 82: What is the role of callouts in drafting? A) To randomly assign numbers to parts B) To highlight specific features or areas that require additional explanation C) To serve as decorative elements only D) To replace dimensions entirely Answer: B Explanation: Callouts direct attention to specific areas in a drawing that require further clarification or detail. Question 83: How do designers typically export drawings from 3DEXPERIENCE? A) As unstructured text files
B) In standard file formats such as PDF or DWG for sharing and printing C) Only as images D) They cannot export drawings Answer: B Explanation: Exporting drawings in standard formats like PDF or DWG ensures compatibility with various systems and facilitates sharing. Question 84: Which process in drafting ensures that a drawing is production-ready? A) Randomizing dimensions B) Detailing with accurate annotations and verifying scale C) Removing all notes D) Converting the drawing to a 3D model Answer: B Explanation: Detailing and verifying the scale of a drawing ensure that it meets production and manufacturing standards. Question 85: What is a key consideration when creating a parts list in a drawing? A) Excluding component dimensions B) Including all parts with accurate identifiers and quantities C) Using vague descriptions D) Listing only the largest components Answer: B Explanation: A detailed parts list ensures that every component is accurately identified and quantified for production. Question 86: Which of the following is an advantage of using 2D drafting tools in 3DEXPERIENCE? A) They require manual calculations B) They provide an exact representation of the 3D model’s geometry C) They are less detailed than 3D models D) They only support black and white images Answer: B Explanation: 2D drafting tools convert the 3D model into detailed drawings that precisely communicate the geometry and specifications needed for manufacturing. Question 87: What does “simulation” primarily analyze in the context of 3DEXPERIENCE? A) Color schemes of a design B) The performance of a design under various conditions C) The financial cost of a project D) User interface layouts Answer: B Explanation: Simulation tools analyze how a design performs under different conditions such as stress, thermal loads, and motion, thereby helping optimize the design. Question 88: Which simulation workbench is used for stress analysis? A) Drafting workbench B) Structural simulation workbench C) Assembly Design workbench
Explanation: In simulations, “load” refers to the external forces or pressures acting on a design, which are crucial for analyzing performance. Question 94: Which aspect of simulation helps designers assess the performance of a product? A) User interface colors B) Stress and strain analysis C) File naming conventions D) Cloud storage capacity Answer: B Explanation: Stress and strain analysis provides valuable insights into how a product will behave under various conditions, guiding design improvements. Question 95: How does the PLM system in 3DEXPERIENCE support data management? A) By storing files in isolated folders B) By centralizing product data, managing versions, and tracking changes C) By eliminating file sharing D) By requiring manual backups only Answer: B Explanation: The PLM system centralizes product data, ensuring that versions are controlled and changes are systematically tracked. Question 96: What is the significance of file check-in and check-out in PLM? A) They slow down the design process B) They ensure that only one user can modify a file at a time, preventing conflicts C) They are optional steps in file management D) They only apply to 2D drawings Answer: B Explanation: Check-in and check-out processes prevent conflicting modifications by ensuring that only one user edits a file at any given time. Question 97: How does 3DEXPERIENCE facilitate collaboration among design teams? A) By isolating files on local drives B) Through cloud-based file sharing and collaborative workflow management C) By using separate software for each team member D) By restricting access to design data Answer: B Explanation: Cloud-based file sharing and collaborative workflows enable design teams to work together in real time regardless of location. Question 98: What is a key feature of configuration management in PLM? A) Random file modifications B) Tracking changes and maintaining a history of design revisions C) Disabling version control D) Allowing simultaneous uncoordinated edits Answer: B Explanation: Configuration management tracks every change, ensuring a complete history of design revisions for future reference and accountability.
Question 99: What does “collaborative workflow management” enable in 3DEXPERIENCE? A) Isolated work sessions B) Task assignment, feedback collection, and structured approval processes C) Automatic deletion of user feedback D) Manual emailing for each change Answer: B Explanation: Collaborative workflow management streamlines the design process by assigning tasks, collecting feedback, and managing approvals systematically. Question 100: Which of the following is a primary benefit of using PLM in 3DEXPERIENCE? A) Increased data redundancy B) Streamlined design data management and improved communication C) Complicated file retrieval D) Isolated user work environments Answer: B Explanation: PLM in 3DEXPERIENCE centralizes design data and enhances communication among team members, leading to more efficient project management. Question 101: How does the integration of manufacturing processes with 3DEXPERIENCE benefit the design-to-production workflow? A) By separating design and manufacturing completely B) By linking design data directly to manufacturing systems C) By requiring manual data conversion D) By reducing collaboration between departments Answer: B Explanation: Integration ensures that design data flows seamlessly to manufacturing systems, reducing errors and streamlining production. Question 102: Which process is essential for preparing models for CNC machining in 3DEXPERIENCE? A) Creating marketing brochures B) Exporting design data to CAM systems C) Converting files to video format D) Manually redrawing each component Answer: B Explanation: Exporting design data to CAM systems is essential for creating toolpaths used in CNC machining. Question 103: What is the purpose of basic toolpath creation in CAM integration? A) To enhance the visual appeal of a design B) To generate the necessary paths for CNC machining operations C) To convert 2D sketches into 3D models D) To manage user access rights Answer: B Explanation: Basic toolpath creation outlines the paths that cutting tools follow during CNC machining, ensuring accurate production.
