3DEXPERIENCE Function Driven Generative Designer Practice Exam

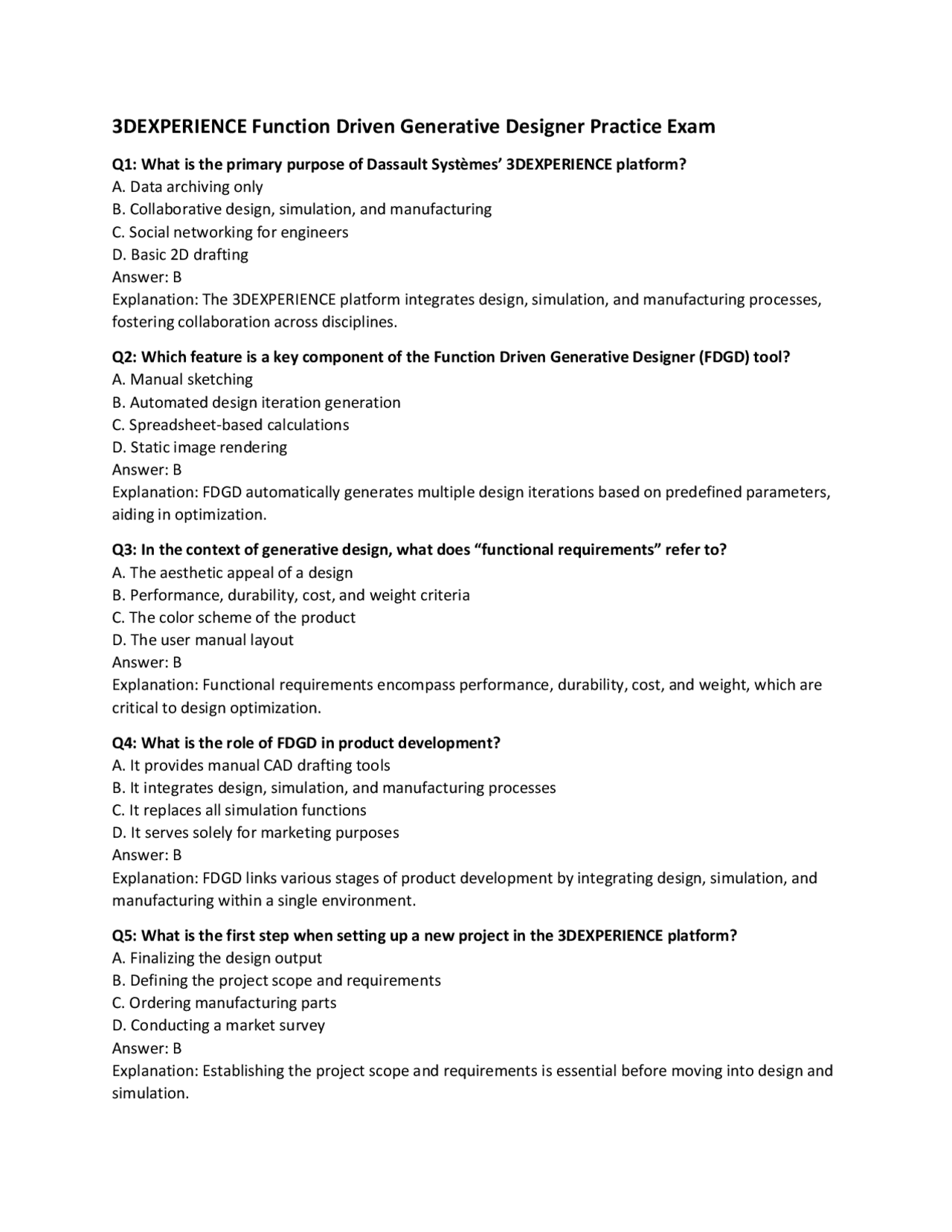

Q1: What is the primary purpose of Dassault Systèmes’ 3DEXPERIENCE platform? A. Data archiving only B. Collaborative design, simulation, and manufacturing C. Social networking for engineers D. Basic 2D drafting Answer: B Explanation: The 3DEXPERIENCE platform integrates design, simulation, and manufacturing processes, fostering collaboration across disciplines. Q2: Which feature is a key component of the Function Driven Generative Designer (FDGD) tool? A. Manual sketching B. Automated design iteration generation C. Spreadsheet-based calculations D. Static image rendering Answer: B Explanation: FDGD automatically generates multiple design iterations based on predefined parameters, aiding in optimization. Q3: In the context of generative design, what does “functional requirements” refer to? A. The aesthetic appeal of a design B. Performance, durability, cost, and weight criteria C. The color scheme of the product D. The user manual layout Answer: B Explanation: Functional requirements encompass performance, durability, cost, and weight, which are critical to design optimization. Q4: What is the role of FDGD in product development? A. It provides manual CAD drafting tools B. It integrates design, simulation, and manufacturing processes C. It replaces all simulation functions D. It serves solely for marketing purposes Answer: B Explanation: FDGD links various stages of product development by integrating design, simulation, and manufacturing within a single environment. Q5: What is the first step when setting up a new project in the 3DEXPERIENCE platform? A. Finalizing the design output B. Defining the project scope and requirements C. Ordering manufacturing parts D. Conducting a market survey Answer: B Explanation: Establishing the project scope and requirements is essential before moving into design and simulation.
Q6: When defining design goals and constraints, which of the following is critical? A. Selecting a random material B. Setting up design objectives and limitations C. Ignoring environmental factors D. Copying previous projects Answer: B Explanation: Clearly defined design goals and constraints are crucial to steer the generative design process effectively. Q7: How does the FDGD tool handle design space definition? A. By automatically generating colors B. Through workbenches that define geometries and boundaries C. By outsourcing design tasks D. By eliminating constraints Answer: B Explanation: FDGD uses workbenches within 3DEXPERIENCE to set up the design space and define geometrical boundaries. Q8: Which aspect is essential when analyzing functional requirements in generative design? A. Only focusing on aesthetics B. Evaluating performance under load cases C. Ignoring cost factors D. Emphasizing only the manufacturing process Answer: B Explanation: Evaluating performance under various load cases is key to meeting functional requirements. Q9: In generative design, what is the importance of defining geometric constraints? A. It determines the color palette B. It limits design options to feasible geometries C. It only affects the user interface D. It is used solely for documentation Answer: B Explanation: Geometric constraints ensure that design iterations remain within feasible and manufacturable boundaries. Q10: What role do material libraries play in 3DEXPERIENCE for FDGD? A. They provide marketing information B. They supply material properties for design optimization C. They offer user manuals only D. They are used for scheduling maintenance Answer: B Explanation: Material libraries provide necessary material properties that help optimize designs based on strength, weight, and other factors. Q11: How can modifying design spaces influence generative design outcomes? A. It only changes the visual representation
D. Swapping materials randomly Answer: B Explanation: Trade-offs in generative design involve balancing different objectives that may conflict, like weight reduction versus structural strength. Q17: In FDGD, what is the purpose of post-processing optimization results? A. To create a marketing brochure B. To select the final design alternative based on performance metrics C. To archive outdated designs D. To adjust user settings Answer: B Explanation: Post-processing involves evaluating simulation outcomes to choose the optimal design that meets all criteria. Q18: Which constraint handling is considered advanced in FDGD? A. Handling fixed color patterns B. Managing manufacturing and cost constraints C. Ignoring load cases D. Simplifying simulation details Answer: B Explanation: Advanced constraint handling involves addressing complex issues such as manufacturing limits and cost considerations. Q19: How is simulation-driven design implemented in FDGD? A. By manual tweaking only B. Through real-time simulation feedback integrated into the design process C. By delaying simulation until after manufacturing D. By excluding simulation data Answer: B Explanation: FDGD integrates simulation feedback into the design process in real time, allowing designers to adjust parameters quickly. Q20: What is one challenge addressed by design for additive manufacturing (DfAM) in FDGD? A. Minimizing file size B. Optimizing build orientation and support structures C. Removing simulation data D. Increasing manual drafting Answer: B Explanation: DfAM in FDGD focuses on challenges such as optimizing build orientation and designing support structures for additive manufacturing. Q21: Which metric is commonly visualized to evaluate design performance in FDGD? A. Pixel density B. von Mises stress C. Color contrast D. Internet speed Answer: B
Explanation: von Mises stress is a crucial metric for evaluating the structural performance of a design under load. Q22: What does the factor of safety indicate in a generative design simulation? A. The design’s aesthetic appeal B. The margin between actual stress and maximum allowable stress C. The speed of the simulation D. The user-friendliness of the interface Answer: B Explanation: The factor of safety provides an indication of how much stronger the system is than it needs to be for a given load. Q23: When evaluating manufacturability, which aspect is most critical? A. Design color palette B. Production feasibility and ease of manufacturing C. The number of simulation iterations D. Software version used Answer: B Explanation: Manufacturability focuses on whether the design can be efficiently produced with existing manufacturing processes. Q24: What does “convergence criteria” refer to in simulation-based design? A. The color settings of the design B. The predetermined acceptable simulation results for design iterations C. The software installation process D. The user’s login credentials Answer: B Explanation: Convergence criteria define the acceptable limits for simulation results, ensuring that the design meets performance expectations. Q25: How is the final design selected in FDGD? A. By random selection B. Through a systematic evaluation of simulation and optimization results C. Based solely on aesthetic appeal D. By copying a competitor’s design Answer: B Explanation: The final design is chosen after evaluating various simulation metrics and optimization outcomes to meet all design requirements. Q26: How are FDGD results integrated into traditional CAD models? A. By manually redrawing each part B. Through importing and refining FDGD results in CAD software C. By ignoring FDGD outputs D. Through a third-party conversion tool only Answer: B Explanation: FDGD results can be imported into CAD environments for further refinement and preparation for manufacturing.
B. An iterative process of design, simulation, and evaluation C. A static drafting process D. A purely theoretical exercise Answer: B Explanation: The FDGD workflow is iterative, continuously refining design alternatives based on simulation feedback and evaluation. Q33: What is the significance of load cases in generative design? A. They determine the software’s installation location B. They simulate real-world conditions to test design performance C. They are used to calculate file sizes D. They define user access levels Answer: B Explanation: Load cases simulate various real-world conditions, ensuring that the design performs reliably under expected stresses. Q34: In FDGD, what is the role of environmental conditions during design evaluation? A. They influence the aesthetic design only B. They affect simulation results and design feasibility C. They determine the operating system D. They only matter during post-processing Answer: B Explanation: Environmental conditions impact simulation outcomes and help in assessing whether the design meets real-world operational requirements. Q35: Which factor is NOT considered a functional requirement in FDGD? A. Cost B. Weight C. Material aesthetics D. Durability Answer: C Explanation: Functional requirements typically focus on performance factors such as cost, weight, and durability rather than aesthetics. Q36: What is one of the main challenges when balancing conflicting design goals? A. Increasing simulation runtime B. Optimizing trade-offs between performance, cost, and manufacturability C. Reducing file sizes D. Overcomplicating the user interface Answer: B Explanation: Balancing conflicting design goals involves managing trade-offs between different performance criteria like cost, strength, and manufacturability. Q37: How are design goals defined in a new FDGD project? A. By using random values B. Through the identification of performance targets and constraints C. By copying previous designs
D. By focusing solely on aesthetics Answer: B Explanation: Defining design goals involves specifying performance targets and constraints that guide the generative process. Q38: Why is material selection important in generative design? A. It only affects the color of the design B. It influences strength, weight, and overall performance C. It has no impact on design outcomes D. It solely determines the software version Answer: B Explanation: Material selection affects key properties such as strength and weight, which are crucial for achieving optimal design performance. Q39: What does the term “design space” refer to in FDGD? A. The physical office space where design occurs B. The range of possible geometries and configurations available C. The color spectrum used in design D. The network bandwidth available for simulation Answer: B Explanation: The design space defines the boundaries and possibilities within which the generative design tool can explore alternatives. Q40: Which workbench is primarily used in 3DEXPERIENCE to define design geometries? A. The drawing workbench B. The generative design workbench C. The marketing workbench D. The animation workbench Answer: B Explanation: The generative design workbench provides the tools to define and modify the design geometries and constraints. Q41: What is the significance of setting boundary conditions in FDGD? A. They determine the color output B. They ensure the design meets physical and geometric limits C. They affect only the simulation speed D. They are used for user authentication Answer: B Explanation: Boundary conditions define the limits within which the design must operate, ensuring its feasibility under real-world constraints. Q42: How does FDGD utilize static analysis in its simulation process? A. By evaluating time-dependent responses B. By assessing design performance under steady loads C. By calculating animation frames D. By generating random outputs Answer: B
Q48: What is the purpose of post-processing in the generative design workflow? A. To delete redundant simulation data B. To analyze and visualize simulation results for decision-making C. To increase the design file size D. To prepare designs for marketing presentations Answer: B Explanation: Post-processing helps in visualizing and interpreting key simulation metrics, guiding the final design selection. Q49: How does FDGD facilitate the evaluation of von Mises stress? A. By ignoring it completely B. By providing visual stress maps and numerical data C. By converting it into color gradients only D. By outsourcing analysis to third-party software Answer: B Explanation: FDGD offers tools that display von Mises stress distribution, allowing designers to identify critical stress points. Q50: What does the term “manufacturability” refer to in FDGD evaluations? A. The cost of software licenses B. The feasibility of producing the design using available manufacturing processes C. The number of simulation iterations D. The design’s aesthetic appeal Answer: B Explanation: Manufacturability assesses whether a design can be efficiently and economically produced. Q51: In the context of FDGD, what does “integration with CAD” mean? A. Merging design data with traditional CAD tools for further refinement B. Deleting simulation data after design generation C. Converting CAD files to text documents D. Disabling simulation features Answer: A Explanation: Integration with CAD allows designers to import and refine generative design results within a familiar CAD environment. Q52: What is one key consideration when preparing FDGD outputs for 3D printing? A. Ignoring support structure requirements B. Adjusting for build orientation and material usage C. Reducing file resolution D. Overcomplicating the design unnecessarily Answer: B Explanation: Preparing a design for 3D printing involves optimizing build orientation and support structures to ensure successful production. Q53: How does CNC machining readiness differ from 3D printing in FDGD? A. CNC machining requires no design modifications B. It focuses on adjusting tolerances and surface finishes
C. It is solely about color management D. It uses the same preparation process as 3D printing Answer: B Explanation: CNC machining often requires precise tolerances and surface finish considerations, which differ from the requirements of 3D printing. Q54: Which collaborative feature is inherent to the 3DEXPERIENCE platform? A. Isolated design work without feedback B. Cross-functional design review and revision management C. Offline simulation only D. Unchangeable design files Answer: B Explanation: The platform supports collaborative workflows by enabling design revisions and integrated feedback among teams. Q55: How do case studies contribute to understanding FDGD applications? A. By providing irrelevant marketing details B. Through step-by-step real-world examples that illustrate the process C. By offering generic design templates D. By focusing solely on theory Answer: B Explanation: Case studies offer practical insights into how FDGD is applied, showcasing problem-solving and optimization techniques. Q56: What industry is mentioned as a key adopter of FDGD? A. Textile design B. Aerospace C. Culinary arts D. Music production Answer: B Explanation: The aerospace industry leverages FDGD for high-performance, lightweight design optimization. Q57: In FDGD, why is it important to define loading conditions? A. They determine the file format B. They simulate real-world forces acting on the design C. They only affect the color scheme D. They are used for software updates Answer: B Explanation: Loading conditions simulate real-world forces, ensuring the design is robust under expected operational stresses. Q58: What does “design optimization” typically involve in the FDGD process? A. Reducing simulation accuracy B. Iteratively refining designs to meet performance and cost targets C. Increasing the number of colors used D. Removing all constraints
Explanation: Advanced constraint handling in FDGD is designed to manage nonlinear and dynamic boundary conditions effectively. Q64: What does “DfAM” stand for in the context of FDGD? A. Design for additive manufacturing B. Data for automated modeling C. Digital framework for art management D. Development for advanced machinery Answer: A Explanation: DfAM stands for Design for Additive Manufacturing, focusing on optimizing designs for 3D printing processes. Q65: Which aspect of FDGD is crucial when addressing additive manufacturing challenges? A. Increasing the number of colors B. Optimizing build orientation and reducing support structure needs C. Ignoring material properties D. Enhancing manual drafting skills Answer: B Explanation: Addressing additive manufacturing challenges requires careful consideration of build orientation and minimizing the need for support structures. Q66: Why is it important to visualize simulation results like displacement in FDGD? A. To enhance user interface graphics B. To identify areas of potential design weakness C. To adjust simulation file sizes D. To improve internet download speeds Answer: B Explanation: Visualization of displacement helps designers identify potential weaknesses in the design, ensuring structural integrity. Q67: What is the significance of evaluating stress distribution in a design? A. It only affects the simulation’s visual appeal B. It identifies areas where the design may fail under load C. It determines the user interface layout D. It increases the simulation run time without benefits Answer: B Explanation: Evaluating stress distribution is essential for identifying critical points that may need reinforcement to prevent failure. Q68: What does the term “simulation metrics” encompass in FDGD? A. Only the simulation runtime B. Measures such as stress, displacement, and factor of safety C. The number of design iterations only D. Internet connectivity data Answer: B Explanation: Simulation metrics include various measurements like stress levels, displacement, and factor of safety, which are crucial for evaluating design performance.
Q69: How are simulation results typically visualized in FDGD? A. As plain text only B. Through color maps and numerical data overlays C. Only as bar graphs D. In a spreadsheet format only Answer: B Explanation: FDGD uses visual tools such as color maps combined with numerical data to effectively present simulation results. Q70: What is a common method for refining designs based on simulation outcomes in FDGD? A. Ignoring simulation data B. Adjusting design parameters and rerunning simulations C. Manually redrawing every element D. Converting simulations into videos only Answer: B Explanation: Refining designs involves modifying parameters based on simulation outcomes and iterating until the desired performance is achieved. Q71: Which simulation tool is primarily used for structural analysis in FDGD? A. Image processing software B. Finite Element Analysis (FEA) tools C. Audio editing software D. Web development frameworks Answer: B Explanation: Finite Element Analysis (FEA) is central to structural analysis in FDGD, providing insights into stress, strain, and displacement. Q72: How does FDGD facilitate iterative design evaluation? A. By using a one-time design generation B. By automatically generating multiple design alternatives C. By limiting the number of design iterations D. By manual intervention at every step Answer: B Explanation: FDGD’s iterative process generates several design alternatives, allowing continuous evaluation and refinement. Q73: What role do design constraints play in the generative design process? A. They are optional suggestions B. They limit and guide the design space to realistic outcomes C. They only affect the user interface D. They increase the number of simulation errors Answer: B Explanation: Constraints are essential as they define the realistic boundaries within which the design must operate, ensuring practical outcomes. Q74: In FDGD, what does “load case definition” typically involve? A. Describing the design’s color scheme
D. Ignoring user feedback Answer: B Explanation: A clear problem definition is essential for guiding the case study analysis and ensuring that design objectives are met. Q80: How do real-world applications of FDGD benefit industries? A. By increasing production costs B. By optimizing design performance and reducing development time C. By complicating the design process D. By solely focusing on aesthetics Answer: B Explanation: FDGD streamlines design processes, leading to improved performance and reduced time- to-market for various industries. Q81: What is the purpose of establishing design constraints in FDGD? A. To eliminate simulation requirements B. To ensure designs remain within feasible and realistic parameters C. To maximize the number of design iterations without limits D. To complicate the evaluation process Answer: B Explanation: Constraints keep the design process focused on realistic and manufacturable outcomes, ensuring feasibility. Q82: What is one reason FDGD is beneficial for product development? A. It reduces the need for interdisciplinary collaboration B. It integrates multiple processes into one streamlined workflow C. It limits design iterations D. It removes the need for simulation feedback Answer: B Explanation: FDGD brings together design, simulation, and manufacturing processes, fostering a more efficient and collaborative product development workflow. Q83: Which of the following is a simulation parameter in FDGD? A. Network latency B. Displacement under load C. Font style D. Web browser version Answer: B Explanation: Displacement under load is a key simulation parameter that helps assess the structural performance of a design. Q84: What does “post-processing” typically involve in the FDGD workflow? A. Generating marketing brochures B. Analyzing simulation data to guide design improvements C. Reducing simulation resolution D. Exporting data to social media Answer: B
Explanation: Post-processing is used to interpret simulation data, such as stress and displacement metrics, which guide subsequent design refinements. Q85: In FDGD, how does real-time simulation feedback benefit the design process? A. It increases the number of manual adjustments needed B. It allows for immediate evaluation and correction of design parameters C. It solely displays color changes D. It delays the overall process Answer: B Explanation: Real-time feedback enables designers to make quick adjustments, thereby improving design accuracy and reducing iteration time. Q86: What is one challenge when incorporating additive manufacturing considerations into FDGD? A. Increasing the file size excessively B. Optimizing build orientation to minimize support structures C. Focusing only on material aesthetics D. Ignoring cost constraints entirely Answer: B Explanation: A key challenge is optimizing build orientation and support structures to ensure that the design is efficient and suitable for 3D printing. Q87: Which of the following best describes generative design? A. A process that manually creates a single design B. An automated iterative process generating multiple design alternatives C. A technique that only enhances visual appeal D. A method for data encryption Answer: B Explanation: Generative design uses algorithms to automatically generate numerous design alternatives based on set parameters and constraints. Q88: How does FDGD handle multiple design objectives simultaneously? A. By optimizing one objective and ignoring the others B. Through multi-objective optimization that balances conflicting criteria C. By random selection of design parameters D. By using a sequential one-step process Answer: B Explanation: FDGD’s multi-objective optimization simultaneously considers several criteria, ensuring a balanced final design. Q89: What aspect of FDGD is critical for ensuring design safety? A. The choice of color palette B. The evaluation of von Mises stress and factor of safety C. The file naming convention D. The user interface layout Answer: B Explanation: Evaluating metrics such as von Mises stress and factor of safety is essential to ensure that the design will perform safely under operational conditions.
B. By outlining objectives, constraints, and performance targets C. By copying previous project scopes without changes D. By focusing solely on material costs Answer: B Explanation: Defining the project scope involves clearly stating the objectives, constraints, and performance targets that guide the entire design process. Q96: In FDGD, why is it important to set design constraints early in the process? A. To ensure the design is aesthetically pleasing only B. To limit the design space to realistic and achievable outcomes C. To delay the simulation process D. To increase the number of iterations unnecessarily Answer: B Explanation: Early constraint definition focuses the design process on feasible solutions, improving both efficiency and outcome quality. Q97: What is one outcome of using FDGD in terms of design alternatives? A. A single static design is produced B. Multiple diverse design iterations are generated automatically C. Only traditional CAD models are produced D. The design alternatives are all identical Answer: B Explanation: FDGD generates a variety of design iterations automatically, offering multiple solutions for evaluation and selection. Q98: Which aspect of FDGD is critical for simulating realistic operating conditions? A. The software’s icon design B. The inclusion of relevant load cases and environmental conditions C. The color scheme of the interface D. The file export format Answer: B Explanation: Realistic simulation requires accurately defined load cases and environmental conditions to reflect actual operating scenarios. Q99: How does FDGD support the concept of “design for manufacturing”? A. By focusing solely on simulation aesthetics B. By incorporating manufacturability criteria during design optimization C. By ignoring production limitations D. By solely enhancing visual presentations Answer: B Explanation: FDGD integrates manufacturability criteria so that design iterations are not only optimized for performance but are also practical to produce. Q100: What is the significance of using workbenches in the 3DEXPERIENCE platform for FDGD? A. They are used only for file storage B. They provide specific tools to define and modify the design space C. They limit the number of available design options
D. They are used for social media integration Answer: B Explanation: Workbenches in 3DEXPERIENCE offer specialized tools that help define, modify, and manage the design space for generative design. Q101: What does “simulation-driven design” emphasize in FDGD? A. The exclusive use of manual design tools B. The integration of simulation feedback to guide design modifications C. Ignoring simulation outcomes D. Focusing only on external appearances Answer: B Explanation: Simulation-driven design uses the results from simulation feedback to continuously refine and optimize the design. Q102: How does FDGD facilitate the evaluation of manufacturing readiness? A. By only focusing on digital simulations B. By translating design results into CAD models for production feasibility assessment C. By ignoring material selection data D. By limiting the number of design iterations Answer: B Explanation: FDGD integrates with CAD systems to ensure that the design is not only optimized but also ready for manufacturing processes. Q103: Which simulation technique is particularly useful for evaluating dynamic responses in FDGD? A. Static analysis only B. Dynamic analysis C. Manual sketching D. Color mapping exclusively Answer: B Explanation: Dynamic analysis is used to evaluate how a design responds to time-varying loads and dynamic conditions, which is essential for certain applications. Q104: What does “boundary conditions” mean in the context of FDGD? A. The physical limits set on the design’s geometry and environment B. The user’s login credentials C. The network settings for simulation software D. The graphic design templates Answer: A Explanation: Boundary conditions are the defined limits on geometry and environmental factors that constrain and guide the design process. Q105: How does FDGD help in balancing cost and performance? A. By ignoring cost constraints B. By allowing trade-offs between various design objectives during optimization C. By focusing solely on performance D. By manually entering cost data only after design finalization Answer: B
