3DEXPERIENCE Mechanical Designer Practice Exam

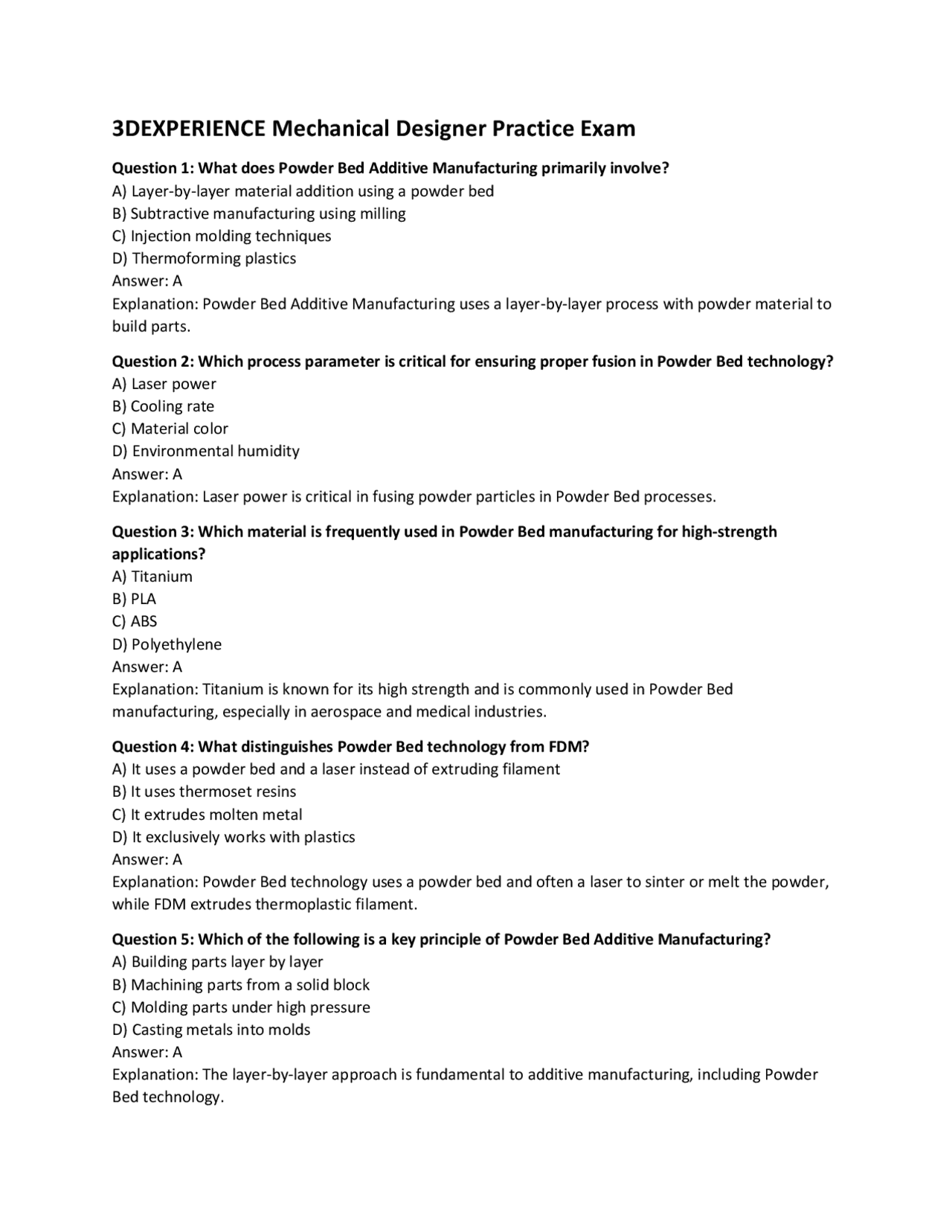

Question 1: What does Powder Bed Additive Manufacturing primarily involve? A) Layer-by-layer material addition using a powder bed B) Subtractive manufacturing using milling C) Injection molding techniques D) Thermoforming plastics Answer: A Explanation: Powder Bed Additive Manufacturing uses a layer-by-layer process with powder material to build parts. Question 2: Which process parameter is critical for ensuring proper fusion in Powder Bed technology? A) Laser power B) Cooling rate C) Material color D) Environmental humidity Answer: A Explanation: Laser power is critical in fusing powder particles in Powder Bed processes. Question 3: Which material is frequently used in Powder Bed manufacturing for high‐strength applications? A) Titanium B) PLA C) ABS D) Polyethylene Answer: A Explanation: Titanium is known for its high strength and is commonly used in Powder Bed manufacturing, especially in aerospace and medical industries. Question 4: What distinguishes Powder Bed technology from FDM? A) It uses a powder bed and a laser instead of extruding filament B) It uses thermoset resins C) It extrudes molten metal D) It exclusively works with plastics Answer: A Explanation: Powder Bed technology uses a powder bed and often a laser to sinter or melt the powder, while FDM extrudes thermoplastic filament. Question 5: Which of the following is a key principle of Powder Bed Additive Manufacturing? A) Building parts layer by layer B) Machining parts from a solid block C) Molding parts under high pressure D) Casting metals into molds Answer: A Explanation: The layer-by-layer approach is fundamental to additive manufacturing, including Powder Bed technology.
Question 6: In Powder Bed processes, how does particle size affect the build quality? A) Finer particles generally lead to higher resolution and better surface finish B) Larger particles create smoother surfaces C) Particle size does not affect build quality D) Coarser particles always yield better mechanical properties Answer: A Explanation: Finer particles allow for more detailed builds and smoother surfaces due to better packing and resolution. Question 7: What is a primary advantage of Powder Bed manufacturing in rapid prototyping? A) It can quickly produce complex geometries B) It requires long lead times C) It is limited to simple shapes D) It relies solely on subtractive methods Answer: A Explanation: Powder Bed manufacturing excels at producing complex geometries rapidly, which is ideal for prototyping. Question 8: Which industry benefits from Powder Bed technology for producing lightweight structures? A) Aerospace B) Textile C) Food processing D) Agriculture Answer: A Explanation: The aerospace industry often utilizes Powder Bed technology to produce lightweight yet strong components. Question 9: What is one of the main challenges in Powder Bed Additive Manufacturing? A) Managing residual stresses during the build process B) Inability to create intricate geometries C) Excessive waste material D) High energy consumption compared to all other techniques Answer: A Explanation: Residual stresses can lead to warping and other defects, making them a challenge in Powder Bed processes. Question 10: How has Powder Bed technology evolved over the years? A) Through improvements in material science and laser technology B) By reducing the number of available materials C) By limiting the build volume D) By focusing solely on plastic parts Answer: A Explanation: Advancements in material science and laser technology have driven the evolution of Powder Bed technology.
B) Injection of binding agents C) Use of molds D) Post-curing with UV light Answer: A Explanation: Powder Bed fusion uses lasers or electron beams to melt or sinter powders, whereas binder jetting involves depositing a binding agent. Question 17: What does the term "layer thickness" refer to in Powder Bed manufacturing? A) The height of each individual powder layer deposited B) The total build height C) The width of the printed part D) The time required to print a layer Answer: A Explanation: Layer thickness is the measurement of the height of each powder layer, affecting resolution and build time. Question 18: Which aspect of Powder Bed technology is most crucial for producing complex internal geometries? A) The ability to build layer by layer B) The speed of the recoater C) The color of the powder D) The size of the machine Answer: A Explanation: Layer-by-layer construction allows the creation of intricate internal structures that would be difficult with traditional manufacturing. Question 19: How does Powder Bed technology contribute to sustainable manufacturing practices? A) By minimizing material waste through precise layering B) By increasing scrap rates C) By using non-recyclable materials D) By producing high levels of hazardous waste Answer: A Explanation: Powder Bed technology is efficient in material usage, reducing waste and supporting sustainable manufacturing practices. Question 20: What is one advantage of using ceramics in Powder Bed processes? A) High-temperature resistance B) Flexibility C) Low melting point D) High ductility Answer: A Explanation: Ceramics offer excellent high-temperature resistance, making them suitable for certain applications in Powder Bed manufacturing. Question 21: Which factor is crucial when selecting a material for Powder Bed processes? A) Material compatibility with the energy source B) The cost of packaging
C) The country of origin D) The color of the packaging Answer: A Explanation: The material must be compatible with the energy source (laser or electron beam) used in the process to ensure proper fusion. Question 22: What is a common application of aluminum in Powder Bed Additive Manufacturing? A) Lightweight structural components B) High-density shielding C) Heavy machinery parts D) Flexible electronics Answer: A Explanation: Aluminum's low density and good strength-to-weight ratio make it ideal for lightweight structural components. Question 23: What is the primary goal when optimizing powder particle size for Powder Bed processes? A) To achieve a balance between resolution and build speed B) To maximize electrical conductivity C) To increase the weight of the final product D) To reduce the material cost significantly Answer: A Explanation: A balanced particle size helps maintain high resolution while ensuring efficient build times. Question 24: How does the evolution of Powder Bed technology impact industrial applications? A) It enables faster prototyping and more intricate designs B) It restricts design possibilities C) It increases manufacturing lead times D) It limits material choices Answer: A Explanation: Advances in Powder Bed technology have expanded the potential for rapid prototyping and complex designs across industries. Question 25: What distinguishes Powder Bed technology from SLA in terms of material use? A) Powder Bed uses powdered materials while SLA uses photopolymer resins B) Powder Bed uses liquid resins C) SLA uses metal powders D) Both use the same materials Answer: A Explanation: Powder Bed technology relies on powdered materials, whereas SLA (stereolithography) uses photopolymer resins that are cured with light. Question 26: Which industry often uses Powder Bed technology for producing intricate designs with high precision? A) Jewelry manufacturing B) Textile production C) Paper processing
Answer: A Explanation: The platform’s intuitive interface and integrated workflow management enhance productivity in Powder Bed programming. Question 32: How does the 3DEXPERIENCE platform support project management in additive manufacturing? A) By enabling easy creation, modification, and tracking of projects B) By requiring manual tracking on spreadsheets C) By outsourcing project management tasks D) By limiting access to only one user Answer: A Explanation: The platform streamlines project management by allowing easy creation, tracking, and modification of projects. Question 33: What type of files can be imported into the 3DEXPERIENCE platform for integration with design models? A) CAD files B) Only text files C) Audio files D) Video files Answer: A Explanation: The platform supports CAD file imports, which are essential for integrating design models with manufacturing processes. Question 34: Which aspect of the 3DEXPERIENCE platform is most beneficial for simulation tasks? A) Its ability to perform thermal and stress simulations B) Its focus solely on design aesthetics C) Its limitation to basic file editing D) Its lack of simulation tools Answer: A Explanation: The platform provides robust simulation capabilities, including thermal and stress analyses, which are critical for additive manufacturing. Question 35: How does the user interface of 3DEXPERIENCE facilitate Powder Bed programming? A) By offering an intuitive navigation system for different stages of the build B) By requiring command-line inputs C) By focusing exclusively on file storage D) By limiting visual representations Answer: A Explanation: The user interface is designed to be intuitive, making it easier to navigate between design, simulation, and manufacturing stages. Question 36: What role does the 3DEXPERIENCE platform play in managing manufacturing workflows? A) It organizes the process flow from design to post-processing B) It manages only the design stage C) It is used only for simulation purposes D) It acts solely as a file repository
Answer: A Explanation: The platform oversees the entire workflow, ensuring smooth transitions between design, simulation, and manufacturing. Question 37: Which collaboration tool within 3DEXPERIENCE is essential for team-based projects? A) Real-time file sharing and version control B) Isolated design modules C) Manual communication only D) Third-party software integrations exclusively Answer: A Explanation: Real-time collaboration features like file sharing and version control are vital for effective team-based projects. Question 38: In the context of 3DEXPERIENCE, what is the significance of integrating CAD files? A) It allows the seamless transition from design to manufacturing B) It increases the complexity of the software C) It limits the design capabilities D) It requires additional hardware Answer: A Explanation: Integration of CAD files ensures that designs are accurately represented and can be directly used in manufacturing workflows. Question 39: How does 3DEXPERIENCE enhance the efficiency of Powder Bed programming? A) By streamlining design, simulation, and manufacturing processes into one platform B) By separating design and manufacturing into distinct systems C) By eliminating the need for simulations D) By focusing solely on file management Answer: A Explanation: The integrated nature of the platform reduces redundancies and enhances overall efficiency in Powder Bed programming. Question 40: Which stage of the manufacturing process is directly supported by 3DEXPERIENCE’s simulation tools? A) Pre-build testing and validation B) Only post-build verification C) Material waste management D) Packaging design Answer: A Explanation: Simulation tools in 3DEXPERIENCE are primarily used for pre-build testing and validation to predict potential issues. Question 41: What benefit does the 3DEXPERIENCE platform offer in terms of design iteration? A) Rapid feedback through integrated simulation and visualization tools B) Slow iteration due to isolated modules C) Manual design changes without simulation D) Limited feedback on design flaws Answer: A
Question 47: What is a common feature found in the 3DEXPERIENCE platform's user interface? A) A dashboard that consolidates project information B) A command-line prompt C) A text-only interface D) Isolated, unrelated modules Answer: A Explanation: The dashboard provides a centralized view of project details, enhancing user navigation and decision-making. Question 48: How does the integration of simulation in 3DEXPERIENCE benefit the Powder Bed manufacturing process? A) It allows for early detection of potential build issues B) It eliminates the need for testing C) It focuses solely on design aesthetics D) It increases overall build time Answer: A Explanation: Early simulation helps identify and address issues before physical manufacturing, reducing waste and errors. Question 49: What is the significance of the project collaboration features in 3DEXPERIENCE? A) They facilitate effective communication among team members B) They restrict file access to individual users C) They increase project complexity D) They delay design iterations Answer: A Explanation: Effective communication and collaboration tools are essential for successful team projects and timely project completion. Question 50: How does 3DEXPERIENCE contribute to efficient workflow management in additive manufacturing? A) By integrating design, simulation, and manufacturing in one platform B) By separating each stage into different systems C) By focusing solely on manufacturing D) By relying on external simulation software Answer: A Explanation: The platform’s integrated approach streamlines the entire workflow, enhancing efficiency and reducing errors. Question 51: Which feature in 3DEXPERIENCE ensures that all project data is up-to-date? A) Automated synchronization and version tracking B) Manual file updates C) Scheduled data purges D) Isolated file storage Answer: A Explanation: Automated synchronization keeps all team members informed of the latest project developments.
Question 52: What does the user interface of 3DEXPERIENCE primarily aim to simplify? A) Navigation through complex project workflows B) Programming in assembly language C) Manual calculation of process parameters D) Hardware maintenance procedures Answer: A Explanation: The intuitive interface is designed to simplify navigation through various stages of a project. Question 53: In what way does 3DEXPERIENCE facilitate material selection for Powder Bed processes? A) By providing simulation data that informs material performance B) By offering a limited selection of materials C) By focusing on aesthetic qualities D) By requiring external analysis Answer: A Explanation: Simulation data within the platform aids in evaluating how different materials will perform under process conditions. Question 54: How is project security maintained within the 3DEXPERIENCE platform? A) Through access controls and data encryption B) By keeping all data unencrypted C) By limiting project access to one user D) By storing data locally without backups Answer: A Explanation: Robust security measures, including access controls and encryption, protect project data on the platform. Question 55: What aspect of 3DEXPERIENCE enhances the efficiency of iterative design revisions? A) Integrated feedback from simulation and visualization tools B) Lack of data tracking C) Manual file export D) Isolated design modules Answer: A Explanation: The integrated feedback mechanism speeds up iterative design revisions by providing real- time insights. Question 56: How does 3DEXPERIENCE streamline the transition from design to manufacturing? A) By seamlessly integrating CAD, simulation, and manufacturing modules B) By requiring multiple software packages C) By manual file conversions D) By focusing exclusively on the design phase Answer: A Explanation: The seamless integration of various modules facilitates a smooth transition from design to manufacturing. Question 57: What is the effect of increasing layer thickness in Powder Bed processes? A) Reduced resolution and faster build times B) Higher resolution and slower build times
Explanation: Environmental factors such as temperature and humidity can alter powder flow and fusion characteristics. Question 63: What is the purpose of calibrating process parameters in Powder Bed manufacturing? A) To ensure consistent build quality and repeatability B) To change the color of the material C) To slow down the process intentionally D) To reduce the number of build layers Answer: A Explanation: Calibration ensures that the process remains consistent across builds, maintaining quality. Question 64: How can real-time adjustments improve Powder Bed processes? A) They allow for corrections during the build, enhancing part quality B) They only increase build time C) They have no significant impact on quality D) They solely adjust post-processing steps Answer: A Explanation: Real-time adjustments enable operators to correct issues as they arise, reducing defects. Question 65: What is a common defect in Powder Bed manufacturing that can result from improper parameter settings? A) Warping B) Perfect surface finish C) Enhanced tensile strength D) Increased build speed Answer: A Explanation: Incorrect parameter settings can cause warping, leading to dimensional inaccuracies. Question 66: How does laser power affect the fusion of powder particles? A) Higher power typically increases fusion but may also cause overheating B) Lower power always yields better results C) Laser power is irrelevant D) It only affects the recoating process Answer: A Explanation: While higher laser power enhances fusion, it can also lead to overheating if not controlled properly. Question 67: Which parameter is most directly responsible for the energy input during the printing process? A) Laser power B) Recoater speed C) Powder color D) Ambient sound Answer: A Explanation: Laser power determines the amount of energy applied to the powder, affecting melting and bonding.
Question 68: What role does calibration play in Powder Bed manufacturing? A) It ensures that process parameters produce consistent and high-quality builds B) It alters the chemical composition C) It increases build time unnecessarily D) It is only used in post-processing Answer: A Explanation: Calibration is key to ensuring that each build meets quality standards consistently. Question 69: Why is process optimization critical in Powder Bed programming? A) To minimize defects and maximize part performance B) To increase build times C) To solely enhance aesthetics D) To eliminate the need for design iterations Answer: A Explanation: Optimizing process parameters helps in reducing defects and ensuring optimal part performance. Question 70: How does a change in scanning speed typically affect the build quality? A) It alters the thermal input, affecting melt pool formation B) It only changes the build color C) It solely influences the number of layers D) It has no impact on part integrity Answer: A Explanation: Scanning speed directly influences the energy distribution, affecting how well the powder melts and fuses. Question 71: What is one potential consequence of using too high a recoater speed? A) Uneven powder layers leading to defects B) Perfect layer uniformity C) Faster curing of the powder D) Reduced energy consumption Answer: A Explanation: Excessively high recoater speeds can result in uneven layers, compromising build quality. Question 72: How can process parameters be optimized during the build? A) Through real-time monitoring and adjustments B) By ignoring sensor data C) By setting parameters once and never adjusting D) Through post-build analysis only Answer: A Explanation: Real-time monitoring allows operators to fine-tune parameters for optimal build conditions. Question 73: What is the impact of ambient temperature on Powder Bed processes? A) It can affect powder flow and fusion behavior B) It only impacts machine noise C) It has no significant effect
Question 79: How can real-time monitoring impact the Powder Bed process? A) It allows for immediate adjustments to maintain optimal build conditions B) It only increases operational complexity C) It solely tracks post-build defects D) It has no practical impact Answer: A Explanation: Real-time monitoring helps identify deviations early, enabling prompt corrections to maintain quality. Question 80: Which process parameter is most influential in controlling the build resolution? A) Layer thickness B) Powder color C) Ambient noise D) Machine size Answer: A Explanation: The layer thickness directly influences the resolution and detail of the printed part. Question 81: What can be the result of improper calibration of the laser power? A) Inadequate melting and weak inter-layer bonding B) Enhanced detail in the printed part C) Faster build times with improved strength D) Increased powder reuse Answer: A Explanation: Incorrect calibration of laser power can lead to incomplete fusion, resulting in weak bonding between layers. Question 82: How does scanning speed correlate with thermal gradients in the build? A) Faster speeds reduce the time for heat accumulation, affecting gradients B) Scanning speed has no correlation C) Slower speeds always minimize thermal gradients D) It solely depends on ambient temperature Answer: A Explanation: The scanning speed influences how heat is distributed and dissipated, impacting thermal gradients. Question 83: What is one method to optimize process parameters before a full build? A) Conducting small-scale test prints B) Skipping calibration steps C) Increasing all parameters simultaneously D) Relying on default settings only Answer: A Explanation: Small test prints help validate and adjust parameters, ensuring optimal results for larger builds. Question 84: How does powder particle morphology influence the Powder Bed process? A) It affects flowability and packing density B) It only impacts the color of the powder
C) It is not an important factor D) It solely determines the build speed Answer: A Explanation: The shape and morphology of powder particles influence how well they pack and flow, affecting overall build quality. Question 85: What is the primary purpose of generating G-code in Powder Bed programming? A) To instruct the machine on tool paths and process parameters B) To display design aesthetics C) To generate post-processing steps D) To manage material inventory Answer: A Explanation: G-code provides the detailed instructions required for the machine to execute the print. Question 86: How is toolpath generation critical in Powder Bed processes? A) It defines the precise movement of the energy source over the powder bed B) It solely affects the cooling process C) It is used only for material selection D) It determines the color of the final product Answer: A Explanation: The toolpath dictates how the laser or electron beam moves, impacting accuracy and build quality. Question 87: What does path planning aim to optimize in Powder Bed manufacturing? A) Minimizing build time and material usage B) Increasing the number of layers C) Enhancing post-processing D) Maximizing energy consumption Answer: A Explanation: Path planning seeks to create efficient build strategies that reduce time and material waste. Question 88: Why is the relationship between the 3D model and G-code important? A) It ensures the design is accurately translated into machine instructions B) It only affects the visual display C) It is irrelevant to the final product D) It determines the packaging method Answer: A Explanation: Accurate translation of the 3D model to G-code is essential for producing a part that meets design specifications. Question 89: How can toolpath optimization improve build outcomes? A) By reducing unnecessary movements, thereby minimizing build time B) By increasing material usage C) By complicating the manufacturing process D) By ignoring part geometry
Question 95: Which programming technique is vital for handling complex geometries? A) Advanced toolpath algorithms B) Manual milling C) Randomized layer deposition D) Simplistic path planning Answer: A Explanation: Complex geometries require sophisticated algorithms to generate effective toolpaths. Question 96: How does the generation of G-code in Powder Bed programming differ from traditional CNC machining? A) It is designed for additive processes rather than subtractive methods B) It follows the same principles as CNC machining C) It does not require any toolpath generation D) It focuses solely on drilling operations Answer: A Explanation: G-code for Powder Bed processes is specifically tailored to additive manufacturing techniques. Question 97: What is the significance of post-processing in the context of support structures? A) It involves the removal and finishing of supports to improve surface quality B) It only adds decorative elements C) It increases the build time without benefits D) It solely focuses on color correction Answer: A Explanation: Post-processing ensures that support structures are removed properly and the final surface meets quality standards. Question 98: Which factor is critical when programming support structures? A) The geometry of the part B) The color of the support material C) The speed of the printer D) The ambient lighting Answer: A Explanation: The design and geometry of the part determine the optimal support structure configuration. Question 99: How can Powder Bed programming techniques reduce material waste? A) By optimizing toolpaths and support placement B) By increasing the build volume C) By using more supports than necessary D) By ignoring part complexity Answer: A Explanation: Efficient programming minimizes unnecessary material usage, resulting in reduced waste. Question 100: What does the term 'path planning' refer to in Powder Bed programming? A) The process of designing the route that the energy source will follow B) The selection of materials
C) The post-processing of supports D) The packaging of the final product Answer: A Explanation: Path planning involves determining the precise movement of the laser or electron beam during the build. Question 101: How do programming techniques for Powder Bed processes differ from those used in traditional manufacturing? A) They focus on additive layer-by-layer construction rather than subtractive methods B) They use the same techniques as CNC machining C) They eliminate the need for digital models D) They are based on manual drafting Answer: A Explanation: Additive manufacturing requires specialized programming approaches tailored to layer-by- layer build processes. Question 102: Which aspect of G-code is most critical for ensuring build accuracy in Powder Bed manufacturing? A) The precision of the toolpath coordinates B) The file size C) The programming language used D) The inclusion of decorative comments Answer: A Explanation: Precise toolpath coordinates are essential for accurate printing and adherence to design dimensions. Question 103: How does support structure optimization affect the overall build process? A) It improves build stability and minimizes post-processing efforts B) It increases the complexity of the design C) It only affects build speed D) It has no significant impact Answer: A Explanation: Optimized supports maintain part stability during printing and simplify subsequent removal processes. Question 104: What is the primary benefit of using advanced path planning algorithms in Powder Bed programming? A) They improve print speed and accuracy B) They solely reduce energy consumption C) They simplify the user interface D) They are used only for quality control Answer: A Explanation: Advanced algorithms enhance the efficiency of the printing process by optimizing toolpaths and reducing build time. Question 105: Which step is critical before generating G-code for Powder Bed processes? A) Validating the 3D model for errors
