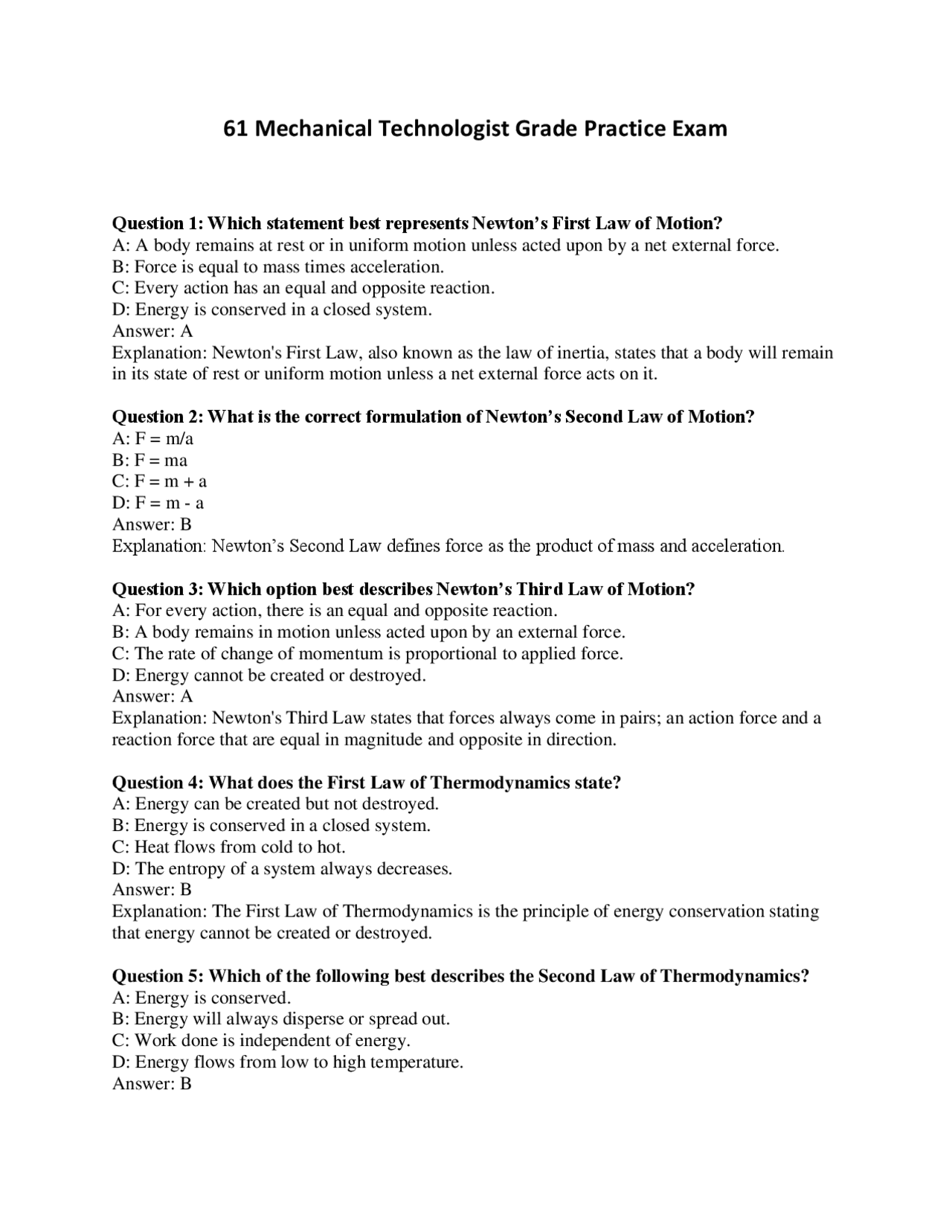

61 Mechanical Technologist Grade Practice Exam
Question 1: Which statement best represents Newton’s First Law of Motion? A: A body remains at rest or in uniform motion unless acted upon by a net external force. B: Force is equal to mass times acceleration. C: Every action has an equal and opposite reaction. D: Energy is conserved in a closed system. Answer: A Explanation: Newton's First Law, also known as the law of inertia, states that a body will remain in its state of rest or uniform motion unless a net external force acts on it. Question 2: What is the correct formulation of Newton’s Second Law of Motion? A: F = m/a B: F = ma C: F = m + a D: F = m - a Answer: B Explanation: Newton’s Second Law defines force as the product of mass and acceleration. Question 3: Which option best describes Newton’s Third Law of Motion? A: For every action, there is an equal and opposite reaction. B: A body remains in motion unless acted upon by an external force. C: The rate of change of momentum is proportional to applied force. D: Energy cannot be created or destroyed. Answer: A Explanation: Newton's Third Law states that forces always come in pairs; an action force and a reaction force that are equal in magnitude and opposite in direction. Question 4: What does the First Law of Thermodynamics state? A: Energy can be created but not destroyed. B: Energy is conserved in a closed system. C: Heat flows from cold to hot. D: The entropy of a system always decreases. Answer: B Explanation: The First Law of Thermodynamics is the principle of energy conservation stating that energy cannot be created or destroyed. Question 5: Which of the following best describes the Second Law of Thermodynamics? A: Energy is conserved. B: Energy will always disperse or spread out. C: Work done is independent of energy. D: Energy flows from low to high temperature. Answer: B
Explanation: The Second Law of Thermodynamics indicates that energy tends to spread out and that processes have a preferred direction. Question 6: How is stress defined in material science? A: Force per unit area. B: Energy per unit volume. C: Mass per unit area. D: Acceleration per unit time. Answer: A Explanation: Stress is defined as the force applied per unit area of the material. Question 7: What does the term ‘mechanical advantage’ refer to? A: The ratio of output force to input force. B: The difference between work output and work input. C: The rate of energy conversion. D: The efficiency of thermal machines. Answer: A Explanation: Mechanical advantage is the factor by which a mechanism multiplies the force put into it. Question 8: How is efficiency in a mechanical system calculated? A: Input energy divided by output energy. B: Output energy divided by input energy. C: The sum of input and output energy. D: The difference between input and output energy. Answer: B Explanation: Efficiency is calculated as the ratio of useful output energy to the total input energy. Question 9: Which condition is necessary for an object to be in static equilibrium? A: Net force equals zero. B: Net force is greater than zero. C: Net force is less than zero. D: Only gravitational forces act on it. Answer: A Explanation: Static equilibrium requires that the sum of forces and moments acting on an object is zero. Question 10: What is dynamic equilibrium in mechanics? A: Motion at constant speed in a straight line. B: No movement at all. C: Accelerated motion under force. D: Circular motion at variable speed. Answer: A Explanation: Dynamic equilibrium occurs when an object is moving at a constant velocity, meaning acceleration is zero.
C: The energy per unit volume. D: The measure of toughness. Answer: B Explanation: Strain is the measure of deformation representing the change in length divided by the original length. Question 17: What is Young's Modulus a measure of? A: Plastic deformation. B: Elastic stiffness of a material. C: Thermal expansion. D: Density of a material. Answer: B Explanation: Young’s Modulus measures a material's stiffness during elastic deformation. Question 18: Which of the following best describes elastic deformation? A: Permanent change in shape. B: Temporary shape change that is reversible. C: Material fracture. D: A change in volume without change in shape. Answer: B Explanation: Elastic deformation is reversible, meaning the material returns to its original shape after the applied stress is removed. Question 19: What does the term ‘toughness’ of a material refer to? A: Its ability to resist scratching. B: Its ability to absorb energy before fracturing. C: Its weight per unit volume. D: Its hardness on a scale. Answer: B Explanation: Toughness is a measure of the energy a material can absorb before fracturing, combining strength and ductility. Question 20: Which formula correctly defines the factor of safety in design? A: Factor of Safety = Yield Strength / Applied Stress B: Factor of Safety = Applied Stress / Yield Strength C: Factor of Safety = Ultimate Strength - Applied Stress D: Factor of Safety = Ultimate Strength + Applied Stress Answer: A Explanation: The factor of safety is defined as the ratio of the material's yield strength to the applied stress, ensuring design safety. Question 21: In a tension test, which behavior indicates elastic deformation? A: Permanent elongation after load removal. B: No recovery after load removal. C: Complete recovery of shape after load removal. D: Sudden fracture.
Answer: C Explanation: Elastic deformation is characterized by the ability of a material to return to its original shape once the load is removed. Question 22: What is the primary difference between tensile stress and compressive stress? A: Tensile stress compresses the material, compressive stress stretches it. B: Tensile stress stretches the material, compressive stress compresses it. C: Both have the same effect on materials. D: Tensile stress is only applicable in fluids. Answer: B Explanation: Tensile stress causes stretching of materials, while compressive stress causes them to compress or shorten. Question 23: Which of the following best defines shear force? A: A force that causes bending. B: A force that causes rotation. C: A force that acts parallel to the surface of a material. D: A force that acts perpendicular to the surface. Answer: C Explanation: Shear force acts parallel to the surface and tends to cause layers of material to slide against each other. Question 24: What does the bending moment in a beam indicate? A: The force causing compression only. B: The rotational force causing bending. C: The rate of deformation under compression. D: The gravitational load on the beam. Answer: B Explanation: Bending moment represents the rotational effect due to forces acting on a beam. Question 25: Which of the following conditions must be met for a truss to be in equilibrium? A: Sum of forces in all directions must be zero. B: Only vertical forces must cancel. C: Only horizontal forces must cancel. D: Only moments must be zero. Answer: A Explanation: For a truss to be in equilibrium, the sum of forces in all directions and the sum of moments must be zero. Question 26: Which law of thermodynamics is primarily concerned with energy conservation? A: Zeroth Law B: First Law C: Second Law D: Third Law
Explanation: The Rankine Cycle is used to describe steam power plants where water is heated, converted to steam, and then used to generate power. Question 32: Which process is a heat transfer mechanism involving direct contact? A: Radiation B: Convection C: Conduction D: Advection Answer: C Explanation: Conduction is the transfer of heat through direct contact of molecules. Question 33: Which term best describes the property that quantifies the amount of heat required to change a substance’s temperature? A: Enthalpy B: Entropy C: Specific heat capacity D: Thermal conductivity Answer: C Explanation: Specific heat capacity is the energy required to raise the temperature of a unit mass of a substance by one degree Celsius. Question 34: What is latent heat? A: The energy required to raise temperature without phase change. B: The energy released during chemical reactions. C: The energy required for a substance to undergo a phase change. D: The energy lost to the environment. Answer: C Explanation: Latent heat is the energy absorbed or released during a phase change without a change in temperature. Question 35: Which of the following diagrams is used to represent the thermodynamic properties of a substance? A: Stress-strain diagram B: Mollier diagram C: Bending moment diagram D: Flow rate diagram Answer: B Explanation: The Mollier diagram is used to represent enthalpy versus entropy for substances. Question 36: In an ideal gas, what is the relationship between pressure, volume, and temperature? A: P = V/T B: PV = nRT C: P = nRT/V D: V = nRT/P Answer: B
Explanation: The ideal gas law, PV = nRT, relates pressure, volume, temperature, and the amount of gas. Question 37: Which of the following cycles is typically used in gas turbine engines? A: Carnot Cycle B: Brayton Cycle C: Rankine Cycle D: Diesel Cycle Answer: B Explanation: The Brayton Cycle is the thermodynamic cycle used to describe gas turbine engines. Question 38: In a vapor compression refrigeration cycle, which component compresses the refrigerant? A: Evaporator B: Condenser C: Compressor D: Expansion valve Answer: C Explanation: The compressor is responsible for compressing the refrigerant, raising its pressure and temperature. Question 39: What is the primary purpose of an expansion valve in a refrigeration system? A: To compress the refrigerant. B: To regulate the flow and reduce the pressure. C: To heat the refrigerant. D: To absorb heat from the surroundings. Answer: B Explanation: The expansion valve reduces the pressure of the refrigerant, allowing it to expand and cool. Question 40: Which of the following properties changes during a phase transition? A: Temperature remains constant. B: Pressure decreases linearly. C: Volume remains constant. D: Density remains unchanged. Answer: A Explanation: During a phase transition, the temperature remains constant while latent heat is absorbed or released. Question 41: In thermodynamic cycles, what does the term “efficiency” typically refer to? A: The ratio of output work to input heat. B: The ratio of output heat to input work. C: The ratio of mass flow rate to volume flow rate. D: The ratio of energy lost to energy gained. Answer: A
Question 47: Which process best represents a reversible process in thermodynamics? A: Free expansion of a gas B: Slow isothermal expansion C: Rapid adiabatic expansion D: Sudden compression Answer: B Explanation: A slow isothermal expansion is considered reversible because the system remains in equilibrium throughout the process. Question 48: Which property of a substance is measured in joules per kilogram per degree Celsius? A: Thermal conductivity. B: Specific heat capacity. C: Enthalpy. D: Entropy. Answer: B Explanation: Specific heat capacity is measured in joules per kilogram per degree Celsius, indicating the amount of heat required to change the temperature. Question 49: In thermodynamic terms, what is meant by a “closed system”? A: A system that does not exchange matter with its surroundings. B: A system that does not exchange energy with its surroundings. C: A system that exchanges both energy and matter. D: A system that is isolated from all interactions. Answer: A Explanation: A closed system can exchange energy but not matter with its surroundings. Question 50: Which cycle is typically used in diesel engines? A: Otto Cycle B: Diesel Cycle C: Brayton Cycle D: Rankine Cycle Answer: B Explanation: The Diesel Cycle describes the thermodynamic process in diesel engines. Question 51: What does the term “factor of safety” refer to in mechanical design? A: The ratio of expected load to maximum load. B: The ratio of material yield strength to the applied stress. C: The maximum allowable stress divided by applied stress. D: The difference between ultimate strength and yield strength. Answer: B Explanation: The factor of safety is defined as the ratio of the material's yield strength to the applied stress, ensuring design safety. Question 52: Which manufacturing process involves pouring molten metal into a mold? A: Machining
B: Casting C: Forging D: Welding Answer: B Explanation: Casting involves pouring molten metal into a mold where it solidifies into the desired shape. Question 53: In design for manufacturing (DFM), what is the primary goal? A: To maximize production cost. B: To simplify manufacturing and reduce costs. C: To increase design complexity. D: To limit design changes. Answer: B Explanation: DFM aims to simplify the manufacturing process and reduce production costs. Question 54: Which component is essential in a gear train for transmitting power? A: Bearings B: Shafts C: Gears D: Springs Answer: C Explanation: Gears are essential components in gear trains as they transmit rotational power. Question 55: What does fatigue in materials refer to? A: Permanent deformation after a single load. B: Failure due to repeated cyclic loading. C: Immediate fracture under heavy load. D: A process of heat treatment. Answer: B Explanation: Fatigue is the weakening of a material due to repeated cyclic loading leading to failure over time. Question 56: Which manufacturing process is most suitable for producing complex shapes in metals with high precision? A: Forging B: Machining C: Casting D: Welding Answer: B Explanation: Machining processes like milling or turning are ideal for producing high-precision components with complex geometries. Question 57: What does the term “tolerance” refer to in mechanical design? A: The aesthetic finish of a component. B: The allowable variation in a physical dimension. C: The maximum load a component can handle.
D: Forging Answer: C Explanation: Additive manufacturing adds material only where needed, minimizing waste. Question 63: What is a common method used to improve surface finish in a manufactured part? A: Casting B: Annealing C: Surface finishing and coating D: Forging Answer: C Explanation: Surface finishing and coating techniques are used to improve the aesthetic and functional surface quality of parts. Question 64: In stress analysis, what does a “stress concentration” refer to? A: A uniform distribution of stress. B: A localized area of increased stress. C: The total stress in a structure. D: A reduction in applied load. Answer: B Explanation: A stress concentration is a localized area where stress is significantly higher than the surrounding area, often due to a change in geometry. Question 65: Which type of fastener is most commonly used to secure components in mechanical assemblies? A: Welding electrodes B: Rivets C: Adhesives D: Dovetail joints Answer: B Explanation: Rivets are commonly used as fasteners to securely join components in mechanical assemblies. Question 66: In mechanical design, what is the primary purpose of a coupling? A: To join two shafts together for power transmission. B: To reduce friction between moving parts. C: To increase rotational speed. D: To provide insulation between components. Answer: A Explanation: Couplings are used to connect two shafts together, allowing for power transmission between them. Question 67: Which machining process involves the removal of material using a rotating cutting tool? A: Drilling B: Milling
C: Turning D: Both B and C Answer: D Explanation: Both milling and turning are machining processes that remove material using a rotating cutting tool. Question 68: What does “forging” primarily involve in metalworking? A: Melting and casting metal. B: Shaping metal using localized compressive forces. C: Removing material using cutting tools. D: Adding material layer by layer. Answer: B Explanation: Forging involves shaping metal using compressive forces, often leading to improved strength properties. Question 69: In a design context, what is meant by “material selection”? A: Choosing materials based solely on color. B: Choosing materials based on mechanical properties and cost. C: Selecting the cheapest available material. D: Selecting materials without considering the environment. Answer: B Explanation: Material selection involves evaluating mechanical properties, cost, and application requirements. Question 70: What is the role of a bearing in mechanical systems? A: To transmit torque. B: To support rotating parts and reduce friction. C: To increase rotational speed. D: To secure fasteners in place. Answer: B Explanation: Bearings are used to support rotating parts, reducing friction between moving components. Question 71: Which manufacturing process is best suited for high-volume production with consistent quality? A: Custom 3D printing B: Casting C: Injection molding D: Manual machining Answer: C Explanation: Injection molding is highly efficient for high-volume production of consistent parts. Question 72: Which design method focuses on simplifying the assembly process of products? A: Design for Cost B: Design for Manufacturability
Explanation: Mohr’s Circle is a graphical method used to determine principal stresses and maximum shear stresses. Question 78: What is the bending stress in a beam primarily caused by? A: Axial loads. B: Torsion. C: Transverse loads. D: Thermal expansion. Answer: C Explanation: Bending stress is caused by transverse loads that create a moment about the beam’s neutral axis. Question 79: How is torsional stress in a shaft calculated? A: Using axial load only. B: Using shear stress and the radius of the shaft. C: Using bending moment and length. D: Using compressive load. Answer: B Explanation: Torsional stress is calculated from the applied torque, the shaft's radius, and its material properties. Question 80: What is the purpose of Euler’s Formula in the context of column buckling? A: To determine the ultimate tensile strength. B: To calculate the critical buckling load. C: To measure the material’s hardness. D: To assess fatigue life. Answer: B Explanation: Euler’s Formula is used to calculate the critical load at which a slender column will buckle. Question 81: Which parameter is used to determine the likelihood of buckling in columns? A: Slenderness ratio. B: Yield strength. C: Hardness. D: Toughness. Answer: A Explanation: The slenderness ratio, which is the effective length divided by the radius of gyration, is a key factor in determining buckling. Question 82: What does Hooke’s Law state in the context of elastic deformation? A: Stress is independent of strain. B: Stress is directly proportional to strain. C: Strain is independent of stress. D: Stress is inversely proportional to strain. Answer: B
Explanation: Hooke’s Law states that, within the elastic limit, stress is directly proportional to strain. Question 83: Which type of material deformation is permanent and non-reversible? A: Elastic deformation. B: Plastic deformation. C: Thermal deformation. D: Vibrational deformation. Answer: B Explanation: Plastic deformation refers to permanent changes in shape that do not reverse when the load is removed. Question 84: What does the term “yield point” signify in a stress-strain curve? A: The point of maximum stress. B: The beginning of plastic deformation. C: The point where fracture occurs. D: The initial linear portion of the curve. Answer: B Explanation: The yield point marks the transition from elastic to plastic deformation. Question 85: Which of the following best describes stress concentration? A: Uniform stress distribution across a material. B: Localized increase in stress due to a discontinuity. C: The average stress in a beam. D: The reduction of stress through material reinforcement. Answer: B Explanation: Stress concentration refers to localized regions where stress is significantly higher than the surrounding area, often due to geometric discontinuities. Question 86: In thin-walled pressure vessels, what is the primary concern regarding stress? A: Bending stress. B: Torsional stress. C: Hoop stress. D: Shear stress. Answer: C Explanation: Hoop stress is the stress acting circumferentially in thin-walled pressure vessels. Question 87: What is the significance of the modulus of elasticity? A: It indicates the material's resistance to deformation. B: It measures thermal conductivity. C: It defines the material's toughness. D: It represents the rate of thermal expansion. Answer: A Explanation: The modulus of elasticity measures a material's stiffness and its resistance to elastic deformation under load.
Question 93: Which type of stress is most likely to cause shear failure in a material? A: Tensile stress. B: Compressive stress. C: Torsional stress. D: Thermal stress. Answer: C Explanation: Torsional stress produces shear forces that can lead to shear failure. Question 94: What is the typical failure mode for a column subjected to compressive load beyond its critical load? A: Tensile fracture. B: Buckling. C: Shearing. D: Fatigue. Answer: B Explanation: When a compressive load exceeds the critical load, a column is likely to fail by buckling. Question 95: Which property of a material determines its ability to resist permanent deformation? A: Yield strength. B: Ultimate tensile strength. C: Fracture toughness. D: Thermal conductivity. Answer: A Explanation: Yield strength is the stress at which a material begins to deform plastically, indicating its resistance to permanent deformation. Question 96: In a three-point bending test, what is primarily measured? A: Tensile strength. B: Flexural strength. C: Compressive strength. D: Torsional stiffness. Answer: B Explanation: A three-point bending test is used to determine the flexural strength and stiffness of a material. Question 97: Which method is commonly used to determine the modulus of resilience of a material? A: Calculating the area under the entire stress-strain curve. B: Calculating the area under the elastic portion of the stress-strain curve. C: Measuring the yield strength. D: Determining the ultimate tensile strength. Answer: B Explanation: The modulus of resilience is determined by the area under the elastic portion of the stress-strain curve.
Question 98: What does “creep” refer to in materials engineering? A: Immediate fracture under load. B: Time-dependent deformation under a constant load. C: Elastic recovery after unloading. D: Sudden stress concentration. Answer: B Explanation: Creep is the slow, time-dependent deformation of a material under a constant load. Question 99: Which of the following factors is most critical in preventing buckling of a column? A: Increasing the column’s length. B: Reducing the slenderness ratio. C: Decreasing the material’s yield strength. D: Increasing the applied load. Answer: B Explanation: Reducing the slenderness ratio, by either decreasing the effective length or increasing the radius of gyration, is crucial in preventing buckling. Question 100: In the analysis of thick-walled cylinders, which stress component is most significant? A: Axial stress. B: Radial stress. C: Hoop stress. D: Shear stress. Answer: C Explanation: Hoop stress is the dominant stress in thick-walled cylinders due to internal pressure. Question 101: Which material is classified as a ferrous metal? A: Aluminum B: Copper C: Iron D: Plastic Answer: C Explanation: Ferrous metals contain iron as a primary component. Question 102: What is the main characteristic of non-ferrous metals? A: High magnetic permeability. B: Low resistance to corrosion. C: They do not contain significant amounts of iron. D: They are always brittle. Answer: C Explanation: Non-ferrous metals do not contain significant amounts of iron and often have better corrosion resistance. Question 103: Which property is measured by the Rockwell Hardness test? A: Ductility.
