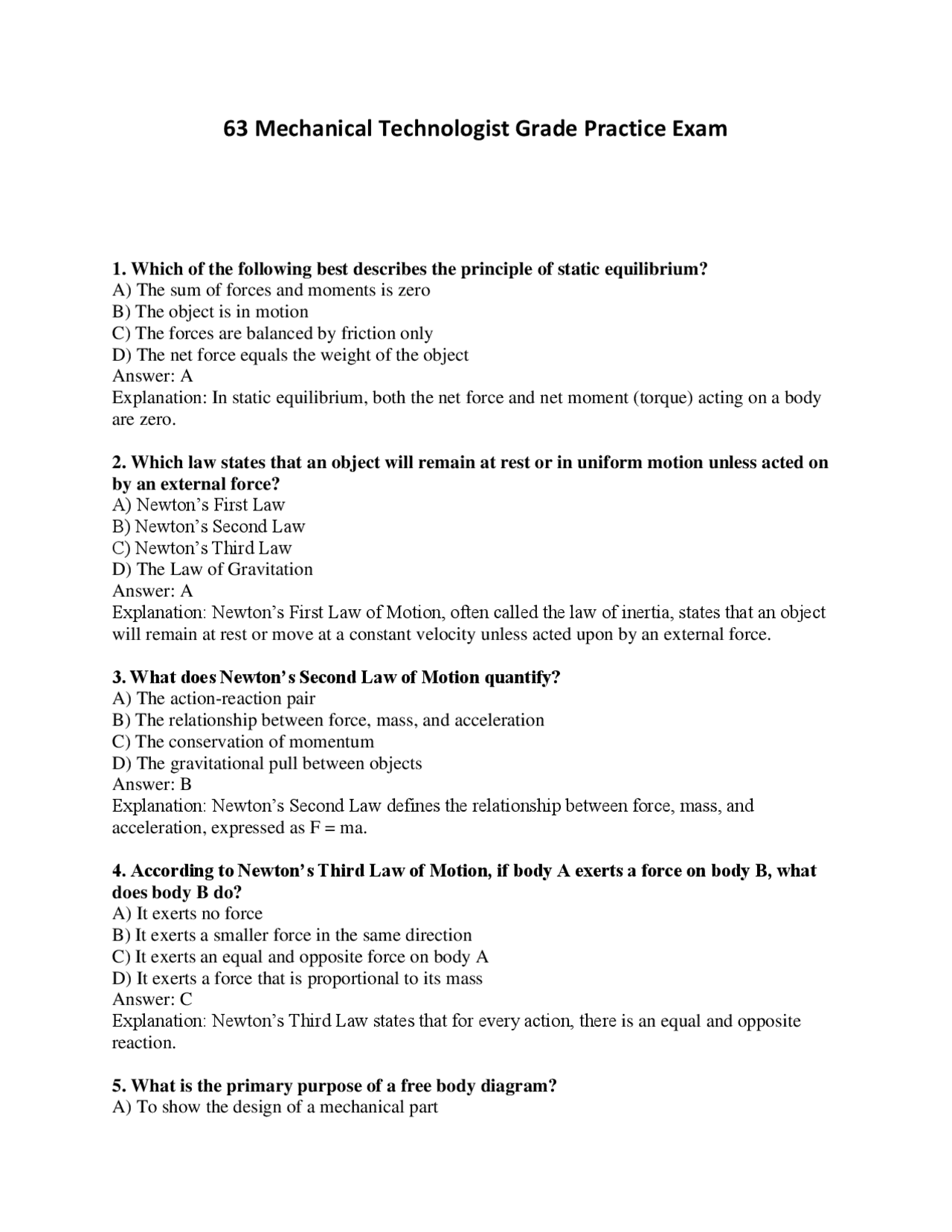

63 Mechanical Technologist Grade Practice Exam
1. Which of the following best describes the principle of static equilibrium? A) The sum of forces and moments is zero B) The object is in motion C) The forces are balanced by friction only D) The net force equals the weight of the object Answer: A Explanation: In static equilibrium, both the net force and net moment (torque) acting on a body are zero. 2. Which law states that an object will remain at rest or in uniform motion unless acted on by an external force? A) Newton’s First Law B) Newton’s Second Law C) Newton’s Third Law D) The Law of Gravitation Answer: A Explanation: Newton’s First Law of Motion, often called the law of inertia, states that an object will remain at rest or move at a constant velocity unless acted upon by an external force. 3. What does Newton’s Second Law of Motion quantify? A) The action-reaction pair B) The relationship between force, mass, and acceleration C) The conservation of momentum D) The gravitational pull between objects Answer: B Explanation: Newton’s Second Law defines the relationship between force, mass, and acceleration, expressed as F = ma. 4. According to Newton’s Third Law of Motion, if body A exerts a force on body B, what does body B do? A) It exerts no force B) It exerts a smaller force in the same direction C) It exerts an equal and opposite force on body A D) It exerts a force that is proportional to its mass Answer: C Explanation: Newton’s Third Law states that for every action, there is an equal and opposite reaction. 5. What is the primary purpose of a free body diagram? A) To show the design of a mechanical part
B) To illustrate the forces acting on a body C) To calculate the weight of a structure D) To compare materials Answer: B Explanation: A free body diagram is a graphical representation used to visualize all forces and moments acting on a body, facilitating the analysis of equilibrium.
6. In kinematics, what is the difference between displacement and distance? A) Displacement is scalar, distance is vector B) Displacement measures change in position (vector), while distance is the total path length (scalar) C) They are identical concepts D) Distance accounts for direction, displacement does not Answer: B Explanation: Displacement is a vector quantity that indicates change in position with direction, whereas distance is a scalar that measures the total path traveled. 7. Which term best defines acceleration in mechanical systems? A) Rate of change of displacement B) Rate of change of velocity C) Rate of change of force D) Rate of change of energy Answer: B Explanation: Acceleration is defined as the rate of change of velocity with respect to time. 8. What does the work-energy principle state? A) Energy is created by work B) Work done on an object is equal to its change in kinetic energy C) Work and energy are unrelated D) Work is always lost as heat Answer: B Explanation: The work-energy principle states that the work done by the net force acting on an object equals the change in its kinetic energy. 9. How is power defined in mechanical terms? A) Energy per unit time B) Force per unit area C) Work done multiplied by time D) Energy multiplied by distance Answer: A Explanation: Power is defined as the rate at which work is done or energy is transferred, typically expressed in watts (Joules per second). 10. Which factor distinguishes static friction from kinetic friction? A) Static friction is generally lower than kinetic friction B) Kinetic friction acts on stationary objects
D) Bending stress Answer: C Explanation: Shear stress results from forces that act parallel to the surface of a material, causing layers to slide relative to each other.
16. What is the purpose of Mohr’s Circle in strength analysis? A) To calculate material density B) To graphically represent the state of stress at a point C) To measure thermal conductivity D) To determine the vibration frequency Answer: B Explanation: Mohr’s Circle is a graphical method used to determine principal stresses, maximum shear stresses, and stress orientations. 17. In beam bending, what does the bending moment represent? A) The force applied perpendicular to the beam B) The tendency of a force to cause rotation about a section C) The weight of the beam D) The friction within the beam Answer: B Explanation: The bending moment is a measure of the bending effect due to forces acting on the beam, representing the tendency to cause rotation about a section. 18. Which type of stress is primarily associated with twisting of a component? A) Tensile stress B) Compressive stress C) Torsional stress D) Shear stress Answer: C Explanation: Torsional stress occurs when a component is twisted by forces, generating a torque. 19. What is the significance of shear force diagrams in structural analysis? A) They depict temperature distribution B) They illustrate variations in shear forces along a beam C) They show the material composition D) They represent energy losses Answer: B Explanation: Shear force diagrams display the variation of shear forces along the length of a beam, aiding in structural design and safety analysis. 20. Failure theories help engineers determine what aspect of material behavior? A) The material’s color changes under stress B) The stress level at which a material will fail C) The electrical properties of the material D) The best manufacturing process Answer: B
Explanation: Failure theories predict the conditions under which materials will fail, considering different modes of stress such as tension, compression, and shear.
21. What property of a material is primarily related to its ability to return to its original shape after deformation? A) Plasticity B) Elasticity C) Hardness D) Toughness Answer: B Explanation: Elasticity is the property that allows a material to return to its original shape after the applied load is removed. 22. When a material undergoes permanent deformation, this behavior is known as what? A) Elastic behavior B) Plastic deformation C) Brittle failure D) Ductile failure Answer: B Explanation: Plastic deformation refers to a permanent change in shape that remains even after the load is removed. 23. Which property describes a material’s resistance to surface indentation or abrasion? A) Elasticity B) Toughness C) Hardness D) Ductility Answer: C Explanation: Hardness is a measure of a material’s resistance to deformation, indentation, or abrasion. 24. In structural design, what is the purpose of a safety factor? A) To maximize the weight of a component B) To provide a margin for error in design loads C) To reduce the cost of materials D) To simplify calculations Answer: B Explanation: A safety factor provides an extra margin in design to account for uncertainties, ensuring that structures remain safe under unexpected loads. 25. Which fluid property is defined as mass per unit volume? A) Viscosity B) Density C) Pressure D) Temperature Answer: B
31. Which mode of heat transfer involves the movement of molecules within a substance without any bulk motion? A) Conduction B) Convection C) Radiation D) Evaporation Answer: A Explanation: Conduction is the process of heat transfer through direct molecular interaction without any overall movement of the material. 32. Convection is primarily associated with which phenomenon? A) Direct contact conduction B) Heat transfer through fluid movement C) Radiation of electromagnetic waves D) Thermal expansion Answer: B Explanation: Convection involves the transfer of heat by the bulk movement of fluid, typically resulting in currents. 33. What distinguishes radiation from conduction and convection in heat transfer? A) It requires a medium B) It only occurs in solids C) It transfers heat through electromagnetic waves without needing a medium D) It is less efficient Answer: C Explanation: Radiation transfers heat in the form of electromagnetic waves and does not require a physical medium. 34. Which thermodynamic cycle is known as the most efficient ideal cycle for heat engines? A) Rankine cycle B) Carnot cycle C) Refrigeration cycle D) Otto cycle Answer: B Explanation: The Carnot cycle is considered the most efficient idealized thermodynamic cycle, setting the upper limit for the efficiency of heat engines. 35. In the Rankine cycle, what is the primary working fluid used in most practical applications? A) Air B) Refrigerant C) Water/steam D) Oil Answer: C Explanation: The Rankine cycle typically uses water/steam as the working fluid in power plants and similar systems.
36. Which cycle is commonly used in refrigeration and air conditioning systems? A) Carnot cycle B) Otto cycle C) Refrigeration cycle D) Diesel cycle Answer: C Explanation: The refrigeration cycle is specifically designed for cooling applications, involving processes of evaporation and condensation. 37. How is energy efficiency generally improved in mechanical systems? A) By increasing friction B) By minimizing energy losses through heat, friction, and other inefficiencies C) By using heavier materials D) By reducing the system size only Answer: B Explanation: Energy efficiency is enhanced by reducing losses such as friction, heat dissipation, and other inefficiencies during energy conversion. 38. What does the term “entropy” describe in thermodynamics? A) The total energy in a system B) The disorder or randomness of a system C) The pressure within a fluid D) The rate of heat transfer Answer: B Explanation: Entropy is a measure of the randomness or disorder in a system and is a central concept in the second law of thermodynamics. 39. The First Law of Thermodynamics is essentially a statement of which principle? A) Conservation of mass B) Conservation of energy C) Increase of entropy D) Equilibrium of forces Answer: B Explanation: The First Law of Thermodynamics states that energy cannot be created or destroyed, only converted from one form to another. 40. Which law of thermodynamics introduces the concept of entropy? A) Zeroth Law B) First Law C) Second Law D) Third Law Answer: C Explanation: The Second Law of Thermodynamics introduces entropy and states that in an isolated system, entropy tends to increase over time.
46. Which method is used to reduce the transmission of vibrations between components? A) Increasing stiffness B) Vibration isolation C) Decreasing mass D) Increasing friction Answer: B Explanation: Vibration isolation techniques are used to minimize the transfer of vibrations from one component to another, improving performance and reducing noise. 47. Which instrument is commonly used to measure the amplitude and frequency of vibrations? A) Thermometer B) Accelerometer C) Barometer D) Caliper Answer: B Explanation: Accelerometers are devices used to measure the magnitude and frequency of vibrations by detecting acceleration forces. 48. What does modal analysis help engineers determine in a vibrating system? A) The color of the material B) The natural modes and frequencies of vibration C) The electrical conductivity D) The weight distribution only Answer: B Explanation: Modal analysis is used to determine the natural vibration modes, frequencies, and damping characteristics of a system. 49. In material selection, which property is most critical when high strength and durability are required? A) Electrical conductivity B) Thermal conductivity C) Mechanical strength and fatigue resistance D) Optical clarity Answer: C Explanation: When high strength and durability are needed, mechanical strength and fatigue resistance are essential properties to consider. 50. Which class of materials is known for its excellent strength-to-weight ratio and corrosion resistance? A) Ceramics B) Polymers C) Non-ferrous metals D) Ferrous metals Answer: C
Explanation: Non-ferrous metals, such as aluminum and titanium, offer a high strength-to-weight ratio and are often resistant to corrosion, making them ideal for many engineering applications.
51. Polymers are often selected in design for which of the following advantages? A) High electrical conductivity B) Low density and ease of processing C) Superior high-temperature strength D) Inherent magnetic properties Answer: B Explanation: Polymers are favored for their low density, ease of manufacturing, and versatility in processing, though they typically have lower strength compared to metals. 52. What is a primary advantage of composite materials in mechanical design? A) They are always cheaper than metals B) They offer tailored properties and high strength-to-weight ratios C) They are easier to recycle D) They have higher thermal conductivity than metals Answer: B Explanation: Composite materials can be engineered to exhibit specific mechanical properties, including high strength-to-weight ratios, by combining different constituent materials. 53. Ceramics are commonly used in applications where which property is critical? A) Ductility B) High hardness and thermal resistance C) Electrical conductivity D) Magnetic properties Answer: B Explanation: Ceramics are known for their high hardness, excellent wear resistance, and superior thermal resistance, making them suitable for high-temperature and abrasive applications. 54. Material fatigue is best described as which phenomenon? A) Immediate failure under a single overload B) Gradual failure under repeated cyclic loading C) Change in material color due to stress D) Rapid melting of a material under heat Answer: B Explanation: Fatigue refers to the progressive structural damage that occurs when a material is subjected to cyclic loading, eventually leading to failure. 55. Corrosion resistance in materials is important for what reason? A) To improve electrical conductivity B) To enhance the material’s aesthetic appeal only C) To prevent degradation and extend the service life of components D) To reduce the weight of the material Answer: C
Explanation: Component sizing ensures that each part is appropriately designed to handle expected loads without being excessively heavy or unnecessarily over-engineered.
61. Geometric Dimensioning and Tolerancing (GD&T) primarily deals with: A) Chemical composition of materials B) Specifying allowable variations in the size and geometry of parts C) Color coding of components D) Thermal properties of materials Answer: B Explanation: GD&T is a system for defining and communicating tolerances in the geometry of manufactured parts, ensuring proper fit and function. 62. Design for Manufacturability (DFM) emphasizes: A) Creating the most complex design possible B) Simplifying design to ease manufacturing and reduce production costs C) Ignoring assembly constraints D) Maximizing the number of components Answer: B Explanation: DFM focuses on designing products in such a way that they are easy and cost- effective to manufacture and assemble, reducing complexity and potential errors. 63. CAD modeling is essential in modern mechanical design because it: A) Replaces the need for physical prototypes completely B) Allows for precise and modifiable virtual representations of designs C) Increases production time D) Limits design flexibility Answer: B Explanation: CAD (Computer-Aided Design) modeling provides accurate, modifiable digital representations of designs, enabling simulations, optimizations, and efficient modifications. 64. What is the primary function of bearings in mechanical systems? A) To increase friction between moving parts B) To support loads and reduce friction between moving components C) To act as a seal against contaminants D) To convert rotational motion to linear motion Answer: B Explanation: Bearings facilitate smooth movement by reducing friction and supporting loads between moving parts. 65. Which type of bearing is designed to accommodate both radial and axial loads? A) Sleeve bearing B) Ball bearing C) Plain bearing D) Magnetic bearing Answer: B
Explanation: Ball bearings are designed to handle both radial and axial loads, providing smooth motion and reducing friction.
66. What distinguishes spur gears from helical gears? A) Spur gears are used only for high-speed applications B) Helical gears have angled teeth for smoother, quieter operation compared to spur gears C) Spur gears are more complex to manufacture D) Helical gears cannot handle axial loads Answer: B Explanation: Helical gears feature angled teeth, which result in smoother and quieter operation compared to the straight teeth of spur gears. 67. In gear mechanisms, what does the gear ratio represent? A) The difference in material properties B) The ratio of the number of teeth on two mating gears, determining speed and torque transmission C) The length of the gear D) The color contrast between gears Answer: B Explanation: The gear ratio is defined by the number of teeth on the driven gear divided by the number of teeth on the driving gear, affecting the output speed and torque. 68. Which type of spring is designed to store energy when compressed? A) Torsion spring B) Compression spring C) Extension spring D) Leaf spring Answer: B Explanation: A compression spring stores energy when compressed and exerts a force when it returns to its original length. 69. Fasteners such as bolts and nuts are primarily used for: A) Enhancing aesthetic appeal B) Mechanically joining parts together in assemblies C) Providing insulation D) Acting as lubricants Answer: B Explanation: Fasteners are used to securely join components together in mechanical assemblies, ensuring proper alignment and strength. 70. Couplings in mechanical systems are used to: A) Transmit power between shafts while compensating for slight misalignment B) Convert rotational motion to linear motion C) Measure vibration amplitude D) Reduce noise exclusively Answer: A
Explanation: Gaskets are designed to fill gaps between two mating surfaces, ensuring a leak- proof seal in pressure-containing systems.
76. What is the main purpose of a gearbox in mechanical power transmission? A) To change the direction of power flow only B) To adjust the speed and torque between the input and output shafts C) To measure rotational speed D) To increase the electrical efficiency Answer: B Explanation: A gearbox modifies the speed and torque delivered by the motor to suit the requirements of the driven equipment. 77. Hydraulic systems primarily use which fluid to transmit power? A) Air B) Oil or hydraulic fluid C) Water exclusively D) Steam Answer: B Explanation: Hydraulic systems typically use oil-based fluids to transmit power due to their incompressibility and lubricating properties. 78. Pneumatic systems are best characterized by the use of: A) Liquids for power transmission B) Compressed air or gas C) Electrical circuits D) Magnetic fields Answer: B Explanation: Pneumatic systems operate using compressed air or gas to transmit power and perform work. 79. Electric motors in mechanical power transmission convert electrical energy into: A) Thermal energy B) Mechanical rotational energy C) Chemical energy D) Radiant energy Answer: B Explanation: Electric motors transform electrical energy into mechanical energy, typically in the form of rotational motion, to drive machinery. 80. In mechanical systems, what is the role of drive systems? A) To store energy as potential energy B) To transmit power from the source to the working components C) To measure fluid flow D) To generate electrical power Answer: B
Explanation: Drive systems are responsible for transferring the power produced by a motor or engine to the components that perform the work.
81. Why are lubrication systems critical in mechanical design? A) They increase friction between moving parts B) They reduce friction, wear, and heat buildup in moving components C) They decrease the reliability of machinery D) They are only used for aesthetic purposes Answer: B Explanation: Lubrication systems minimize friction and wear between moving parts, which helps reduce heat buildup and extends the lifespan of components. 82. In fluid power systems, what is the primary function of a pump? A) To compress gases B) To move fluid through the system by converting mechanical energy into hydraulic energy C) To measure the fluid temperature D) To regulate electrical flow Answer: B Explanation: Pumps are used to circulate fluids by converting mechanical energy into hydraulic energy, ensuring continuous flow in a system. 83. What role does a compressor play in pneumatic systems? A) It cools the system B) It increases the pressure of the air or gas C) It measures air humidity D) It converts electrical energy to mechanical energy Answer: B Explanation: Compressors are used to increase the pressure of air or gas, enabling pneumatic systems to store and use compressed energy. 84. Valves in fluid systems are primarily used to: A) Increase the fluid’s temperature B) Regulate the flow and direction of fluids C) Generate electrical power D) Absorb vibrations Answer: B Explanation: Valves control the flow rate, direction, and pressure of fluids in a system, playing a crucial role in system regulation. 85. How is torque generally calculated in mechanical systems? A) Force multiplied by acceleration B) Force multiplied by the perpendicular distance from the pivot point C) Mass multiplied by velocity D) Force divided by the area Answer: B
Explanation: Drilling is used to create holes in materials, and the process can be controlled to produce precise diameters and depths.
91. What is the main purpose of grinding in manufacturing? A) To roughen surfaces intentionally B) To achieve high-quality surface finishes and precise dimensions C) To cut large sections of material D) To bond materials together Answer: B Explanation: Grinding is a finishing process that removes small amounts of material to produce smooth surfaces and exact dimensions. 92. Non-traditional machining processes such as EDM are primarily used for: A) Cutting materials using high-speed blades B) Removing material using electrical discharges C) Traditional mechanical cutting D) Increasing tool wear intentionally Answer: B Explanation: Electrical Discharge Machining (EDM) removes material through controlled electrical discharges, making it suitable for hard materials and complex shapes. 93. Laser cutting in manufacturing is favored because it: A) Produces rough edges B) Offers high precision and a clean cut with minimal thermal distortion C) Is only applicable to plastics D) Uses mechanical force for cutting Answer: B Explanation: Laser cutting uses a focused beam of light to precisely cut materials with a high- quality finish and minimal heat affected zone. 94. What does the term “tool wear” refer to in machining processes? A) The reduction in cutting tool effectiveness over time due to usage B) The improvement in tool performance C) The increase in production speed D) The cooling process of the tool Answer: A Explanation: Tool wear is the gradual degradation of a cutting tool’s performance and geometry due to prolonged use and friction, affecting precision. 95. Cutting parameters in machining typically include which of the following? A) Tool color and shape B) Cutting speed, feed rate, and depth of cut C) Material price and availability D) Ambient temperature only Answer: B
Explanation: Cutting parameters such as speed, feed rate, and depth of cut are critical in determining machining efficiency, surface finish, and tool life.
96. Which manufacturing process involves pouring molten metal into a mold? A) Machining B) Casting C) Forming D) 3D printing Answer: B Explanation: Casting involves pouring molten metal into a mold where it solidifies into the shape of the cavity. 97. Sand casting is characterized by: A) Using reusable metal molds B) Using a mold made from sand, typically for large, low-cost production C) High precision and minimal surface finish D) Exclusive use in aerospace applications Answer: B Explanation: Sand casting uses sand-based molds that are inexpensive and versatile, ideal for large castings and low-cost production. 98. Die casting differs from sand casting in that it: A) Uses disposable molds B) Uses high-pressure injection into metal molds for precise, high-volume production C) Is only used for plastic components D) Produces rough surface finishes Answer: B Explanation: Die casting employs high-pressure injection of molten metal into durable metal molds, yielding precise components suitable for mass production. 99. Metal forming processes such as rolling are used to: A) Remove material by cutting B) Deform metals plastically to achieve desired shapes C) Increase the temperature of metals D) Bond metals using adhesives Answer: B Explanation: Metal forming processes involve plastic deformation of metals to create shapes like sheets, bars, or structural components without material removal. 100. In the forging process, what is the primary mechanism for shaping metal? A) Chemical reaction B) Plastic deformation under compressive forces C) Melting and recasting D) Electrical discharge Answer: B
