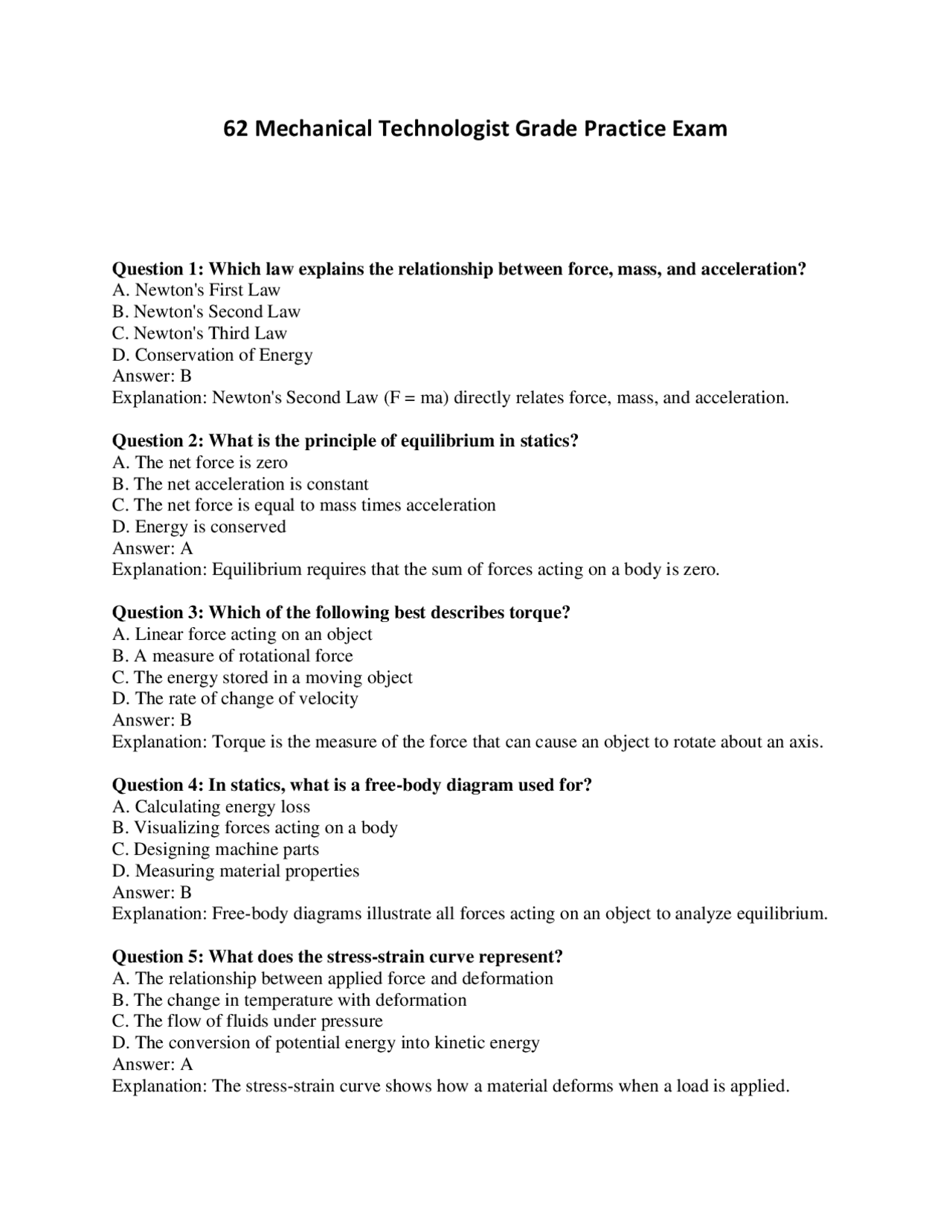

62 Mechanical Technologist Grade Practice Exam
Question 1: Which law explains the relationship between force, mass, and acceleration? A. Newton's First Law B. Newton's Second Law C. Newton's Third Law D. Conservation of Energy Answer: B Explanation: Newton's Second Law (F = ma) directly relates force, mass, and acceleration. Question 2: What is the principle of equilibrium in statics? A. The net force is zero B. The net acceleration is constant C. The net force is equal to mass times acceleration D. Energy is conserved Answer: A Explanation: Equilibrium requires that the sum of forces acting on a body is zero. Question 3: Which of the following best describes torque? A. Linear force acting on an object B. A measure of rotational force C. The energy stored in a moving object D. The rate of change of velocity Answer: B Explanation: Torque is the measure of the force that can cause an object to rotate about an axis. Question 4: In statics, what is a free-body diagram used for? A. Calculating energy loss B. Visualizing forces acting on a body C. Designing machine parts D. Measuring material properties Answer: B Explanation: Free-body diagrams illustrate all forces acting on an object to analyze equilibrium. Question 5: What does the stress-strain curve represent? A. The relationship between applied force and deformation B. The change in temperature with deformation C. The flow of fluids under pressure D. The conversion of potential energy into kinetic energy Answer: A Explanation: The stress-strain curve shows how a material deforms when a load is applied.
Question 6: Which property indicates a material's resistance to permanent deformation? A. Ductility B. Hardness C. Toughness D. Elasticity Answer: D Explanation: Elasticity measures a material's ability to return to its original shape after the load is removed. Question 7: What is the primary focus of statics in mechanical engineering? A. Analyzing moving systems B. Studying forces in stationary systems C. Evaluating thermal properties D. Designing dynamic systems Answer: B Explanation: Statics deals with forces in systems that are at rest or in equilibrium. Question 8: Which of the following is NOT typically considered a basic force? A. Gravitational force B. Frictional force C. Electromagnetic force D. Centrifugal force Answer: D Explanation: Centrifugal force is a pseudo force in a rotating frame, not one of the fundamental forces. Question 9: Which term describes the ability of a material to absorb energy before fracturing? A. Ductility B. Toughness C. Brittleness D. Hardness Answer: B Explanation: Toughness is a measure of the energy a material can absorb before failing. Question 10: In the context of material properties, what does 'creep' refer to? A. Instantaneous deformation under load B. Long-term deformation under constant load C. Elastic recovery after unloading D. Sudden fracture upon stress application Answer: B Explanation: Creep is the slow, permanent deformation of a material when subjected to a constant load over time. Question 11: What is the significance of the modulus of elasticity? A. It measures a material's hardness
B. The ability to do work C. The resistance to deformation D. A property of static systems Answer: B Explanation: Energy is defined as the capacity to perform work or cause change. Question 17: What does the principle of conservation of energy state? A. Energy can be created and destroyed B. Energy remains constant in an isolated system C. Energy always increases over time D. Energy is independent of force Answer: B Explanation: In an isolated system, energy is conserved and remains constant despite transformations. Question 18: What role does material hardness play in engineering applications? A. It indicates resistance to thermal changes B. It determines the ductility of a material C. It shows resistance to surface indentation and wear D. It measures the material's weight Answer: C Explanation: Hardness reflects a material’s resistance to indentation, scratching, and wear. Question 19: In mechanical design, why is material selection critical? A. It solely determines the color of the product B. It affects strength, durability, and performance C. It only influences production cost D. It is unrelated to manufacturing processes Answer: B Explanation: The proper material selection ensures that components have the necessary strength, durability, and performance. Question 20: Which property is vital for materials used in high-temperature applications? A. High electrical conductivity B. Low thermal conductivity C. Creep resistance D. High density Answer: C Explanation: Materials in high-temperature environments must resist creep to maintain structural integrity over time. Question 21: What is the relationship between stress and strain in the elastic region? A. Stress is independent of strain B. Stress is inversely proportional to strain C. Stress is directly proportional to strain D. Stress equals strain squared
Answer: C Explanation: In the elastic region, stress and strain are directly proportional as described by Hooke’s Law. Question 22: Which factor does NOT directly influence the stress experienced by a material? A. Applied force B. Material's cross-sectional area C. Ambient temperature D. Material density Answer: D Explanation: Stress is calculated as force divided by area; density does not directly affect this calculation. Question 23: What is the primary cause of fatigue failure in materials? A. A single overload event B. Repeated cyclic loading C. Static load application D. Temperature changes only Answer: B Explanation: Fatigue failure is caused by the accumulation of damage from repeated cyclic loads. Question 24: Which material property is measured by a tensile test? A. Hardness and wear resistance B. Tensile strength and ductility C. Thermal conductivity D. Density and mass Answer: B Explanation: Tensile tests determine the tensile strength and ductility by stretching a material until it fails. Question 25: What does the term 'ductility' refer to in materials science? A. The ability to resist wear and abrasion B. The ability to deform plastically before fracture C. The capacity to return to its original shape after deformation D. The capacity to conduct electricity Answer: B Explanation: Ductility is a material’s ability to undergo significant plastic deformation before breaking. Question 26: Which equation represents the principle of conservation of mass in fluid flow? A. Bernoulli’s equation B. Continuity equation C. Navier-Stokes equation D. Euler’s equation Answer: B
Explanation: The Rankine cycle is widely used in steam power plants to convert water into steam for power generation. Question 32: What does specific heat capacity measure? A. The amount of heat required to change a substance's phase B. The energy needed to raise the temperature of a unit mass by one degree C. The total thermal energy of a system D. The rate of heat conduction Answer: B Explanation: Specific heat capacity quantifies the energy needed to increase the temperature of a unit mass by one degree Celsius. Question 33: Which law of thermodynamics introduces the concept of entropy? A. First Law B. Zeroth Law C. Second Law D. Third Law Answer: C Explanation: The Second Law of Thermodynamics introduces entropy, which indicates the degree of disorder in a system. Question 34: What is the function of an orifice meter in fluid mechanics? A. To measure the viscosity of a fluid B. To measure the flow rate of a fluid C. To determine fluid temperature D. To assess fluid density Answer: B Explanation: An orifice meter measures the flow rate by creating a pressure drop across an orifice. Question 35: In a closed system undergoing a thermodynamic process, which property remains constant during an isothermal process? A. Pressure B. Temperature C. Volume D. Entropy Answer: B Explanation: An isothermal process is defined by a constant temperature throughout the process. Question 36: What does the term 'enthalpy' represent in thermodynamics? A. The total energy of a system including internal energy and flow work B. The difference between kinetic and potential energy C. The measure of disorder in a system D. The work done by a system per unit time Answer: A
Explanation: Enthalpy includes both the internal energy of the system and the energy required for flow work. Question 37: Which factor primarily influences fluid pressure at a given depth? A. Fluid velocity B. Fluid density C. Fluid color D. Fluid viscosity Answer: B Explanation: Fluid pressure increases with depth primarily due to the weight of the overlying fluid, which depends on its density. Question 38: What is the primary purpose of using venturi tubes in fluid flow measurement? A. To measure temperature changes B. To create turbulence in fluid C. To measure pressure changes for flow rate calculation D. To reduce fluid viscosity Answer: C Explanation: Venturi tubes measure the pressure drop across a constriction to calculate the flow rate. Question 39: What distinguishes turbulent flow from laminar flow? A. Higher viscosity B. Chaotic and eddying fluid motion C. Constant velocity D. Lower fluid density Answer: B Explanation: Turbulent flow is characterized by chaotic fluctuations and eddies, unlike the orderly layers of laminar flow. Question 40: Which property is essential for determining the behavior of gases in thermodynamics? A. Viscosity B. Thermal conductivity C. Compressibility D. Opacity Answer: C Explanation: Compressibility is key to understanding how gases respond to pressure and volume changes. Question 41: In an ideal gas, which law relates pressure and volume at constant temperature? A. Charles’ Law B. Boyle’s Law C. Gay-Lussac’s Law
Answer: B Explanation: The Brayton cycle is the thermodynamic cycle used in jet engines and gas turbines. Question 47: Which parameter is crucial for the design of flow measurement devices like orifice meters? A. Flow temperature B. Fluid viscosity C. Pressure differential D. Pipe color Answer: C Explanation: The pressure differential across an orifice is critical to determining the flow rate. Question 48: Which principle explains why fluid pressure decreases with increasing flow speed? A. Archimedes' Principle B. Bernoulli’s Principle C. Pascal’s Law D. Newton’s Third Law Answer: B Explanation: Bernoulli’s Principle shows that an increase in fluid speed results in a decrease in pressure. Question 49: In a fluid statics problem, what does Pascal’s Law state? A. Pressure applied to an enclosed fluid is transmitted equally in all directions B. Fluid pressure increases with the square of velocity C. The sum of forces in a static fluid is zero D. Pressure is independent of fluid depth Answer: A Explanation: Pascal’s Law states that any change in pressure applied to a confined fluid is transmitted uniformly. Question 50: Which thermodynamic process is characterized by no heat exchange with the surroundings? A. Isothermal process B. Adiabatic process C. Isobaric process D. Isochoric process Answer: B Explanation: An adiabatic process occurs without any heat transfer between the system and its environment. Question 51: Which mechanism of heat transfer does Fourier’s law describe? A. Conduction B. Convection C. Radiation D. Evaporation
Answer: A Explanation: Fourier’s law is used to describe the conduction of heat through a material. Question 52: What factor primarily affects the rate of convective heat transfer? A. Material hardness B. Convection heat transfer coefficient C. Elastic modulus D. Electrical conductivity Answer: B Explanation: The convection coefficient directly affects the rate at which heat is transferred by convection. Question 53: Which type of heat exchanger design involves a fluid flowing in a tube surrounded by another fluid? A. Shell and tube heat exchanger B. Plate heat exchanger C. Finned tube heat exchanger D. Double-pipe heat exchanger Answer: D Explanation: In a double-pipe heat exchanger, one fluid flows inside a pipe while another flows around it. Question 54: Which mode of heat transfer does not require a medium to occur? A. Conduction B. Convection C. Radiation D. Evaporation Answer: C Explanation: Radiation transfers heat through electromagnetic waves without needing a physical medium. Question 55: What is the primary function of insulation in thermal systems? A. To enhance heat transfer B. To reduce energy loss C. To increase fluid pressure D. To decrease material fatigue Answer: B Explanation: Insulation minimizes unwanted heat loss, improving energy efficiency. Question 56: Which component is essential in a refrigeration system to remove heat from a space? A. Compressor B. Boiler C. Turbine D. Radiator Answer: A
Explanation: Furnaces are used to raise material temperatures to required levels in various processes. Question 62: Which of the following is a common heat transfer calculation for radiation? A. Stefan-Boltzmann law B. Newton’s law of cooling C. Hooke’s law D. Bernoulli’s equation Answer: A Explanation: The Stefan-Boltzmann law calculates the power radiated from a black body based on its temperature. Question 63: What is the significance of the convection coefficient in a thermal system? A. It determines the rate of radiation B. It indicates the material's resistance to deformation C. It quantifies the efficiency of convective heat transfer D. It measures the electrical resistance of a fluid Answer: C Explanation: The convection coefficient is key in determining how effectively heat is transferred between a surface and a moving fluid. Question 64: In thermal systems, what is the primary function of a boiler? A. To cool circulating fluids B. To generate steam for energy production C. To increase the electrical resistance of a system D. To reduce pressure fluctuations Answer: B Explanation: Boilers are used to produce steam, which can then be used for power generation or heating. Question 65: What distinguishes a radiant heat transfer process from conduction? A. It requires direct contact B. It occurs through a vacuum or transparent medium C. It depends on fluid motion D. It is slower than conduction Answer: B Explanation: Radiative heat transfer can occur through a vacuum, unlike conduction which requires material contact. Question 66: Which property is critical for determining the performance of insulation materials? A. Specific heat capacity B. Thermal resistance (R-value) C. Elastic modulus D. Tensile strength
Answer: B Explanation: The R-value indicates how effectively an insulation material resists heat transfer. Question 67: In a heat exchanger, what role does the surface area play in heat transfer? A. Larger surface area decreases heat transfer B. Larger surface area increases heat transfer C. Surface area has no effect on heat transfer D. Smaller surface area increases heat transfer Answer: B Explanation: A larger surface area allows more heat to be transferred between the fluids. Question 68: What is a common application of heat exchangers in industrial systems? A. Increasing mechanical vibrations B. Cooling engines or process fluids C. Reducing electrical consumption D. Enhancing material hardness Answer: B Explanation: Heat exchangers are widely used to cool engines and industrial process fluids. Question 69: Which process is primarily involved in the removal of heat from a space? A. Heat absorption B. Heat rejection C. Heat storage D. Heat generation Answer: B Explanation: Heat rejection refers to the process of removing excess heat from a system. Question 70: What does the term 'thermal fluid' refer to in engineering? A. Fluids that remain at constant temperature B. Fluids used to transfer heat in thermal systems C. Fluids with high electrical conductivity D. Fluids that do not participate in heat transfer Answer: B Explanation: Thermal fluids are specifically used for their ability to efficiently transport heat within a system. Question 71: Which design principle focuses on simplifying assembly and reducing parts? A. Design for manufacturability B. Design for assembly C. Ergonomic design D. Structural design Answer: B Explanation: Design for assembly minimizes the number of parts and simplifies the assembly process.
Question 77: What is the primary purpose of modal analysis? A. To determine thermal expansion rates B. To analyze vibration modes and natural frequencies C. To measure electrical resistance D. To compute fluid flow rates Answer: B Explanation: Modal analysis identifies natural frequencies and vibration modes to prevent resonance issues. Question 78: Which failure mode is characterized by sudden fracture without significant deformation? A. Fatigue failure B. Ductile failure C. Brittle failure D. Creep failure Answer: C Explanation: Brittle failure occurs suddenly with minimal plastic deformation. Question 79: What is the role of tolerance in mechanical design? A. To enhance thermal conductivity B. To define acceptable variations in part dimensions C. To measure material elasticity D. To reduce the cost of materials Answer: B Explanation: Tolerances specify the allowable dimensional variations to ensure proper assembly and function. Question 80: Which design approach involves integrating multiple functions into a single component? A. Modular design B. Multi-functional design C. Redundant design D. Conventional design Answer: B Explanation: Multi-functional design integrates several functions within one component, reducing complexity. Question 81: How does computer-aided manufacturing (CAM) complement CAD? A. It replaces design processes B. It translates digital designs into machine instructions for production C. It tests material properties D. It provides thermal analysis Answer: B Explanation: CAM converts CAD designs into instructions for manufacturing equipment, streamlining production.
Question 82: What is a primary consideration in fracture mechanics? A. The color of the material B. The initiation and propagation of cracks C. The electrical properties of a material D. The fluid flow around a structure Answer: B Explanation: Fracture mechanics studies how cracks initiate and propagate, which is crucial to predict failures. Question 83: Which analysis is essential for evaluating the vibrational performance of a mechanical structure? A. Thermal analysis B. Vibration analysis C. Chemical analysis D. Optical analysis Answer: B Explanation: Vibration analysis assesses unwanted oscillations and helps in designing structures to avoid resonance. Question 84: What is the main focus of design for manufacturability? A. Reducing the number of parts and simplifying manufacturing processes B. Enhancing aesthetic appeal C. Increasing the material strength D. Optimizing thermal properties Answer: A Explanation: Design for manufacturability aims to simplify production and reduce manufacturing costs by minimizing complexity. Question 85: Which factor is most critical when selecting materials for high-stress applications? A. Color and finish B. Stress-strain behavior and toughness C. Electrical conductivity D. Thermal expansion coefficient Answer: B Explanation: For high-stress applications, material toughness and stress-strain behavior are crucial for ensuring durability. Question 86: What does the term 'surface finish' refer to in mechanical design? A. The type of coating applied to a part B. The texture and quality of a surface after machining C. The overall shape of a component D. The assembly sequence of parts Answer: B Explanation: Surface finish describes the texture and quality resulting from manufacturing processes like machining.
Question 92: Which design method emphasizes iterative testing and refinement? A. Waterfall design B. Rapid prototyping C. Top-down design D. Prescriptive design Answer: B Explanation: Rapid prototyping enables quick iterations and refinements based on testing feedback. Question 93: What is the main goal of structural analysis in mechanical design? A. To evaluate the aesthetic qualities of a structure B. To determine how a structure will behave under load C. To measure the electrical properties of materials D. To simulate fluid flow around a structure Answer: B Explanation: Structural analysis determines a structure’s response to loads to ensure it can safely carry them. Question 94: Which tool is often used to visualize stress distribution in complex geometries? A. CAD drawing B. Finite element analysis software C. Spreadsheet modeling D. Manual sketching Answer: B Explanation: Finite element analysis software is commonly used to simulate and visualize stress distribution in complex parts. Question 95: Which design approach minimizes material waste and maximizes resource efficiency? A. Sustainable design B. Traditional design C. Cost-focused design D. Aesthetic design Answer: A Explanation: Sustainable design emphasizes resource efficiency and minimizes waste during production. Question 96: Which machining process involves removing material by rotating a cutting tool against a workpiece? A. Milling B. Drilling C. Turning D. Grinding Answer: C
Explanation: Turning is a machining process where a workpiece rotates while a stationary cutting tool removes material. Question 97: What is the main purpose of CNC machines in manufacturing? A. To design prototypes manually B. To automate and control machining processes C. To perform manual measurements D. To assemble components without programming Answer: B Explanation: CNC machines automate machining operations using programmed instructions for precision and efficiency. Question 98: Which manufacturing process typically uses a mold filled with molten metal? A. Forging B. Casting C. Extrusion D. Machining Answer: B Explanation: Casting involves pouring molten metal into a mold to form a desired shape once it solidifies. Question 99: What is the primary advantage of additive manufacturing? A. Increased material waste B. Ability to produce complex geometries C. Faster removal of material D. Enhanced surface finish without post-processing Answer: B Explanation: Additive manufacturing (3D printing) can create intricate and complex shapes that are challenging with traditional methods. Question 100: Which process involves deforming metal by applying compressive forces, often using dies? A. Milling B. Forging C. Drilling D. Casting Answer: B Explanation: Forging shapes metal by applying compressive forces, typically resulting in improved material properties. Question 101: What is a key factor to consider regarding tool materials in machining? A. Color and texture B. Hardness and wear resistance C. Electrical conductivity D. Fluid dynamics Answer: B
