703_KY 703 Kentucky Standard Journeyman Electrician Practice Exam

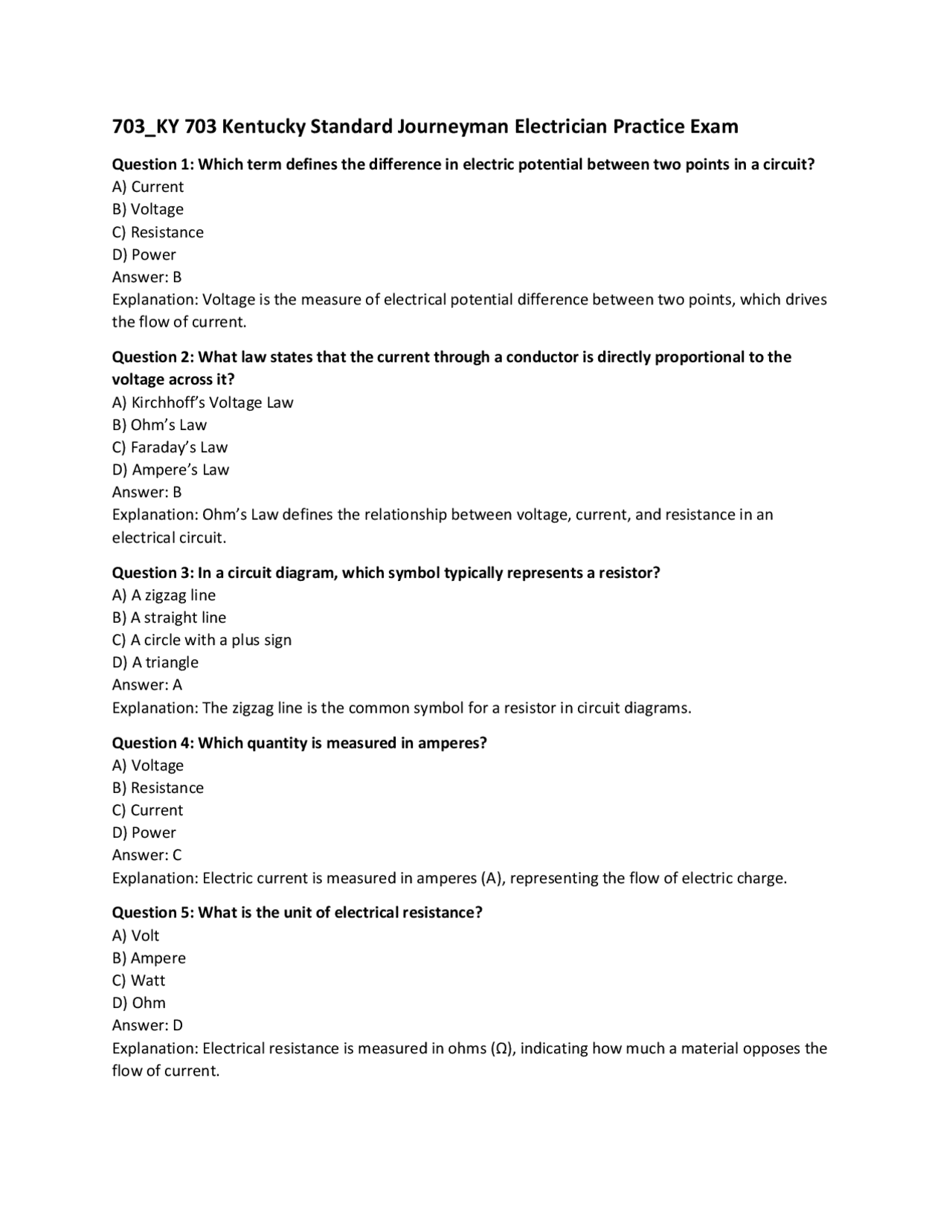

Question 1: Which term defines the difference in electric potential between two points in a circuit? A) Current B) Voltage C) Resistance D) Power Answer: B Explanation: Voltage is the measure of electrical potential difference between two points, which drives the flow of current. Question 2: What law states that the current through a conductor is directly proportional to the voltage across it? A) Kirchhoff’s Voltage Law B) Ohm’s Law C) Faraday’s Law D) Ampere’s Law Answer: B Explanation: Ohm’s Law defines the relationship between voltage, current, and resistance in an electrical circuit. Question 3: In a circuit diagram, which symbol typically represents a resistor? A) A zigzag line B) A straight line C) A circle with a plus sign D) A triangle Answer: A Explanation: The zigzag line is the common symbol for a resistor in circuit diagrams. Question 4: Which quantity is measured in amperes? A) Voltage B) Resistance C) Current D) Power Answer: C Explanation: Electric current is measured in amperes (A), representing the flow of electric charge. Question 5: What is the unit of electrical resistance? A) Volt B) Ampere C) Watt D) Ohm Answer: D Explanation: Electrical resistance is measured in ohms (Ω), indicating how much a material opposes the flow of current.
Question 6: Which of the following formulas correctly represents Ohm’s Law? A) V = I + R B) V = I × R C) V = R / I D) V = I – R Answer: B Explanation: Ohm’s Law is expressed as V = I × R, where V is voltage, I is current, and R is resistance. Question 7: What does the power formula P = V × I calculate? A) Electrical resistance B) Electrical conductance C) Electrical power D) Electrical energy Answer: C Explanation: The formula calculates electrical power in watts by multiplying voltage and current. Question 8: In an electrical plan, what does a ladder diagram primarily represent? A) Control wiring B) Load distribution C) Lighting circuits D) Power generation Answer: A Explanation: Ladder diagrams are used to illustrate control circuits, particularly for industrial and machine controls. Question 9: When calculating load, which of the following is the first step? A) Selecting the conductor size B) Identifying all connected loads C) Installing the overcurrent protection D) Drawing the wiring diagram Answer: B Explanation: The first step in load calculations is to identify all the connected loads to determine the total demand. Question 10: What does the term “service entrance” refer to in electrical installations? A) The panelboard location inside a building B) The point where utility power enters a building C) The ground rod installation D) The interior lighting circuit Answer: B Explanation: The service entrance is the point where the electrical service from the utility is connected to the building’s wiring system. Question 11: Which component is used to disconnect power in an electrical service? A) Fuse B) Transformer C) Disconnect switch
Explanation: Coordinating feeder circuits with overcurrent devices ensures that conductors are protected from currents that could cause overheating and potential fires. Question 17: How is the size of a feeder conductor typically determined? A) By the color of insulation B) By the length of the circuit only C) Based on the load current and distance D) By the type of building construction Answer: C Explanation: Feeder conductor sizing depends on the anticipated load current and the distance, which can affect voltage drop. Question 18: In branch circuit calculations, what is the first step in determining conductor size? A) Selecting the wire insulation type B) Calculating the total load on the circuit C) Choosing the circuit breaker D) Designing the layout Answer: B Explanation: The first step is to calculate the total load that the branch circuit must carry to ensure proper conductor sizing. Question 19: Which document provides the regulatory requirements for branch circuits in the United States? A) International Building Code B) National Electrical Code (NEC) C) OSHA Regulations D) IEEE Standards Answer: B Explanation: The National Electrical Code (NEC) sets forth the requirements for safe electrical design and installation, including branch circuits. Question 20: What does “ampacity” refer to in the context of conductors? A) The conductor’s resistance B) The maximum current a conductor can safely carry C) The physical size of the conductor D) The type of insulation used Answer: B Explanation: Ampacity is the maximum current a conductor can carry under specific conditions without exceeding its temperature rating. Question 21: Which factor does NOT affect the selection of proper conductor size for a branch circuit? A) Ambient temperature B) Conductor material C) Load current D) The phase angle of the power supply Answer: D
Explanation: Ambient temperature, conductor material, and load current all affect conductor sizing, while the phase angle does not directly affect it. Question 22: What is the primary purpose of electrical wiring methods? A) To improve signal quality B) To protect conductors and ensure safe installation C) To reduce energy consumption D) To enhance aesthetics Answer: B Explanation: Proper wiring methods protect conductors from physical damage and help ensure safe operation in accordance with code. Question 23: Which wiring method uses a rigid metal conduit to protect conductors? A) Non-metallic sheathed cable B) Flexible cord C) Rigid Metal Conduit (RMC) D) Armored cable Answer: C Explanation: Rigid Metal Conduit (RMC) is a type of conduit used for protecting conductors in exposed or harsh environments. Question 24: In electrical installations, what is the significance of using raceways? A) To provide a decorative finish B) To bundle and protect wires C) To serve as grounding electrodes D) To increase voltage Answer: B Explanation: Raceways are used to route and protect electrical conductors, providing both physical protection and organization. Question 25: Which of the following is a common material used for electrical wiring insulation? A) Copper B) Polyvinyl chloride (PVC) C) Steel D) Aluminum Answer: B Explanation: PVC is a widely used insulating material for electrical wiring due to its durability and flame retardant properties. Question 26: What is the main function of an electrical panelboard? A) To convert AC to DC B) To distribute electrical power to various circuits C) To store electrical energy D) To regulate voltage levels Answer: B Explanation: Panelboards distribute electrical power from a main service to branch circuits throughout a building.
A) Must be installed indoors only B) Must be capable of withstanding outdoor weather C) Must be the same color as the building exterior D) Must be insulated with rubber Answer: B Explanation: Service entrance conductors must be rated to withstand outdoor conditions, including exposure to weather elements. Question 33: What does the term “grounding” mean in an electrical system? A) Connecting the circuit to the neutral bus B) Establishing an electrical connection with the earth C) Insulating the conductors D) Amplifying the signal Answer: B Explanation: Grounding involves creating an electrical connection with the earth to provide a safe path for fault currents. Question 34: In service equipment, what role does the main bonding jumper play? A) It connects the neutral to the ground B) It insulates the service conductors C) It increases the circuit capacity D) It limits the conductor ampacity Answer: A Explanation: The main bonding jumper connects the neutral and grounding systems, ensuring proper fault current paths. Question 35: What is a typical voltage level for residential electrical service in Kentucky? A) 120/240 V B) 277/480 V C) 600 V D) 12 V Answer: A Explanation: Most residential services in Kentucky are provided at 120/240 V, suitable for household applications. Question 36: Which overcurrent protection device automatically resets after tripping? A) Fuse B) Circuit breaker C) Disconnect switch D) Surge protector Answer: B Explanation: Circuit breakers are designed to be reset after an overcurrent condition, unlike fuses which must be replaced. Question 37: What is the primary characteristic of a separately derived system? A) It is connected to a common neutral B) It has no direct electrical connection to the supply source
C) It is always used for emergency lighting D) It does not require grounding Answer: B Explanation: A separately derived system is isolated from other systems, typically by a transformer, ensuring no direct electrical connection. Question 38: Which installation component ensures that a service panel is safely bonded to ground? A) Ground rod B) Arc-fault interrupter C) Grounding electrode conductor D) Surge protector Answer: C Explanation: The grounding electrode conductor connects the service panel to the grounding electrode system, ensuring safety and proper grounding. Question 39: What is one of the primary functions of a feeder in an electrical distribution system? A) To step down voltage levels B) To supply power to multiple branch circuits C) To convert AC to DC D) To store electrical energy Answer: B Explanation: Feeders distribute power from the main service equipment to various branch circuits or subpanels. Question 40: How is the maximum allowable voltage drop in a feeder typically determined? A) By the conductor color B) By the building code requirements C) By the type of insulation D) By the age of the installation Answer: B Explanation: Building codes and standards dictate the maximum voltage drop to ensure efficiency and proper operation of electrical equipment. Question 41: When calculating feeder loads, which factor is most critical? A) Conductor insulation color B) Total connected load C) Length of the service cable D) Ambient humidity Answer: B Explanation: The total connected load is critical in determining the appropriate conductor size and overcurrent protection for feeder circuits. Question 42: Which calculation is essential for determining the correct conductor size for a feeder circuit? A) Voltage drop calculation B) Frequency calculation C) Power factor calculation
Explanation: Circuit breakers serve as overcurrent protection devices, interrupting power when loads exceed safe limits. Question 48: What is the primary difference between branch circuits and feeders? A) Branch circuits supply power to end-use devices, whereas feeders distribute power to subpanels B) Feeders are always underground C) Branch circuits use higher voltage levels D) Feeders do not require overcurrent protection Answer: A Explanation: Branch circuits directly supply power to loads, while feeders carry power from the service equipment to distribution panels or subpanels. Question 49: How does conductor insulation affect branch circuit performance? A) It increases the circuit’s resistance B) It prevents physical damage and electrical shorts C) It decreases the voltage drop D) It enhances signal strength Answer: B Explanation: Insulation protects conductors from physical damage and prevents accidental contact that could lead to electrical shorts. Question 50: In branch circuit wiring, why is proper conductor sizing critical? A) It determines the color scheme B) It ensures safe operation and prevents overheating C) It enhances the installation speed D) It reduces the overall cost of materials Answer: B Explanation: Correct conductor sizing is essential to handle the load current safely and to prevent conductor overheating, which can cause fires. Question 51: Which wiring method involves running wires inside a protective conduit system? A) Open wiring B) Non-metallic sheathed cable C) Conduit wiring D) Surface raceway wiring Answer: C Explanation: Conduit wiring involves installing conductors inside a protective metal or plastic conduit to shield them from damage. Question 52: What is a major benefit of using cable assemblies in electrical installations? A) They are immune to voltage drop B) They combine multiple conductors in a single insulated jacket C) They do not require grounding D) They can be used without support Answer: B Explanation: Cable assemblies bundle several conductors together, offering both convenience and protection in installations.
Question 53: In selecting wiring methods, which factor is most critical for hazardous locations? A) Aesthetic appearance B) Flame retardancy and durability C) Ease of installation D) Conductor color Answer: B Explanation: Hazardous locations require wiring methods that are flame retardant and durable to prevent ignition and ensure safety. Question 54: What is the primary function of electrical conduits? A) To convert AC to DC B) To protect and route electrical conductors C) To store energy D) To amplify electrical signals Answer: B Explanation: Electrical conduits protect and organize conductors, ensuring that wiring is both safe and efficient. Question 55: Which of the following wiring materials is known for its flexibility and ease of installation in tight spaces? A) Rigid metal conduit B) Flexible metal conduit (FMC) C) Armored cable D) Hard service cable Answer: B Explanation: Flexible metal conduit (FMC) is designed to bend, making it ideal for installations in confined or irregular spaces. Question 56: What is the significance of compliance with manufacturer instructions during installation? A) To ensure warranty coverage and safety B) To reduce material cost C) To simplify the design process D) To accelerate the construction timeline Answer: A Explanation: Following manufacturer instructions ensures that equipment is installed safely, remains under warranty, and complies with code. Question 57: Which device is typically installed in an electrical panel to control multiple branch circuits? A) Junction box B) Circuit breaker panel C) Distribution transformer D) Disconnect switch Answer: B Explanation: A circuit breaker panel is used to manage and control multiple branch circuits safely.
Question 63: Which calculation is most critical when designing a feeder circuit? A) Conductor length measurement B) Load current estimation C) Ambient light measurement D) Conduit diameter calculation Answer: B Explanation: Estimating the load current accurately is essential to size the feeder conductors and select proper overcurrent protection. Question 64: How does conductor temperature rating affect feeder conductor selection? A) It determines the insulation color B) It limits the maximum safe operating current C) It increases the conductor length D) It reduces the physical diameter of the conductor Answer: B Explanation: The temperature rating limits the current a conductor can carry without overheating, influencing the selection of conductor size. Question 65: In feeder circuits, what is the primary purpose of voltage drop calculations? A) To determine the correct conduit material B) To ensure that voltage remains within acceptable limits at the load C) To calculate energy consumption D) To select the correct phase sequence Answer: B Explanation: Voltage drop calculations ensure that the voltage at the load is sufficient for proper operation by accounting for losses along the feeder. Question 66: What is the function of a feeder circuit’s grounding conductor? A) To increase current flow B) To provide a low-resistance path for fault current C) To supply additional power D) To connect branch circuits to neutral Answer: B Explanation: The grounding conductor in a feeder circuit ensures that fault currents have a safe, low- resistance path, enhancing overall safety. Question 67: Which NEC article primarily deals with feeder installations? A) NEC Article 250 B) NEC Article 215 C) NEC Article 300 D) NEC Article 310 Answer: B Explanation: NEC Article 215 provides guidance for the design and installation of feeder circuits in electrical systems. Question 68: What is the significance of conductor ampacity in feeder circuit design? A) It affects the circuit’s color coding
B) It determines the maximum current the conductor can safely carry C) It reduces the installation time D) It improves the physical strength of the conductor Answer: B Explanation: Conductor ampacity is critical because it ensures that the conductor can handle the expected current load without overheating. Question 69: When designing a feeder, why must conductor insulation type be considered? A) It affects the aesthetic appearance B) It determines the conductor’s resistance to environmental conditions C) It is irrelevant to feeder design D) It increases the conductor’s length Answer: B Explanation: The type of insulation affects the conductor’s ability to withstand environmental stresses, such as heat and moisture. Question 70: In a feeder circuit, what does the term “conductor derating” refer to? A) Upgrading the conductor’s insulation B) Reducing the conductor’s current-carrying capacity under specific conditions C) Increasing the conductor size D) Changing the conductor material Answer: B Explanation: Derating refers to the reduction in the allowable current-carrying capacity of a conductor due to factors such as ambient temperature or bundling. Question 71: Which of the following is essential when planning feeder circuit routing? A) Ensuring minimum bend radius in conduits B) Selecting the correct wallpaper color C) Ignoring ambient temperature D) Maximizing conductor length Answer: A Explanation: Proper routing and adherence to minimum bend radius requirements help prevent damage to conductors and ensure reliable installation. Question 72: What is a key consideration when installing feeders in high-temperature environments? A) The building’s exterior color B) The need for increased conductor ampacity or derating factors C) The type of lighting used D) The number of receptacles Answer: B Explanation: High-temperature environments require adjustments in conductor sizing, as derating factors reduce the allowable ampacity. Question 73: Which of the following best describes a branch circuit? A) A circuit that distributes power from feeders to individual loads B) A circuit dedicated to emergency power only C) A circuit used solely for lighting
Explanation: Using conductors with insufficient ampacity can lead to overheating, voltage drop, and potential fire hazards, compromising safety. Question 79: How does conductor insulation contribute to branch circuit safety? A) It increases electrical resistance B) It prevents accidental contact and short circuits C) It improves current flow D) It enhances the circuit’s voltage Answer: B Explanation: Insulation protects conductors from damage and prevents unintentional contact that could lead to short circuits and electrical hazards. Question 80: What is the typical voltage rating for most branch circuits in residential installations? A) 12 V B) 120 V C) 240 V D) 480 V Answer: B Explanation: Residential branch circuits are commonly rated at 120 V, which is standard for most outlets and lighting circuits. Question 81: Which wiring method is most commonly used in commercial buildings for power distribution? A) Non-metallic sheathed cable B) Armored cable C) Rigid metal conduit D) Open wiring on insulators Answer: C Explanation: Rigid metal conduit is frequently used in commercial settings due to its durability and robust protection of conductors. Question 82: What distinguishes armored cable (AC) from non-metallic sheathed cable (NM)? A) AC is only used in residential installations B) AC has a protective metal armor, while NM does not C) NM is designed for outdoor use D) NM is more durable than AC Answer: B Explanation: Armored cable includes a metallic sheath that provides enhanced physical protection compared to NM cable. Question 83: Which of the following is a key advantage of using cable assemblies in wiring installations? A) They eliminate the need for overcurrent protection B) They consolidate multiple conductors in a single jacket for easier installation C) They require no conduit D) They are immune to voltage drop Answer: B
Explanation: Cable assemblies bundle multiple conductors together, simplifying installation and organization while providing insulation and protection. Question 84: What is the main purpose of using raceways in electrical installations? A) To decorate interior spaces B) To protect and route conductors in an organized manner C) To convert electrical power D) To increase the circuit’s resistance Answer: B Explanation: Raceways provide a structured path for conductors, protecting them from damage and keeping installations neat and compliant with code. Question 85: In wiring installations, what is the significance of conduit fill calculations? A) They determine the color of the conduit B) They ensure that conduits are not overcrowded, which could lead to heat buildup C) They measure the physical length of the conduit D) They set the installation speed Answer: B Explanation: Conduit fill calculations help ensure that too many conductors do not overfill a conduit, which could cause overheating and complicate future maintenance. Question 86: What characteristic of electrical materials is critical in wet or damp environments? A) Flame resistance B) Moisture resistance and proper insulation C) High tensile strength D) Lightweight design Answer: B Explanation: In wet or damp conditions, materials must be moisture resistant and have proper insulation to prevent short circuits and corrosion. Question 87: Which of the following devices is used to control power flow to electrical equipment? A) Switch B) Receptacle C) Cable connector D) Conduit Answer: A Explanation: Switches are designed to control the flow of electricity by opening or closing a circuit, making them fundamental in electrical control. Question 88: What does the term “load side” refer to in electrical installations? A) The side connected to the supply transformer B) The portion of a circuit that delivers power to loads C) The grounding system D) The neutral connection Answer: B Explanation: The load side of a circuit is where power is delivered to appliances and devices, as opposed to the supply side.
B) Fuse C) Resistor D) Transformer Answer: A Explanation: Contactors are commonly used in motor control circuits to start and stop motors by making or breaking the circuit. Question 95: What is a common method for protecting motors from overload? A) Installing a surge protector B) Using thermal overload relays C) Increasing conductor size D) Adding more capacitors Answer: B Explanation: Thermal overload relays detect excessive temperature due to high current and disconnect the motor to prevent damage. Question 96: Which of the following best describes the function of a variable frequency drive (VFD)? A) It converts AC power to DC power B) It adjusts the speed of a motor by varying the frequency of the supply C) It increases the torque of a motor D) It acts as an overload protector Answer: B Explanation: A VFD controls motor speed by varying the frequency of the electrical supply, offering improved process control and energy efficiency. Question 97: In motor installations, why is proper alignment important? A) To improve the visual appeal B) To reduce mechanical wear and increase efficiency C) To increase the voltage D) To enhance conductor insulation Answer: B Explanation: Proper alignment minimizes mechanical stress and vibration, ensuring efficient operation and prolonging the motor’s service life. Question 98: What is the primary difference between an induction motor and a synchronous motor? A) Induction motors require external excitation, whereas synchronous motors do not B) Synchronous motors operate at a constant speed regardless of load, while induction motors do not C) Induction motors are only used in residential settings D) Synchronous motors cannot be used in industrial applications Answer: B Explanation: Synchronous motors run at a constant speed that is synchronized with the supply frequency, whereas induction motor speeds vary with load. Question 99: Which factor is critical when determining the starting torque of a motor? A) Conductor color B) Motor design and winding configuration C) Installation method
D) Environmental humidity Answer: B Explanation: The motor’s design and winding configuration significantly affect its starting torque and performance characteristics. Question 100: What is the purpose of a soft starter in motor applications? A) To increase the starting voltage B) To reduce mechanical and electrical stress during motor startup C) To speed up the motor instantly D) To bypass overcurrent protection Answer: B Explanation: Soft starters gradually ramp up the voltage to the motor, reducing inrush current and minimizing mechanical shock during startup. Question 101: Which device is commonly used to monitor and control motor speed? A) Circuit breaker B) Variable frequency drive (VFD) C) Thermal overload relay D) Contactor Answer: B Explanation: VFDs adjust the frequency of the electrical supply to control motor speed, offering precise control over motor operation. Question 102: What is the function of a generator’s voltage regulator? A) To stabilize the generator’s output voltage B) To change the frequency of the output C) To increase the generator’s power rating D) To control the generator’s cooling system Answer: A Explanation: The voltage regulator maintains a stable output voltage from the generator despite variations in load. Question 103: In generator applications, what does “load sharing” refer to? A) Distributing the generator’s mechanical load evenly B) Splitting the electrical load among multiple generators C) Reducing the voltage drop D) Increasing the efficiency of a single generator Answer: B Explanation: Load sharing distributes the electrical demand among multiple generators to ensure balanced operation and improved reliability. Question 104: Which device protects motors by disconnecting power in case of phase loss? A) Phase failure relay B) Circuit breaker C) Voltage regulator D) Capacitor bank Answer: A
