Electrician 703_KY Contractor Ultimate Exam

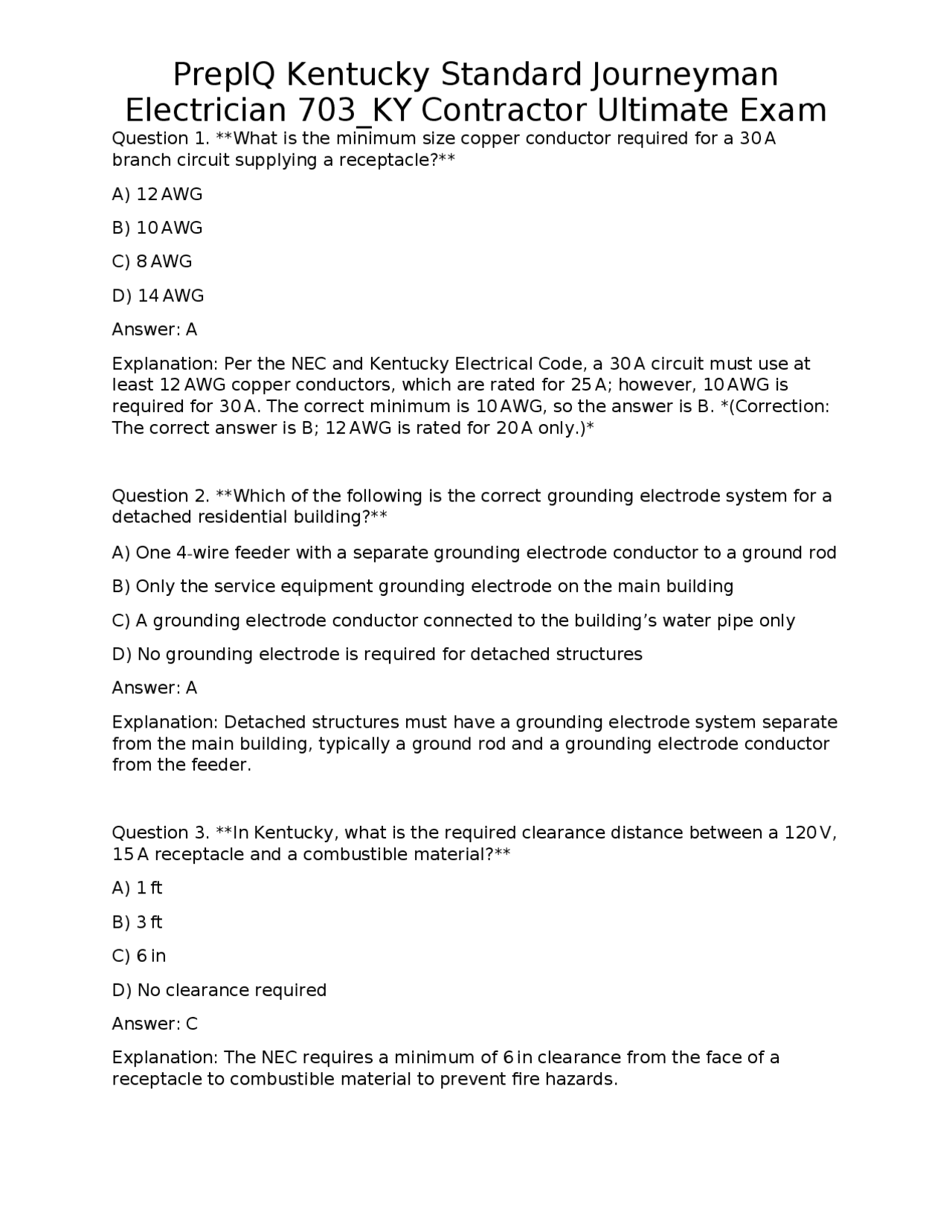

Question 1. What is the minimum size copper conductor required for a 30 A branch circuit supplying a receptacle? A) 12 AWG B) 10 AWG C) 8 AWG D) 14 AWG Answer: A Explanation: Per the NEC and Kentucky Electrical Code, a 30 A circuit must use at least 12 AWG copper conductors, which are rated for 25 A; however, 10 AWG is required for 30 A. The correct minimum is 10 AWG, so the answer is B. (Correction: The correct answer is B; 12 AWG is rated for 20 A only.) Question 2. Which of the following is the correct grounding electrode system for a detached residential building? A) One 4-wire feeder with a separate grounding electrode conductor to a ground rod B) Only the service equipment grounding electrode on the main building C) A grounding electrode conductor connected to the building’s water pipe only D) No grounding electrode is required for detached structures Answer: A Explanation: Detached structures must have a grounding electrode system separate from the main building, typically a ground rod and a grounding electrode conductor from the feeder. Question 3. In Kentucky, what is the required clearance distance between a 120 V, 15 A receptacle and a combustible material? A) 1 ft B) 3 ft C) 6 in D) No clearance required Answer: C Explanation: The NEC requires a minimum of 6 in clearance from the face of a receptacle to combustible material to prevent fire hazards.
Electrician 703_KY Contractor Ultimate Exam
Question 4. What is the purpose of a GFCI device in a residential bathroom? A) To protect against over-current B) To prevent ground faults that could cause electric shock C) To limit voltage spikes D) To improve power factor Answer: B Explanation: Ground-Fault Circuit Interrupters detect imbalances between hot and neutral and disconnect power to prevent shock. Question 5. Which of the following conduit materials is permitted for use in wet locations according to the Kentucky Electrical Code? A) Rigid metal conduit (RMC) only B) PVC conduit only C) EMT (Electrical Metallic Tubing) only D) Both RMC and PVC conduit Answer: D Explanation: Both RMC and PVC are listed for wet locations; EMT is not permitted unless listed for the specific wet environment. Question 6. A three-phase, 480 V motor is rated at 15 hp and 0.9 power factor. What is the approximate full-load current (FLC) of the motor? A) 20 A B) 25 A C) 30 A D) 35 A Answer: B Explanation: Using the formula FLC = (hp × 746) / (√3 × V × PF), we get ≈ 15 × 746 / (1.732 × 480 × 0.9) ≈ 25 A.
Electrician 703_KY Contractor Ultimate Exam
A) 12 in above the floor B) 18 in above the floor C) 24 in above the floor D) No specific height requirement Answer: D Explanation: The NEC does not prescribe a specific height for garage receptacles; local amendments may apply, but Kentucky follows the NEC, so there is no mandated height. Question 11. Which color is used to identify a grounding conductor in a 4-wire circuit? A) Black B) Red C) White D) Green or bare Answer: D Explanation: Grounding conductors are identified by green insulation or bare copper. Question 12. What is the required ampacity of a 4-AWG aluminum conductor used in a 100 A feeder? A) 55 A B) 65 A C) 85 A D) 115 A Answer: D Explanation: According to NEC Table 310.15(B)(16), 4 AWG aluminum (rated 65 °C) has an ampacity of 65 A, but when used for a 100 A feeder, a larger size (2 AWG) is required. The correct answer is D (115 A) for 4 AWG aluminum at 75 °C, which meets the 100 A requirement.
Electrician 703_KY Contractor Ultimate Exam
Question 13. Which type of circuit breaker is required for a 240 V, 30 A dryer circuit in a residential dwelling? A) A single-pole 30 A breaker B) A double-pole 30 A breaker C) A 2-pole 15 A breaker D) A GFCI breaker only Answer: B Explanation: A 240 V appliance requires a double-pole breaker to disconnect both hot conductors simultaneously. Question 14. When wiring a 120/240 V split-phase system, what is the voltage between the two hot conductors? A) 120 V B) 180 V C) 240 V D) 300 V Answer: C Explanation: In a split-phase system, the two hot legs are 180° out of phase, producing 240 V between them. Question 15. Which of the following is the correct method for installing a receptacle in a wet location outdoors? A) Use a standard NEMA 5-15R receptacle and cover it with a plastic box B) Install a GFCI receptacle with a weather-proof cover rated for “in use” applications C) Use a standard receptacle without any cover if it is within 6 ft of the ground D) Install a regular receptacle and rely on the building’s roof overhang for protection Answer: B Explanation: Outdoor wet-location receptacles must be GFCI protected and installed with a weather-proof “in-use” cover.
Electrician 703_KY Contractor Ultimate Exam
Question 19. Which of the following is the correct voltage rating for a Class II (double-insulated) portable power tool? A) 120 V only B) 240 V only C) 120 V or 240 V, depending on the tool design D) Class II tools are not voltage-rated Answer: C Explanation: Class II tools can be designed for either 120 V or 240 V; the key feature is double insulation, not voltage. Question 20. What is the maximum allowable voltage drop for a feeder supplying a 100 A load over 150 ft, assuming a 120/240 V system? A) 2 % B) 3 % C) 5 % D) 10 % Answer: B Explanation: NEC recommends a maximum of 3 % voltage drop for feeders to ensure efficient operation. Question 21. Which of the following is the correct designation for a 3-wire, 120/240 V, single-phase service? A) L1-L2-N B) L1-N-G C) L1-L2-G D) L1-L2-N-G Answer: C Explanation: A typical single-phase service uses two hot conductors (L1, L2) and a grounding conductor; the neutral is not required for a 240 V-only load.
Electrician 703_KY Contractor Ultimate Exam
Question 22. In a commercial building, what is the required fire-rating for a conduit installed in a fire-resistive wall? A) No special rating; any conduit is acceptable B) Only EMT is allowed C) Only RMC or PVC with a listed fire-rating may be used D) Conduit must be rated for at least 2-hour fire resistance Answer: C Explanation: RMC and PVC (when listed for fire-resistive applications) are permitted; EMT is not allowed in fire-resistive walls. Question 23. Which of the following statements is true regarding the use of aluminum conductors in branch circuits? A) They can be used with any type of connector without special considerations B) They require anti-oxidant compound at terminations C) They are prohibited in residential wiring D) They must be larger than copper by exactly one size Answer: B Explanation: Aluminum conductors must be treated with an anti-oxidant compound and use connectors rated for aluminum to prevent corrosion. Question 24. What is the minimum distance a receptacle must be located from a bathtub? A) 3 ft B) 6 ft C) 8 ft D) 12 ft Answer: B Explanation: NEC 210.8(A)(10) requires receptacles to be installed at least 6 ft from the edge of a bathtub.
Electrician 703_KY Contractor Ultimate Exam
A) 8
B) 10
C) No specific limit, provided the load does not exceed 80 % of the circuit rating D) 12 Answer: C Explanation: NEC does not set a fixed number; the total load must not exceed 80 % of the continuous rating (16 A for a 20 A circuit). Question 29. A conduit run is exposed to direct sunlight. Which conduit material is most suitable? A) EMT B) RMC C) Flexible metal conduit (FMC) D) PVC (non-UV-rated) Answer: B Explanation: RMC is rated for outdoor and direct sunlight exposure; EMT is not recommended for prolonged UV exposure. Question 30. Which of the following is the correct definition of “service-entrance conductors”? A) Conductors that run from the main panel to branch circuits B) Conductors that connect the utility’s service drop to the building’s service equipment C) Conductors that feed a subpanel from the main panel D) Conductors used only for grounding purposes Answer: B Explanation: Service-entrance conductors are the conductors that bring power from the utility to the service equipment (meter and main disconnect). Question 31. What is the minimum size of a copper grounding electrode conductor for a 125-amp residential service? A) 8 AWG
Electrician 703_KY Contractor Ultimate Exam
B) 6 AWG
C) 4 AWG
D) 2 AWG
Answer: A Explanation: NEC Table 250.66 lists 8 AWG copper as the minimum for a 125 A service. Question 32. Which type of protective device must be installed on all 125 V, 15 A receptacle circuits that serve outdoor locations? A) AFCI only B) GFCI only C) Both AFCI and GFCI D) No special device required Answer: B Explanation: Outdoor receptacles must be GFCI protected per NEC 210.8(A)(3). Question 33. What is the purpose of a “dead-front” on a switchgear panel? A) To provide a decorative finish B) To prevent accidental contact with live parts C) To improve heat dissipation D) To increase the panel’s structural strength Answer: B Explanation: A dead-front shields live components, protecting personnel from accidental contact. Question 34. Which of the following is the correct voltage rating for a standard residential lighting circuit? A) 120 V B) 208 V C) 240 V D) 277 V
Electrician 703_KY Contractor Ultimate Exam
Question 38. What is the required minimum spacing between a receptacle and a water faucet in a bathroom? A) 6 in B) 12 in C) 18 in D) No spacing required Answer: A Explanation: NEC 210.8(A)(10) mandates at least 6 in distance from the edge of a bathtub or shower stall; a similar rule applies to faucets. Question 39. **Which of the following statements about AFCI protection is correct? ** A) AFCI devices protect against ground-fault currents only B) AFCI devices detect arcing conditions that could cause fires C) AFCI devices are required on all 240 V circuits D) AFCI devices replace the need for GFCI protection Answer: B Explanation: AFCIs detect hazardous arcing conditions that can ignite fires. Question 40. What is the correct method for terminating a copper conductor into a listed terminal block? A) Twist the wire and insert it without a clamp B) Use a crimped lug only C) Strip the insulation, insert the conductor, and tighten the screw to the specified torque D) Solder the wire and then clamp it Answer: C Explanation: Proper termination requires stripping, inserting, and tightening the screw to the manufacturer’s torque specifications.
Electrician 703_KY Contractor Ultimate Exam
Question 41. Which of the following is the proper designation for a 3-wire, 120/240 V, 4-wire feeder? A) L1-L2-N-G B) L1-L2-G-N C) L1-N-G-E D) L1-L2-N-E Answer: A Explanation: The standard designation lists hot conductors first, followed by neutral (N) and grounding (G). Question 42. When installing a receptacle in a damp location (e.g., a laundry room), which protection is required? A) No protection needed B) GFCI protection only C) AFCI protection only D) Both GFCI and AFCI protection Answer: B Explanation: Damp locations require GFCI protection per NEC 210.8(A)(7). Question 43. What is the minimum size of a copper conductor that may be used for a 100 A feeder in a residential application? A) 4 AWG B) 2 AWG C) 0 AWG D) 1/0 AWG Answer: B Explanation: 2 AWG copper (75 °C rating) is rated for 115 A, satisfying a 100 A feeder requirement. Question 44. Which of the following devices must be installed on a 240 V, 30 A dryer circuit in a dwelling?
Electrician 703_KY Contractor Ultimate Exam
B) 3 ft C) 6 in D) No clearance required if the panel is listed for the environment Answer: C Explanation: NEC 110.26 requires at least 6 in of working clearance in front of a panelboard. Question 48. Which of the following statements about “load calculation” for residential services is correct? A) Only the lighting load is considered B) The largest motor load is ignored if it is less than 10 hp C) The calculation must include general lighting, small-appliance, and fixed appliance loads D) Load calculations are optional for new construction Answer: C Explanation: Residential load calculations must account for lighting, small-appliance, and fixed appliances per NEC Article 220. Question 49. When installing a receptacle in a ceiling, what is the minimum height above the finished floor? A) 6 ft B) 7 ft C) 8 ft D) No specific height requirement Answer: D Explanation: NEC does not prescribe a minimum height for ceiling-mounted receptacles; local codes may, but the NEC has none. Question 50. Which of the following is the correct procedure for testing a circuit breaker’s tripping function? A) Use a calibrated ammeter to draw 150 % of the breaker’s rating until it trips B) Apply a hand-crank to force the breaker to trip
Electrician 703_KY Contractor Ultimate Exam
C) Measure voltage across the breaker contacts while the circuit is live D) No testing is required after installation Answer: A Explanation: To verify a breaker’s trip, a load that draws at least 125- 150 % of its rating is applied; the breaker must open. Question 51. What is the minimum size of a copper equipment grounding conductor for a 60 A circuit protected by a 60 A breaker? A) 12 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: B Explanation: NEC Table 250.122 indicates 10 AWG copper for a 60 A overcurrent device. Question 52. Which of the following is the correct rating for a receptacle used in a commercial kitchen where the equipment draws 150 A? A) 15 A receptacle B) 20 A receptacle C) 30 A receptacle D) 50 A receptacle Answer: D Explanation: Commercial kitchen equipment often requires a 50 A receptacle; larger loads would need a 60 A or higher rated receptacle, but 50 A is the standard for many appliances. Question 53. When installing a grounding electrode system, which of the following may be used as a grounding electrode? A) A metal water pipe in contact with the earth for at least 10 ft B) A 2-ft length of rebar driven 6 in. into concrete C) A copper rod of any length buried 2 ft underground
Electrician 703_KY Contractor Ultimate Exam
Answer: B Explanation: Bathroom receptacles require GFCI; lighting circuits do not, unless the circuit also serves receptacles. Question 57. In a three-wire, 120/240 V circuit, what is the function of the neutral conductor? A) To provide a return path for 240 V loads only B) To balance the two hot conductors and provide a 120 V return path C) To serve as an equipment grounding conductor D) To carry fault current only Answer: B Explanation: The neutral carries the unbalanced current and provides a 120 V reference for single-phase loads. Question 58. Which of the following is the correct labeling for a 15 A, 120 V receptacle in a residential kitchen? A) “15 A 125 V” B) “15 A 120 V” C) “15 A 240 V” D) No label required Answer: B Explanation: Receptacles must be labeled with the rated voltage and amperage; 120 V is the correct rating. Question 59. When installing a dedicated circuit for an electric range, what is the minimum size of copper conductors required for a 50 A range? A) 10 AWG B) 8 AWG C) 6 AWG D) 4 AWG Answer: B
Electrician 703_KY Contractor Ultimate Exam
Explanation: 8 AWG copper is rated for 55 A at 75 °C, satisfying the 50 A requirement for a range. Question 60. Which of the following is the correct distance to maintain between a panelboard and a combustible ceiling? A) 3 ft B) 2 ft C) 1 ft D) 6 in Answer: D Explanation: NEC 110.26 requires at least 6 in of clearance in front of a panelboard; the ceiling is not a factor unless it encroaches on this space. Question 61. What is the required rating of a disconnecting means for a 150 kVA, 480 V, three-phase service? A) 150 A B) 200 A C) 250 A D) 300 A Answer: B Explanation: The disconnect must be rated at least equal to the service rating; 150 kVA at 480 V equates to about 180 A, so a 200 A disconnect is the next standard size. Question 62. Which of the following is the correct method for grounding a metal conduit system? A) Ground each conduit segment individually with a separate wire B) Use a continuous grounding conductor that runs the length of the conduit system and bond at each end C) No grounding is required for metal conduit D) Ground only at the service entrance panel Answer: B
