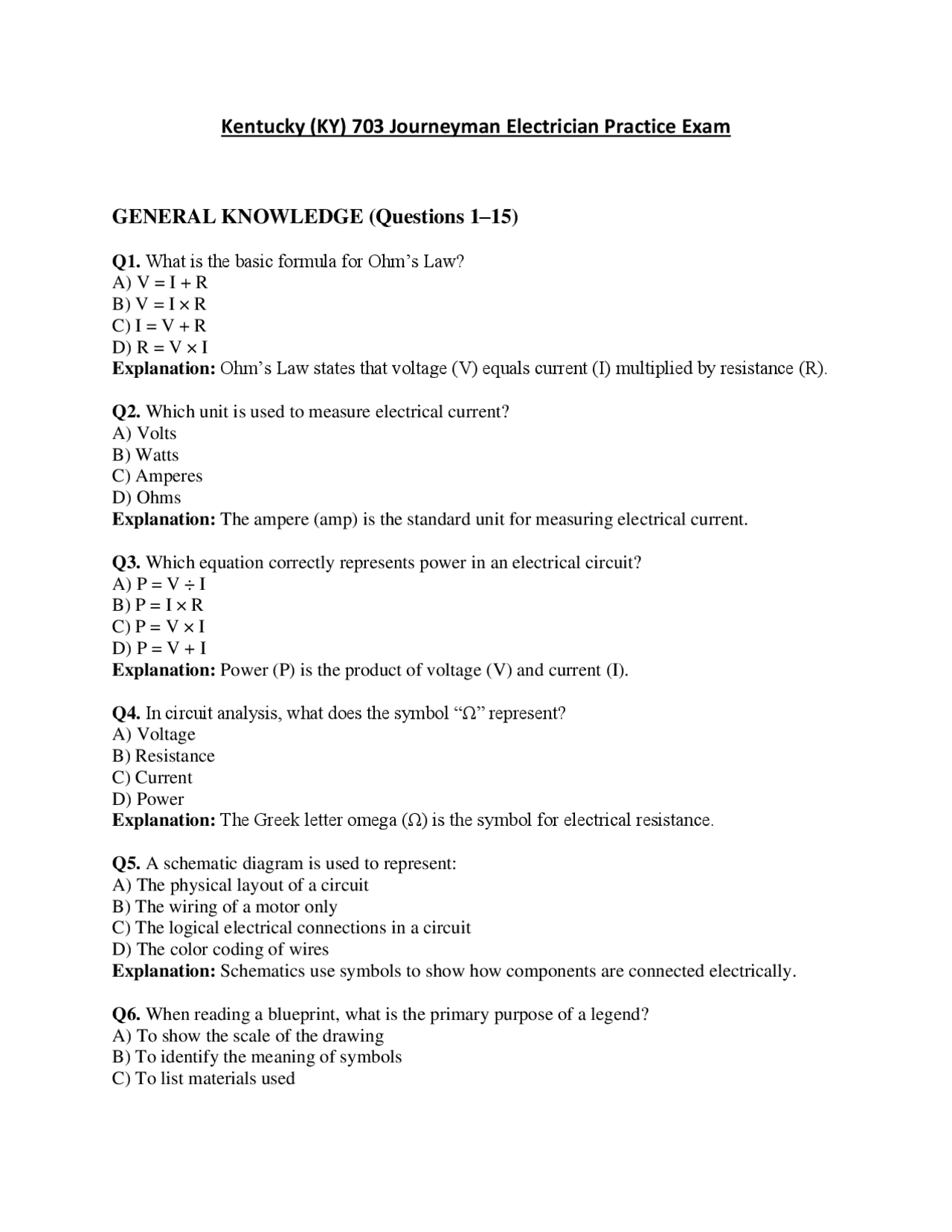

Kentucky (KY) 703 Journeyman Electrician Practice Exam
GENERAL KNOWLEDGE (Questions 1–15)
Q1. What is the basic formula for Ohm’s Law? A) V = I + R B) V = I × R C) I = V + R D) R = V × I Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R). Q2. Which unit is used to measure electrical current? A) Volts B) Watts C) Amperes D) Ohms Explanation: The ampere (amp) is the standard unit for measuring electrical current. Q3. Which equation correctly represents power in an electrical circuit? A) P = V ÷ I B) P = I × R C) P = V × I D) P = V + I Explanation: Power (P) is the product of voltage (V) and current (I). Q4. In circuit analysis, what does the symbol “Ω” represent? A) Voltage B) Resistance C) Current D) Power Explanation: The Greek letter omega (Ω) is the symbol for electrical resistance. Q5. A schematic diagram is used to represent: A) The physical layout of a circuit B) The wiring of a motor only C) The logical electrical connections in a circuit D) The color coding of wires Explanation: Schematics use symbols to show how components are connected electrically. Q6. When reading a blueprint, what is the primary purpose of a legend? A) To show the scale of the drawing B) To identify the meaning of symbols C) To list materials used
D) To indicate pricing details Explanation: The legend explains the symbols and abbreviations used in the drawing. Q7. Which of the following is a primary electrical calculation in theory? A) Frequency determination B) Voltage drop calculation C) Conduit fill calculation D) Color coding wires Explanation: Voltage drop calculations are central in designing circuits. Q8. In basic electrical theory, what is “current” defined as? A) The flow of electrical energy B) The opposition to current flow C) The rate of electron flow D) The measure of energy consumption Explanation: Current is defined as the rate at which electric charge flows through a conductor. Q9. What does the term “circuit analysis” typically involve? A) Evaluating thermal insulation B) Calculating voltage, current, and resistance C) Selecting proper conduit sizes D) Estimating installation costs Explanation: Circuit analysis is the process of determining the electrical parameters (voltage, current, resistance) in a circuit. Q10. Which of the following best explains the concept of “power factor”? A) The ratio of actual power to apparent power B) The multiplication of voltage and resistance C) The division of current by voltage D) The sum of real and reactive power Explanation: Power factor is defined as the ratio of real power to apparent power. Q11. What does a wiring diagram primarily show? A) The physical installation details B) The electrical interconnections between components C) The required permits for installation D) The pricing of equipment Explanation: A wiring diagram illustrates how components are electrically interconnected. Q12. When calculating circuit parameters, which law is fundamental? A) Kirchhoff’s Voltage Law B) Boyle’s Law C) Newton’s Law D) Hooke’s Law Explanation: Kirchhoff’s Voltage Law is a fundamental rule used in circuit analysis.
Explanation: A separately derived system (such as a transformer secondary) is electrically isolated from its primary source. Q19. In calculating service loads, which of the following is most critical? A) Conductor color B) Demand factor C) Wire gauge D) Voltage rating Explanation: The demand factor helps estimate the actual load in a service calculation. Q20. Grounding systems are installed primarily to: A) Provide a return path for current B) Protect equipment from overvoltages C) Ensure safety by dissipating fault currents D) Increase the load capacity Explanation: Grounding helps safely dissipate fault currents and protect both people and equipment. Q21. Which type of panel is typically used in residential installations? A) Subpanel B) Main service panel C) Distribution board D) Junction box Explanation: The main service panel is the central distribution point for a residence. Q22. When installing a service panel, what is one key requirement? A) It must be painted bright red B) It must have a proper disconnecting means C) It must be installed outdoors D) It must be underground Explanation: Service panels require a disconnecting means for safety and maintenance. Q23. Which calculation is essential when determining the size of a service entrance cable? A) Ambient temperature adjustment B) Conductor ampacity C) Conduit length D) Panel voltage Explanation: Conductor ampacity is necessary to ensure safe operation under load. Q24. In a separately derived system, which component is used to provide electrical isolation? A) Circuit breaker B) Transformer C) Conduit D) Receptacle Explanation: Transformers are common examples of separately derived systems that isolate the secondary circuit.
Q25. What is the purpose of a disconnecting means in service equipment? A) To measure voltage B) To isolate electrical circuits during maintenance C) To increase current flow D) To reduce wire resistance Explanation: Disconnects are used to safely isolate circuits for maintenance or emergency shutdowns. Q26. When calculating service load, which factor is used to adjust for diversity in a commercial building? A) Conductor temperature rating B) Diversity factor C) Service voltage D) Conduit size Explanation: The diversity factor adjusts the total calculated load to account for the fact that not all loads operate simultaneously. Q27. What is an important consideration when selecting service equipment for industrial installations? A) Color coding of wires B) Overcurrent protection rating C) Aesthetic design D) Number of outlets Explanation: Overcurrent protection must be sized correctly to protect industrial circuits. Q28. What component is essential for connecting a service panel to a grounding electrode system? A) Neutral conductor B) Grounding electrode conductor C) Hot conductor D) Bonding strap Explanation: The grounding electrode conductor connects the service panel to the grounding electrode. Q29. Which of the following best describes “service entrance”? A) The point at which power is distributed to branch circuits B) The point at which electrical power enters a building C) The method of wiring between outlets D) The type of conduit used for power cables Explanation: The service entrance is where the utility power enters a building. Q30. In residential installations, a service panel typically contains: A) Only fuses B) Circuit breakers or fuses C) Only switches D) Only relays
D) It reduces installation time Explanation: Correct load calculations ensure the service equipment is neither undersized nor oversized. Q37. Which term best describes the maximum current that a service entrance cable can safely carry? A) Voltage rating B) Ampacity C) Conduit fill D) Insulation resistance Explanation: Ampacity is the maximum current a conductor can carry without overheating. Q38. What is the purpose of a bonding jumper in service equipment installations? A) To provide a visual inspection point B) To interconnect metal parts to ensure they are at the same electrical potential C) To increase conductor ampacity D) To connect the load to the power source Explanation: Bonding jumpers ensure that all metal parts are at the same potential, reducing shock hazards. Q39. Which component is essential for disconnecting a separately derived system from the main service? A) Isolation transformer B) Transfer switch C) Surge suppressor D) Conduit connector Explanation: A transfer switch safely isolates the separately derived system from the main service. Q40. What is the typical consequence of an undersized service load calculation? A) Improved energy efficiency B) Potential overload and safety hazards C) Lower installation cost D) Increased conductor ampacity Explanation: An undersized service can result in overload conditions, creating safety hazards. Q41. How does a service disconnect differ from a circuit breaker? A) It is used only for lighting circuits B) It disconnects the entire service, not individual branch circuits C) It does not require regular maintenance D) It is less expensive Explanation: A service disconnect is meant to disconnect the whole installation rather than individual circuits. Q42. Which of the following best describes a “grounded” conductor in service equipment? A) It carries current in normal operation
B) It is used solely for equipment bonding and grounding C) It is always at a higher potential than the ground D) It is used to transfer power to loads Explanation: The grounded (neutral) conductor normally carries current and is bonded to ground at the service equipment. Q43. What is the role of an overcurrent protective device in service equipment installations? A) To provide continuous power supply B) To interrupt current flow when it exceeds safe limits C) To balance load currents D) To reduce the need for proper grounding Explanation: Overcurrent protective devices safeguard wiring by interrupting excessive current.
FEEDERS (Questions 44–53)
Q44. What is a feeder in an electrical installation? A) A small branch circuit B) A conductor that distributes power from the service equipment to subpanels or large loads C) A control device for motors D) A protective grounding conductor Explanation: Feeders are larger conductors that carry power from the service equipment to subpanels or major loads. Q45. Which factor is most important when sizing a feeder conductor? A) Conductor color B) Load current C) Ambient lighting D) Panel layout Explanation: The current load directly determines the size (ampacity) of the feeder conductor. Q46. In feeder calculations, voltage drop is a concern because: A) It causes mechanical stress B) Excessive drop reduces the voltage available at the load C) It increases the physical length of the feeder D) It affects the conduit fill Explanation: Voltage drop reduces the effective voltage at the load, affecting performance. Q47. Which device is typically used for feeder overcurrent protection? A) Fuse or circuit breaker B) Ground fault interrupter C) Transfer switch D) Relay Explanation: Overcurrent protection for feeders is provided by fuses or circuit breakers sized for the feeder’s load.
Explanation: Voltage drop calculations are essential to ensure that sufficient voltage reaches the load.
BRANCH CIRCUITS AND CONDUCTORS (Questions 54–101)
Q54. What is a branch circuit? A) A circuit that supplies power to individual outlets or lighting B) A feeder circuit C) A dedicated grounding system D) A high-voltage transmission line Explanation: Branch circuits distribute power from the service panel to various outlets and devices. Q55. Which factor is key in determining conductor size for a branch circuit? A) Circuit length and current load B) Color of the cable jacket C) Type of conduit only D) Physical appearance of the outlet Explanation: Conductor size depends on the current load and the distance (affecting voltage drop) of the circuit. Q56. What does “overcurrent protection” in a branch circuit prevent? A) Excessive voltage fluctuations B) Overheating and potential fire hazards due to excess current C) Excessive conductor flexibility D) Noise interference in the circuit Explanation: Overcurrent protection interrupts the circuit if the current exceeds safe limits, preventing overheating. Q57. Which device is most commonly used for branch circuit protection? A) Fuse or circuit breaker B) Timer switch C) Relay contactor D) Variable resistor Explanation: Fuses and circuit breakers are standard devices that protect branch circuits from overcurrent. Q58. What is the importance of conductor insulation in branch circuits? A) It increases the current flow B) It prevents accidental contact and short circuits C) It enhances voltage drop D) It reduces the number of wires needed Explanation: Insulation prevents live conductors from contacting other materials, reducing shock and short circuit risks.
Q59. When calculating branch circuit conductor sizes, which of the following must be taken into account? A) Ambient temperature, conductor material, and installation method B) Color coding only C) Manufacturer’s logo D) The age of the building Explanation: These factors affect the conductor’s ampacity and performance. Q60. Which branch circuit wiring method is commonly used in residential applications? A) Nonmetallic sheathed cable (NM cable) B) Mineral-insulated cable C) Underground feeder only D) Open wiring without protection Explanation: NM cable is widely used for residential branch circuits due to its ease of installation and cost-effectiveness. Q61. What is the typical voltage for a standard residential branch circuit in the U.S.? A) 120/240 V B) 12 V C) 600 V D) 480 V Explanation: Residential branch circuits are typically 120 V for individual circuits, with 240 V available for larger appliances. Q62. Which of the following is a primary consideration when selecting branch circuit conductors? A) Conductor ampacity and insulation type B) The shape of the outlet box C) The manufacturer’s warranty D) The room’s paint color Explanation: Conductor ampacity and the proper insulation type are crucial for safe and effective branch circuits. Q63. What does the term “circuit loading” refer to? A) The weight of the circuit components B) The total current drawn by devices on the circuit C) The length of the circuit run D) The installation cost of the circuit Explanation: Circuit loading is the total electrical load (current) placed on the circuit. Q64. Which conductor is typically used as the “grounded” conductor in a branch circuit? A) Black B) Red C) White or gray D) Green
D) NFPA 72
Explanation: The National Electrical Code (NEC) provides guidelines and requirements for branch circuit installations. Q71. What is “voltage drop” in a branch circuit? A) A measurement error in voltage B) The reduction in voltage along the length of the circuit C) An increase in voltage due to poor connections D) A factor used only in high-voltage systems Explanation: Voltage drop refers to the loss of voltage as current travels along a conductor, especially over long distances. Q72. In branch circuit design, what is “continuous load”? A) A load that is only on for a few minutes B) A load expected to operate for three hours or more at its maximum rating C) A load that alternates on and off D) A load with a very high start-up surge Explanation: A continuous load is one that is expected to operate for three or more hours continuously at its maximum current. Q73. Which method is typically used to calculate branch circuit conductor size? A) Using a voltage drop calculator B) Referring to NEC tables for ampacity and then adjusting for installation conditions C) Measuring the physical width of the wire D) Asking the equipment manufacturer Explanation: NEC tables provide ampacity ratings, and adjustments are made based on installation conditions and circuit length. Q74. What is “overcurrent” in a branch circuit? A) A current level that is below the rated capacity B) A current level that exceeds the conductor’s or device’s rating C) A current fluctuation due to weather D) A method of energy conservation Explanation: Overcurrent occurs when the current exceeds the safe operating limits of conductors or devices, triggering protective devices. Q75. When installing a branch circuit, what is one key reason to separate circuits for high-load appliances? A) To simplify labeling B) To ensure that the circuit is not overloaded C) To reduce wiring cost D) To use smaller conductors Explanation: High-load appliances are placed on dedicated circuits to prevent overloading other circuits.
Q76. Which component is used to join branch circuit conductors in a safe manner? A) Wire nut or connector B) Electrical tape only C) Conduit coupling D) Metal clamps Explanation: Wire nuts or approved connectors provide a safe and secure electrical connection. Q77. What does “ampacity adjustment” refer to? A) Adjusting the color of the wiring B) Modifying the current carrying capacity based on ambient temperature and conduit fill C) Changing the conductor’s length D) Increasing the number of circuits in a panel Explanation: Ampacity adjustment factors account for conditions that can affect the current carrying capacity of conductors. Q78. Which type of circuit is most commonly associated with lighting loads in residential wiring? A) A dedicated circuit B) A general-purpose branch circuit C) A feeder circuit D) A high-voltage circuit Explanation: Lighting loads are typically served by general-purpose branch circuits. Q79. In a branch circuit, what is the typical function of a circuit breaker? A) To distribute power evenly B) To interrupt the circuit when overcurrent occurs C) To transform voltage levels D) To reduce wiring complexity Explanation: Circuit breakers protect branch circuits by tripping when an overcurrent is detected. Q80. When selecting conductors for branch circuits, why is insulation type important? A) It determines the physical durability and temperature rating of the wire B) It affects only the color of the conductor C) It is required only for underground wiring D) It increases the electrical resistance deliberately Explanation: Insulation type ensures that the conductor can handle the environmental conditions and temperature without degrading. Q81. Which of the following best defines “circuit continuity”? A) The uninterrupted flow of current through a closed circuit B) The presence of a circuit breaker C) The use of multiple conductors D) The voltage drop along the circuit Explanation: Circuit continuity means that there is an unbroken path for current to flow.
Explanation: Conductors must be sized to safely handle the maximum load and adjusted for installation conditions. Q88. What does “duty cycle” in a branch circuit refer to? A) The percentage of time a circuit is active B) The physical durability of the wiring C) The voltage regulation D) The cost of the circuit Explanation: Duty cycle describes how long a circuit or device operates relative to a full cycle, affecting design considerations. Q89. Which of the following can be a consequence of using an undersized conductor in a branch circuit? A) Reduced installation costs B) Increased risk of overheating and fire C) Improved circuit performance D) Enhanced conductor flexibility Explanation: An undersized conductor may overheat under load, posing a fire hazard. Q90. What is the primary function of a junction box in branch circuits? A) To house overcurrent devices B) To provide a safe location for conductor splices C) To support heavy equipment D) To serve as a grounding electrode Explanation: Junction boxes protect and contain the connections (splices) of conductors. Q91. Which practice is essential for ensuring safe branch circuit installations? A) Using the thinnest possible insulation B) Ensuring proper conductor derating when multiple conductors are in a conduit C) Ignoring temperature ratings D) Overfilling conduits Explanation: Derating is necessary when conductors are grouped together, as their ampacity may be reduced. Q92. What is a “multiwire branch circuit”? A) A circuit with a single conductor B) A circuit that shares a neutral among several ungrounded conductors C) A circuit with multiple disconnects D) A circuit using only feeder cables Explanation: A multiwire branch circuit uses a common neutral for two or more ungrounded (hot) conductors. Q93. When would you use a dedicated branch circuit? A) For low-power lighting only B) For appliances or equipment with high current requirements C) For temporary installations only
D) For outdoor receptacles only Explanation: Dedicated circuits are used to ensure that high-current devices have an adequate and isolated power supply. Q94. Which of the following is critical when connecting branch circuit conductors to devices? A) Tight, secure connections using approved connectors B) Only using twist-on wire nuts regardless of the application C) Leaving wires exposed D) Using conductor tape instead of proper connectors Explanation: Secure connections prevent loose wiring, which can cause arcing or overheating. Q95. What determines the “ampacity” of a branch circuit conductor? A) Only the conductor material B) Conductor material, insulation type, ambient temperature, and installation conditions C) Only the color of the conductor D) Only the circuit length Explanation: Several factors, including conductor material and environmental conditions, determine ampacity. Q96. Which tool is commonly used by electricians to verify branch circuit continuity? A) Voltage tester or multimeter B) Conduit bender C) Wire stripper D) Hammer Explanation: A multimeter or continuity tester is used to verify that the circuit is unbroken. Q97. What does “derating” a conductor mean? A) Increasing the conductor’s physical size B) Reducing the maximum allowable current based on conditions C) Changing the conductor’s color code D) Replacing the conductor with a different material Explanation: Derating means reducing the conductor’s ampacity due to factors like ambient temperature or conduit fill. Q98. When might you need to recalculate branch circuit loads? A) When adding new devices or appliances to an existing circuit B) Only during initial installation C) Only when the circuit is in a commercial building D) Only when a fuse blows Explanation: Changes in the load require recalculations to ensure the circuit remains safe. Q99. Which of the following best defines “voltage regulation” in branch circuits? A) The ability to maintain a constant voltage level under varying loads B) The adjustment of conductor size C) The regulation of circuit breaker tripping D) The physical support of conductors
Q105. What is the primary advantage of using conduit systems in wiring installations? A) They improve circuit ampacity B) They provide mechanical protection and a path for wiring C) They reduce installation costs dramatically D) They increase conductor resistance Explanation: Conduit systems protect wiring from physical damage and provide a neat installation pathway. Q106. Which of the following is a common characteristic of armored cable (AC)? A) It has a metallic sheath for protection B) It uses nonmetallic insulation only C) It is designed for outdoor only D) It is not code compliant for branch circuits Explanation: AC cable is enclosed in a metal armor that provides protection against physical damage. Q107. What does NM cable stand for? A) Nonmetallic sheathed cable B) Neutral metal cable C) Non-mechanical wiring D) Normalized metal cable Explanation: NM cable is an abbreviation for nonmetallic sheathed cable, a common wiring method in residences. Q108. In wiring methods, what is a “junction box” used for? A) To house overcurrent devices B) To safely contain and protect conductor splices C) To support heavy equipment D) To secure conduit fittings Explanation: Junction boxes provide a secure enclosure for connecting wires together. Q109. Which material is commonly used for electrical boxes in residential installations? A) Steel or plastic B) Wood only C) Concrete D) Glass Explanation: Electrical boxes are usually made of steel or plastic for durability and safety. Q110. What is the significance of “box fill” calculations? A) To determine how many conductors and devices a box can safely contain B) To measure the box’s weight C) To calculate the cost of the installation D) To determine the size of the circuit breaker Explanation: Box fill calculations ensure that an electrical box is not overcrowded, which could lead to overheating.
Q111. When installing cables in a conduit, which factor is critical? A) Conduit fill and bend radius B) The color of the cable jacket C) The brand of the cable D) The length of the conduit only Explanation: Both conduit fill and the bend radius are important for maintaining conductor integrity. Q112. Which of the following wiring methods is typically used in exposed industrial installations? A) Rigid metal conduit (RMC) B) NM cable C) Flexible cord D) Wireless power Explanation: RMC is used for its durability and robust protection in industrial environments. Q113. What is one key benefit of using flexible metal conduit (FMC)? A) It is the cheapest wiring method B) It allows for bending around obstacles in tight spaces C) It increases the conductor’s ampacity D) It requires no fittings Explanation: FMC is valued for its flexibility in installations with complex routing. Q114. Which wiring method is generally preferred for outdoor, direct burial applications? A) UF (Underground Feeder) cable B) NM cable C) AC cable D) EMT Explanation: UF cable is designed for outdoor and direct burial use because of its moisture- resistant properties. Q115. What is the primary purpose of using cable assemblies? A) To bundle wires together in a protective covering B) To increase the number of circuits in a panel C) To support heavy mechanical loads D) To serve as a substitute for grounding conductors Explanation: Cable assemblies provide an integrated, protected wiring solution. Q116. Which of the following is a characteristic of metal-clad (MC) cable? A) It has a metallic jacket that offers extra protection B) It cannot be used indoors C) It is only available in one size D) It requires no additional support Explanation: MC cable features a metal jacket that offers enhanced protection against physical damage.
