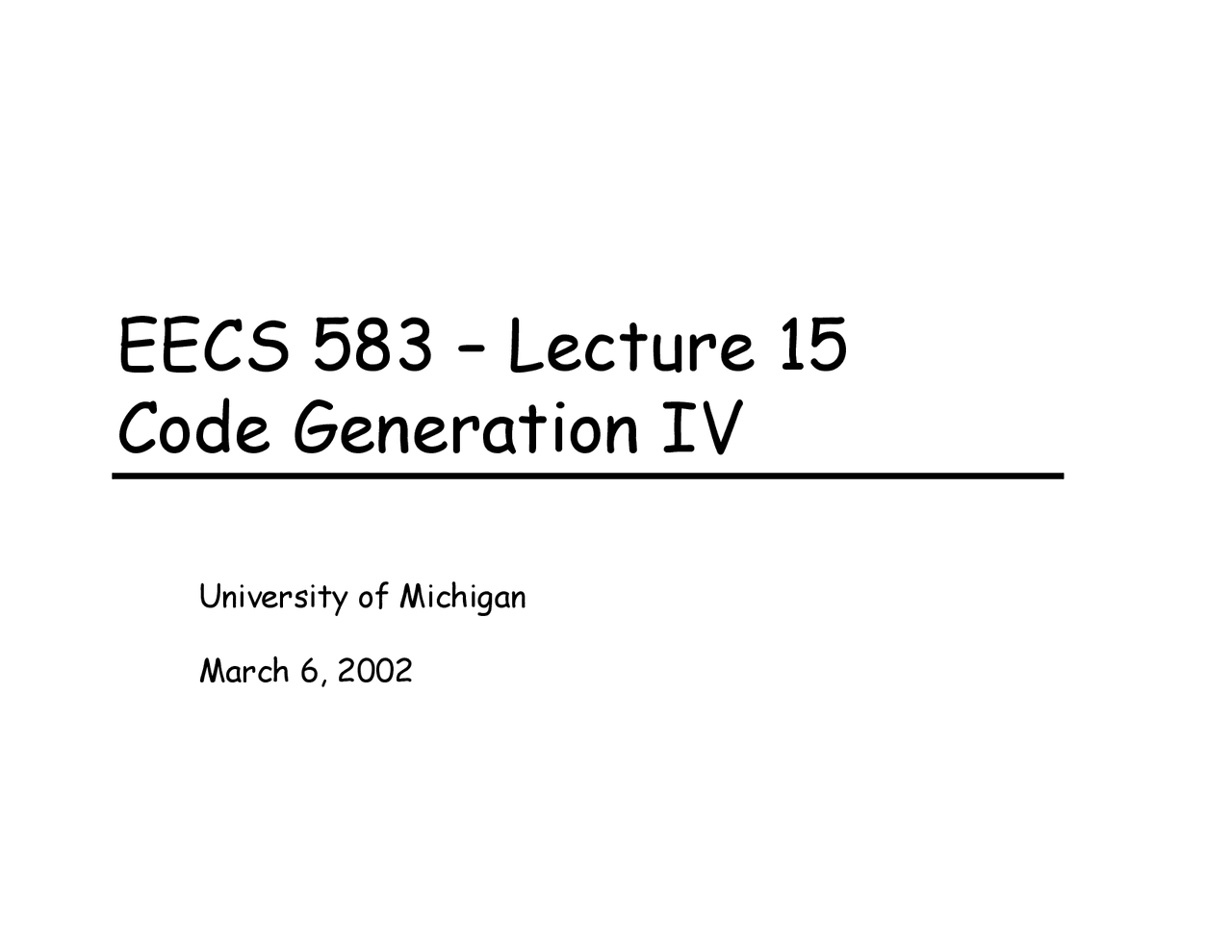

EECS 583 – Lecture 15 Code Generation IV

University of Michigan March 6, 2002

• 1 -

Today’s focus is loops Most of program execution time is spent in loops Problem:

How do we achieve compact schedules for loops

r1 = _ar2 = _br9 = r1 * 41: r3 = load(r1)2: r4 = r3 * 263: store (r2, r4)4: r1 = r1 + 45: r2 = r2 + 46: p1 = cmpp (r1 < r9)7: brct p1 Loop Loop:

for (j=0; j<100; j++)^ b[j] = a[j] * 26

• 3 -

Unroll then schedule larger body

time

Iteration

1,^

3,^

5,^

n-1,n

Schedule each iteration resources: 4 issue, 2 alu, 1 mem, 1 br latencies: add=1, cmpp = 1, mpy=3, ld = 2, st = 1, br = 1

1: r3 = load(r1)2: r4 = r3 * 263: store (r2, r4)4: r1 = r1 + 45: r2 = r2 + 46: p1 = cmpp (r1 < r9)7: brct p1 Loop

time

ops 0

Total time = 7 * n/

• 4 -

Problems with unrolling^ Y^

Code bloat^ »^ Typical unroll is 4-16x^ »^ Use profile statistics to only unroll “important” loops^ »^ But still, code grows fast Y Barrier after across unrolled bodies^ »^ I.e., for unroll 2, can only overlap iterations 1 and 2, 3 and 4, … Y Does this mean unrolling is bad?^ »^ No, in some settings its very useful

y^ Low trip count y^ Lots of branches in the loop body » But, in other settings, there is room for improvement

• 6 -

A software pipeline

time

A B^ A C^ B

A

D^ C

B^

A

D^ C

B^

A

… D^

C^

B^ A D C^ B D^ C D

Prologue - fill the pipe Kernel – steady state

A B C D

Loop body with 4 ops

Epilogue - drain the pipe

Steady state: 4 iterations executed simultaneously, 1 operation from each iteration. Every cycle, an iteration starts and finishes when the pipe is full.

• 7 -

Creating software pipelines^ Y^

Lots of software pipelining techniques out there Y Modulo scheduling^ »^ Most widely adopted^ »^ Practical to implement, yields good results Y Conceptual strategy^ »^ Unroll the loop completely^ »^ Then, schedule the code completely with 2 constraints

y^ All iteration bodies have identical schedules y^ Each iteration is scheduled to start some fixed number of cycleslater than the previous iteration » Initiation Interval

(II) = fixed delay between the start of

successive iterations » Given the 2 constraints, the unrolled schedule is repetitive(kernel) except the portion at the beginning (prologue) andend (epilogue)^ y^ Kernel can be re-rolled to yield a new loop

• 9 -

Resource usage legality^ Y^

Need to guarantee that^ »^ No resource is used at 2 points in time that are separated byan interval which is a multiple of II^ »^ I.E., within a single iteration, the same resource is never usedmore than 1x at the same time modulo II^ »^ Known as modulo constraint

, where the name modulo

scheduling comes from » Modulo reservation table

solves this problem

y^ To schedule an op at time T needing resource R^ X

The entry for R at T mod II must be free y^ Mark busy at T mod II if schedule

br

alu^ alu^ mem b

us0 b

us

II = 3

• 10 -

Dependences in a loop^ Y^

Need worry about 2 kinds»^ Intra-iteration»^ Inter-iteration Y Delay»^ Minimum time interval betweenthe start of operations»^ Operation read/write times Y Distance»^ Number of iterations separatingthe 2 operations involved»^ Distance of 0 means intra-iteration Y Recurrence manifests itself as acircuit in the dependence graph

<1,2>

<1,2> <1,0> <delay, distance> Edges annotated with tuple

• 12 -

Physical realization of EVRs^ Y^

EVR may contain an unlimited number values^ »^ But, only a finite contiguous set of elements of an EVR areever live at any point in time^ »^ These must be given physical registers Y Conventional register file^ »^ Remaps are essentially copies, so each EVR is realized by a setof physical registers and copies are inserted Y Rotating registers^ »^ Direct support for EVRs^ »^ No copies needed^ »^ File “rotated” after each loop iteration is completed

• 13 -

Loop dependence example

3,0 1, 2,

1, 1, 0,0 1,1 1,

1: r3[-1] = load(r1[0])2: r4[-1] = r3[-1] * 263: store (r2[0], r4[-1])4: r1[-1] = r1[0] + 45: r2[-1] = r2[0] + 46: p1[-1] = cmpp (r1[-1] < r9)remap r1, r2, r3, r4, p17: brct p1[-1] Loop

0,

In DSA form, there are no inter-iteration anti or output dependences!

<delay, distance>

• 15 -

Minimum initiation interval (MII)^ Y^

Remember, II = number of cycles between the start ofsuccessive iterations Y Modulo scheduling requires a candidate II be selectedbefore scheduling is attempted^ »^ Try candidate II, see if it works^ »^ If not, increase by 1, try again repeating until successful Y MII is a lower bound on the II^ »^ MII = Max(ResMII, RecMII)^ »^ ResMII = resource constrained MII

y^ Resource usage requirements of 1 iteration » RecMII = recurrence constrained MII y^ Latency of the circuits in the dependence graph

• 16 -

ResMII^ Concept: If there were no dependences between the operations, what^ is the the shortest possible schedule?^ Simple resource model^ A processor has a set of resources R. For each resource r in R^ there is count(r) specifying the number of identical copies

ResMII = MAX

(uses(r) / count(r)) for all r in R uses(r) = number of times the resource is used in 1 iteration In reality its more complex than this because operations can have multiple alternatives (different choices for resources it could be assigned to), but we will ignore this for now

• 18 -

RecMII^ Approach: Enumerate all irredundant elementary circuits in the^ dependence graph^ RecMII = MAX

(delay(c) / distance(c)) for all c in C delay(c) = total latency in dependence cycle c (sum of delays) distance(c) = total iteration distance of cycle c (sum of distances)

cycle k^

k+^

k+2k+3k+^

k+^

4 cycles,RecMII = 4

3,

delay(c) = 1 + 3 = 4 distance(c) = 0 + 1 = 1 RecMII = 4/1 = 4

• 19 -

RecMII example^ 1: r3 = load(r1)2: r4 = r3 * 263: store (r2, r4)4: r1 = r1 + 45: r2 = r2 + 46: p1 = cmpp (r1 < r9)7: brct p1 Loop

3,0 1, 2,

1,1 1,1 1, 0,0 1,

4 Æ^

5 Æ^

4 Æ^

1 Æ^

5 Æ^

3 Æ^

RecMII = MAX(1,1,1,1) = 1 Then, MII = MAX(ResMII, RecMII) MII = MAX(2,1) = 2

0,

<delay, distance>
