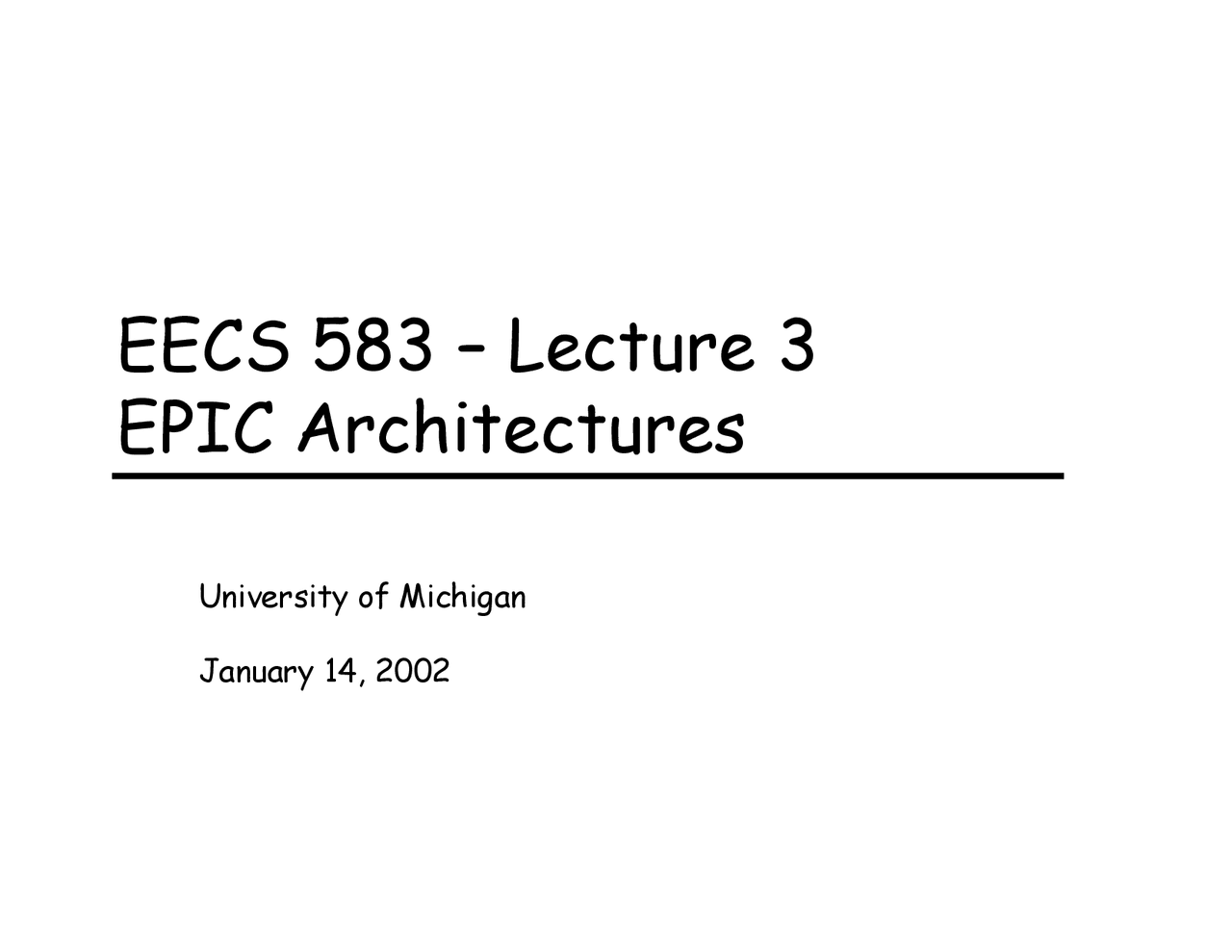

EECS 583 – Lecture 3 EPIC Architectures

University of Michigan January 14, 2002

• 1 -

EPIC philosphy Y

Compiler creates complete plan of run-time execution^ »

At what time and using what resource »^

POE communicated to hardware via the instruction set »^

Processor obediently follows POE »^

No dynamic scheduling, out of order execution (these secondguess the compilers plan)

Y

Compiler allowed to play the statistics^ »

Many types of info only available at run-time (branchdirections, locations accessed via pointers) »^

Traditionally compilers behave conservatively

Æ

handle worst

case possibility »^

Allow the compiler to gamble when it believes the odds are inits favor^ y

Profiling

Y

Expose microarchitecture to the compiler^ »

memory system, branch execution

• 3 -

Defining feature II - Exposed latency Y

Superscalar^ »

Sequence of atomic operations »^

Sequential order defines semantics (UAL) »^

Each conceptually finishes before the next one starts

Y

EPIC – non-atomic operations^ »

Register reads/writes for 1 operation separated in time »^

Semantics determined by relative ordering of reads/writes

Y

Assumed latency (NUAL if > 1)^ »

Contract between the compiler and hardware »^

Instruction issuance provides common notion of time

MultiOp1: r1 = r2 + r3 MultiOp2: r4 = r1 * r5 MultiOp3: r6 = r1 / r

• 4 -

Other architectural features of EPIC Y

Add features into the architecture to support EPICphilosphy^ »

Create more efficient POEs »^

Expose the microarchitecture »^

Play the statistics

Y

Register structure

Y

Branch architecture

Y

Data/Control speculation

Y

Memory hierarchy

Y

Predicated execution (largest impact on the compiler)

• 6 -

Rotating registers Y^

Overlap loop iterations^ »

How do you prevent registeroverwrite in later iterations? »^

Compiler-controlled dynamicregister renaming

Y^

Rotating registers^ »

Each iteration writes to r »^

But this gets mapped to adifferent physical register »^

Block of consecutive regsallocated for each reg in loopcorresponding to number ofiterations it is needed

Op1 Op iteration nRRB = 7

Op1 Op iteration n + 1RRB = 6

II

r

r

actual reg = (reg + RRB) % NumRegsAt end of each iteration, RRB--

• 7 -

Branch architecture Y

Branch actions^ »

Branch condition computed »^

Target address formed »^

Instructions fetched from taken, fall-through or both paths »^

Branch itself executes »^

After the branch, target of the branch is decoded/executed

Y

Superscalar processors use hardware to hide the latency ofall the actions^ »

Icache prefetching »^

Branch prediction – Guess outcome of branch »^

Dynamic scheduling – overlap other instructions with branch »^

Reorder buffer – Squash when wrong

• 9 -

Speculation Y

Allow the compiler to play the statistics^ »

Reordering operations to find enough parallelism »^

Branch outcome^ y

Control speculation

»^

Lack of memory dependence in pointer code^ y

Data speculation

»^

Profile or clever analysis provides “the statistics”

Y

General plan of action^ »

Compiler reorders aggressively »^

Hardware support to catch times when its wrong »^

Execution repaired, continue^ y

Repair is expensive y^

So have to be right most of the time to or performance willsuffer

• 10 -

Control speculation Y^

Compile-time movement of operationsabove branches»

Guess the operation result is needed »^

If wrong, wasted execution

Y^

Potential problems»

Too much wasted execution^ y

Speculate likely operations

»^

Spurious exceptions^ y

Useless op causes problem y^

NAT/poison/exception bit y^

check NAT operations

»^

Register overwrite^ y

Rename or don’t do it

»^

Memory corrupted^ y

Don’t speculate stores

blt r1, r2, L1^ r6 = r7 + r8r9 = r6 << 3r4 = r9 + 7

taken^ r3 = load(r4)r5 = r3 + 1store (r4, r5)

fallthru

• 12 -

Management of the memory hierarchy Y^

Common problems^ »

Kick out good locality datawith bad locality data »^

Capacity/conflict misses

Æ

prefetch the data »^

Non-deterministic latency –What should be assumed?

Y^

Expose cache hierarchy tothe compiler^ »

No longer a black box »^

Placement made explicit »^

Assumed latency explicit

CPU

L1-D

L2 - U

Main Memory

L1 - I

• 13 -

Source/target cache specifiers Y

Source specifier – Compiler tells hardware where withinthe cache hierarchy the data is expected to be found^ »

Assumed latency

Y

Target specifier – Compiler tells hardware the highest levelin which the data should be placed^ »

Reduce pollution of lower levels

Y

Prefetching – Speculative load to some dummy register

Y

Icache managed by PBRs

Y

Traditional processors use C1/C

Source cache specifier –

where its coming from

Æ

latency

L_B_C3_C

S_H_C

Target cache specifier – where to place the data

• 15 -

Predicated execution example

a = b + c if (a > 0)

e = f + g else

e = f / g h = i - j

BB1 BB1 BB3 BB3 BB2 BB

add a, b, c bgt a, 0, L1 div e, f, g jump L2 L1: add e, f, g L2: sub h, i, j

BB

BB

BB

BB

Traditional branching code

BB1 BB1 BB1 BB3 BB2 BB

add a, b, c if T p2 = a > 0 if T p3 = a <= 0 if T div e, f, g if p3 add e, f, g if p2 sub h, i, j if T

BB1 BB2 BB3 BB

p

Æ

BB

p

Æ

BB

Predicated code

• 16 -

What about nested if-then-else’s?

a = b + c if (a > 0)

if (a > 25)

e = f + g else

e = f * g

else

e = f / g h = i - j

BB1 BB1 BB3 BB3 BB2 BB6 BB6 BB5 BB

add a, b, c bgt a, 0, L1 div e, f, g jump L2 L1: bgt a, 25, L3 mpy e, f, g jump L2 L3: add e, f, g L2: sub h, i, j

BB

BB

BB

BB

Traditional branching code

BB

BB

• 18 -

Benefits/Costs of predicated execution Y

Benefits^ »

Remove branches (both conditional and unconditional) »^

Remove branch mispredictions »^

Overlap execution of if-then-else statements^ y

Branches tend to sequentialize operations y^

Predicates can be computed/used in parallel

Y

Costs^ »

Useless instructions executed »^

Code size (extra operand, can’t fit into 32-bits) »^

Possibly longer schedule lengths

Y

The real story^ »

Must be applied selectively or you get worse performancethan not using it at all

• 19 -

Benefits/Costs of predicated execution (2)

Benefits: - No branches, no mispredicts - Can freely reorder independent operations in the predicated block - Overlap BB2 with BB5 and BB6 Costs (execute all paths) -worst case schedule length -worst case resources required

BB

BB

BB

BB1 BB2 BB3 BB4 BB5 BB6 BB

BB

BB

BB

BB
