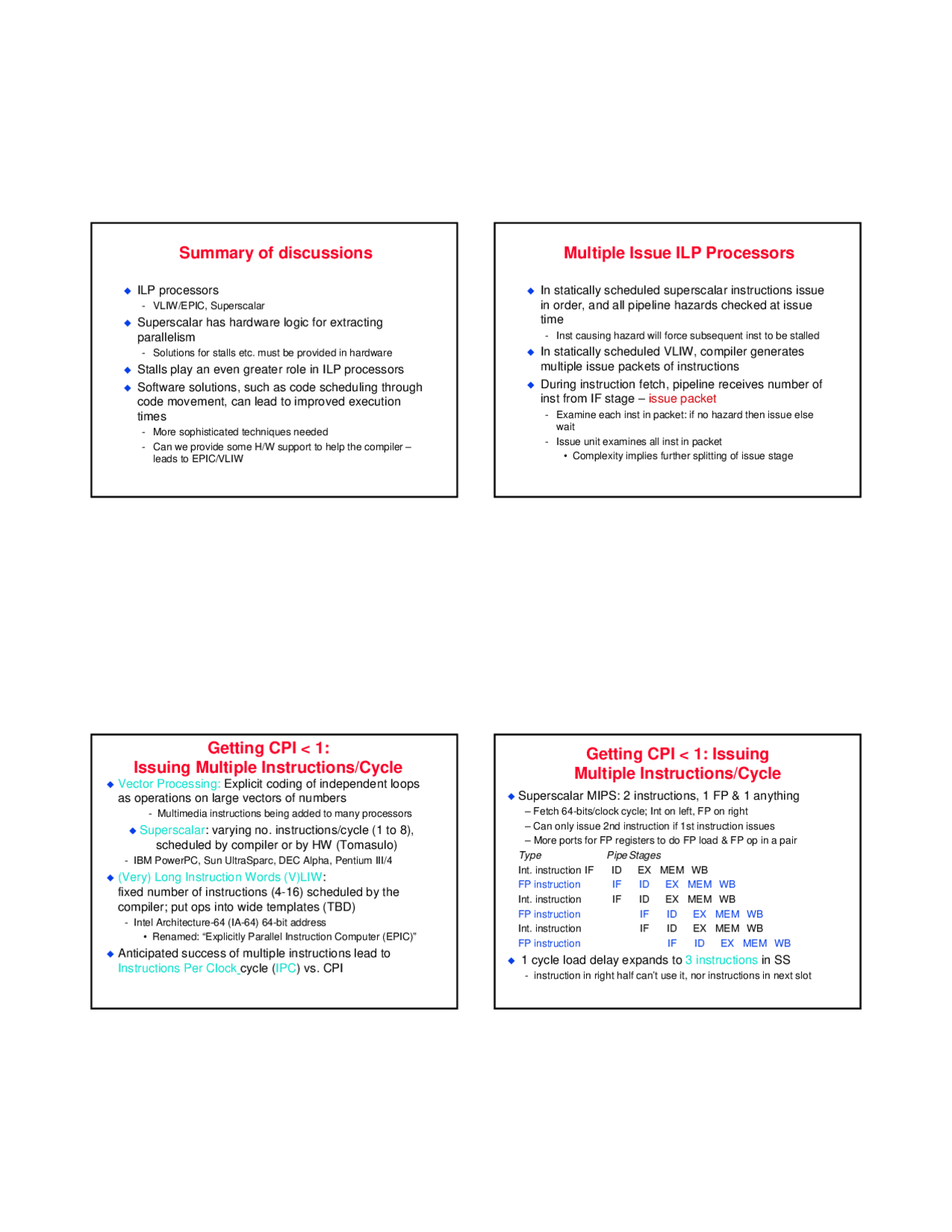

Summary of discussions
ILP processors
- VLIW/EPIC, Superscalar
Superscalar has hardware logic for extracting
parallelism
- Solutions for stalls etc. must be provided in hardware
Stalls play an even greater role in ILP processors
Software solutions, such as code scheduling through
code movement, can lead to improved execution
times
- More sophisticated techniques needed
- Can we provide some H/W support to help the compiler –
leads to EPIC/VLIW
Multiple Issue ILP Processors
In statically scheduled superscalar instructions issue
in order, and all pipeline hazards checked at issue
time
- Inst causing hazard will force subsequent inst to be stalled
In statically scheduled VLIW, compiler generates
multiple issue packets of instructions
During instruction fetch, pipeline receives number of
inst from IF stage – issue packet
- Examine each inst in packet: if no hazard then issue else
wait
- Issue unit examines all inst in packet
• Complexity implies further splitting of issue stage
Getting CPI < 1:
Issuing Multiple Instructions/Cycle
Vector Processing: Explicit coding of independent loops
as operations on large vectors of numbers
- Multimedia instructions being added to many processors
Superscalar: varying no. instructions/cycle (1 to 8),
scheduled by compiler or by HW (Tomasulo)
- IBM PowerPC, Sun UltraSparc , DEC Alpha, Pentium III/4
(Very) Long Instruction Words (V)LIW:
fixed number of instructions (4-16) scheduled by the
compiler; put ops into wide templates (TBD)
- Intel Architecture-64 (IA-64) 64-bit address
• Renamed: “Explicitly Parallel Instruction Computer (EPIC)”
Anticipated success of multiple instructions lead to
Instructions Per Clock cycle (IPC) vs. CPI
Getting CPI < 1: Issuing
Multiple Instructions/Cycle
Superscalar MIPS: 2 instructions, 1 FP & 1 anything
– Fetch 64-bits/clock cycle; Int on left, FP on right
– Can only issue 2nd instruction if 1st instruction issues
– More ports for FP registers to do FP load & FP op in a pair
Type PipeStages
Int. instruction IF ID EX MEM WB
FP instruction IF ID EX MEM WB
Int. instruction IF ID EX MEM WB
FP instruction IF ID EX MEM WB
Int. instruction IF ID EX MEM WB
FP instruction IF ID EX MEM WB
1 cycle load delay expands to 3 instructions in SS
- instruction in right half can’t use it, nor instructions in next slot
pf3
pf4
pf5

Partial preview of the text

Download Multiple Issue Processors: Superscalar, VLIW/EPIC and Performance Considerations and more Study notes Advanced Computer Architecture in PDF only on Docsity!

Summary of discussions

‹ ILP processors

  • VLIW/EPIC, Superscalar

‹ Superscalar has hardware logic for extracting

parallelism

  • Solutions for stalls etc. must be provided in hardware

‹ Stalls play an even greater role in ILP processors

‹ Software solutions, such as code scheduling through

code movement, can lead to improved execution

times

  • More sophisticated techniques needed
  • Can we provide some H/W support to help the compiler – leads to EPIC/VLIW

Multiple Issue ILP Processors

‹ In statically scheduled superscalar instructions issue

in order, and all pipeline hazards checked at issue

time

  • Inst causing hazard will force subsequent inst to be stalled

‹ In statically scheduled VLIW, compiler generates

multiple issue packets of instructions

‹ During instruction fetch, pipeline receives number of

inst from IF stage – issue packet

  • Examine each inst in packet: if no hazard then issue else wait
  • Issue unit examines all inst in packet
    • Complexity implies further splitting of issue stage

Getting CPI < 1:

Issuing Multiple Instructions/Cycle

‹ Vector Processing: Explicit coding of independent loops

as operations on large vectors of numbers

  • Multimedia instructions being added to many processors

‹ Superscalar: varying no. instructions/cycle (1 to 8),

scheduled by compiler or by HW (Tomasulo)

  • IBM PowerPC, Sun UltraSparc, DEC Alpha, Pentium III/

‹ (Very) Long Instruction Words (V)LIW:

fixed number of instructions (4-16) scheduled by the

compiler; put ops into wide templates (TBD)

  • Intel Architecture-64 (IA-64) 64-bit address
    • Renamed: “Explicitly Parallel Instruction Computer (EPIC)”

‹ Anticipated success of multiple instructions lead to

Instructions Per Clock cycle (IPC) vs. CPI

Getting CPI < 1: Issuing

Multiple Instructions/Cycle

‹ Superscalar MIPS: 2 instructions, 1 FP & 1 anything

  • Fetch 64-bits/clock cycle; Int on left, FP on right
  • Can only issue 2nd instruction if 1st instruction issues
  • More ports for FP registers to do FP load & FP op in a pair Type Pipe Stages Int. instruction IF ID EX MEM WB FP instruction IF ID EX MEM WB Int. instruction IF ID EX MEM WB FP instruction IF ID EX MEM WB Int. instruction IF ID EX MEM WB FP instruction IF ID EX MEM WB

‹ 1 cycle load delay expands to 3 instructions in SS

  • instruction in right half can’t use it, nor instructions in next slot

Multiple Issue Issues

‹ issue packet: group of instructions from fetch unit that

could potentially issue in 1 clock

  • If instruction causes structural hazard or a data hazard either due to earlier instruction in execution or to earlier instruction in issue packet, then instruction does not issue
  • 0 to N instruction issues per clock cycle, for N-issue

‹ Performing issue checks in 1 cycle could limit clock

cycle time: O(n 2 -n) comparisons

  • => issue stage usually split and pipelined
  • 1st stage decides how many instructions from within this packet can issue, 2nd stage examines hazards among selected instructions and those already been issued
  • => higher branch penalties => prediction accuracy important

Multiple Issue Challenges

‹ While Integer/FP split is simple for the HW, get CPI of 0.

only for programs with:

  • Exactly 50% FP operations AND No hazards

‹ If more instructions issue at same time, greater difficulty of

decode and issue:

  • Even 2-scalar => examine 2 opcodes, 6 register specifiers, & decide if 1 or 2 instructions can issue; (N-issue ~O(N 2 -N) comparisons)
  • Register file: need 2x reads and 1x writes/cycle
  • Rename logic: must be able to rename same register multiple times in one cycle! For instance, consider 4-way issue: add r1, r2, r3 add p11, p4, p sub r4, r1, r2 ⇒ sub p22, p11, p lw r1, 4(r4) lw p23, 4(p22) add r5, r1, r2 add p12, p23, p Imagine doing this transformation in a single cycle!
  • Result buses: Need to complete multiple instructions/cycle
    • So, need multiple buses with associated matching logic at every reservation station.
    • Or, need multiple forwarding paths

Summary of Course Performance and Cost

‹ Amdahl’s Law:

‹ CPI Law:

‹ Designing to Last through Trends

Capacity Speed Logic 2x in 3 years 2x in 3 years DRAM 4x in 4 years 2x in 10 years Disk 4x in 3 years 2x in 5 years Processor 2x every 1.5 years?

Speedup (^) overall =

ExTime (^) old

ExTime (^) new

(1 - Fraction (^) enhanced) + Fraction (^) enhanced Speedup (^) enhanced

CPU time = Seconds = Instructions x Cycles x Seconds Program Program Instruction Cycle

CPU time = Seconds = Instructions x Cycles x Seconds Program Program Instruction Cycle

Software Scheduling

‹ Instruction Level Parallelism (ILP) found either by compiler or

hardware.

‹ Loop level parallelism is easiest to see

  • SW dependencies/compiler sophistication determine if compiler can unroll loops
  • Memory dependencies hardest to determine => Memory disambiguation
  • Very sophisticated transformations available

‹ Trace Sceduling to Parallelize If statements

‹ Superscalar and VLIW: CPI < 1 (IPC > 1)

  • Dynamic issue vs. Static issue
  • More instructions issue at same time => larger hazard penalty
  • Limitation is often number of instructions that you can successfully fetch and decode per cycle

EPIC/VLIW

‹ What did IA-64/EPIC do well besides floating point

programs?

  • Was the only difference the 64-bit address v. 32-bit address?
  • What happened to the AMD 64-bit address 80x86 proposal?

‹ What happened on EPIC code size vs. x86?

‹ Did anybody propose anything at ISA to help with

software quality? availability? Security?

Hardware versus Software Speculation

Mechanisms

‹ To speculate extensively, must be able to

disambiguate memory references

  • Much easier in HW than in SW for code with pointers

‹ HW-based speculation works better when control flow

is unpredictable, and when HW-based branch

prediction is superior to SW-based branch prediction

done at compile time

  • Mispredictions mean wasted speculation

‹ HW-based speculation maintains precise exception

model even for speculated instructions

‹ HW-based speculation does not require compensation

or bookkeeping code

Hardware versus Software Speculation

Mechanisms cont’d

‹ Compiler-based approaches may benefit from the

ability to see further in the code sequence, resulting in

better code scheduling

‹ HW-based speculation with dynamic scheduling does

not require different code sequences to achieve good

performance for different implementations of an

architecture

  • may be the most important in the long run?

IA-64 EPIC vs. Classic VLIW

‹ Similarities:

  • Compiler generated wide instructions
  • Static detection of dependencies
  • ILP encoded in the binary (a group)
  • Large number of architected registers

‹ Differences:

  • Instructions in a bundle can have dependencies
  • Hardware interlock between dependent instructions
  • Accommodates varying number of functional units and latencies
  • Allows dynamic scheduling and functional unit binding Static scheduling are “suggestive” rather than absolute ⇒ Code compatibility across generations but software won’t run at top speed until it is recompiled so “shrink-wrap binary” might need to include multiple builds

EPIC and Compiler Optimization

‹ EPIC requires dependency free “scheduled code”

‹ Burden of extracting parallelism falls on compiler

‹ success of EPIC architectures depends on efficiency

of Compilers!!

‹ We provide overview of Compiler Optimization

techniques (as they apply to EPIC/ILP)

Introduction to

Compiler Optimization

Hardware-Software Interface

Machine Program

Performance = tcyc x CPI x code size

X

Available resources statically fixed Designed to support wide variety of programs

Required resources dynamically varying Designed to run well on a variety of machines Interested in having itself run fast

Interested in running many programs fast

Reflects how well the machine resources match the program requirements
