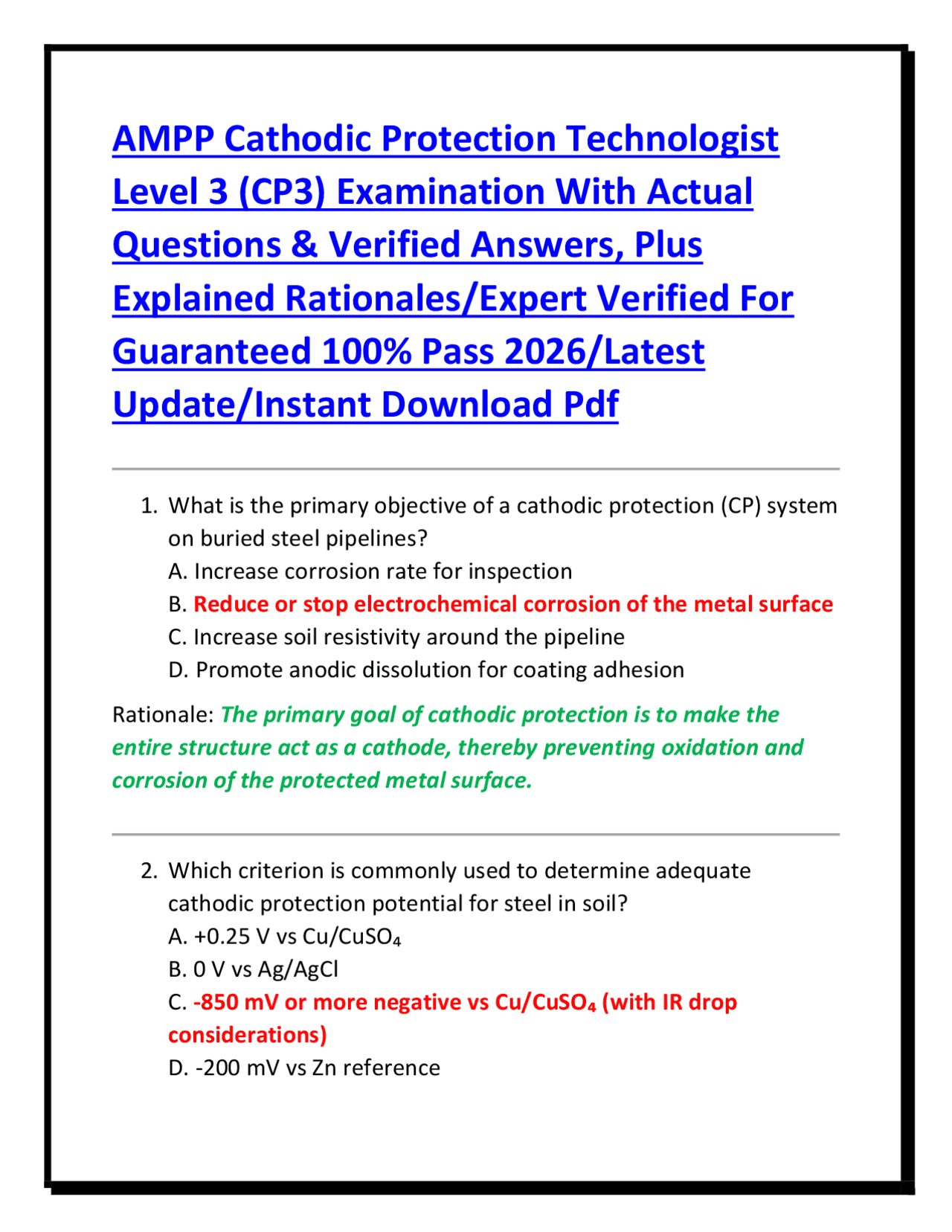

AMPP Cathodic Protection Technologist
Level 3 (CP3) Examination With Actual
Questions & Verified Answers, Plus
Explained Rationales/Expert Verified For
Guaranteed 100% Pass 2026/Latest
Update/Instant Download Pdf
- What is the primary objective of a cathodic protection (CP) system on buried steel pipelines? A. Increase corrosion rate for inspection B. Reduce or stop electrochemical corrosion of the metal surface C. Increase soil resistivity around the pipeline D. Promote anodic dissolution for coating adhesion
Rationale: The primary goal of cathodic protection is to make the entire structure act as a cathode, thereby preventing oxidation and corrosion of the protected metal surface.
- Which criterion is commonly used to determine adequate cathodic protection potential for steel in soil? A. +0.25 V vs Cu/CuSO₄ B. 0 V vs Ag/AgCl C. - 850 mV or more negative vs Cu/CuSO₄ (with IR drop considerations) D. -200 mV vs Zn reference
Rationale: The widely accepted CP criterion for steel in soil is a polarized potential of -850 mV or more negative relative to a Cu/CuSO₄ reference electrode, accounting for IR drop.
- What is the function of a transformer-rectifier in an impressed current CP system? A. Store electrical energy B. Convert DC to AC C. Convert AC power to controlled DC output for CP current D. Increase soil conductivity
Rationale: A transformer-rectifier converts AC power from the grid into DC current, which is used to drive protective current in impressed current CP systems.
- Which factor most directly affects soil resistivity? A. Pipe diameter B. Coating type C. Moisture content and ionic concentration D. Steel grade
Rationale: Soil resistivity is primarily influenced by moisture content, dissolved salts, and temperature, which affect ionic conduction.
- What is the purpose of a test station in a CP system? A. Store rectifier output B. Increase current output C. Provide access points for measuring pipe-to-soil potentials
C. Voltage drop in soil between structure and reference electrode D. Rectifier efficiency loss
Rationale: IR drop is the voltage loss due to current flow through soil resistance, which can affect accurate potential measurements.
- Which survey method is commonly used to detect coating defects on pipelines? A. Resistivity survey B. DC voltage gradient (DCVG) survey C. Soil pH testing D. Magnetic flux leakage
Rationale: DCVG surveys are used to locate coating holidays by detecting voltage gradients in the soil.
- What is the role of a sacrificial anode? A. Requires external power B. Corrodes preferentially to protect the structure C. Increases soil resistivity D. Acts as a coating enhancer
Rationale: Sacrificial anodes corrode instead of the protected structure due to their more negative electrochemical potential.
- Which metal is commonly used as a sacrificial anode in seawater? A. Iron B. Copper
C. Zinc D. Stainless steel
Rationale: Zinc is commonly used in seawater environments due to its suitable electrochemical potential and performance.
- What does “stray current corrosion” refer to? A. Corrosion due to coating failure B. Corrosion caused by unintended electrical currents entering and leaving a structure C. Uniform corrosion in soil D. Corrosion due to oxygen depletion
Rationale: Stray current corrosion occurs when external electrical currents enter and exit a structure, causing localized corrosion.
- Which device is used to isolate pipelines electrically? A. Rectifier B. Surge protector C. Insulating flange or joint D. Anode bed
Rationale: Insulating joints or flanges prevent electrical continuity between pipeline sections.
- What is the purpose of a coupon in CP systems? A. Increase current output B. Measure soil resistivity C. Simulate corrosion rate and CP effectiveness D. Act as an anode
- Which instrument is used to measure soil resistivity? A. Voltmeter B. Hydrometer C. Wenner four-pin method meter D. Oscilloscope
Rationale: The Wenner four-pin method is commonly used to measure soil resistivity.
- What is the function of magnesium anodes in CP systems? A. Impressed current source B. Sacrificial protection in low-resistivity soils C. Increase corrosion rate D. Coating reinforcement
Rationale: Magnesium anodes are used as sacrificial anodes, especially in high-resistivity soils.
- What is a common sign of CP system underprotection? A. Very negative potentials B. No current flow C. Potentials less negative than protection criteria D. Excess hydrogen evolution
Rationale: Underprotection occurs when potentials do not meet required protective criteria.
- What does a rectifier output increase most likely indicate? A. Reduced soil resistivity
B. Coating improvement C. Increased current demand due to coating degradation D. Lower anode activity
Rationale: Higher output often indicates increased current demand, usually due to coating damage or system changes.
- Which is a major concern with AC interference on pipelines? A. Coating improvement B. Localized corrosion and safety hazards C. Increased soil pH D. Reduced current demand
Rationale: AC interference can cause corrosion and safety risks due to induced voltages.
- What is the purpose of bonding in CP systems? A. Increase resistance B. Ensure electrical continuity between structures C. Reduce coating adhesion D. Eliminate anodes
Rationale: Bonding ensures current distribution and electrical continuity between structures.
- What is depolarization? A. Increase in CP current B. Return of metal potential toward corrosion potential after CP is removed
Rationale: Holiday detectors locate discontinuities in protective coatings.
- What is the primary cause of coating disbondment? A. High CP current B. Poor surface preparation or adhesive failure C. Soil moisture D. Pipe diameter
Rationale: Coating disbondment is mainly caused by improper application or adhesion failure.
- What is the effect of increasing anode bed resistance? A. Increased CP current B. No change C. Reduced CP current output D. Increased corrosion rate control
Rationale: Higher resistance reduces current flow from the anode bed.
- What is the purpose of a surge protection device in CP systems? A. Increase current output B. Protect equipment from lightning or fault currents C. Reduce coating damage D. Increase soil resistivity
Rationale: Surge protectors prevent damage from transient voltage spikes.
- What is the main function of coating in CP systems? A. Replace CP B. Increase corrosion C. Reduce current demand by isolating metal from electrolyte D. Increase soil conductivity
Rationale: Coatings reduce exposed metal surface area, lowering CP current demand.
- What does “current pickup” refer to in CP systems? A. Loss of current B. Current entering a structure from electrolyte or another source C. Rectifier shutdown D. Coating resistance
Rationale: Current pickup occurs when CP current enters a structure, protecting it.
- What is the main purpose of a deep anode ground bed? A. Reduce voltage B. Distribute current efficiently in high-resistivity environments C. Increase corrosion D. Reduce coating efficiency
Rationale: Deep anode beds improve current distribution in difficult soil conditions.
- What is the effect of shielding on CP systems? A. Improves current flow
C. Higher soil resistivity D. Reduced monitoring needs
Rationale: Pulsed current can improve efficiency and coating interaction.
- What is the purpose of a drainage bond in stray current systems? A. Increase resistance B. Provide controlled path for stray current return C. Reduce CP output D. Eliminate anodes
Rationale: Drainage bonds safely redirect stray currents to reduce corrosion.
- What does high IR drop in measurements indicate? A. Good CP coverage B. High soil resistance or high current flow C. Low corrosion risk D. Coating improvement
Rationale: High IR drop suggests resistance or current flow issues affecting readings.
- What is the primary indicator of coating failure? A. Stable potential B. Low current demand C. Increased CP current requirement D. Reduced soil resistivity
Rationale: Coating failure increases exposed metal, raising current demand.
- What is the effect of low soil resistivity on CP systems? A. Reduced current demand B. Increased corrosion current and CP current requirement C. No effect D. Reduced anode consumption
Rationale: Low resistivity soils facilitate current flow, increasing CP demand and corrosion risk.
- What is the function of a rectifier tap switch? A. Change soil resistivity B. Adjust DC output voltage and current levels C. Reduce coating resistance D. Control anode material
Rationale: Tap switches regulate rectifier output for system control.
- What is a key advantage of zinc anodes? A. High output voltage B. Stable potential and good performance in seawater C. High corrosion rate D. High resistivity use
Rationale: Zinc provides stable and predictable performance in marine environments.
C. Increase resistivity D. Reduce CP effectiveness
Rationale: Repairing holidays reduces exposed metal and improves CP efficiency.
- What is the main function of an anode bed backfill? A. Increase corrosion B. Reduce anode resistance and improve current distribution C. Increase soil resistivity D. Block CP current
Rationale: Backfill improves conductivity and extends anode life.
- What is the effect of shielding in concrete-encased structures? A. Improved CP distribution B. Reduced CP current access to steel surfaces C. Increased coating efficiency D. Reduced corrosion rate
Rationale: Concrete shielding can block CP current from reaching embedded steel.
- What is the most critical parameter in CP system design? A. Pipe color B. Steel hardness C. Coating quality and soil resistivity data D. Anode shape
Rationale: Accurate coating condition and soil resistivity data are essential for proper CP design and performance.
- What is the main purpose of a close interval potential survey (CIPS)? A. Measure soil resistivity B. Locate anode beds C. Evaluate pipe-to-soil potentials at close spacing to assess CP effectiveness D. Measure coating thickness
Rationale: CIPS is used to obtain detailed potential profiles along a pipeline to evaluate CP performance and detect underprotected areas.
- What does a “holiday” in pipeline coating refer to? A. Seasonal corrosion variation B. A discontinuity or defect in the protective coating C. Anode depletion zone D. Soil moisture pocket
Rationale: A holiday is a coating defect that exposes the metal surface to corrosive environments.
- What is the primary effect of cathodic protection on steel? A. Increases oxidation B. Shifts the steel potential to a more negative value reducing corrosion C. Increases coating breakdown D. Neutralizes soil chemistry
- Which condition increases CP current demand most? A. Low temperature B. High coating quality C. Coating deterioration or damage D. High pipe diameter
Rationale: Damaged coatings expose more steel surface, increasing CP current requirements.
- What is the function of a zinc reference cell? A. Provide CP current B. Increase soil resistivity C. Act as a stable reference potential in marine environments D. Replace Cu/CuSO₄ in soil
Rationale: Zinc reference electrodes are used in seawater environments for stable measurements.
- What is the main cause of interference corrosion between pipelines? A. Coating thickness variation B. Stray DC current from nearby CP systems C. Soil drying D. High pipe diameter
Rationale: Interference corrosion occurs when stray currents from other CP systems affect a structure.
- What is the purpose of a resistance bond? A. Increase corrosion rate
B. Block CP current C. Control magnitude of current flow between structures D. Eliminate soil resistivity
Rationale: Resistance bonds regulate the amount of stray current flow between structures.
- What is a typical sign of coating disbondment under CP? A. Stable current demand B. Low CP output C. High current demand with localized protection loss D. Reduced soil resistivity
Rationale: Disbondment creates shielding zones requiring higher CP current locally.
- What does “instant-off potential” mean? A. Voltage measured with rectifier on B. Soil potential only C. Potential measured immediately after interrupting CP current D. Anode output voltage
Rationale: Instant-off potential eliminates IR drop effects by quickly switching off CP current.
- What is the purpose of CP current interruption testing? A. Increase corrosion rate B. Measure coating thickness C. Separate IR drop from true polarized potential D. Reduce rectifier efficiency
