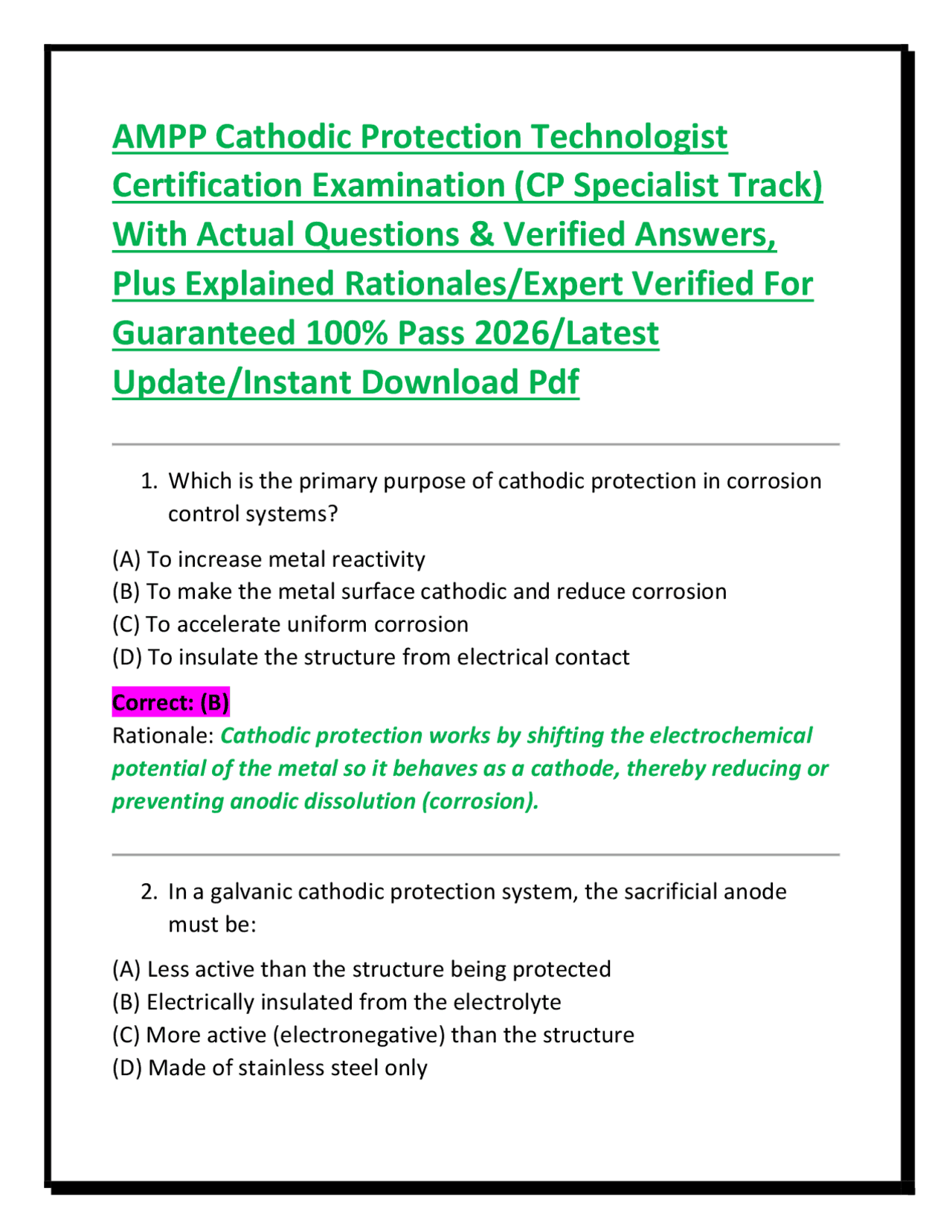

AMPP Cathodic Protection Technologist
Certification Examination (CP Specialist Track)
With Actual Questions & Verified Answers,
Plus Explained Rationales/Expert Verified For
Guaranteed 100% Pass 2026/Latest
Update/Instant Download Pdf
- Which is the primary purpose of cathodic protection in corrosion control systems?
(A) To increase metal reactivity (B) To make the metal surface cathodic and reduce corrosion (C) To accelerate uniform corrosion (D) To insulate the structure from electrical contact
Correct: (B) Rationale: Cathodic protection works by shifting the electrochemical potential of the metal so it behaves as a cathode, thereby reducing or preventing anodic dissolution (corrosion).
- In a galvanic cathodic protection system, the sacrificial anode must be:
(A) Less active than the structure being protected (B) Electrically insulated from the electrolyte (C) More active (electronegative) than the structure (D) Made of stainless steel only
Correct: (C) Rationale: Sacrificial anodes are made of more active metals (like zinc or magnesium) so they preferentially corrode, protecting the structure.
- What is the standard reference electrode commonly used for pipe-to-soil potential measurements?
(A) Copper/Copper sulfate (Cu/CuSO₄) (B) Silver/Silver chloride only (C) Zinc electrode in seawater (D) Hydrogen electrode
Correct: (A) Rationale: Cu/CuSO₄ reference electrodes are widely used in soil environments due to stability and ease of use.
- A pipe-to-soil potential of -850 mV or more negative (with Cu/CuSO₄) typically indicates:
(A) Severe corrosion (B) Adequate cathodic protection (C) Electrical disconnection (D) Coating failure only
Correct: (B) Rationale: - 850 mV criterion is a common industry standard indicating sufficient cathodic protection under many soil conditions.
- The primary function of a rectifier in impressed current cathodic protection systems is to:
- The most important function of a pipeline coating in CP systems is to:
(A) Replace cathodic protection (B) Reduce current requirement (C) Increase corrosion rate (D) Eliminate need for anodes
Correct: (B) Rationale: Coatings reduce exposed metal surface area, thereby lowering CP current demand.
- A depolarization test is used to evaluate:
(A) Soil resistivity (B) Coating thickness (C) Cathodic protection effectiveness (D) Anode weight loss only
Correct: (C) Rationale: Depolarization measurements assess whether adequate polarization (protection) has been achieved.
- Which material is commonly used as a high-potential impressed current anode?
(A) Zinc (B) Magnesium (C) Graphite (D) Aluminum alloy only
Correct: (C) Rationale: Graphite is commonly used in impressed current systems due to its stability and conductivity.
- IR drop in CP measurements refers to:
(A) Increase in corrosion rate (B) Voltage drop due to soil resistance (C) Anode mass loss (D) Temperature variation effect
Correct: (B) Rationale: IR drop is the voltage loss caused by current flowing through resistive soil or electrolyte.
- The most reliable method to measure true polarized potential is:
(A) Instant-off potential measurement (B) Continuous on potential (C) Visual inspection (D) Soil sampling
Correct: (A) Rationale: Instant-off measurements eliminate IR drop, giving more accurate polarized structure potential.
- Magnesium anodes are most suitable for:
(A) High resistivity soils (B) Submerged seawater systems
(A) Store anodes (B) Provide access for electrical measurements (C) Increase soil conductivity (D) Reduce coating defects
Correct: (B) Rationale: Test stations allow technicians to measure potentials and monitor CP system performance.
- Anode backfill material is used to:
(A) Increase pipe resistance (B) Improve current distribution and reduce resistance (C) Stop coating adhesion (D) Reduce soil moisture permanently
Correct: (B) Rationale: Backfill enhances conductivity and extends anode life by promoting uniform current discharge.
- A sudden increase in CP current output may indicate:
(A) Improved coating condition (B) Coating damage or new bare steel exposure (C) Lower soil resistivity (D) Reduced anode activity
Correct: (B) Rationale: Damage or coating failure increases exposed surface area, requiring higher current.
- Which is NOT a criterion for cathodic protection effectiveness?
(A) -850 mV vs Cu/CuSO₄ (B) 100 mV polarization shift (C) Pipe color change (D) Depolarization criteria
Correct: (C) Rationale: Color change is not an electrochemical CP criterion; standard criteria are electrical measurements.
- Which phenomenon occurs when CP current leaves a structure?
(A) Cathodic polarization (B) Anodic reaction and corrosion (C) Passivation (D) Neutralization
Correct: (B) Rationale: Current discharge points become anodic and experience corrosion.
- Which soil condition generally requires the highest CP current?
(A) Dry sand (B) Wet clay (C) Fresh water (D) Gravel with moisture
(C) Soil drying (D) Temperature rise
Correct: (B) Rationale: Polarization is the shift in electrode potential due to electrochemical reactions under CP.
- The main purpose of a deep well anode system is to:
(A) Reduce pipe diameter (B) Improve current distribution in high resistivity soil (C) Eliminate coating (D) Increase corrosion rate
Correct: (B) Rationale: Deep well anodes reach lower-resistivity strata for better current distribution.
- A rectifier output increase usually indicates:
(A) Reduced system demand (B) Increased circuit resistance or demand (C) Anode passivation only (D) Lower temperature
Correct: (B) Rationale: Higher output suggests more resistance or higher current requirement in the system.
- Which is a common coating defect?
(A) Holiday (B) Polarization (C) Deposition (D) Ionization
Correct: (A) Rationale: A holiday is a discontinuity in coating exposing bare metal.
- The main purpose of a holiday detector is to:
(A) Measure soil resistivity (B) Identify coating defects (C) Measure current output (D) Test anode weight
Correct: (B) Rationale: Holiday detectors locate coating flaws using electrical testing methods.
- In CP systems, “current density” refers to:
(A) Voltage per meter (B) Current per unit area (C) Resistance per meter (D) Temperature gradient
Correct: (B) Rationale: Current density is the CP current distributed over a surface area.
- Which factor affects anode consumption rate?
(A) Only pipe diameter (B) Current output and efficiency (C) Paint color (D) Pipe length only
Correct: (B) Rationale: Anode consumption depends on current discharge and electrochemical efficiency.
- What is the main purpose of a polarization cell replacement?
(A) Increase voltage (B) Block DC but allow AC drainage (C) Store current (D) Increase corrosion rate
Correct: (B) Rationale: PCR devices block DC interference while allowing AC current to pass.
- The most common CP measurement unit for potential is:
(A) Ohm (B) Ampere (C) Volt (D) Watt
Correct: (C) Rationale: Electrode potentials are measured in volts (mV in practice).
- Anode grounding beds are typically designed to:
(A) Increase resistance (B) Spread current efficiently into soil (C) Stop all current flow (D) Replace coating systems
Correct: (B) Rationale: Ground beds distribute current effectively into the electrolyte.
- The main cause of shielding in CP systems is:
(A) Excess current (B) Coating disbondment or non-conductive barriers (C) Low temperature (D) High humidity
Correct: (B) Rationale: Shielding prevents CP current from reaching the protected surface.
- Which is a sign of cathodic disbondment?
(A) Coating adherence improvement (B) Coating lifting due to CP reactions (C) Metal thickening (D) Soil drying
Correct: (B) Rationale: Interruption allows measurement of true polarized potentials.
- Which gas is commonly produced at the cathode during overprotection?
(A) Oxygen (B) Hydrogen (C) Nitrogen (D) Chlorine
Correct: (B) Rationale: Hydrogen evolution occurs at highly negative potentials.
- The primary corrosion reaction at an anode is:
(A) Reduction (B) Oxidation (C) Neutralization (D) Precipitation
Correct: (B) Rationale: Anodic reaction involves metal oxidation and electron release.
- A CP system becomes ineffective when:
(A) Current is properly distributed (B) Circuit is broken
(C) Anodes are active (D) Soil is wet
Correct: (B) Rationale: Open circuits prevent current flow, disabling protection.
- Which is a typical impressed current anode material?
(A) Magnesium (B) Zinc (C) Mixed metal oxide (D) Aluminum foil
Correct: (C) Rationale: MMO anodes are durable and widely used in ICCP systems.
- The purpose of back EMF in CP systems is to:
(A) Increase corrosion (B) Oppose applied voltage (C) Remove coating (D) Increase soil resistivity
Correct: (B) Rationale: Back EMF opposes current flow and affects CP system performance.
- Pipeline isolation joints are used to:
(A) Increase current loss (B) Electrically separate pipeline sections
(C) Weather forecast (D) Paint thickness only
Correct: (B) Rationale: Accurate estimation of current requirement is essential for effective CP system design.
- A key indicator of shielding in cathodic protection systems is:
(A) Increased coating adhesion (B) Restricted current access to the metal surface (C) Increased soil conductivity (D) Reduced anode activity
Correct: (B) Rationale: Shielding occurs when CP current cannot reach portions of the structure, often due to disbonded coatings or barriers, leading to localized corrosion.
- The primary purpose of a polarization decay (depolarization) test is to:
(A) Measure coating thickness (B) Determine IR drop (C) Evaluate level of cathodic protection (D) Measure soil pH
Correct: (C) Rationale: Depolarization tests evaluate how much protection (polarization) was achieved by observing potential decay after current interruption.
- Which factor most directly influences soil resistivity?
(A) Pipe diameter (B) Moisture and dissolved salts (C) Steel grade (D) Coating color
Correct: (B) Rationale: Soil resistivity is strongly affected by moisture content and ionic concentration (salts).
- An excessive negative pipe-to-soil potential can result in:
(A) Reduced hydrogen evolution (B) Hydrogen embrittlement risk (C) Improved coating bonding (D) No electrochemical effect
Correct: (B) Rationale: Overprotection can generate hydrogen, which may lead to embrittlement in high-strength steels.
- The purpose of a reference electrode in CP measurements is to:
(A) Provide a stable comparison potential (B) Increase current flow (C) Act as an anode (D) Reduce soil resistance
Correct: (A) Rationale: Reference electrodes provide a stable, known potential for accurate measurement of structure potentials.
