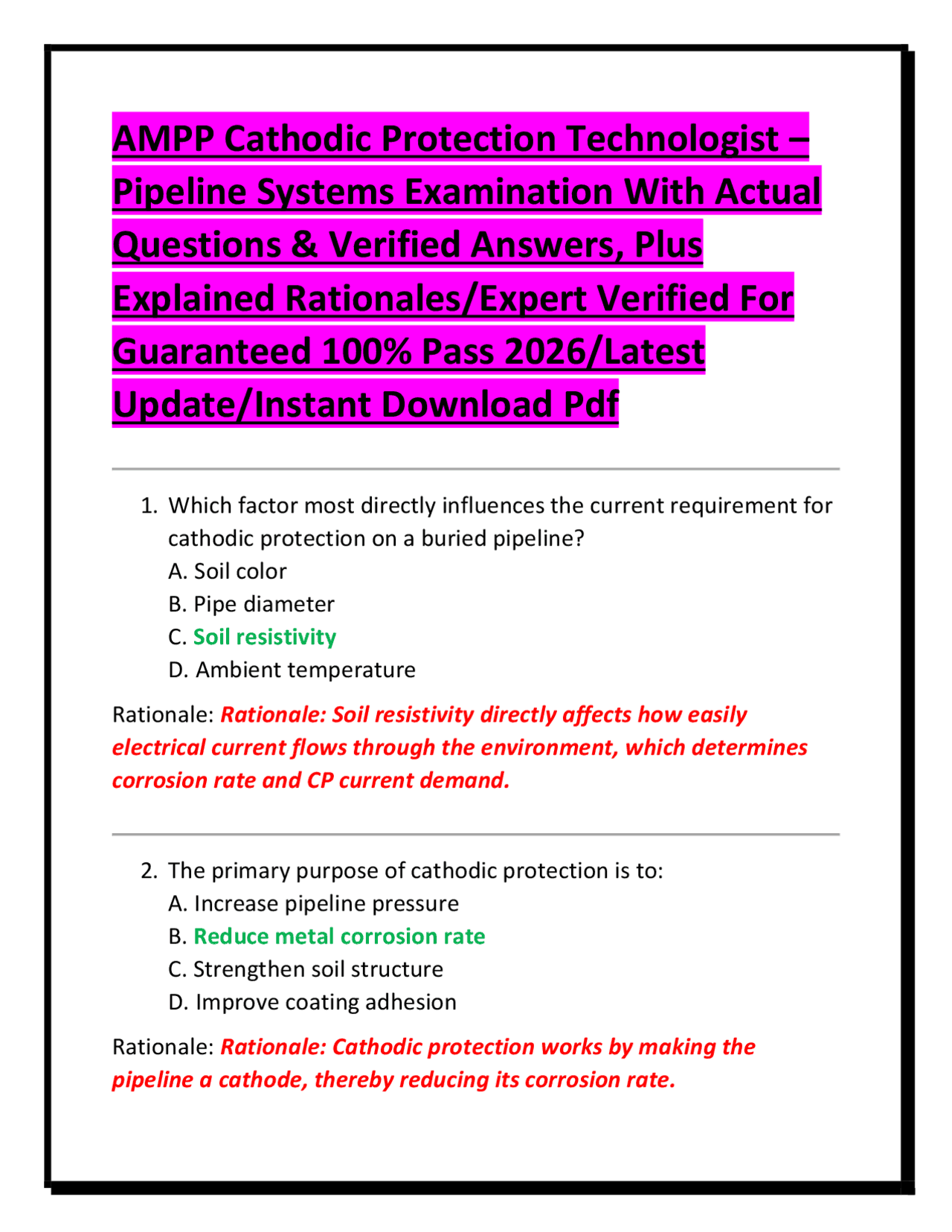

AMPP Cathodic Protection Technologist –
Pipeline Systems Examination With Actual
Questions & Verified Answers, Plus
Explained Rationales/Expert Verified For
Guaranteed 100% Pass 2026/Latest
Update/Instant Download Pdf
- Which factor most directly influences the current requirement for cathodic protection on a buried pipeline? A. Soil color B. Pipe diameter C. Soil resistivity D. Ambient temperature
Rationale: Rationale: Soil resistivity directly affects how easily electrical current flows through the environment, which determines corrosion rate and CP current demand.
- The primary purpose of cathodic protection is to: A. Increase pipeline pressure B. Reduce metal corrosion rate C. Strengthen soil structure D. Improve coating adhesion
Rationale: Rationale: Cathodic protection works by making the pipeline a cathode, thereby reducing its corrosion rate.
- Which of the following is commonly used as a reference electrode in pipeline CP measurements? A. Copper rod B. Zinc strip C. Copper/copper sulfate electrode (CSE) D. Aluminum probe
Rationale: Rationale: The Cu/CuSO₄ electrode is the standard reference electrode for measuring pipe-to-soil potentials in soil environments.
- A pipe-to-soil potential of -850 mV (CSE) typically indicates: A. Severe corrosion B. No protection C. Adequate cathodic protection D. Overprotection only
Rationale: Rationale: A potential of -850 mV or more negative (with CSE) is a common criterion indicating adequate CP per industry standards.
- Which CP system uses sacrificial materials? A. Impressed current system B. Hybrid system C. Galvanic anode system D. Polarization system
Rationale: Rationale: Galvanic systems use more active metals (like magnesium or zinc) that corrode preferentially to protect the pipeline.
A. Zinc B. Aluminum C. Mixed metal oxide (MMO) D. Magnesium ribbon
Rationale: Rationale: MMO anodes are durable and efficient for high- current deep well ICCP installations.
- A negative shift in pipe-to-soil potential generally indicates: A. Loss of coating B. Increased corrosion C. Improved cathodic protection D. Soil drying
Rationale: Rationale: A more negative potential indicates increased cathodic polarization and better protection.
- What is the main function of a rectifier in CP systems? A. Measure voltage B. Store current C. Convert AC to DC D. Increase soil resistivity
Rationale: Rationale: Rectifiers convert alternating current to direct current for impressed current CP systems.
- Which factor most affects anode consumption rate? A. Pipe diameter B. Soil color
C. Output current demand D. Coating thickness
Rationale: Rationale: Higher current output increases anode consumption in impressed current systems.
- The "instant-off" potential measurement is used to: A. Measure soil moisture B. Estimate pipe diameter C. Eliminate IR drop error D. Increase current output
Rationale: Rationale: Instant-off readings remove voltage drop in soil/electrolyte for more accurate CP potential measurement.
- What is a typical sacrificial anode material? A. Iron B. Copper C. Magnesium D. Nickel
Rationale: Rationale: Magnesium is commonly used due to its highly active electrochemical potential.
- CP current requirement is primarily determined by: A. Pipe length only B. Coating quality and exposed metal area C. Soil color D. Pipe pressure
- A pipeline coating primarily serves to: A. Increase conductivity B. Isolate steel from environment C. Increase corrosion rate D. Store electrical charge
Rationale: Rationale: Coatings act as a barrier between metal and corrosive soil/electrolyte.
- Which condition indicates possible overprotection? A. Less negative potential B. Excessively negative potential (e.g., below -1200 mV CSE) C. Zero current flow D. High soil resistivity
Rationale: Rationale: Overly negative potentials can lead to coating damage or hydrogen-related issues.
- A holiday in pipeline coating refers to: A. Maintenance shutdown B. A coating defect exposing bare metal C. Pipe expansion joint D. Insulation layer
Rationale: Rationale: Holidays are coating discontinuities that expose steel to corrosion.
- Which tool is used to locate coating defects? A. Thermometer B. Hydrometer
C. Pearson survey equipment or DCVG D. Pressure gauge
Rationale: Rationale: Specialized survey methods detect coating holidays and current discharge points.
- The primary corrosion reaction on steel involves: A. Aluminum oxidation B. Iron oxidation to iron ions C. Copper reduction D. Carbon dissolution
Rationale: Rationale: Steel corrodes through oxidation of iron in the presence of an electrolyte.
- Which factor reduces galvanic anode efficiency? A. Low temperature B. High resistivity environment C. Pipe coating quality D. High humidity
Rationale: Rationale: High resistivity limits current flow from sacrificial anodes.
- A CP test station is used to: A. Measure gas pressure B. Increase coating strength C. Access pipeline for electrical measurements D. Store anodes
- A "native potential" refers to: A. Coated pipe voltage B. Unprotected pipe-to-soil potential C. Rectifier output D. Anode output voltage
Rationale: Rationale: Native potential is the natural corrosion potential without CP applied.
- CP current distribution is influenced most by: A. Pipe color B. Soil pH only C. Coating condition and geometry D. Pipe age
Rationale: Rationale: Geometry and coating defects control how current spreads along the pipeline.
- Shielding in CP occurs when: A. Soil is dry B. Pipe is insulated electrically C. Coating or structures block CP current flow D. Current increases excessively
Rationale: Rationale: Shielding prevents protective current from reaching steel surfaces.
- Which is a typical sign of CP interference? A. Uniform potential B. Unexpected potential fluctuations near foreign structures
C. Increased coating thickness D. Low soil resistivity only
Rationale: Rationale: Interference causes unstable or shifted potentials on affected pipelines.
- Anode backfill is used to: A. Reduce pipe diameter B. Improve current distribution and reduce resistance C. Increase corrosion rate D. Insulate anodes
Rationale: Rationale: Backfill enhances anode performance and current discharge efficiency.
- A close interval survey (CIS) is used to: A. Measure soil resistivity B. Map pipeline potential continuously C. Test gas purity D. Measure pipe thickness
Rationale: Rationale: CIS provides detailed CP potential data along pipeline routes.
- Which is NOT a CP design factor? A. Soil resistivity B. Coating condition C. Pipe length D. Pipe color
- Cathodic protection becomes ineffective when: A. Soil is wet B. Current is insufficient for exposed steel area C. Pipe is new D. Coating is intact
Rationale: Rationale: Insufficient current fails to polarize the structure adequately.
- The main role of polarization is to: A. Increase resistance B. Reduce corrosion rate over time C. Increase pipe diameter D. Improve soil conductivity
Rationale: Rationale: Polarization shifts potential to reduce corrosion kinetics.
- A stray current drainage bond is installed to: A. Increase CP current B. Safely return stray current to source C. Reduce pipe coating D. Increase soil resistivity
Rationale: Rationale: Drainage bonds control and redirect harmful stray currents.
- What is the effect of coating deterioration on CP? A. Reduces current demand B. Increases current demand
C. Eliminates corrosion D. Improves polarization
Rationale: Rationale: More exposed metal requires more protective current.
- Which measurement indicates CP current flow? A. Voltage only B. Amperage (current) C. Resistance only D. Temperature
Rationale: Rationale: Current measurement shows actual CP output.
- A rectifier failure would most likely result in: A. Increased protection B. No change C. Loss of cathodic protection current D. Increased soil resistivity
Rationale: Rationale: Without DC output, impressed current CP stops functioning.
- Zinc anodes are preferred in: A. High resistivity soils B. Low resistivity environments C. Air systems D. Concrete only
Rationale: Rationale: Zinc performs best in low-resistivity electrolytes like seawater or wet soils.
B. Electrically isolate pipeline sections C. Increase CP current D. Reduce pipe thickness
Rationale: Rationale: Isolation joints prevent unintended current flow between pipeline segments.
- A CP system is considered properly balanced when: A. Current is maximum B. Soil resistivity is zero C. Protection criteria are met without overprotection D. All anodes are depleted
Rationale: Rationale: Proper CP design achieves adequate protection without excessive current or damage risk.
- The primary purpose of a rectifier in impressed current CP systems is to: A. Increase soil resistivity B. Convert AC power to controlled DC output C. Measure pipe thickness D. Reduce coating defects
Rationale: Rationale: Rectifiers supply adjustable direct current required for impressed current cathodic protection systems.
- Which condition most increases CP current demand? A. Intact coating B. Low soil resistivity
C. Large coating damage area D. High pipe diameter only
Rationale: Rationale: Exposed steel surface area directly increases the amount of current needed for protection.
- A polarized potential is best described as: A. Natural pipe voltage B. Potential of a structure under CP influence C. Soil voltage only D. Anode output voltage
Rationale: Rationale: Polarized potential reflects the electrochemical condition of steel under cathodic protection.
- Which instrument is essential for CP field surveys? A. Oscilloscope B. Pressure gauge C. High-impedance voltmeter D. Flow meter
Rationale: Rationale: High-impedance voltmeters prevent current draw that could distort CP potential readings.
- A coupon in CP testing is used to: A. Increase current flow B. Simulate pipeline corrosion behavior C. Reduce soil resistivity D. Increase anode size
Rationale: Rationale: Galvanic anodes provide limited current output due to fixed electrochemical potential.
- Which soil condition is most corrosive? A. Dry sand B. Wet, low-resistivity clay C. Gravel D. Dry rock
Rationale: Rationale: Moist, conductive soils allow higher electrochemical corrosion rates.
- A negative shift in potential after CP application indicates: A. Failure of system B. Improved cathodic polarization C. Increased corrosion D. Loss of continuity
Rationale: Rationale: More negative potentials indicate effective cathodic protection polarization.
- A test lead in CP systems is used to: A. Supply anode current B. Measure pipe-to-soil potential or current C. Increase coating strength D. Reduce corrosion rate directly
Rationale: Rationale: Test leads provide electrical connection points for CP monitoring.
- Which is a sign of underprotection? A. Very negative potential B. Potential less negative than protection criteria C. Zero soil resistivity D. High rectifier output
Rationale: Rationale: Insufficiently negative potentials indicate inadequate cathodic protection.
- CP interference from foreign structures is mainly controlled by: A. Pipe coating B. Soil drying C. Bonding or isolation techniques D. Pipe diameter
Rationale: Rationale: Electrical bonds or isolation reduce stray current interaction between structures.
- The main purpose of an anode bed is to: A. Store DC current B. Distribute CP current into the electrolyte C. Reduce pipe diameter D. Increase corrosion rate
Rationale: Rationale: Anode beds provide controlled current discharge into soil.
- What is the effect of shielding on CP? A. Improves protection
