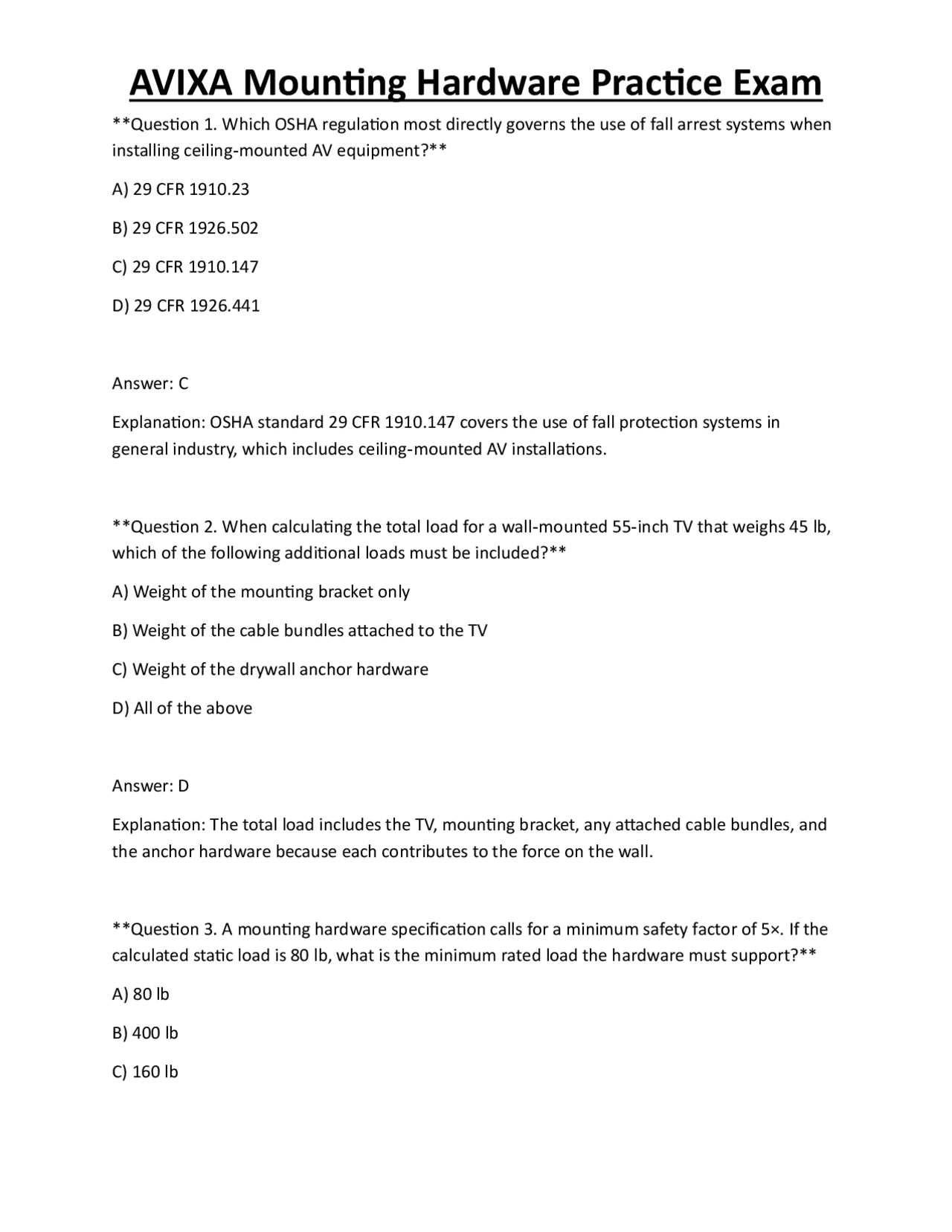

Question 1. Which OSHA regulation most directly governs the use of fall arrest systems when installing ceiling‑mounted AV equipment? A) 29 CFR 1910. B) 29 CFR 1926. C) 29 CFR 1910. D) 29 CFR 1926. Answer: C Explanation: OSHA standard 29 CFR 1910.147 covers the use of fall protection systems in general industry, which includes ceiling‑mounted AV installations. Question 2. When calculating the total load for a wall‑mounted 55‑inch TV that weighs 45 lb, which of the following additional loads must be included? A) Weight of the mounting bracket only B) Weight of the cable bundles attached to the TV C) Weight of the drywall anchor hardware D) All of the above Answer: D Explanation: The total load includes the TV, mounting bracket, any attached cable bundles, and the anchor hardware because each contributes to the force on the wall. Question 3. A mounting hardware specification calls for a minimum safety factor of 5×. If the calculated static load is 80 lb, what is the minimum rated load the hardware must support? A) 80 lb B) 400 lb C) 160 lb
D) 200 lb Answer: B Explanation: A 5× safety factor means the hardware must be rated for 5 × 80 lb = 400 lb. Question 4. Which of the following fasteners is most appropriate for attaching a ceiling‑mounted projector to a concrete slab? A) Toggle bolt B) Lag screw C) Wedge anchor D) Plastic expansion anchor Answer: C Explanation: Wedge anchors are designed for concrete and provide high pull‑out strength suitable for overhead loads. Question 5. In a VESA mounting pattern of 600 mm × 400 mm, what does the first number represent? A) Horizontal spacing between mounting holes B) Vertical spacing between mounting holes C) Diagonal distance between opposite holes D) Minimum bracket width Answer: A Explanation: The first number in a VESA pattern denotes the horizontal distance between the mounting holes.
D) Pole mount with a flexible joint Answer: A Explanation: A fixed wall mount with a protective bezel reduces the chance of the display being knocked off the wall. Question 9. Which of the following is a dynamic load that must be considered when mounting a loudspeaker? A) Weight of the speaker itself B) Wind pressure on an outdoor speaker C) Weight of the mounting bracket D) The mass of the mounting wall Answer: B Explanation: Wind pressure creates a varying (dynamic) load on outdoor speakers and must be accounted for in the design. Question 10. A project requires the installation of a 75‑inch flat‑panel TV in a room with a 10 ‑ft ceiling. According to ergonomic guidelines, what is the optimal mounting height for the center of the screen? A) 30 in from the floor B) 42 in from the floor C) 57 in from the floor D) 66 in from the floor Answer: C Explanation: Ergonomic guidelines suggest the screen center be at eye level for a seated viewer, typically about 57 in (≈ 1.45 m) from the floor.
Question 11. Which ISO fastener grade is the minimum required for overhead mounting of AV equipment? A) ISO 5. B) ISO 6. C) ISO 8. D) ISO 10. Answer: C Explanation: ISO 8.0 (or SAE Grade 5) is the minimum acceptable grade for overhead applications to ensure sufficient strength. Question 12. When mounting a projector on a sloped ceiling, what adjustment must be made to maintain a level projected image? A) Increase the throw distance B) Tilt the mount to compensate for the ceiling angle C) Use a longer projector lens D) No adjustment is needed Answer: B Explanation: Tilting the mount compensates for the ceiling slope, keeping the projected image level. Question 13. Which type of anchor is best suited for mounting a TV on a hollow metal stud? A) Plastic expansion anchor B) Toggle bolt
Question 16. Which of the following is a key consideration when coordinating with electricians for AV mounting? A) The color of the paint on the wall B) Location of power outlets and conduit pathways C) The brand of the AV equipment D) The type of carpet in the room Answer: B Explanation: Power outlet location and conduit pathways affect where mounting brackets can be placed without interfering with electrical work. Question 17. When installing a pole‑mounted display outdoors, which environmental factor must be accounted for in the hardware selection? A) Ambient temperature only B) UV exposure, corrosion, and wind load C) The color of the pole D) The type of interior lighting Answer: B Explanation: Outdoor installations must consider UV degradation, corrosion resistance, and wind loads on the mount. Question 18. Which of the following is the correct torque specification for a #10‑32 lag screw used in a wood stud, assuming a manufacturer’s recommendation of 10 in‑lb? A) 5 in‑lb B) 10 in‑lb
C) 15 in‑lb D) 20 in‑lb Answer: B Explanation: The torque should follow the manufacturer’s recommendation; over‑tightening can strip the wood. Question 19. A mounting bracket is installed on a concrete wall using a sleeve anchor rated for 250 lb. If the actual load is 180 lb, does the installation meet a 5× safety factor? A) Yes, because 250 lb ÷ 180 lb = 1. B) No, because 250 lb ÷ 180 lb = 1.39, which is less than 5 C) Yes, because the anchor rating exceeds the load D) No, because concrete cannot hold any load Answer: B Explanation: The safety factor is 250 ÷ 180 ≈ 1.39, which is well below the required 5× factor. Question 20. Which of the following best describes a static load? A) A load that changes rapidly over time B) A load that remains constant once applied C) A load caused by wind gusts D) A load that varies with temperature Answer: B Explanation: A static load is constant and does not fluctuate after being applied.
Answer: A Explanation: VESA stands for Video Electronics Standards Association, which defines mounting interface standards. Question 24. During a final inspection, which of the following indicates a properly installed wall‑mounted bracket? A) The bracket is at a 10° angle from vertical B) The bracket is loose when shaken C) The bracket is flush with the wall and level D) The bracket protrudes 2 in from the wall Answer: C Explanation: A properly installed bracket should be flush, level, and stable. Question 25. Which document should be referenced to verify the load capacity of a specific ceiling tile? A) The manufacturer’s product data sheet B) The architectural floor plan C) The project budget report D) The HVAC manual Answer: A Explanation: The product data sheet provides load ratings for ceiling tiles. Question 26. When mounting a 150‑lb rack on a concrete floor, which anchoring method provides the highest pull‑out strength? A) Plastic expansion anchors
B) Concrete wedge anchors C) Self‑tapping screws D) Metal straps glued to the floor Answer: B Explanation: Concrete wedge anchors are designed for high‑strength anchoring into concrete. Question 27. Which of the following is the most common cause of “pull‑out failure” in wall‑mounted AV equipment? A) Over‑tightening of fasteners B) Using an anchor that is too long for the wall thickness C) Installing the mount into drywall without backing support D) Painting over the anchors before installation Answer: C Explanation: Drywall alone cannot support heavy loads; lacking a stud or blocking leads to pull‑out failure. Question 28. A projector’s throw ratio is 1.5 : 1. If the screen width is 8 ft, what is the minimum throw distance? A) 5 ft B) 8 ft C) 12 ft D) 15 ft Answer: C Explanation: Throw distance = throw ratio × screen width = 1.5 × 8 ft = 12 ft.
D) Lighting layout Answer: B Explanation: The structural framing plan details the position of steel beams and other load‑bearing elements. Question 32. Which of the following is the correct sequence for pre‑installation site assessment? A) Verify equipment list → Locate studs → Review safety codes → Order hardware B) Review safety codes → Verify equipment list → Locate studs → Determine blocking needs C) Order hardware → Review safety codes → Verify equipment list → Install brackets D) Install brackets → Verify equipment list → Review safety codes → Locate studs Answer: B Explanation: The logical flow begins with safety code review, then confirming equipment, locating structural members, and finally assessing blocking. Question 33. When mounting a display on a metal stud wall, which technique provides the strongest anchor? A) Using a self‑drilling drywall anchor B) Installing a wood backer board behind the metal stud and screwing into it C) Using a toggle bolt directly into the metal stud D) Screwing a lag bolt directly into the metal stud Answer: B Explanation: Adding a wood backer provides a solid substrate for the lag screw, greatly increasing load capacity.
Question 34. Which of the following is a recommended practice when drilling into a concrete ceiling for a ceiling mount? A) Use a standard wood drill bit B) Drill at a 45° angle to avoid hitting rebar C) Use a hammer drill with a carbide‑tipped masonry bit D) Apply water to the drill bit to keep it cool Answer: C Explanation: A hammer drill with a carbide masonry bit is the proper tool for drilling into concrete. Question 35. A wall‑mounted display requires a 0.5 in clearance behind the panel for ventilation. Which mounting method satisfies this requirement? A) Directly screwing the panel to the wall without a bracket B) Using a recessed mount that positions the panel flush with the wall C) Using an articulating mount that creates a 2‑in gap D) Mounting the display on a ceiling‑suspended rig Answer: C Explanation: An articulating mount can be set to provide the required 0.5 in (or greater) clearance for airflow. Question 36. Which of the following is the most accurate method for locating a stud behind a finished wall? A) Listening for a hollow sound when tapping B) Using a magnetic stud finder
Explanation: Sleeve anchors expand within the hollow core of concrete block, providing a secure hold. Question 39. A mounting bracket is rated for a maximum shear load of 300 lb. If the equipment exerts a 250 lb shear force, does it meet the required 5× safety factor? A) Yes, because 300 lb ÷ 250 lb = 1. B) No, because the safety factor is less than 5 C) Yes, because the bracket rating exceeds the load D) No, because shear loads are not considered in safety factors Answer: B Explanation: The safety factor is 300 ÷ 250 = 1.2, which is far below the required 5× factor. Question 40. Which of the following is a primary benefit of using a “redundant anchor” configuration for overhead mounts? A) Reduces installation time B) Lowers material cost C) Provides backup support if one anchor fails D) Allows for a larger visual footprint Answer: C Explanation: Redundant anchors ensure that if one anchor fails, the remaining anchor(s) still support the load. Question 41. When reviewing a cable pull list, which piece of information is most critical for mounting hardware selection? A) Cable color
B) Cable length C) Cable weight per foot D) Cable manufacturer Answer: C Explanation: Cable weight per foot contributes to the total load on mounting hardware, especially for ceiling‑suspended cable trays. Question 42. Which of the following mounting hardware is specifically designed for seismic zones according to the International Building Code (IBC)? A) Standard toggle bolts B) Seismic‑rated steel brackets with welded plates C) Plastic expansion anchors D) Standard wood lag screws Answer: B Explanation: Seismic‑rated steel brackets with welded plates are engineered to meet IBC requirements for earthquake resistance. Question 43. In a multi‑room AV installation, which coordination step helps avoid conflicts with HVAC diffusers? A) Selecting the color of the mounts B) Communicating mount locations to the HVAC contractor early in the design phase C) Using only floor‑mounted equipment D) Installing mounts after HVAC work is completed Answer: B
C) The height of the TV’s base D) The depth of the TV Answer: A Explanation: The bracket’s mounting hole spacing must match the TV’s VESA pattern. Question 47. Which of the following is the most appropriate method to verify that a ceiling mount is level after installation? A) Visual inspection from the floor B) Using a laser level aimed at the mount’s top surface C) Measuring the distance from the mount to the nearest wall D) Checking the mount’s manufacturer label Answer: B Explanation: A laser level provides an accurate measurement of levelness for ceiling‑mounted hardware. Question 48. When attaching a mount to a concrete ceiling, why is it important to use a “hammer drill” instead of a regular drill? A) It reduces the size of the hole B) It provides a percussive action that breaks up concrete more efficiently C) It creates a smoother hole surface D) It eliminates the need for a drill bit Answer: B Explanation: Hammer drills combine rotation with percussive blows, making it easier to drill into hard concrete.
Question 49. Which of the following is a recommended practice for documenting field modifications to a mounting plan? A) Verbal notes taken on site only B) Updating the original AutoCAD drawings with “as‑built” revisions and annotating changes C) Ignoring modifications if they are minor D) Sending a photo of the installation to the client Answer: B Explanation: Updating the original drawings with as‑built revisions provides a clear, traceable record of changes. Question 50. In a high‑rise building, which code requirement is most likely to affect the selection of ceiling‑mounted AV equipment? A) Fire‑resistance rating of the ceiling tile B) Color of the paint on the ceiling C) Number of windows in the room D) Type of flooring material Answer: A Explanation: Fire‑resistance ratings dictate which ceiling tiles and mounting hardware can be used in high‑rise applications. Question 51. Which of the following fasteners provides the highest shear capacity when installed in wood studs? A) #8 wood screw B) 1/4‑in lag screw
