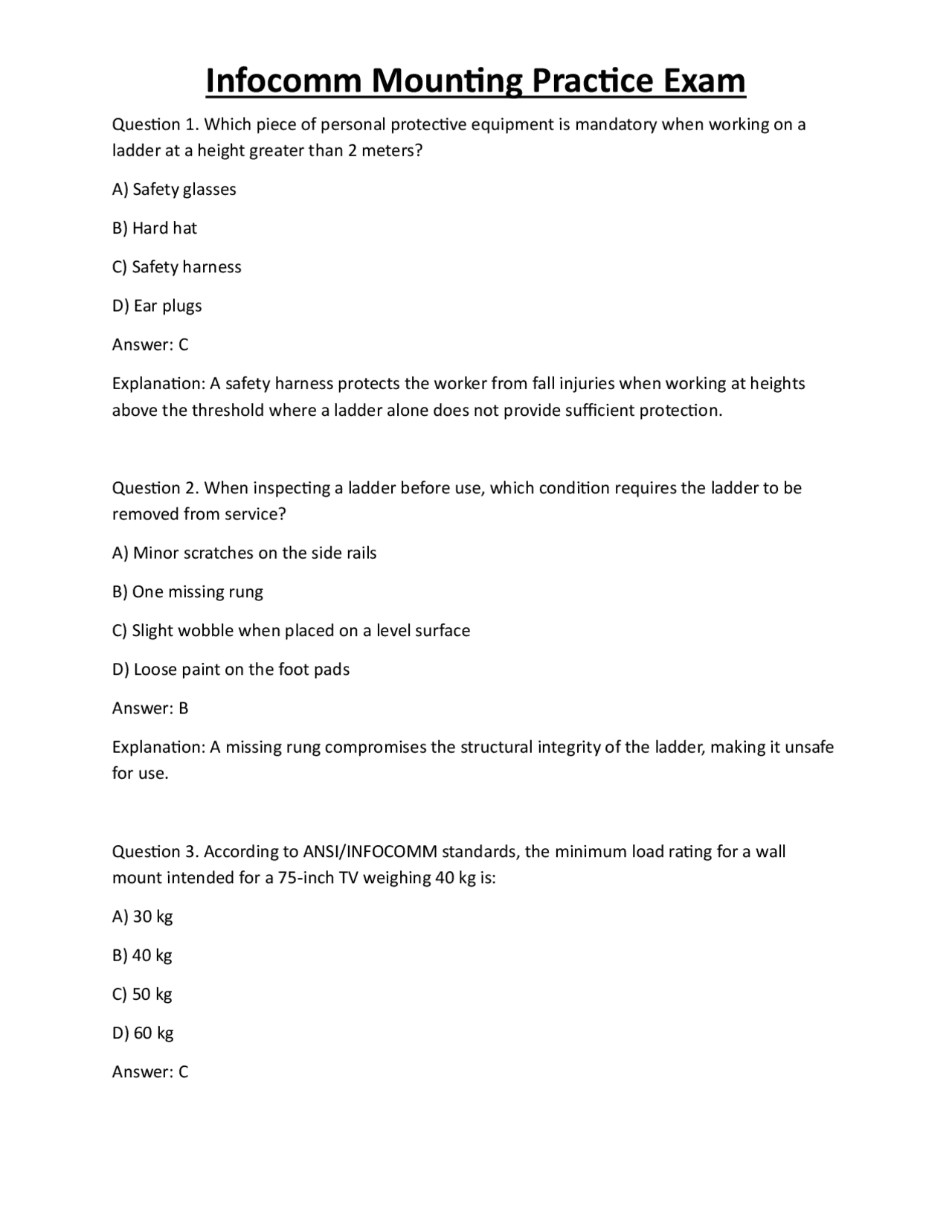

Question 1. Which piece of personal protective equipment is mandatory when working on a ladder at a height greater than 2 meters? A) Safety glasses B) Hard hat C) Safety harness D) Ear plugs Answer: C Explanation: A safety harness protects the worker from fall injuries when working at heights above the threshold where a ladder alone does not provide sufficient protection. Question 2. When inspecting a ladder before use, which condition requires the ladder to be removed from service? A) Minor scratches on the side rails B) One missing rung C) Slight wobble when placed on a level surface D) Loose paint on the foot pads Answer: B Explanation: A missing rung compromises the structural integrity of the ladder, making it unsafe for use. Question 3. According to ANSI/INFOCOMM standards, the minimum load rating for a wall mount intended for a 75‑inch TV weighing 40 kg is: A) 30 kg B) 40 kg C) 50 kg D) 60 kg Answer: C
Explanation: The standard requires a safety factor of at least 1.25, so a 40 kg TV needs a mount rated for at least 50 kg. Question 4. Which of the following fire extinguisher types is appropriate for an electrical equipment room? A) Class A B) Class B C) Class C D) Class D Answer: C Explanation: Class C extinguishers are specifically designed for fires involving energized electrical equipment. Question 5. In a job‑site hazard identification, the presence of which material requires a certified asbestos survey before any drilling? A) Fiberglass insulation B) Vinyl floor covering C) Popcorn ceiling texture D) Polycarbonate panels Answer: C Explanation: Popcorn ceilings installed before the 1980s often contain asbestos, necessitating a survey before disturbance. Question 6. When using a stud finder on a metal stud wall, which indication confirms the location of a stud? A) A steady beep B) A flashing LED C) A rapid series of beeps
B) 55 Nm C) 85 Nm D) 120 Nm Answer: C Explanation: Grade‑8 bolts of this size typically require around 85 Nm to achieve proper clamping without over‑tightening. Question 10. Which VESA pattern is compatible with a 55‑inch TV that has a mounting hole spacing of 600 mm × 400 mm? A) VESA 200 × 200 B) VESA 400 × 400 C) VESA 600 × 400 D) VESA 800 × 800 Answer: C Explanation: The VESA pattern must match the exact hole spacing; 600 × 400 mm corresponds to option C. Question 11. When mounting a projector on a ceiling, the minimum recommended distance between the mount and the nearest HVAC duct is: A) 150 mm B) 300 mm C) 450 mm D) 600 mm Answer: B Explanation: A 300 mm clearance helps prevent vibration transmission and allows for airflow around the mount.
Question 12. Which material is most resistant to corrosion when used for outdoor mounting hardware in a coastal environment? A) Plain carbon steel B) Galvanized steel C) Aluminum alloy 6061 D) Stainless steel 304 Answer: D Explanation: Stainless steel 304 offers superior corrosion resistance in salty, humid conditions compared to the other options. Question 13. The purpose of using a lock washer on a mount’s fastening screw is to: A) Increase the bolt’s tensile strength B) Prevent the nut from loosening due to vibration C) Provide a decorative finish D) Reduce the required torque value Answer: B Explanation: Lock washers create a prevailing torque that resists loosening under vibration. Question 14. During a site assessment, the ambient light level measured at 500 lux is considered too high for optimal video display performance because: A) It exceeds the recommended maximum for LCD panels B) It causes excessive heat buildup in the display C) It can create glare and reduce contrast D) It interferes with wireless signal transmission Answer: C Explanation: High ambient light creates glare and diminishes perceived contrast, affecting viewing quality.
Answer: A Explanation: You must first locate the stud, then drill pilot holes, attach the mounting plate, and finally tighten the bolts. Question 18. A video wall requires a tolerance of ±2 mm for panel alignment. Which tool provides the most accurate measurement for this purpose? A) Standard tape measure B) Laser distance measurer C) Digital caliper D) Bubble level Answer: C Explanation: Digital calipers can measure within 0.01 mm, meeting the ±2 mm tolerance requirement. Question 19. When using a masonry drill bit, the optimal speed (RPM) for drilling into a 20 mm concrete block is approximately: A) 250 RPM B) 500 RPM C) 1,200 RPM D) 2,000 RPM Answer: B Explanation: Lower RPM reduces heat and prolongs bit life when drilling into dense concrete. Question 20. Which of the following best explains why anti‑vibration pads are installed between a mount and the wall? A) To increase the mount’s load‑bearing capacity B) To reduce transmission of mechanical vibrations to the display
C) To improve aesthetic appearance D) To simplify the installation process Answer: B Explanation: Anti‑vibration pads absorb and dampen vibrations, preventing them from reaching the mounted equipment. Question 21. The Authority Having Jurisdiction (AHJ) is primarily responsible for: A) Supplying mounting hardware to contractors B) Approving and inspecting installations for code compliance C) Designing the layout of AV equipment D) Manufacturing VESA standards Answer: B Explanation: The AHJ enforces local building and safety codes and inspects installations for compliance. Question 22. In a structural analysis, a wall stud made of 2 × 4 timber has an allowable shear capacity of 200 N per stud. If a mount applies 150 N shear, how many studs are required to safely support the load? A) 1 B) 2 C) 3 D) 4 Answer: B Explanation: One stud can handle 200 N, but it is prudent to distribute the load across at least two studs to maintain a safety factor. Question 23. Which of the following is the most appropriate method for sealing a wall penetration made for a mount in an outdoor environment?
Question 26. The term “load‑bearing point” in mounting refers to: A) The location where the mount is aesthetically centered B) The point where the mount’s weight is transferred to the structural member C) The nearest electrical outlet D) The highest point on the wall Answer: B Explanation: Load‑bearing points are structural locations that can safely support the applied load. Question 27. Which of the following is a correct practice when lifting a 30 kg display onto a wall mount? A) Use only one person to reduce coordination issues B) Tilt the display forward to increase leverage C) Use a lift strap and have at least two persons assist D) Carry the display by the screen edge Answer: C Explanation: Proper lifting techniques require a lift strap and multiple personnel to prevent injury and damage. Question 28. When an installer discovers a live electrical conduit behind a wall during drilling, the correct immediate action is to: A) Continue drilling, avoiding the conduit B) Stop work and report the hazard to the site supervisor C) Cut the conduit with a saw D) Use a metal detector to locate the conduit’s end Answer: B
Explanation: Live electrical hazards must be reported and isolated before work can continue safely. Question 29. In a video wall, the term “ bezel‑to‑bezel” refers to: A) The width of the mounting bracket B) The distance between adjacent panel edges C) The height of the wall mount D) The cable length between panels Answer: B Explanation: Bezel‑to‑bezel describes the visual gap between adjoining display panels. Question 30. Which of the following is the most suitable material for a mount that will be installed in a high‑temperature server room? A) Plain carbon steel B) Aluminum alloy 6063 C) Stainless steel 316 D) Cast iron Answer: C Explanation: Stainless steel 316 retains strength at elevated temperatures and resists corrosion. Question 31. The primary reason for using a “pilot hole” before installing a lag screw into wood is to: A) Reduce the torque required on the screwdriver B) Prevent the wood from splitting C) Increase the screw’s length D) Make the hole larger than the screw diameter Answer: B
D) Use of a plastic mount Answer: B Explanation: If bolts are not adequately tightened, the mount can gradually shift, causing tilt drift. Question 35. During a final inspection, the installer verifies that all torque values were met. Which tool is used to confirm torque? A) Torque wrench B) Hex key C) Phillips screwdriver D) Needle‑nose pliers Answer: A Explanation: A torque wrench measures and applies a specific torque value to fasteners. Question 36. Which of the following is a recommended practice for cable management on a wall mount? A) Run cables loosely behind the mount for easy access B) Use integrated cable trays or zip ties to secure cables neatly C) Bundle all cables together with duct tape D) Leave cables exposed for future modifications Answer: B Explanation: Integrated trays or zip ties keep cables organized, reduce strain, and maintain a professional appearance. Question 37. In a room with a high ceiling, a mount’s “tilt range” of – 10° to +15° is required. Which mount type provides this capability? A) Fixed/flat mount
B) Tilting mount C) Articulating/full‑motion mount D) Ceiling pendant mount Answer: B Explanation: Tilting mounts allow vertical angle adjustment within a specified range, matching the requirement. Question 38. Which of the following documents should be updated to reflect the as‑built location of a newly installed mount? A) Purchase order B) Installation checklist C) Warranty registration form D) As‑built drawing or record drawing Answer: D Explanation: As‑built drawings capture the final location and conditions of installed equipment. Question 39. When mounting equipment in a room that contains a sprinkler system, the installer must ensure that: A) The mount is painted the same color as the ceiling B) The mount does not obstruct sprinkler heads or impede water spray pattern C) The mount is installed at least 1 m below the sprinkler D) The mount is made of fire‑resistant material only Answer: B Explanation: Obstructing sprinkler heads can compromise fire suppression effectiveness. Question 40. Which of the following is the most appropriate action when a mount’s locking pin is found to be missing after installation?
A) Equal to the display’s weight B) At least 25 % greater than the display’s weight C) At least 10 % less than the display’s weight D) Exactly double the display’s weight Answer: B Explanation: A safety margin of at least 25 % ensures the mount can handle the load plus any additional forces. Question 44. In a mounting project, the term “SOW deviation” refers to: A) A change in the color scheme of the mount B) A difference between the planned work and what was actually performed C) An error in the wiring diagram D) A variation in the brand of the equipment used Answer: B Explanation: Deviations are alterations from the original Statement of Work that must be documented and approved. Question 45. Which of the following best describes a “toggle bolt” operation in drywall? A) The bolt expands behind the wall after insertion, creating a secure anchor B) The bolt threads directly into the drywall fibers C) The bolt requires a pre‑drilled metal sleeve D) The bolt is only suitable for wooden studs Answer: A Explanation: Toggle bolts have wings that open behind the drywall, providing a strong anchor point.
Question 46. When mounting a display in a room with a high‑gain white screen, the installer should: A) Position the mount to avoid direct sunlight on the screen B) Use the brightest possible backlight setting C) Install the mount at ceiling height D) Use a low‑profile mount to hide the screen Answer: A Explanation: Direct sunlight can wash out the image on a high‑gain screen; proper placement mitigates glare. Question 47. Which of the following is the correct sequence for post‑installation cleanup? A) Remove all packaging, sweep the area, dispose of waste according to regulations B) Leave packaging for the client, sweep the floor, then pack tools C) Dispose of waste in any trash bin, keep packaging on site, no sweeping needed D) Pack all tools first, then clean the area after the client leaves Answer: A Explanation: Proper cleanup includes removing debris, sweeping, and disposing of waste per local rules. Question 48. The International Electrotechnical Commission (IEC) standard that deals with safety of audio‑visual equipment is: A) IEC 60335‑ 1 B) IEC 60950‑ 1 C) IEC 61000‑ 4 ‑ 2 D) IEC 62368‑ 1 Answer: D Explanation: IEC 62368‑1 replaces older standards and covers safety for AV and IT equipment.
Explanation: A digital inclinometer provides precise angle measurement to confirm level installation. Question 52. In a situation where a display’s VESA hole pattern does not match any available mount, the correct solution is to: A) Drill new holes in the display’s back panel B) Use an adapter plate that converts the pattern C) Install the mount at an angle to fit D) Ignore the mismatch and proceed Answer: B Explanation: Adapter plates are designed to bridge incompatible VESA patterns safely. Question 53. Which of the following fire‑rating classifications indicates that a wall assembly can withstand fire exposure for at least one hour? A) 30 minute rating B) 1‑hour rating C) 2‑hour rating D) 4‑hour rating Answer: B Explanation: A 1‑hour fire rating means the assembly maintains its integrity for 60 minutes under fire conditions. Question 54. When installing a mount on a metal stud wall, the preferred fastener is: A) Wood screw B) Self‑tapping metal screw with a washer C) Plastic expansion anchor D) Lag bolt
Answer: B Explanation: Self‑tapping screws cut their own threads in metal studs and, when used with washers, provide a secure connection. Question 55. The most common cause of “creep” in a mounted display over time is: A) Over‑tightening of bolts B) Use of a low‑quality mount material C) Continuous thermal expansion and contraction cycles D) Incorrect VESA pattern selection Answer: C Explanation: Repeated temperature changes cause material expansion, leading to gradual movement (creep). Question 56. In a project that requires compliance with ISO 9001, the installer must: A) Follow a documented quality management process and keep records of inspections B) Use only ISO‑certified mounting hardware C) Submit a design review to the ISO committee D) Install only equipment from ISO‑approved manufacturers Answer: A Explanation: ISO 9001 focuses on quality management systems and documentation of processes. Question 57. Which of the following is a recommended practice for protecting a mount’s electrical grounding point? A) Paint over the ground screw B) Use a corrosion‑resistant grounding lug and apply anti‑oxidant compound C) Wrap the ground wire in electrical tape only
