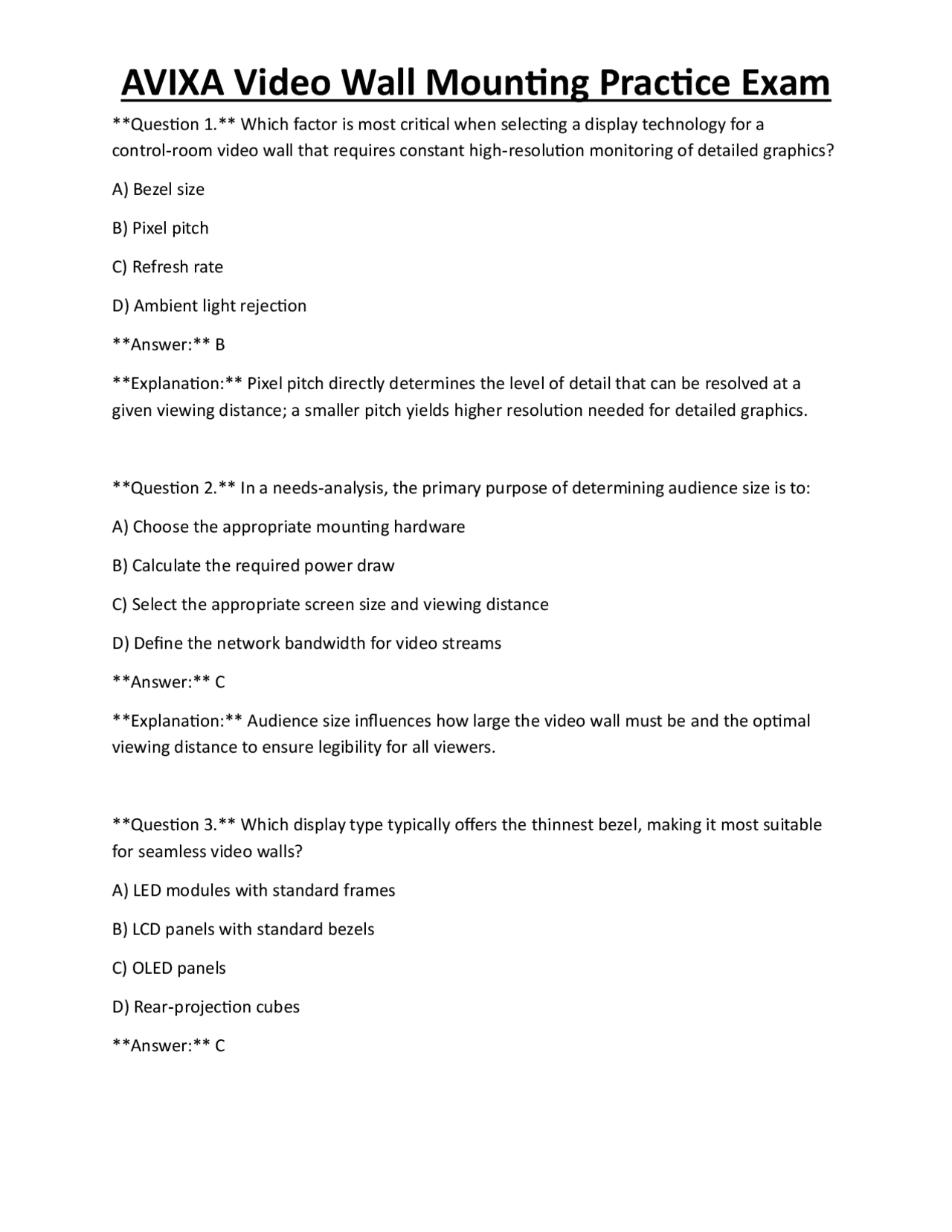

Question 1. Which factor is most critical when selecting a display technology for a control‑room video wall that requires constant high‑resolution monitoring of detailed graphics? A) Bezel size B) Pixel pitch C) Refresh rate D) Ambient light rejection Answer: B Explanation: Pixel pitch directly determines the level of detail that can be resolved at a given viewing distance; a smaller pitch yields higher resolution needed for detailed graphics. Question 2. In a needs‑analysis, the primary purpose of determining audience size is to: A) Choose the appropriate mounting hardware B) Calculate the required power draw C) Select the appropriate screen size and viewing distance D) Define the network bandwidth for video streams Answer: C Explanation: Audience size influences how large the video wall must be and the optimal viewing distance to ensure legibility for all viewers. Question 3. Which display type typically offers the thinnest bezel, making it most suitable for seamless video walls? A) LED modules with standard frames B) LCD panels with standard bezels C) OLED panels D) Rear‑projection cubes Answer: C
Explanation: OLED panels can be manufactured with ultra‑thin or virtually invisible bezels, ideal for seamless wall applications. Question 4. When reviewing architectural drawings, a symbol that looks like a double‑line rectangle with “C” inside most likely represents: A) Concrete wall B) Ceiling grid C) Cable tray D) Control room Answer: A Explanation: In most AV‑related blueprints, a double‑line rectangle with “C” denotes a concrete wall, important for mounting load calculations. Question 5. The most appropriate method to verify a wall’s load‑bearing capacity before installing a video‑wall mount is to: A) Consult the building’s structural engineering report B) Perform a visual inspection of the wall surface C) Use a torque wrench on a test anchor D) Measure the wall thickness with a tape measure Answer: A Explanation: A structural engineering report provides validated load‑bearing data; visual inspection or simple measurements cannot guarantee safety. Question 6. Which environmental factor has the greatest impact on the choice between LED and LCD video‑wall technologies? A) Ambient temperature B) Ambient light level C) Humidity
B) Lag screw with masonry anchor C) Plastic expansion anchor D) Self‑drilling drywall anchor Answer: B Explanation: Lag screws combined with masonry anchors provide the highest pull‑out strength in concrete applications. Question 10. Which PPE item is mandatory when installing a video wall above 6 ft on a scaffold? A) Safety glasses B) Hearing protection C) Fall arrest harness D) Respirator mask Answer: C Explanation: Working at height on a scaffold requires a fall arrest system to protect against serious injury from falls. Question 11. The primary advantage of an articulating mount over a fixed mount for a video wall in a conference room is: A) Increased load capacity B) Ability to tilt and pan for audience focus C) Reduced installation time D) Lower cost Answer: B Explanation: Articulating mounts provide angle adjustments, allowing the wall to be directed toward different audience zones.
Question 12. When planning cable pathways behind a recessed video wall, the minimum bend radius for a Cat6a cable is: A) 2 mm B) 4 mm C) 15 mm D) 30 mm Answer: C Explanation: Cat6a cables must maintain a minimum bend radius of about 4 times the cable diameter, typically ~15 mm, to avoid signal degradation. Question 13. Which power distribution method best reduces the risk of voltage drop for a 10 kW video wall installation? A) Single‑phase 120 V distribution B) Single‑phase 208 V distribution C) Three‑phase 208 V distribution D) Three‑phase 480 V distribution Answer: C Explanation: Three‑phase 208 V provides lower current per leg, minimizing voltage drop for high‑power loads. Question 14. The AVIXA standard DISCAS primarily addresses: A) Cable labeling conventions B) Structural load calculations for AV installations C) Display size, resolution, and pixel pitch selection D) Safety procedures for ladder use Answer: C
D) Lens shift range Answer: B Explanation: Rear‑projection cubes rely on high contrast to produce deep blacks in low‑light settings; gain is less critical. Question 18. The correct order of steps when powering up a newly installed video wall is: A) Turn on processors, then displays, then power distribution units B) Turn on power distribution units, then displays, then processors C) Turn on displays, then processors, then power distribution units D) Turn on power distribution units, then processors, then displays Answer: D Explanation: Power the distribution units first, then the processors (which may need stable power), and finally the displays to avoid surge or boot‑up issues. Question 19. Which of the following is the most effective method to ensure uniform brightness across all panels in a large video wall? A) Adjust each panel’s internal brightness setting manually B) Use a professional colorimeter and calibrate via the video‑wall processor C) Replace any panel that deviates by more than 10 % brightness D) Increase ambient lighting to mask brightness differences Answer: B Explanation: A colorimeter provides precise measurements, and the processor can apply uniform gain/offset corrections across all panels. Question 20. When coordinating with HVAC contractors during a video‑wall installation, the AV professional should primarily be concerned with: A) Duct placement that could obstruct mounting brackets
B) Refrigerant type used in the system C) Noise levels produced by the HVAC unit D) Airflow direction for thermal management behind the wall Answer: D Explanation: Proper airflow behind the wall is essential to dissipate heat from the displays and prevent overheating. Question 21. Which cable type is best suited for transmitting a 4K @ 120 Hz signal over a distance of 30 meters? A) Standard HDMI 2. B) HDMI 2.1 active cable C) Single‑mode fiber optic with SDI converter D) Cat6 Ethernet with HDMI balun Answer: B Explanation: HDMI 2.1 active cables can handle 4K @ 120 Hz over 30 m; standard HDMI 2. is limited to ~15 m, and fiber would require additional conversion. Question 22. Which of the following best describes the purpose of an EDID emulator in a video‑wall system? A) To increase the bandwidth of the video signal B) To store and present a consistent display identification to sources C) To convert analog signals to digital D) To provide power over Ethernet to displays Answer: B Explanation: EDID emulators present a fixed, known EDID to sources, ensuring stable resolution and timing negotiation.
Explanation: While torque values are good practice, AVIXA documentation focuses on equipment identification, wiring, and calibration data, not individual torque specs. Question 26. Which mounting configuration provides the greatest flexibility for future expansion of a video wall? A) Fixed floor‑to‑wall brackets B) Modular rail‑and‑panel system with removable brackets C) Directly bolted panels to the wall surface D) Ceiling‑suspended cable‑sling system Answer: B Explanation: Modular rail systems allow panels to be added or removed without major structural changes. Question 27. The recommended clearance between the rear of a video wall panel and any obstructing surface to ensure adequate airflow is: A) 0 mm (flush) B) 10 mm C) 25 mm D) 50 mm Answer: C Explanation: A minimum of 25 mm rear clearance provides sufficient airflow for most LCD/LED panels, preventing heat buildup. Question 28. In a video‑wall control system, a “scene” typically refers to: A) A pre‑programmed lighting pattern B) A saved configuration of source inputs, window layouts, and audio levels C) The physical arrangement of panels on the wall
D) A diagnostic test routine Answer: B Explanation: A scene stores the state of sources, window placements, and audio so it can be recalled instantly. Question 29. Which of the following is the most critical factor when selecting a power conditioner for a video wall? A) Number of outlets B) Surge protection rating (kA) C) Physical size D) Color of the unit Answer: B Explanation: Surge protection rating determines the unit’s ability to safeguard expensive video‑wall equipment from voltage spikes. Question 30. The term “pixel pitch” is defined as: A) The distance between two adjacent display panels B) The distance from the viewer’s eye to the screen C) The distance between the centers of two adjacent pixels on a display D) The angle of view for a single pixel Answer: C Explanation: Pixel pitch measures pixel density; smaller pitch yields higher resolution at a given viewing distance. Question 31. When configuring bezel compensation, the processor must be supplied with the exact bezel width of each panel. If a panel has a 2 mm bezel, the compensation value entered should be: A) 0 mm (no compensation)
Question 34. During installation, you notice a wall stud that is not perfectly vertical, causing a 2 mm tilt across the video wall. The best corrective action is to: A) Install shims behind the mounting brackets to level the panels B) Replace the wall entirely C) Use flexible mounting arms that auto‑compensate for tilt D) Accept the tilt; it is within tolerance Answer: A Explanation: Shims can correct minor stud misalignment, ensuring a level installation without major reconstruction. Question 35. Which AVIXA standard defines labeling conventions for AV cable identification? A) DISCAS B) F C) SIA‑E‑ 202 D) IEC 60950 Answer: B Explanation: F501 provides a systematic approach to labeling cables for easy identification and troubleshooting. Question 36. When calculating the total power draw of a video wall composed of 12 × 8 LED modules each rated at 250 W, the total power required is: A) 12 kW B) 24 kW C) 30 kW D) 36 kW Answer: B
Explanation: 12 × 8 = 96 modules; 96 × 250 W = 24 000 W = 24 kW. Question 37. Which of the following is the most common cause of “ghosting” artifacts on a video‑wall display? A) Over‑tightened mounting bolts B) Inadequate cooling causing panel overheating C) Mismatched input signal timing D) Incorrect cable color coding Answer: C Explanation: Timing mismatches lead to image retention or ghosting; cooling issues generally cause flicker, not ghosting. Question 38. For a video wall that will be used in a humid environment (≥ 80 % RH), the most important protective measure is: A) Using anti‑glare screen protectors B) Selecting displays with an IP‑rated enclosure C) Installing a dehumidifier in the room D) Applying a silicone sealant around each panel Answer: B Explanation: IP‑rated enclosures protect internal electronics from moisture ingress, essential in high‑humidity conditions. Question 39. The primary advantage of using a floor‑standing video‑wall mount in a temporary exhibition space is: A) Higher weight capacity than wall mounts B) Faster installation and removal without wall modifications C) Better thermal management
B) A looped power conduit for grounding C) A decorative cable arrangement for aesthetics D) A looped fiber optic cable for redundancy Answer: A Explanation: Service loops provide slack so cables can be moved or serviced without disconnecting. Question 43. Which mounting technique reduces the risk of “panel drift” over time due to thermal expansion? A) Using fixed, non‑adjustable brackets B) Installing brackets with spring‑loaded tensioners C) Attaching panels directly to the wall with adhesive D) Using only steel mounting hardware Answer: B Explanation: Spring‑loaded tensioners accommodate thermal expansion, preventing panels from shifting. Question 44. The most effective way to mitigate glare on a video wall installed in a lobby with large windows is to: A) Increase panel brightness to maximum B) Install anti‑glare screen films on the panels C) Use exterior shading devices or interior blinds to control incoming light D) Rotate the video wall 45° from the window plane Answer: C Explanation: Controlling ambient light at the source (shading) is more effective than merely increasing brightness or adding films.
Question 45. Which of the following best describes “thermal throttling” in a video‑wall display? A) A reduction in panel brightness to save power B) Automatic decrease in processing speed due to overheating C) A firmware update that limits frame rate D) A safety lockout that shuts down the display entirely Answer: B Explanation: Thermal throttling reduces processing or refresh rates to lower temperature when a display overheats. Question 46. When integrating a video wall with a centralized control system, the most common communication protocol used for command and control is: A) HDMI‑CEC B) RS‑ 232 C) TCP/IP over Ethernet (e.g., Crestron, AMX) D) USB‑C Answer: C Explanation: Modern control systems use TCP/IP over Ethernet for reliable, network‑based command and monitoring. Question 47. In a video‑wall installation, a “dead pixel” is best addressed by: A) Re‑seating the panel in its mount B) Re‑calibrating the display using a colorimeter C) Replacing the defective panel D) Adjusting the processor’s scaling algorithm Answer: C
D) Incorrect cable labeling Answer: B Explanation: The source’s frame rate must be supported by both the processor and the display panels; mismatches trigger the error. Question 51. The recommended practice for grounding video‑wall mounting hardware in a commercial building is to: A) Connect each mount to a separate earth rod B) Bond all mounts to the building’s main grounding bus bar C) Use insulated mounting brackets only D) Rely on the display’s internal grounding system Answer: B Explanation: Bonding all mounts to the building’s main grounding bus ensures a single reference point, reducing ground loops. Question 52. Which of the following is the most accurate method for determining the required viewing distance for a 4K video wall with a 0.8 mm pixel pitch? A) Viewing distance = 1 × pixel pitch (mm) B) Viewing distance = 2 × pixel pitch (mm) C) Viewing distance = 1 × (Resolution Height / 1000) m D) Viewing distance = 1.5 × (Panel diagonal in inches) ft Answer: C Explanation: A common rule of thumb for 4K is viewing distance ≈ (vertical resolution /
- m; pixel pitch influences perceived sharpness but this formula provides a practical distance. Question 53. When installing a video wall in a seismic zone, the mounting system must: A) Use only wood anchors
B) Include seismic‑rated brackets and fasteners per local code C) Be installed on a concrete slab only D) Avoid any flexible mounting components Answer: B Explanation: Seismic‑rated hardware is designed to withstand lateral forces, complying with building codes for earthquake‑prone areas. Question 54. The purpose of a “service panel” in a recessed video‑wall installation is to: A) Provide a decorative front surface B) Allow access to power and signal connections without removing panels C) Increase the overall weight of the wall for stability D) Act as a backup display in case of failure Answer: B Explanation: Service panels give technicians access to cables and connections while the wall remains installed. Question 55. Which of the following video‑wall configurations would result in the highest total pixel count? A) 2 × 2 matrix of 55‑inch 1080p LCDs B) 3 × 3 matrix of 55‑inch 1080p LCDs C) 2 × 3 matrix of 55‑inch 4K LCDs D) 4 × 4 matrix of 55‑inch 1080p LCDs Answer: C Explanation: 4K panels have four times the pixels of 1080p; a 2 × 3 array of 4K panels yields 6 × 8 192 × 4 320 = ≈ 197 M pixels, exceeding the others.
