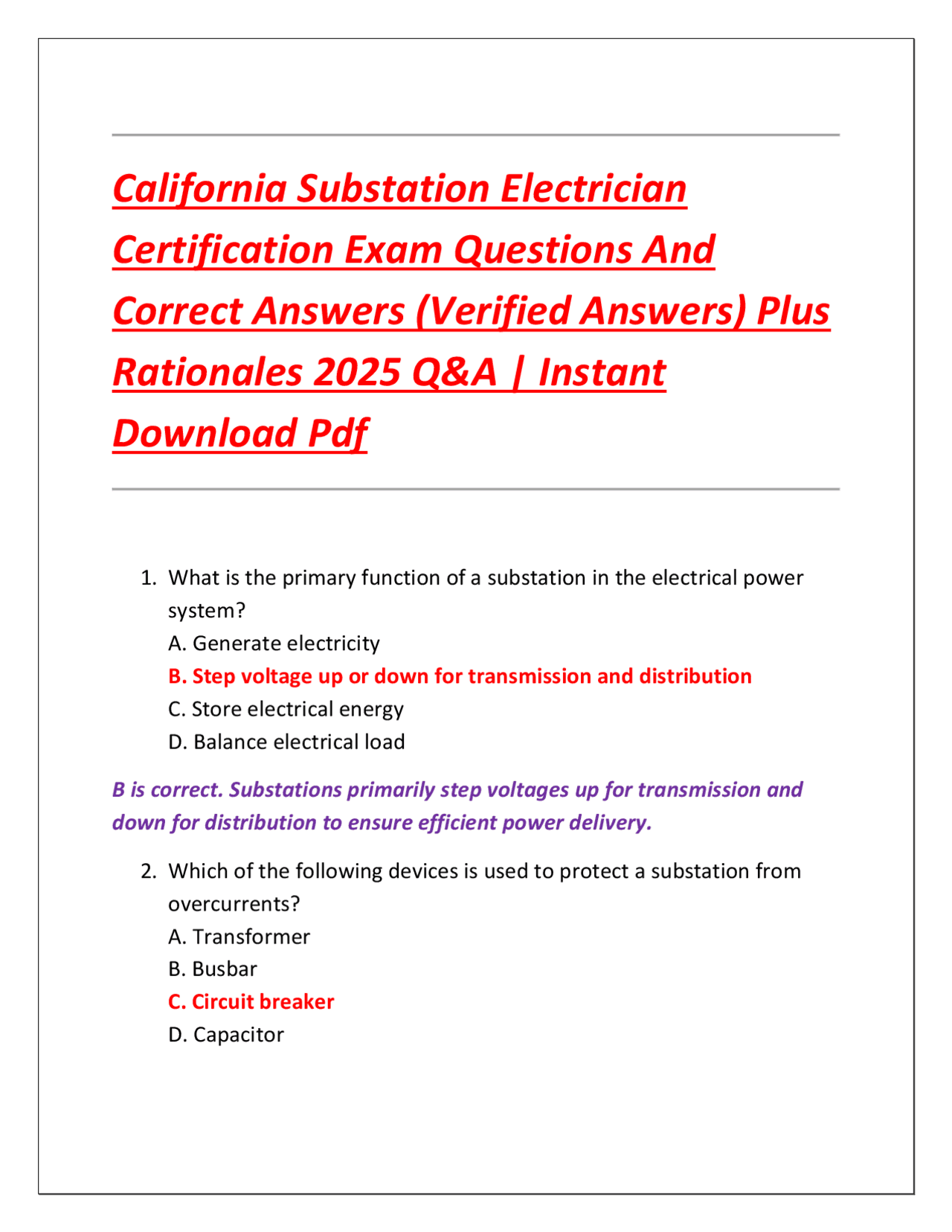

California Substation Electrician
Certification Exam Questions And
Correct Answers (Verified Answers) Plus
Rationales 2025 Q&A | Instant
Download Pdf
- What is the primary function of a substation in the electrical power system? A. Generate electricity B. Step voltage up or down for transmission and distribution C. Store electrical energy D. Balance electrical load
B is correct. Substations primarily step voltages up for transmission and down for distribution to ensure efficient power delivery.
- Which of the following devices is used to protect a substation from overcurrents? A. Transformer B. Busbar C. Circuit breaker D. Capacitor
C is correct. Circuit breakers are used to interrupt excessive currents to protect equipment and maintain safety.
- What does SCADA stand for in substation automation? A. Secure Control and Data Administration B. Supervisory Control and Data Acquisition C. Substation Communication and Data Access D. Systems Control and Diagnostics Analysis
B is correct. SCADA systems monitor and control equipment remotely within substations.
- Which equipment isolates a portion of the substation for maintenance? A. Circuit breaker B. Disconnect switch C. Transformer D. Contactor
B is correct. Disconnect switches physically isolate circuits during maintenance.
- What type of transformer is commonly used in substations? A. Step rotor transformer B. Power transformer C. Instrument transformer D. Control transformer
B is correct. Power transformers are designed to handle large voltage changes and loads in substations.
- What is a busbar used for? A. Cooling system B. Surge protection
- What is the typical frequency of the power grid in California? A. 25 Hz B. 60 Hz C. 50 Hz D. 120 Hz
B is correct. The standard frequency in North America, including California, is 60 Hz.
- What is the main purpose of a ground grid in a substation? A. Provide power backup B. Ensure personnel safety and equipment protection C. Increase voltage stability D. Store excess energy
B is correct. Grounding prevents hazardous voltages and provides a path for fault currents.
- What is corona discharge? A. A lightning surge B. Electrical discharge due to ionization of air around conductors C. Earth fault D. Static charge
B is correct. Corona occurs at high voltages due to ionization around conductors, leading to power loss.
- What kind of transformer is used to step down voltage for metering? A. Auto transformer B. Potential transformer (PT)
C. Isolation transformer D. Buck-boost transformer
B is correct. PTs reduce voltage to a measurable level for instruments.
- What is the function of a surge arrester? A. To regulate voltage B. To protect equipment from transient overvoltages C. To isolate faulty circuits D. To convert AC to DC
B is correct. Surge arresters protect substation equipment from voltage spikes like lightning.
- Which instrument measures power factor? A. Voltmeter B. Power factor meter C. Wattmeter D. Multimeter
B is correct. Power factor meters measure the phase angle between voltage and current.
- Which conductor material is most commonly used in substations? A. Silver B. Copper C. Zinc D. Iron
B is correct. Copper is favored for its high conductivity and durability.
- What type of maintenance is performed without shutting down equipment? A. Preventive
- What unit is used to measure substation grounding resistance? A. Ampere B. Ohm-meter C. Ohm D. Watt
C is correct. Grounding resistance is measured in ohms to ensure safe fault current dissipation.
- What kind of drawing shows the wiring and control logic in substations? A. Layout drawing B. Elevation drawing C. Schematic diagram D. Site plan
C is correct. Schematics illustrate the control circuits and logic of substation systems.
- What is the purpose of oil in an oil-filled transformer? A. Reduce sound B. Insulate and cool the transformer C. Increase capacitance D. Power the fans
B is correct. Transformer oil serves as both an insulator and a cooling agent.
- What device is used to monitor transformer oil temperature? A. CT B. PT C. Thermometer or thermal sensor D. Barometer
C is correct. A thermal sensor monitors oil temperature to prevent overheating.
- Which of the following could indicate transformer winding failure? A. Voltage dip B. Increased power factor C. Gas buildup in the Buchholz relay D. Increased frequency
C is correct. Gas buildup signals internal arcing or insulation failure.
- What type of fire extinguisher is used for electrical fires in substations? A. Water B. Foam C. CO2 or Dry Chemical D. Grease
C is correct. CO2 and dry chemical extinguishers safely suppress electrical fires without conducting electricity.
- What causes voltage sag? A. Increase in load B. Sudden increase in load or fault C. Low resistance D. High frequency
B is correct. Voltage sag is often caused by a temporary surge in current or a fault.
- What personal protective equipment (PPE) is crucial in substations?
C is correct. Capacitor banks help mitigate harmonics and improve power factor.
- Which test verifies insulation resistance in substation equipment? A. Load test B. Capacitance test C. Megger test D. Continuity test
C is correct. The Megger test checks insulation resistance using high- voltage DC.
- What is the function of a battery system in substations? A. Light backup B. Provide backup DC power to control and protection systems C. Store energy for grid D. Run transformers
B is correct. Battery systems ensure that relays and controls operate during power loss.
- What happens when a relay operates? A. Starts the generator B. Charges the capacitor C. Sends signal to trip breaker D. Opens a disconnect
C is correct. A relay identifies faults and triggers the appropriate breaker.
- What environmental concern is associated with SF6 gas? A. Low boiling point B. High global warming potential
C. Toxicity D. Flammability
B is correct. SF6 is a potent greenhouse gas, so proper handling and leak prevention are critical.
- What is used to maintain oil level in transformers? A. Fan B. Conservator tank C. Bushing D. Radiator
B is correct. The conservator tank accommodates oil expansion and maintains pressure.
- What is the danger of a high impedance ground fault? A. Voltage increase B. Difficult to detect by protection systems C. Power outage D. Ground grid damage
B is correct. High impedance faults cause small currents that may not trigger protection.
- What document outlines safety procedures at substations? A. Transformer nameplate B. Metering schedule C. Job Safety Analysis (JSA) D. Work order
C is correct. A JSA evaluates risks and safety protocols for each job.
C is correct. Green or green/yellow stripes are the standard for ground conductors.
- What is the first step before performing any substation work? A. Start the generator B. De-energize and lockout/tagout C. Replace fuses D. Check voltage
B is correct. Lockout/tagout procedures ensure the circuit is safely de- energized.
- What is the purpose of insulation coordination? A. Increase system voltage B. Ensure insulation can withstand overvoltages C. Increase resistance D. Reduce harmonics
B is correct. Insulation coordination ensures all components can handle electrical stress safely.
- What does the “nameplate rating” on a transformer indicate? A. Location B. Rated voltage, current, and power capacity C. Serial number D. Temperature
B is correct. The nameplate gives the operational limits and technical details of a transformer.
- Which fault causes the highest fault current in a system? A. Open circuit B. Three-phase fault
C. Ground fault D. Phase-to-neutral fault
B is correct. Three-phase faults are symmetrical and result in maximum fault current.
- What must be done before opening a high-voltage disconnect switch? A. Ground the circuit B. Ensure breaker is opened first C. Replace fuses D. Remove relay settings
B is correct. Opening the disconnect under load can cause arcing; breaker must open first.
- What type of maintenance includes cleaning and tightening connections? A. Emergency B. Predictive C. Preventive D. Corrective
C is correct. Preventive maintenance reduces the risk of future failures.
- What does a high dissolved gas analysis (DGA) result indicate in a transformer? A. Normal operation B. Low load C. Possible internal fault or overheating D. High frequency
C is correct. DGA identifies gases released from insulation breakdown or arcing.
C. Low insulation resistance D. High capacitance
C is correct. Low insulation resistance can signal breakdown of insulating materials.
- What is the primary function of a battery charger in a substation? A. Operate transformers B. Maintain charge on the DC battery system C. Provide AC backup D. Monitor relays
B is correct. Chargers ensure batteries remain fully charged for emergency DC power.
- Which of the following can cause overheating in transformers? A. Low ambient temperature B. Overloading or insufficient cooling C. Low voltage D. Frequency fluctuation
B is correct. Excess load or poor heat dissipation results in transformer overheating.
- What is a bushing in a substation? A. Type of transformer B. Surge protection device C. Insulated device allowing conductor to pass through grounded barrier D. Cooling fan
C is correct. Bushings allow conductors to pass through equipment enclosures safely.
- What can an infrared (IR) camera detect in substations? A. Voltage fluctuations B. Ground resistance C. Hotspots or abnormal heating D. Arc flash
C is correct. IR cameras help spot overheating parts that may fail.
- Which of the following indicates a healthy grounding system? A. High voltage readings B. High resistance C. Low resistance readings to earth D. High current
C is correct. A properly grounded system will have minimal resistance to earth.
- What is the standard unit for measuring energy consumption? A. Watt B. Kilowatt-hour (kWh) C. Ampere D. Volt
B is correct. Kilowatt-hours measure the total energy used over time.
- What type of current does a CT measure? A. AC and DC B. Alternating current (AC) C. Only DC D. Pulsed current
B is correct. Current transformers are designed to measure AC currents.
B is correct. OSHA requires a minimum of 10 feet for unqualified persons near 230 kV conductors.
- What is the danger of overexciting a transformer? A. Increase in frequency B. Excessive heating and insulation damage C. Higher efficiency D. Increased cooling
B is correct. Overexcitation raises magnetic flux, leading to heating and eventual damage.
- What is used to test circuit breaker operation timing? A. Megger B. Breaker timing tester C. Oscilloscope D. Frequency counter
B is correct. A timing tester checks opening and closing speeds to ensure correct breaker operation.
- What is the effect of an open CT secondary? A. High current B. Dangerous high voltage C. Low voltage D. No effect
B is correct. An open CT secondary develops dangerously high voltage and can damage equipment or injure personnel.
- Which substation function involves synchronizing generators to the grid? A. Metering B. Grounding
C. Switching D. SCADA
C is correct. Switching equipment is used to synchronize and connect/disconnect sources.
- What is used to prevent transformer oil contamination? A. Fans B. Load tap changer C. Breather with silica gel D. PT
C is correct. Breathers with silica gel dry the air entering the transformer, keeping moisture out.
- What causes ferroresonance in substations? A. High fault current B. Interaction of inductance and capacitance in lightly loaded circuits C. Oil degradation D. Corona discharge
B is correct. Ferroresonance is a nonlinear resonance condition typically involving capacitors and transformers.
- Which of these conditions requires immediate transformer shutdown? A. Slight humming B. Low load C. Rapid temperature rise or Buchholz relay trip D. Tap changer clicking
C is correct. These symptoms suggest internal faults requiring immediate shutdown.
