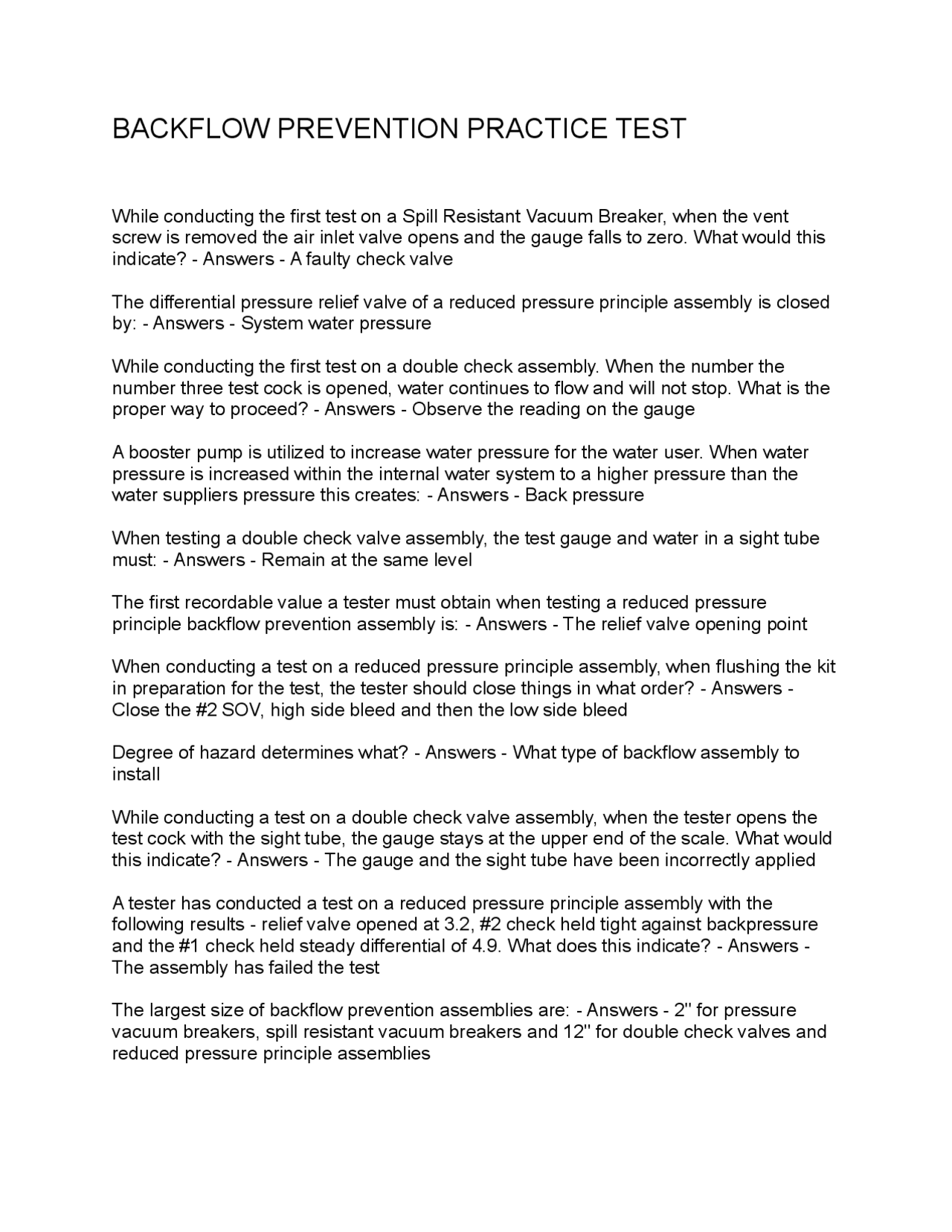

BACKFLOW PREVENTION PRACTICE TEST

While conducting the first test on a Spill Resistant Vacuum Breaker, when the vent

screw is removed the air inlet valve opens and the gauge falls to zero. What would this

indicate? - Answers - A faulty check valve

The differential pressure relief valve of a reduced pressure principle assembly is closed

A booster pump is utilized to increase water pressure for the water user. When water

pressure is increased within the internal water system to a higher pressure than the

water suppliers pressure this creates: - Answers - Back pressure

When testing a double check valve assembly, the test gauge and water in a sight tube

must: - Answers - Remain at the same level

The first recordable value a tester must obtain when testing a reduced pressure

principle backflow prevention assembly is: - Answers - The relief valve opening point

While conducting a test on a double check valve assembly, when the tester opens the

test cock with the sight tube, the gauge stays at the upper end of the scale. What would

this indicate? - Answers - The gauge and the sight tube have been incorrectly applied

A tester has conducted a test on a reduced pressure principle assembly with the

following results - relief valve opened at 3.2, #2 check held tight against backpressure

and the #1 check held steady differential of 4.9. What does this indicate? - Answers -

The assembly has failed the test
