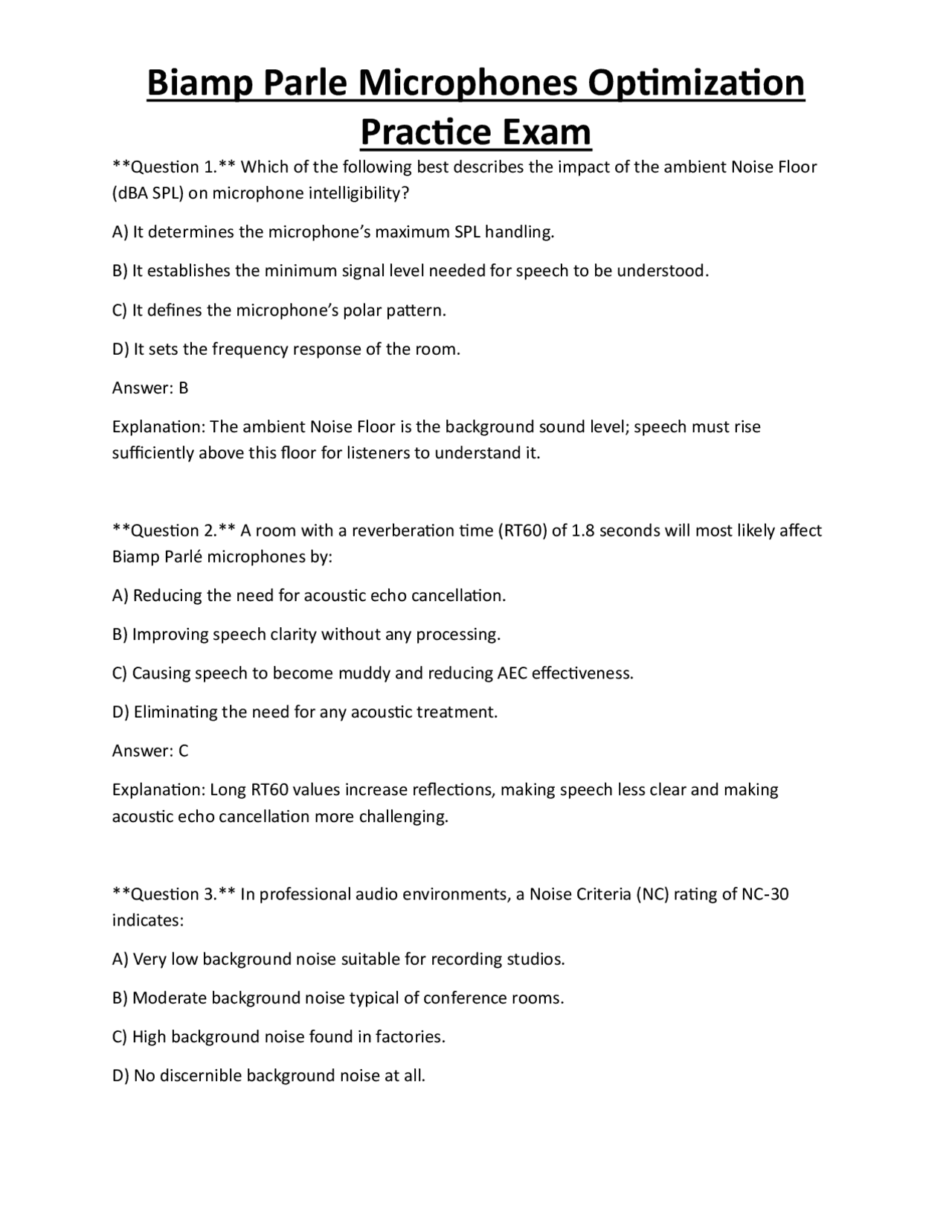

Practice Exam
Question 1. Which of the following best describes the impact of the ambient Noise Floor (dBA SPL) on microphone intelligibility? A) It determines the microphone’s maximum SPL handling. B) It establishes the minimum signal level needed for speech to be understood. C) It defines the microphone’s polar pattern. D) It sets the frequency response of the room. Answer: B Explanation: The ambient Noise Floor is the background sound level; speech must rise sufficiently above this floor for listeners to understand it. Question 2. A room with a reverberation time (RT60) of 1.8 seconds will most likely affect Biamp Parlé microphones by: A) Reducing the need for acoustic echo cancellation. B) Improving speech clarity without any processing. C) Causing speech to become muddy and reducing AEC effectiveness. D) Eliminating the need for any acoustic treatment. Answer: C Explanation: Long RT60 values increase reflections, making speech less clear and making acoustic echo cancellation more challenging. Question 3. In professional audio environments, a Noise Criteria (NC) rating of NC‑ 30 indicates: A) Very low background noise suitable for recording studios. B) Moderate background noise typical of conference rooms. C) High background noise found in factories. D) No discernible background noise at all.
Practice Exam
Answer: B Explanation: NC‑30 corresponds to a moderate noise level (≈ 30 dBA) often acceptable for meeting spaces but may require microphone gain adjustments. Question 4. Which tool is most appropriate for gathering accurate SPL measurements for Parlé microphone planning? A) A handheld oscilloscope. B) A calibrated sound level meter. C) A digital multimeter. D) A smartphone camera. Answer: B Explanation: A calibrated SPL meter provides precise dBA readings needed to assess ambient noise and reverberation. Question 5. When interpreting SPL measurements, a reading of 45 dBA in a conference room suggests: A) The room is too quiet for speech. B) The microphone will need higher gain to overcome the noise floor. C) The ambient noise is within acceptable limits for most Parlé microphones. D) The room requires acoustic treatment to meet NC‑20. Answer: C Explanation: 45 dBA is typical for occupied conference rooms and is generally manageable for Parlé microphones with proper gain settings. Question 6. The Parlé Calculator (Ceiling) helps determine: A) The exact frequency response of the microphone.
Practice Exam
Question 9. Which placement practice should be avoided to maintain optimal Parlé microphone performance? A) Installing near a ceiling tile. B) Mounting directly above the speaker’s head. C) Positioning within 12 inches of an HVAC vent. D) Using the plenum box for cable routing. Answer: C Explanation: Proximity to HVAC vents introduces airflow noise that degrades SNR. Question 10. The primary function of the Parlé plenum box/network box is to: A) Provide power to the microphone. B) Route audio, control, and PoE signals to the microphone. C) Convert analog audio to digital. D) Act as a wireless transmitter. Answer: B Explanation: The plenum box houses the connections for audio, control, and Power over Ethernet. Question 11. AVB/Control ports on Parlé microphones are used for: A) Supplying 120 V AC power. B) Transmitting audio, control data, and PoE/PoE+. C) Connecting to a Bluetooth receiver. D) Providing a video signal. Answer: B Explanation: The AVB/Control port carries audio, control, and Power over Ethernet signals.
Practice Exam
Question 12. What is the maximum recommended CAT6 cable length between a Parlé microphone and its network box? A) 100 ft B) 200 ft C) 300 ft D) 500 ft Answer: B Explanation: AVB/Control signals over CAT6 are reliable up to about 200 ft without repeaters. Question 13. Which mounting accessory is required when installing a TCM‑X ceiling microphone on a non‑plenum ceiling? A) Tile Bridge (TB‑1) B) Flush Mount Kit C) Grommet Kit D) Ceiling Tile Adapter Answer: B Explanation: The Flush Mount Kit allows secure installation on solid ceilings without a plenum space. Question 14. When mounting a TTM‑X tabletop microphone, the Secure Mounting Kit provides: A) A wireless power source. B) A magnetic base for quick placement. C) A sturdy anchor and cable management. D) An integrated speaker.
Practice Exam
D) Convert analog audio to MIDI. Answer: B Explanation: Custom mode exposes advanced processing settings for fine‑tuning. Question 18. Beamtracking technology in Parlé microphones primarily uses: A) Manual lobe aiming by the installer. B) Automatic detection of active talkers through acoustic segmentation. C) Infrared sensors on the ceiling. D) Pre‑programmed room maps. Answer: B Explanation: Beamtracking automatically segments the audio field and follows the loudest source. Question 19. Which Room Acoustic Setting preset should be selected for a space measured with an RT60 of 0.9 seconds and NC‑30? A) Good B) Poor C) Custom D) None of the above Answer: A Explanation: An RT60 under 1 second and moderate NC‑30 indicates acceptable acoustics, matching the “Good” preset. Question 20. Selecting the “Poor” acoustic preset in the Parlé block will: A) Increase the microphone’s gain automatically. B) Apply stronger noise‑reduction filters and EQ adjustments.
Practice Exam
C) Disable beamtracking. D) Switch the microphone to a mono output. Answer: B Explanation: The “Poor” preset adds more aggressive processing to compensate for bad room acoustics. Question 21. In the Tesira UI, the RMS meter displayed on the Parlé block indicates: A) The current network bandwidth usage. B) The average power level of the selected beam or segment. C) The temperature of the microphone housing. D) The battery charge level. Answer: B Explanation: RMS (Root Mean Square) reflects the average signal level, useful for monitoring beam activity. Question 22. The Beam indicator in Tesira shows: A) The direction of the active acoustic beam. B) The Wi‑Fi signal strength. C) The power consumption of the microphone. D) The firmware version. Answer: A Explanation: The Beam indicator visualizes which beam is currently tracking a talker. Question 23. Which of the following is a critical requirement for a correct Acoustic Echo Cancellation (AEC) reference signal? A) It must be delayed by at least 200 ms.
Practice Exam
Question 26. The Gating Auto Mixer should be placed in the signal chain: A) Before the AEC block. B) After the AEC block and before AGC. C) After AGC and before the compressor. D) At the very end of the chain. Answer: B Explanation: Placing the Auto Mixer after AEC ensures echo‑canceled audio is gated and mixed correctly. Question 27. If the Automatic Gain Control (AGC) block is placed before the Gating Auto Mixer, the likely result is: A) Improved noise floor reduction. B) Unstable gain leading to clipping or low‑level audio. C) Enhanced beamtracking accuracy. D) No effect on the audio path. Answer: B Explanation: AGC before gating can cause gain fluctuations that the Auto Mixer cannot compensate for, leading to instability. Question 28. The internal Advanced Compressor in the Parlé block acts primarily as: A) A limiter to prevent overload. B) An expander/soft gate to lower the noise floor when no talker is present. C) A multiband equalizer. D) A de‑esser for sibilance removal. Answer: B
Practice Exam
Explanation: The Advanced Compressor expands low‑level signals, effectively reducing background noise when speech is absent. Question 29. Proper gain structure after the AEC block requires that the signal level be: A) Clipped at – 3 dBFS. B) Around – 20 dBFS RMS before dynamics processing. C) At 0 dBFS peak. D) Below – 40 dBFS to avoid distortion. Answer: B Explanation: Maintaining a moderate RMS level (≈–20 dBFS) ensures headroom for subsequent processing while preserving SNR. Question 30. Tuning the microphone’s EQ by listening through the far‑end telephony codec is recommended because: A) The codec adds extra latency for better assessment. B) It replicates the actual listening environment of remote participants. C) It bypasses all DSP, giving a raw signal. D) It eliminates the need for a sound level meter. Answer: B Explanation: Listening through the codec mirrors the end‑user experience, allowing accurate EQ adjustments for clarity. Question 31. The Logic State output from the Parlé Processing Block is typically used to: A) Control the microphone’s power supply. B) Change the LED color indicating mute status. C) Adjust the microphone’s polar pattern.
Practice Exam
B) Fine C) Finest D) None of the above Answer: C Explanation: The “Finest” logic level corresponds to the most precise beam segment, ideal for precise camera targeting. Question 35. In a multi‑room installation, how can you monitor which microphone is currently active? A) By checking the physical LED on each microphone. B) By reading the Parlé Block’s “Mic Active” logic output in Tesira. C) By listening to the room’s ambient noise. D) By measuring the voltage on the AVB port. Answer: B Explanation: The “Mic Active” logic output provides a digital indication of the active microphone(s). Question 36. When installing a TCM‑XEX expansion unit, the primary purpose is to: A) Provide additional power to the microphone. B) Extend the number of microphone inputs beyond the base unit. C) Convert analog audio to digital. D) Add wireless capability. Answer: B Explanation: The TCM‑XEX allows additional ceiling microphones to be connected to a single processing block.
Practice Exam
Question 37. The TTM‑XEX expansion unit is used to: A) Increase the number of tabletop microphones in a system. B) Provide a backup power supply. C) Convert the microphone to a line‑level source. D) Add a built‑in speaker. Answer: A Explanation: The TTM‑XEX expands the count of tabletop microphones that can be managed. Question 38. Which cable type is recommended for connecting a Parlé microphone’s audio to the network box? A) Coaxial RG‑ 6 B) Shielded CAT5e or CAT C. 3.5 mm stereo cable D) HDMI cable Answer: B Explanation: Shielded CAT5e/6 carries AVB/Control signals and power over Ethernet. Question 39. The recommended mounting washer/nut for a ceiling TCM‑X microphone ensures: A) Electrical grounding. B) Secure mechanical attachment to the plenum box. C) Wireless signal strength. D) Automatic beam alignment. Answer: B Explanation: The washer/nut provides a stable, load‑bearing connection to the ceiling structure.
Practice Exam
Explanation: The Beam Block offers logic outputs that can be used for camera control and other system integrations. Question 43. In Tesira, a “Peak” indicator on the Parlé block is most useful for: A) Monitoring the highest instantaneous level of a beam. B) Measuring room temperature. C) Checking network latency. D. Determining the microphone’s battery health. Answer: A Explanation: The peak meter shows the maximum signal level, helping detect clipping or spikes. Question 44. Which of the following is a recommended practice when configuring the Noise Reduction (NR) level for a room with high ambient noise? A) Set NR to 0 dB (off). B) Increase NR to a higher dB value to suppress background noise. C) Disable NR and rely on AGC. D. Use NR only on the far‑end side. Answer: B Explanation: Higher NR settings attenuate background noise, improving speech intelligibility in noisy environments. Question 45. The “Non‑Linear Processing” (NLP) parameter in the AEC block primarily addresses: A) Linear phase distortion. B) Residual echo that is not linearly related to the far‑end signal. C) Network jitter.
Practice Exam
D) Power supply fluctuations. Answer: B Explanation: NLP targets echo components that are not directly correlated with the reference signal, improving cancellation. Question 46. Which of the following best describes the relationship between RT60 and the need for internal EQ in the Parlé block? A) Longer RT60 values require less EQ. B) Shorter RT60 values demand more aggressive high‑frequency EQ. C) Longer RT60 values often necessitate additional low‑frequency damping EQ. D. RT60 has no impact on EQ settings. Answer: C Explanation: Prolonged reverberation adds low‑frequency buildup; EQ can be used to tame those frequencies. Question 47. When using the “Preconfigure for Beamtracking Mics” option in the Gating Auto Mixer, the block: A) Disables all gating thresholds. B) Sets default thresholds optimized for beamtracked audio. C. Enables a built‑in compressor. D. Converts the audio to mono. Answer: B Explanation: The preconfiguration applies settings known to work well with Parlé beamtracking microphones. Question 48. In a scenario where the microphone’s LED is stuck on red despite being unmuted, the most likely cause is:
Practice Exam
Explanation: The TCM‑1 is a low‑profile ceiling microphone designed for small rooms and minimal visual impact. Question 51. The primary acoustic advantage of using a tabletop microphone (TTM‑X) over a ceiling microphone in a room with high ceiling height is: A) Higher gain before the AEC. B) Direct line‑of‑sight to the speaker, reducing distance‑related loss. C. Ability to function without power. D. Built‑in acoustic treatment. Answer: B Explanation: A tabletop mic is closer to the talker, improving SNR when ceiling height is excessive. Question 52. When measuring ambient noise with a SPL meter, which weighting filter should be used for speech intelligibility assessment? A) C‑weighting B) A‑weighting C. Z‑weighting D. B‑weighting Answer: B Explanation: A‑weighting approximates human hearing sensitivity in the speech frequency range. Question 53. If a room’s measured NC rating is NC‑45, what is the recommended action for a Parlé installation? A) No action; the microphone will perform fine. B) Install additional acoustic treatment to lower the NC rating.
Practice Exam
C. Increase microphone gain to overcome the high noise floor. D. Replace the microphone with a directional shotgun model. Answer: B Explanation: NC‑45 indicates a very noisy environment; acoustic treatment is needed to improve intelligibility. Question 54. The “Room Acoustic Setting – Custom” option allows you to: A) Upload a proprietary room impulse response file. B. Manually adjust internal filter coefficients, EQ, and beam parameters. C. Disable beamtracking entirely. D. Change the microphone’s physical orientation. Answer: B Explanation: Custom mode exposes detailed processing controls for fine‑tuning to a specific room’s acoustics. Question 55. Which of the following is NOT a typical symptom of an improperly configured AEC reference signal? A) Persistent echo heard by remote participants. B. Sudden audio dropouts. C. Elevated background noise after echo cancellation. D. Reduced microphone gain. Answer: D Explanation: A bad AEC reference does not directly affect gain; it mainly causes echo and noise artifacts. Question 56. In Tesira, the “Beam Indicator” changes color to red when:
